Bosch EasyDrill 18V-38

Bosch EasyDrill 18V-38 cordless drill driver: exploded parts diagram, 3 sheets, 35 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyDrill 18V-38: 35 positions on 3 sheets

Bosch EasyDrill 18V-38 parts list (3 sheets)

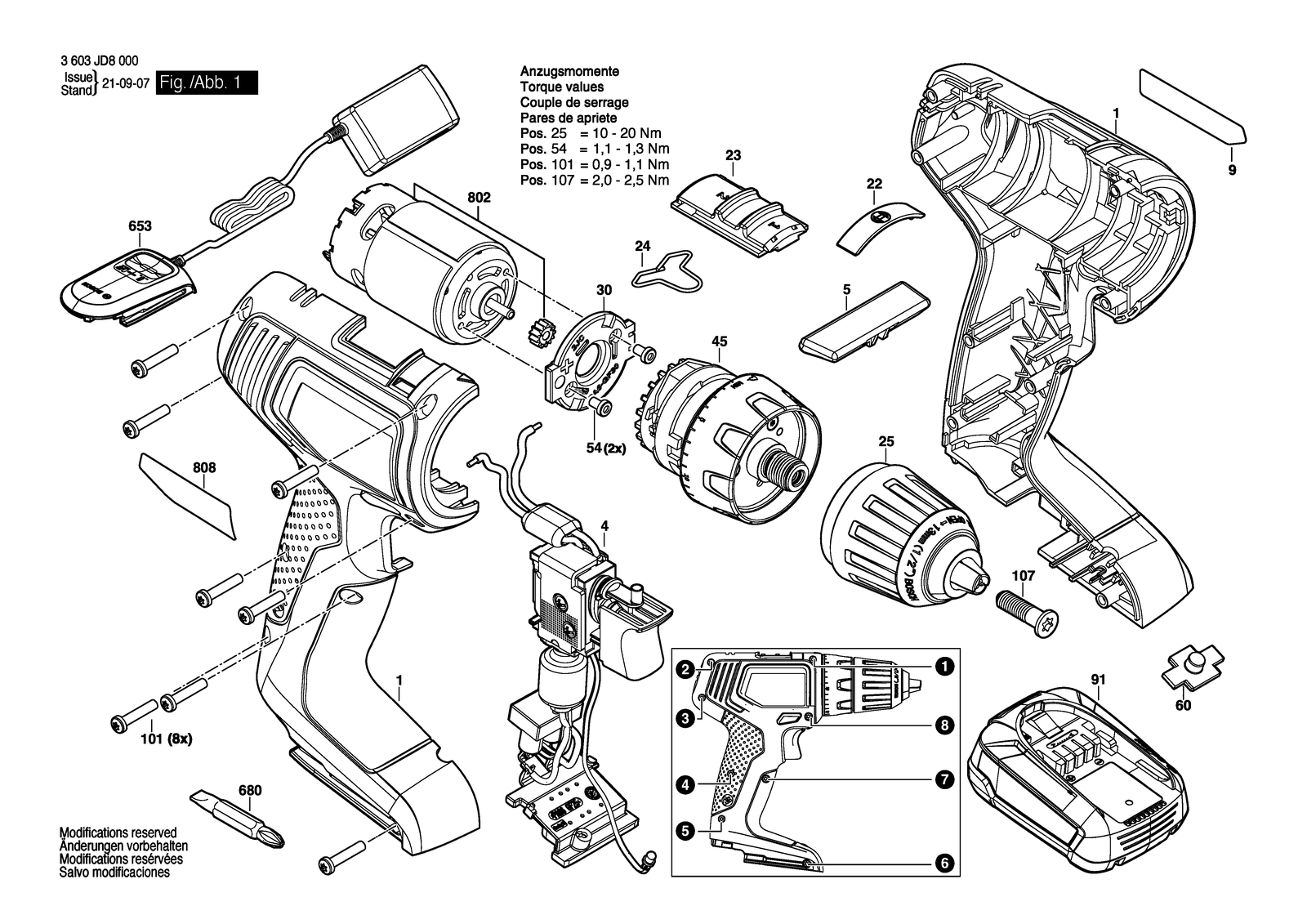

Bosch EasyDrill 18V-38 parts diagram, sheet 1Bosch EasyDrill 18V-38 parts diagram, sheet 2Bosch EasyDrill 18V-38 parts diagram, sheet 3
No.Part numberPart name
11605806699Housing
1012609110201Torx Flat-Head Screw 3X16
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
221600A01AS2Symbol plate
231600A021Z3Switch Slide
242609004496Spring
251600A0103SKeyless Chuck
252609112190Keyless Chuck
301600A022JCFlange
42607202525Switch Assembly
451600A023Z3Planetary Gear Train
52609004264Lever
542603414048Torx SH cap screw M3X5-8.8-Z
601600A022JDLens
6501600A013NMCarrying Case
6532607226385Fast Charger EU AL 1810 CV 230/14,4-18V 1A
6532607226389Fast Charger Aus AL1810CV
6532607226393Fast Charger Rok AL 1810 CV 230V/14.4-18V
6532607226517Charger EU AL 18V-20 230V 2A
6532607226519Charger UK AL 18V-20 230V 2A
6532607226593Charger Aus AL 18V-20 220-240V 2A
6802609160063Screwdriver Bit
8021607000EU1DC motor
808160111A90ZNameplate
808160111A94YNameplate
808160111AA93Nameplate
808160111AA95Nameplate
9160111C4D5Manufacturer's nameplate Easydrill 18V-40
9160111C4PYManufacturer's nameplate Easydrill 18V-38
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RSBattery Pack
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911607A351C9Battery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
