Bosch EasyCut&Grind

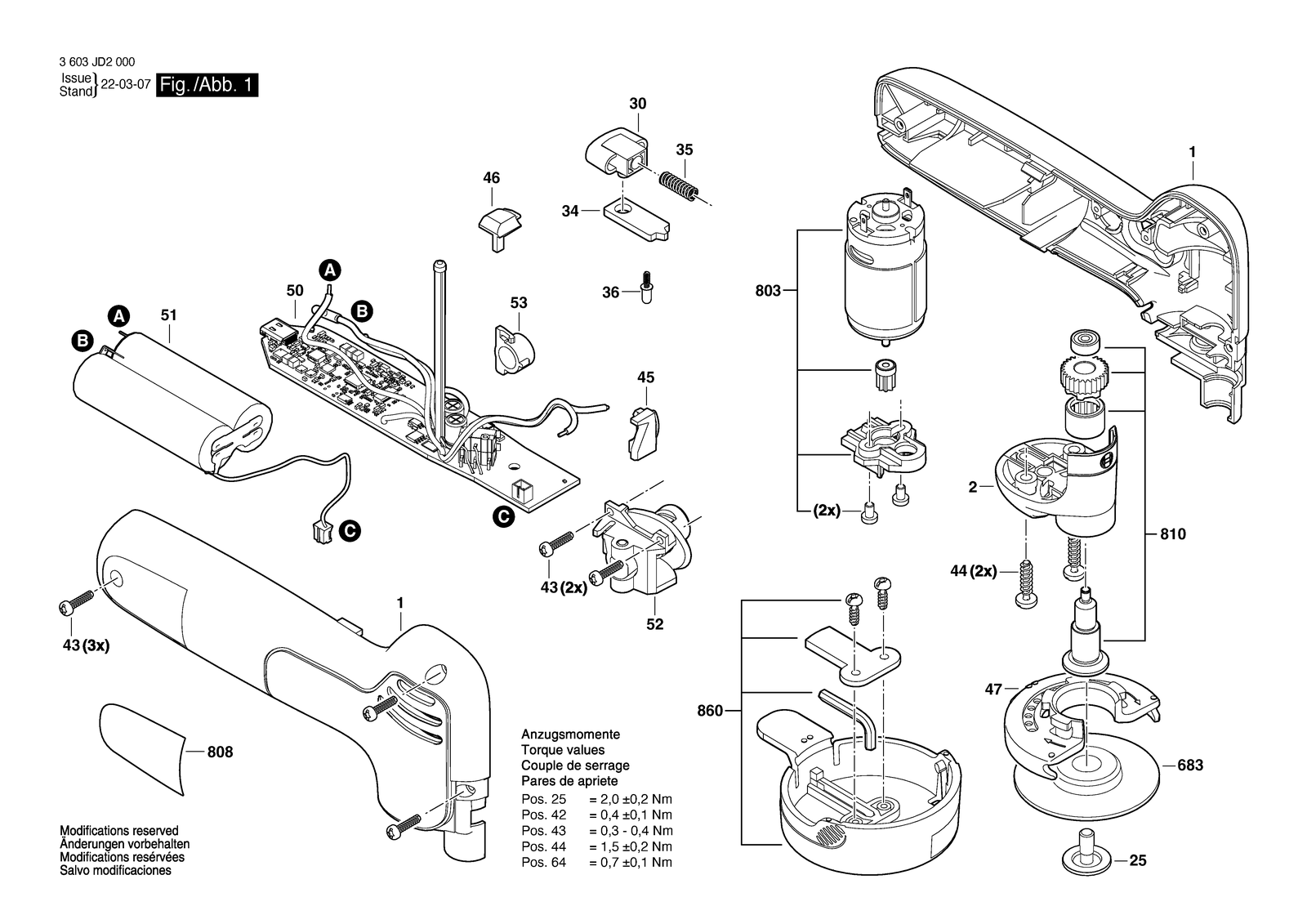

Bosch EasyCut&Grind cordless angle grinder: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyCut&Grind: 21 positions on 1 sheet
Bosch EasyCut&Grind parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A01PR1 | Housing |
| 2 | 1600A01PU2 | Base Plate |
| 25 | 1600A01S0X | Clamping Nut |
| 30 | 1600A01R79 | Button |
| 34 | 1600A01PC5 | Rod |
| 35 | 2604690055 | Compression Spring |
| 36 | 1600A01T4K | Spring Sleeve |
| 43 | 2609110361 | Screw |
| 44 | 2603490022 | Screw 4X16 |
| 45 | 1600A01TJ6 | Lens |
| 46 | 1600A01TJ7 | Lens |
| 47 | 1600A01S96 | Connection cover |
| 50 | 1600A01S36 | Electronic Assembly |
| 51 | 1617S021K7 | Battery Set |
| 52 | 1600A021U3 | Switch Assembly |
| 53 | 1600A01S8K | Push Button |
| 683 | 1600A01U14 | Sander Plate Ø 46MM |
| 803 | 1607000E1A | DC motor |
| 808 | 160111A8GG | Nameplate |
| 810 | 1607000E1B | Output Shaft |
| 860 | 1600A01U2Z | Covering hood |
