Bosch EasyAquatak 110
Bosch EasyAquatak 110 high pressure cleaner: exploded parts diagram, 3 sheets, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

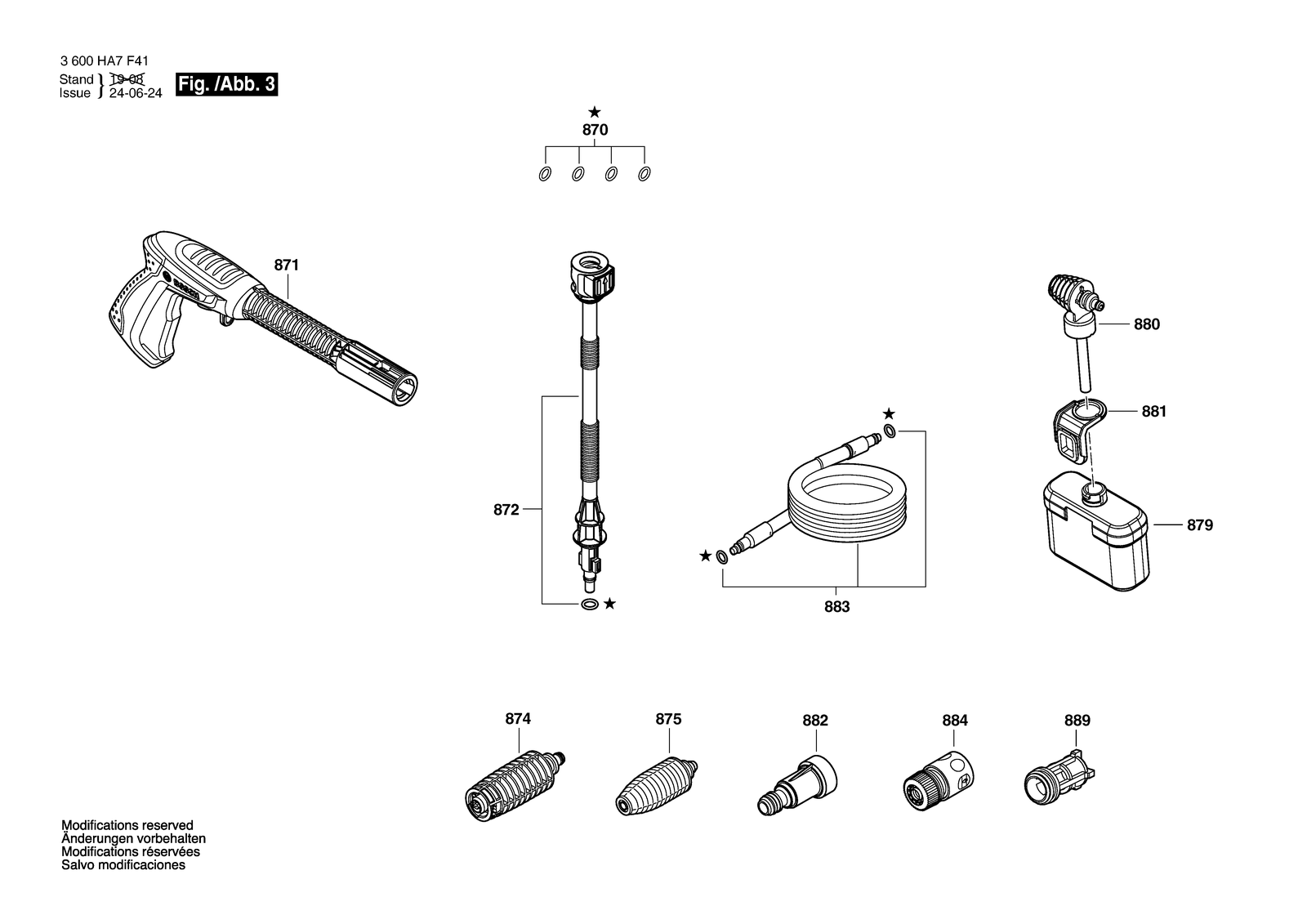

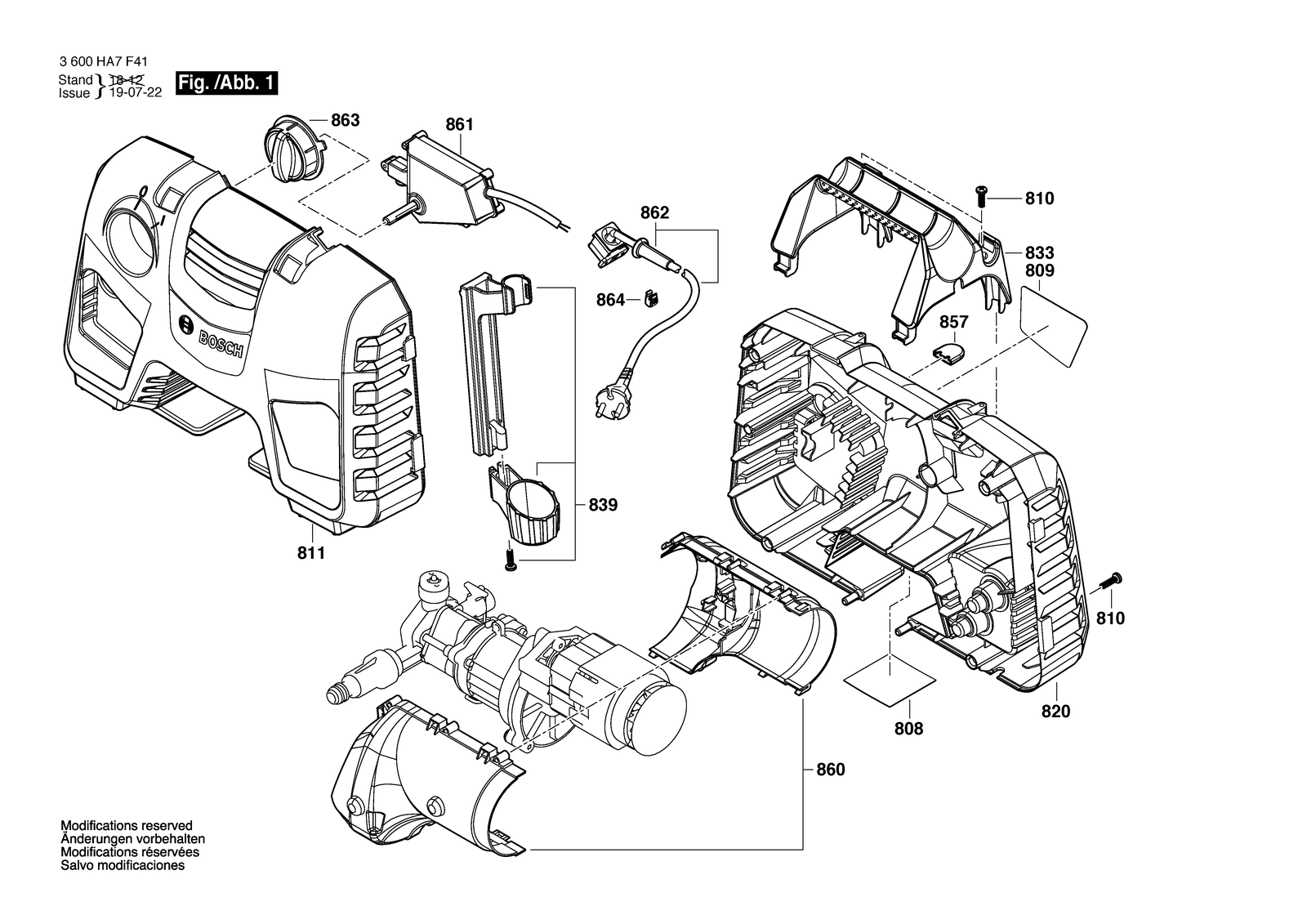

All parts of Bosch EasyAquatak 110: 42 positions on 3 sheets
Bosch EasyAquatak 110 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 801 | F016F04804 | Motor |
| 808 | F016F05076 | Nameplate |
| 808 | F016F05077 | Nameplate |
| 808 | F016F05491 | Nameplate |
| 809 | F016F04811 | Warning Label |
| 810 | F016F04810 | Torx SH cap screw |
| 811 | F016F05133 | Front cover |
| 820 | F016F04792 | Cover |
| 833 | F016F04793 | Carrying Handle |
| 839 | F016F04807 | Holder |
| 843 | F016F05402 | O-Ring |
| 850 | F016F04459 | O-Ring |
| 851 | F016F04801 | Pump head |
| 852 | F016F05171 | Piston Guide |
| 853 | F016F04798 | Pump unit |
| 854 | F016F04803 | Thrust Bearing |
| 855 | F016F05352 | Gear Box |
| 856 | F016F04809 | Non-Return Valve |
| 857 | F016F04681 | Clip |
| 860 | F016F04806 | Motor cover |
| 861 | F016F04797 | Switch Box |
| 862 | F016F04814 | Power supply cord |
| 862 | F016F04815 | Power supply cord |
| 862 | F016F04816 | Power supply cord |
| 862 | F016F04817 | Power supply cord |
| 862 | F016F05134 | Power supply cord |
| 862 | F016F06047 | Power supply cord Thailand |
| 863 | F016F04805 | Switch Actuator |
| 864 | F016F05432 | Clip |
| 870 | F016F04458 | Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6) |
| 871 | F016F04796 | Trigger |
| 872 | F016F05135 | Lance |
| 874 | F016F05401 | Wide Angle Nozzle White |
| 875 | F016F05362 | Nozzle White |
| 879 | F016F05036 | Bottle 450ML |
| 880 | F016F05029 | High pressure foam nozzle Green |
| 881 | F016F04795 | Clip |
| 882 | F016F05136 | Water filter |
| 883 | F016F04583 | High-Pressure Hose 3 M |
| 884 | F016F05492 | Hose Coupling |
| 888 | F016F05661 | Water filter |
| 889 | F016F06182 | Water filter |
