Bosch EasyAquatak 100

Bosch EasyAquatak 100 high pressure cleaner: exploded parts diagram, 3 sheets, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyAquatak 100: 33 positions on 3 sheets

Bosch EasyAquatak 100 parts list (3 sheets)

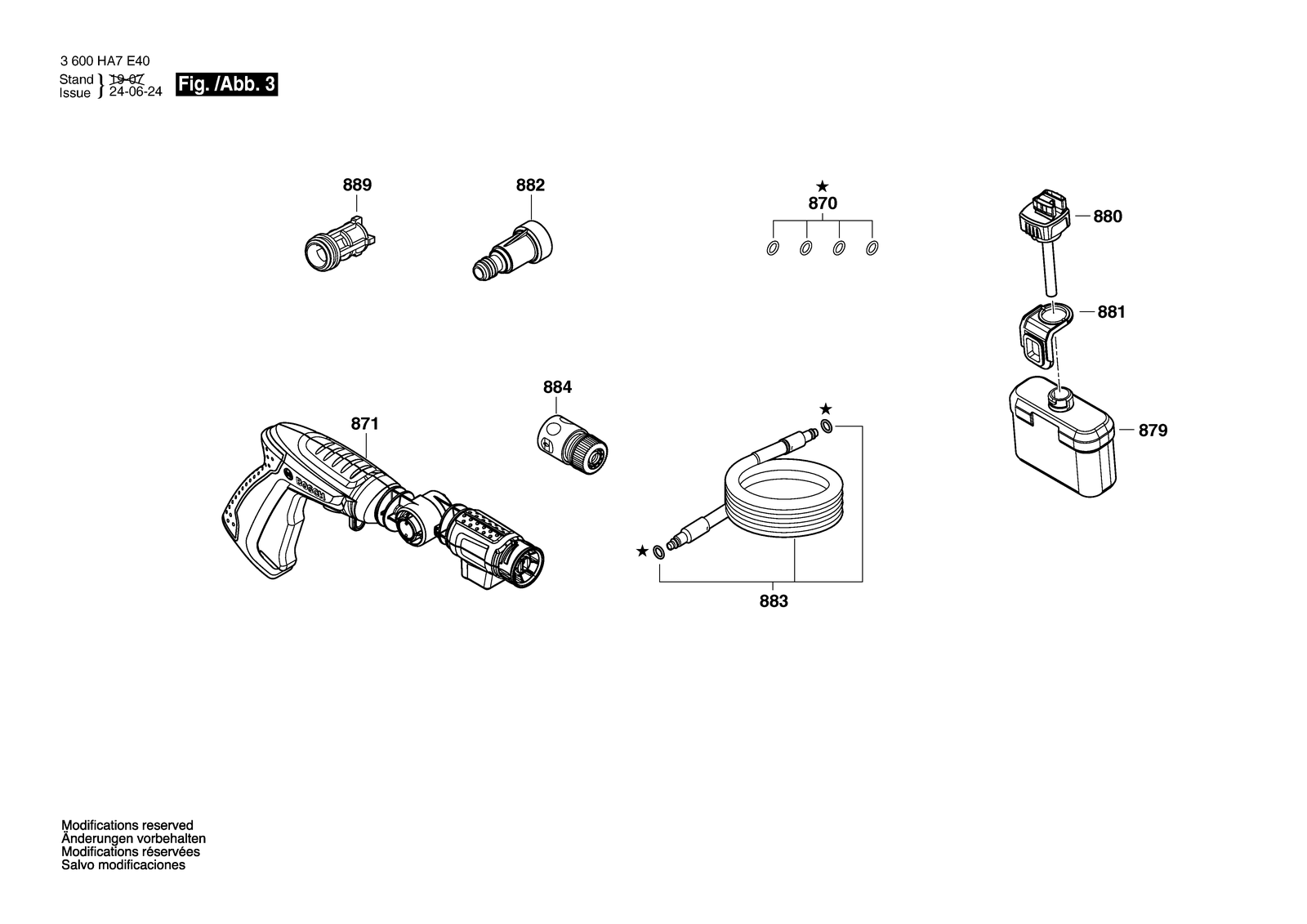

Bosch EasyAquatak 100 parts diagram, sheet 1Bosch EasyAquatak 100 parts diagram, sheet 2Bosch EasyAquatak 100 parts diagram, sheet 3
No.Part numberPart name
801F016F05124Motor
808F016F05074Nameplate
808F016F05075Nameplate
809F016F05125Warning Label
810F016F04810Torx SH cap screw
811F016F05126Front cover
820F016F05127Cover
843F016F05402O-Ring
850F016F04459O-Ring
851F016F04801Pump head
852F016F05171Piston Guide
853F016F04798Pump unit
854F016F04803Thrust Bearing
855F016F05129Gear Box
856F016F04809Non-Return Valve
857F016F04681Clip
860F016F05130Motor cover
861F016F05257Switch Box
862F016F05172Power supply cord
862F016F05173Power supply cord
862F016F05174Power supply cord
862F016F05175Power supply cord
863F016F04805Switch Actuator
870F016F04458Seal Kit 2 X (5.3 X 1.6), 2 X (8X2), 2 X (7.X1.6)
871F016F05131Trigger
879F016F05036Bottle 450ML
880F016F05132Connector
881F016F04795Clip
882F016F05136Water filter
883F016F04583High-Pressure Hose 3 M
884F016F05492Hose Coupling
888F016F05661Water filter
889F016F06182Water filter
