Bosch E 41 SB

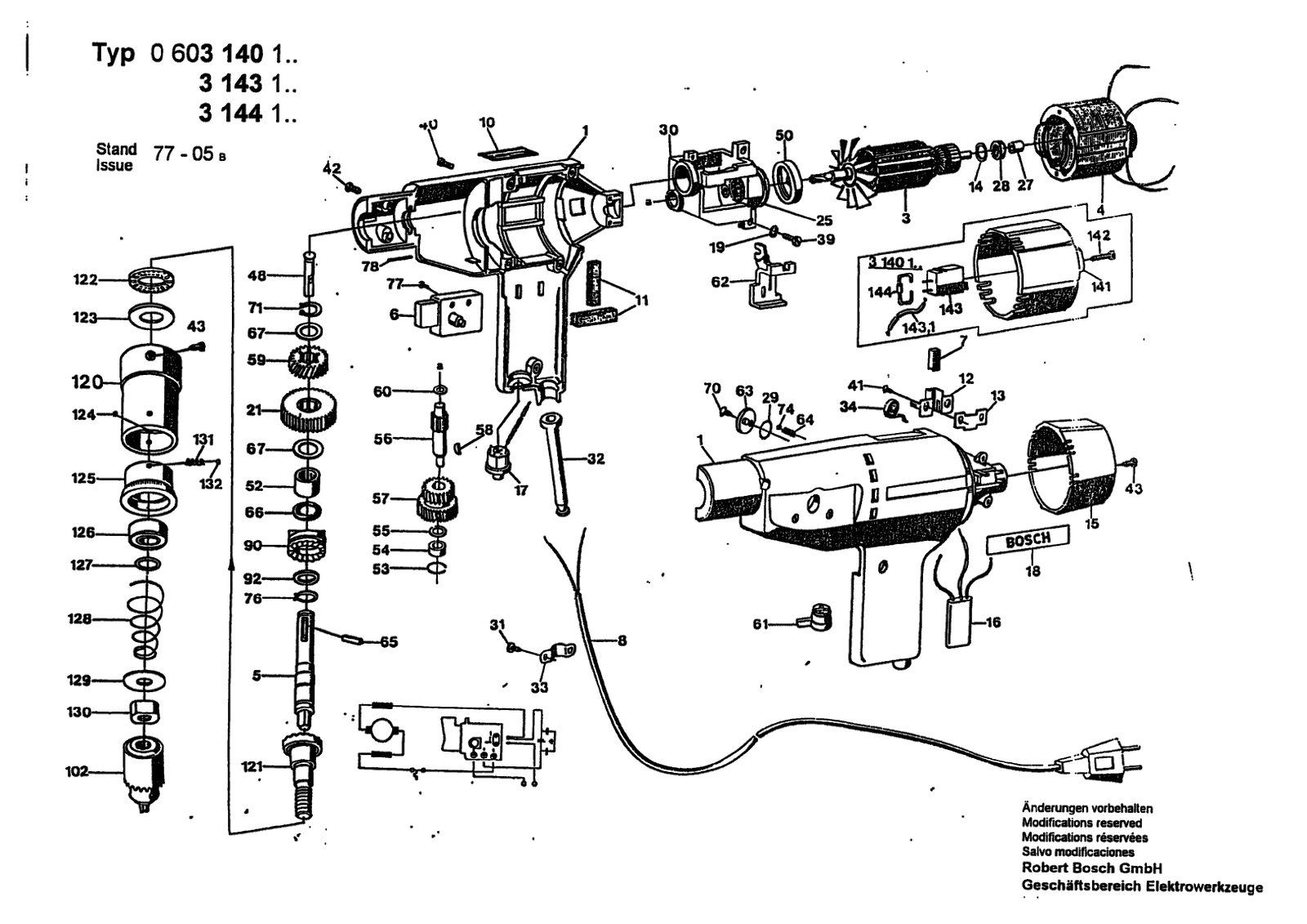

Bosch E 41 SB percussion drill: exploded parts diagram, 1 sheet, 252 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch E 41 SB: 252 positions on 1 sheet
Bosch E 41 SB parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605104905 | Housing Section |
| 1 | 1605104905 | Housing Section |
| 1 | 1605104905 | Housing Section |
| 10 | 2601105043 | Reference Plate |
| 10 | 160111A3H3 | Nameplate |
| 10 | 2601105045 | Nameplate |
| 102 | 1608571005 | Key Chuck Ø0,8-10 Mm, 1/2" |
| 102 | 2607950007 | Chuck Wrench SG2 |
| 102 | 1607950027 | Chuck Wrench |
| 102 | 1608571005 | Key Chuck Ø0,8-10 Mm, 1/2" |
| 102 | 1608571005 | Key Chuck Ø0,8-10 Mm, 1/2" |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 12 | 1601323007 | Brush Holder |
| 12 | 1601323007 | Brush Holder |
| 12 | 1601323007 | Brush Holder |
| 120 | 1607020004 | Impact Mechanism |
| 120 | 1607020004 | Impact Mechanism |
| 120 | 1607020004 | Impact Mechanism |
| 121 | 1607031902 | Drilling Spindle |
| 121 | 1607031902 | Drilling Spindle |
| 121 | 1607031902 | Drilling Spindle |
| 122 | 1600920000 | Thrust Needle Rim |
| 122 | 1600920000 | Thrust Needle Rim |
| 122 | 1600920000 | Thrust Needle Rim |
| 123 | 1600102011 | Thrust Bearing Disc |
| 123 | 1600102011 | Thrust Bearing Disc |
| 123 | 1600102011 | Thrust Bearing Disc |
| 124 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 124 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 124 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 125 | 1605801022 | Bushing |
| 125 | 1605801022 | Bushing |
| 125 | 1605801022 | Bushing |
| 126 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 126 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 126 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 127 | 1600101600 | Shim washer Thick 0,4 MM |
| 127 | 1600101600 | Shim washer Thick 0,4 MM |
| 127 | 1600101600 | Shim washer Thick 0,4 MM |
| 128 | 1604643002 | Compression Spring |
| 128 | 1604643002 | Compression Spring |
| 128 | 1604643002 | Compression Spring |
| 129 | 1600101017 | Plain Washer |
| 129 | 1600101017 | Plain Washer |
| 129 | 1600101017 | Plain Washer |
| 13 | 1601034025 | Brush Plate |
| 13 | 1601034025 | Brush Plate |
| 13 | 1601034025 | Brush Plate |
| 130 | 1603343007 | Threaded Ring |
| 130 | 1603343007 | Threaded Ring |
| 130 | 1603343007 | Threaded Ring |
| 131 | 1604610009 | Compression Spring |
| 131 | 1604610009 | Compression Spring |
| 131 | 1604610009 | Compression Spring |
| 132 | 1903230308 | Ball |
| 132 | 1903230308 | Ball |
| 132 | 1903230308 | Ball |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 14 | 1610210014 | O-Ring 8,0X2,5 MM |
| 141 | 1605500078 | Sealing cap |
| 142 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 143 | 1607200050 | Change-Over Switch |
| 143/1 | 2604465007 | Suppressor Box |
| 144 | 2607320008 | Silicon Diode |
| 15 | 1605500066 | Sealing cap Green |
| 15 | 1605500066 | Sealing cap Green |
| 15 | 1605500066 | Sealing cap Green |
| 16 | 2607329069 | Suppression Capacitor |
| 16 | 2607329069 | Suppression Capacitor |
| 16 | 2607329069 | Suppression Capacitor |
| 17 | 1607202900 | Thermoswitch |
| 17 | 1607202901 | Overload Switch |
| 17 | 1607202900 | Thermoswitch |
| 17 | 1607202901 | Overload Switch |
| 17 | 1607202900 | Thermoswitch |
| 17 | 1607202901 | Overload Switch |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 19 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 19 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 19 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 21 | 2606317012 | Toothed Gear |
| 21 | 2606317012 | Toothed Gear |
| 21 | 2606317012 | Toothed Gear |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 25 | 1900900235 | Groove ball bearing 627 Y DIN 625 |
| 27 | 1600301900 | Sintered-Metal Bushing |
| 27 | 1600301900 | Sintered-Metal Bushing |
| 27 | 1600301900 | Sintered-Metal Bushing |
| 28 | 1600205023 | Felt Washer |
| 28 | 1600205023 | Felt Washer |
| 28 | 1600205023 | Felt Washer |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 29 | 1600210024 | O-Ring 12,0X1,0 MM |
| 3 | 1604010134 | Armature With Fan 220V |
| 3 | 1604010135 | Armature With Fan 110V |
| 3 | 2604010252 | Armature With Fan 240V |
| 3 | 1604010134 | Armature With Fan 220V |
| 3 | 1604010135 | Armature With Fan 110V |
| 3 | 2604010252 | Armature With Fan 240V |
| 3 | 1604010134 | Armature With Fan 220V |
| 3 | 1604010135 | Armature With Fan 110V |
| 3 | 2604010252 | Armature With Fan 240V |
| 30 | 1605807906 | Assembly Of Service Parts |
| 30 | 1605807906 | Assembly Of Service Parts |
| 30 | 1605807906 | Assembly Of Service Parts |
| 31 | 2603435011 | Tapping Screw |
| 31 | 2603435011 | Tapping Screw |
| 31 | 2603435011 | Tapping Screw |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 33 | 1601302014 | Fastening Clamp |
| 33 | 1601302014 | Fastening Clamp |
| 33 | 1601302014 | Fastening Clamp |
| 34 | 1604652004 | Spiral Spring |
| 34 | 1604652004 | Spiral Spring |
| 34 | 1604652004 | Spiral Spring |
| 39 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 39 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 39 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 4 | 1604220118 | Pole Shoe 220V |
| 4 | 1604220119 | Pole Shoe 110V |
| 4 | 1604220211 | Pole Shoe 240V |
| 4 | 1604220116 | Pole Shoe 220V |
| 4 | 1604220117 | Pole Shoe 110V |
| 4 | 2604220211 | Pole Shoe 240V |
| 4 | 1604220116 | Pole Shoe 220V |
| 4 | 1604220117 | Pole Shoe 110V |
| 4 | 2604220211 | Pole Shoe 240V |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 41 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 41 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 41 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 48 | 2603105011 | Control Shaft |
| 48 | 2603105011 | Control Shaft |
| 48 | 2603105011 | Control Shaft |
| 5 | 1603121018 | Drilling Spindle |
| 5 | 1603121018 | Drilling Spindle |
| 5 | 1603121018 | Drilling Spindle |
| 50 | 1600502008 | O-Ring |
| 50 | 1600502008 | O-Ring |
| 50 | 1600502008 | O-Ring |
| 52 | 1600910008 | Needle-Roller Bearing |
| 52 | 1600910008 | Needle-Roller Bearing |
| 52 | 1600910008 | Needle-Roller Bearing |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 53 | 2916600008 | Retaining ring 14 DIN 9045 |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 54 | 2600301043 | Bushing Ø8G7XØ14R6X6MM |
| 55 | 1230100633 | Plain Washer 0,3 MM |
| 55 | 1230100633 | Plain Washer 0,3 MM |
| 55 | 1230100633 | Plain Washer 0,3 MM |
| 56 | 1606309058 | Toothed Shaft |
| 56 | 1606309058 | Toothed Shaft |
| 56 | 1606309058 | Toothed Shaft |
| 57 | 1606328096 | Toothed Gear |
| 57 | 1606328096 | Toothed Gear |
| 57 | 1606328096 | Toothed Gear |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 58 | 1900023004 | Woodruff Key DIN 6888-3X3,7-ST-60 |
| 59 | 1606317069 | Toothed Gear |
| 59 | 1606317069 | Toothed Gear |
| 59 | 1606317069 | Toothed Gear |
| 6 | 1607200060 | On-Off Switch |
| 6 | 1609202464 | On-Off Switch |
| 6 | 2607200055 | On-Off Switch |
| 6 | 1609202464 | On-Off Switch |
| 6 | 2607200055 | On-Off Switch |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 60 | 1600100611 | Shim Thick 1,2 MM |
| 61 | 1602026040 | Control Lever |
| 61 | 1602026040 | Control Lever |
| 61 | 1602026040 | Control Lever |
| 62 | 1601328001 | Control Fork |
| 62 | 1601328001 | Control Fork |
| 62 | 1601328001 | Control Fork |
| 63 | 1600148005 | Eccentric Disc |
| 63 | 1600148005 | Eccentric Disc |
| 63 | 1600148005 | Eccentric Disc |
| 64 | 1604611016 | Compression Spring |
| 64 | 1604611016 | Compression Spring |
| 64 | 1604611016 | Compression Spring |
| 65 | 1602300017 | Flat Key |
| 65 | 1602300017 | Flat Key |
| 65 | 1602300017 | Flat Key |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 66 | 2600210025 | Seal Ring 13,0X4,0 MM |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 67 | 2600101603 | Shim |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 67 | 2600101603 | Shim |
| 67 | 2000101600 | Shim Ø14,5X21,5X0,5 MM |
| 67 | 2600101603 | Shim |
| 7 | 1604321900 | Carbon Brush |
| 7 | 1604321900 | Carbon Brush |
| 7 | 1604321900 | Carbon Brush |
| 70 | 2910600017 | Tapping Screw B 3,9X9,5 DIN 7972 |
| 70 | 2910600017 | Tapping Screw B 3,9X9,5 DIN 7972 |
| 70 | 2910600017 | Tapping Screw B 3,9X9,5 DIN 7972 |
| 71 | 2916650005 | Spring retaining ring 14X1 DIN 471 |
| 71 | 2916650005 | Spring retaining ring 14X1 DIN 471 |
| 71 | 2916650005 | Spring retaining ring 14X1 DIN 471 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 74 | 1903230304 | Warning Label 3 MM DIN 5401 |
| 76 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 76 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 76 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 77 | 2603410023 | Socket head cap screw M3X10 MM |
| 77 | 2603410023 | Socket head cap screw M3X10 MM |
| 77 | 2603410023 | Socket head cap screw M3X10 MM |
| 78 | 5541468300 | Round Rubber Ø3X9,5 MM |
| 78 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 78 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 8 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 8 | 2604460075 | Power supply cord |
| 8 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 8 | 2604460075 | Power supply cord |
| 8 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 8 | 2604460075 | Power supply cord |
| 90 | 1606490013 | Locating Washer |
| 90 | 1606490013 | Locating Washer |
| 90 | 1606490013 | Locating Washer |
| 92 | 2600100692 | Shim 0,2 MM |
| 92 | 2600100693 | Shim 0,3 MM |
| 92 | 2600100695 | Shim 0,5 MM |
| 92 | 2600100692 | Shim 0,2 MM |
| 92 | 2600100693 | Shim 0,3 MM |
| 92 | 2600100695 | Shim 0,5 MM |
| 92 | 2600100692 | Shim 0,2 MM |
| 92 | 2600100693 | Shim 0,3 MM |
| 92 | 2600100695 | Shim 0,5 MM |
