Bosch E 10 S

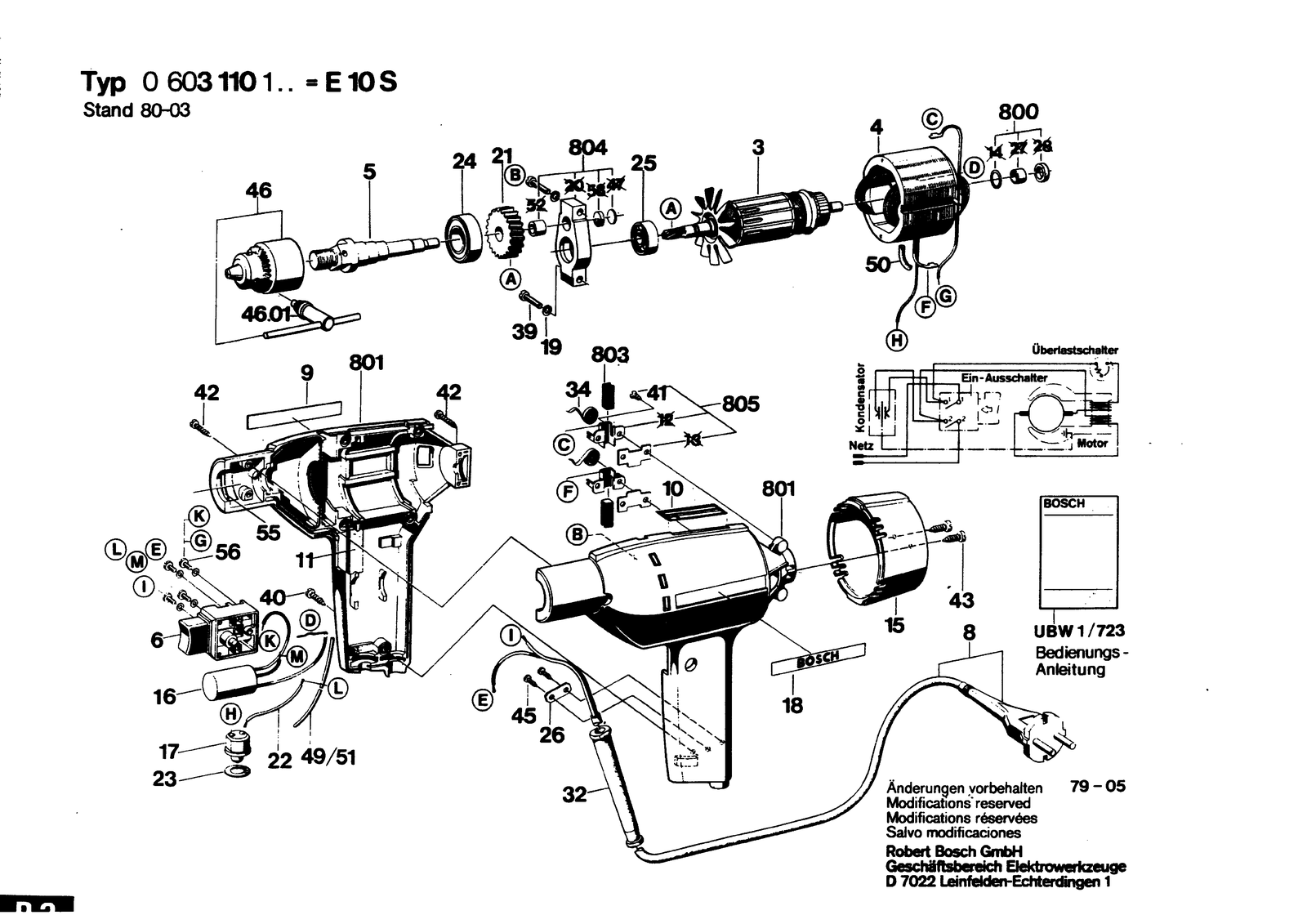

Bosch E 10 S drill: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch E 10 S: 55 positions on 1 sheet
Bosch E 10 S parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 160111A3H3 | Nameplate |
| 11 | 1602381001 | Insulating Strip 33X10X6 MM |
| 15 | 1605500066 | Sealing cap Green |
| 16 | 1607328001 | Suppression Capacitor |
| 16 | 1607329014 | Suppression Capacitor |
| 16 | 1607329020 | Suppression Capacitor |
| 17 | 1607202015 | Overload Switch |
| 17 | 1607202900 | Thermoswitch |
| 18 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 19 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 21 | 1606319011 | Cylindrical Gear Z=41 |
| 22 | 1604412020 | Connecting Cable L=100 MM |
| 23 | 1600109006 | Sealing disk |
| 24 | 1900905102 | Groove ball bearing 6002-Z DIN 625 |
| 25 | 1900905018 | Ball Bearing 7X22X7 |
| 26 | 1601034026 | Fastening Clamp |
| 26 | 1601321030 | Fastening Clamp |
| 3 | 1604010138 | Armature 220V |
| 3 | 1604010139 | Armature With Fan 240V |
| 3 | 1604010140 | Armature With Fan 110-115V |
| 32 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 32 | 2600703006 | Grommet Ø9,5 MM |
| 34 | 1604652004 | Spiral Spring |
| 39 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 4 | 1604220116 | Pole Shoe 220V |
| 4 | 1604220117 | Pole Shoe 110V |
| 4 | 1604220139 | Pole Shoe 240V |
| 40 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 41 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 42 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 43 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 45 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 45 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 46 | 1608571005 | Key Chuck Ø0,8-10 Mm, 1/2" |
| 46 | 1608571054 | Key Chuck Ø1-10 Mm, 1/2"-24UNF |
| 5 | 1603523054 | Drilling Spindle 1/2"-20 UNF 2A |
| 55 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 56 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 56 | 2910091081 | Pan head screw DIN 85-4.8 3,5X5 |
| 6 | 1607200040 | On-Off Switch |
| 6 | 1607200060 | On-Off Switch |
| 8 | 1604460057 | Power supply cord |
| 8 | 1604460065 | Power supply cord |
| 8 | 1604460070 | Power supply cord SAM 4,15M 2 X 2,08MM SJ 14/2 |
| 8 | 1604460076 | Power supply cord |
| 8 | 1604460083 | Power supply cord |
| 8 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 8 | 2604460290 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 800 | 1600301900 | Sintered-Metal Bushing |
| 801 | 1605104917 | Motor Housing Green |
| 801 | 1605104920 | Motor Housing Green |
| 803 | 1604321900 | Carbon Brush |
| 804 | 1605807901 | Bearing Bracket |
| 805 | 1601323901 | Brush Holder |
| 9 | 1601110055 | Reference Plate |
