Bosch DWM 40 L

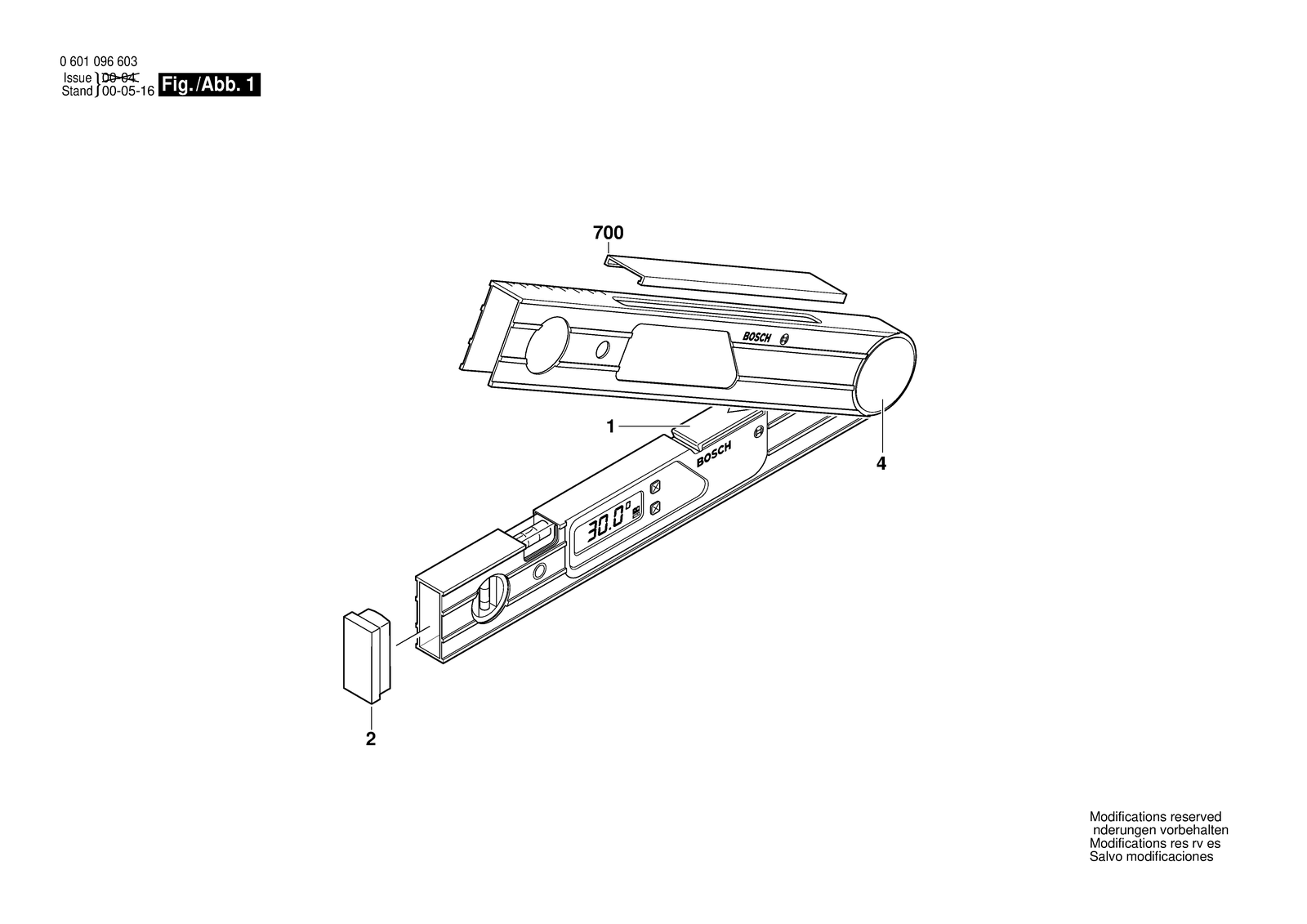

Bosch DWM 40 L protractor: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DWM 40 L: 8 positions on 1 sheet
Bosch DWM 40 L parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203928 | Battery Cover |
| 1 | 1609203928 | Battery Cover |
| 2 | 1609203770 | Cover |
| 2 | 1609203770 | Cover |
| 4 | 1609203927 | Cover Plate |
| 4 | 1609203927 | Cover Plate |
| 700 | 2607001312 | Rail |
| 700 | 2607001312 | Rail |
