Makita DVC261

Makita DVC261: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DVC261: 42 positions on 2 sheets

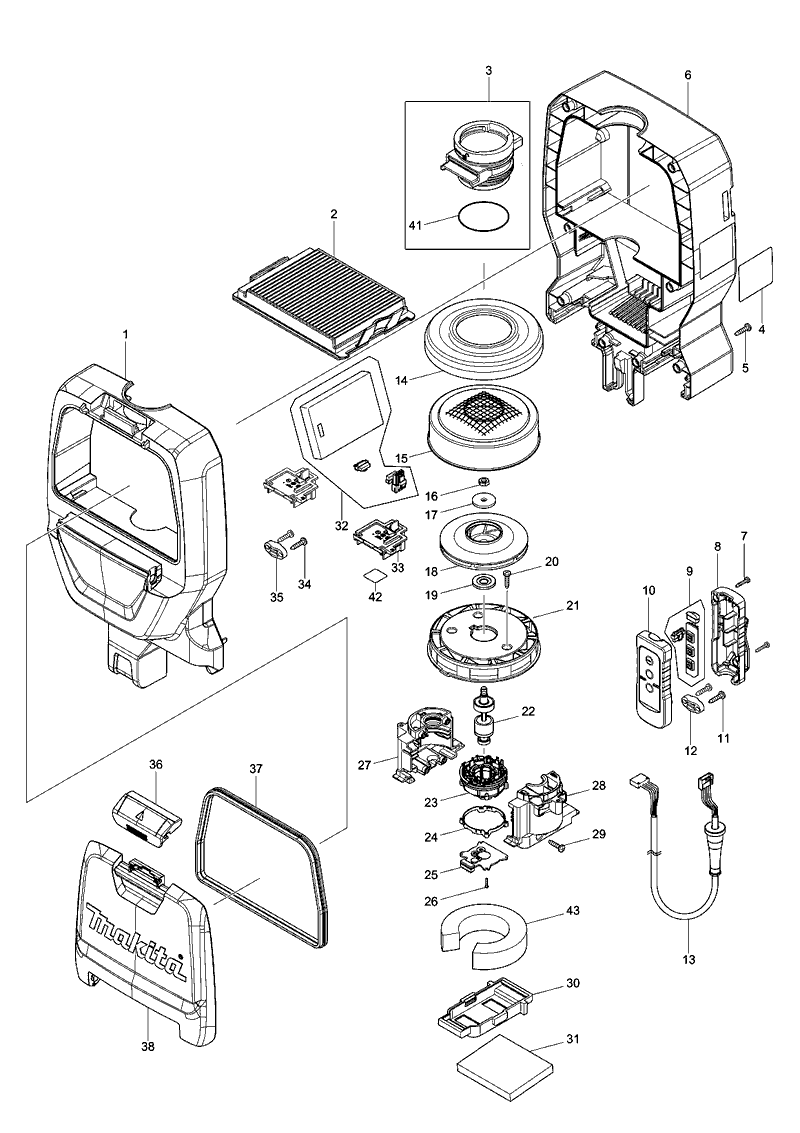

Sheet 1: Makita DVC261 parts diagram

Makita DVC261 parts diagram, sheet 1
No.Part numberPart name
1140G16-6Makita 140G16-6 UPPER HOUSING COMPLETE
2123636-9Makita 123636-9 HEPA Filter
4854Y90-3
5266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
6140F61-5
7266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
8183K74-3
9620525-4Makita 620525-4 SUB CONTROLLER
10183K74-3
11266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
12687123-7Makita 687123-7 CORD CLAMP, MT952
13699077-6Makita 699077-6 POWER SUPPLY CORD UNIT
14422376-9
15161804-6
16931303-0Makita 931303-0 HEX. NUT M6
17322407-3
18241851-4
19313062-2Makita 313062-2 FLANGE
20266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
21456736-3Makita 456736-3 FAN BASE
22619517-8
23629381-9
24687464-1Makita 687464-1 SUPPORT
25620526-2Makita 620526-2 CONTROLLER B
26266786-8Makita 266786-8 TAPPING SCREW PT2X10
27183D13-1Makita 183D13-1 MOTOR HOUSING SET
28183D13-1Makita 183D13-1 MOTOR HOUSING SET
29266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
30424837-5Makita 424837-5 SUPPORT A
31424838-3Makita 424838-3 Rear Block Filter for DVC260
32620992-3
33644808-8Makita 644808-8 Terminal DSC162 DGD8000 DUR183
34266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
35687123-7Makita 687123-7 CORD CLAMP, MT952
36123586-8Makita 123586-8 LATCH ASSEMBLY
37424836-7Makita 424836-7 SEAL
38456739-7Makita 456739-7 DUST BOX COVER
41213655-4Makita 213655-4 O-RING 56, 483
42854Y97-9
43422370-1

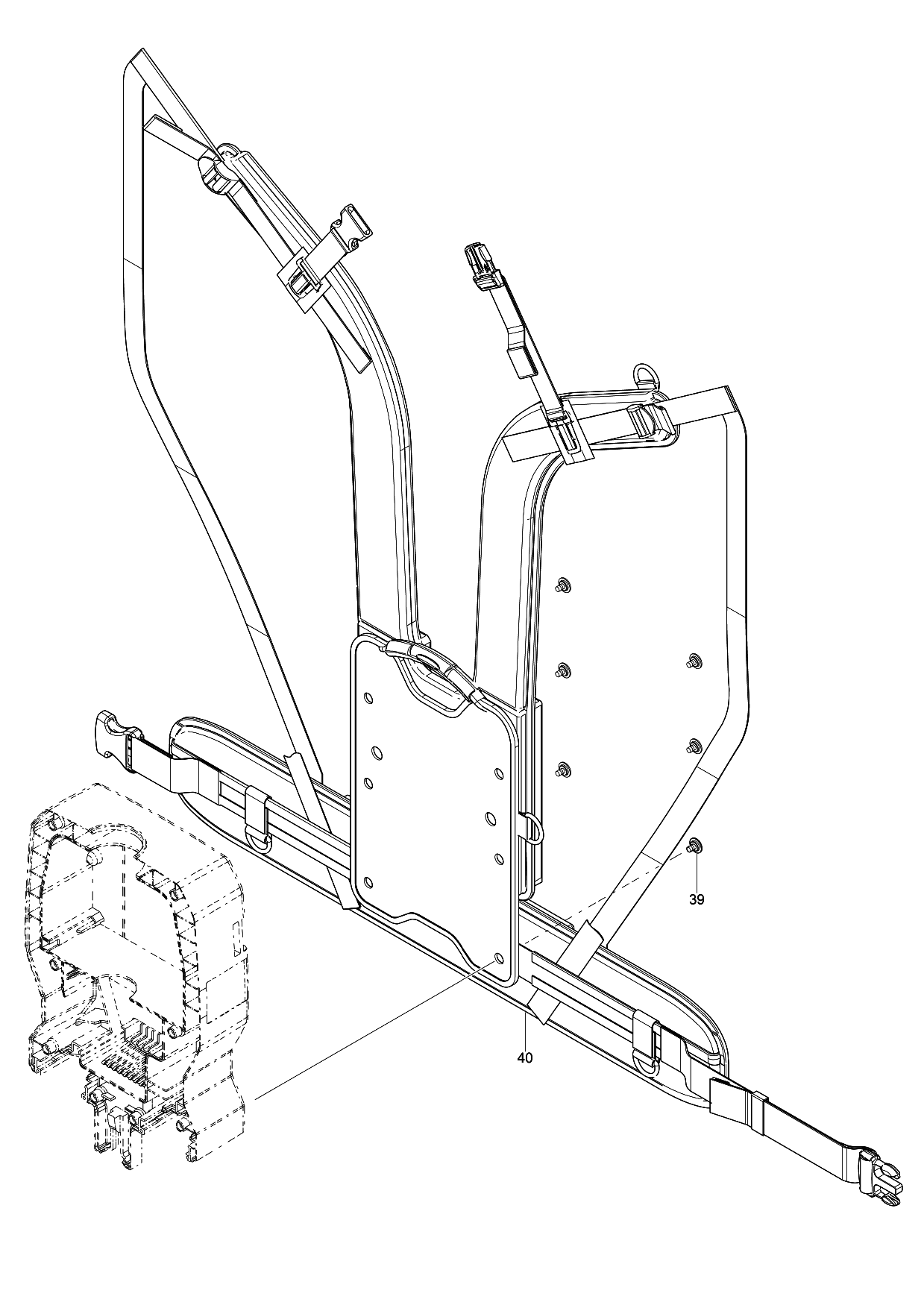

Sheet 2: Makita DVC261 parts diagram

Makita DVC261 parts diagram, sheet 2
No.Part numberPart name
39265008-3Makita 265008-3 FLAT HEAD SCREW M5, LS1013
40162469-7Makita 162469-7 HARNESS, DVC260
