Makita DVC157L
Makita DVC157L: exploded parts diagram, 2 sheets, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DVC157L: 70 positions on 2 sheets
Sheet 1: Makita DVC157L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 144486-9 | Makita 144486-9 BATTERY COVER COMPLETE |
| 2 | 857C08-1 | |
| 3 | 455734-4 | Makita 455734-4 GRIP |
| 4 | 459262-1 | |
| 5 | 234273-5 | Makita 234273-5 COMPRESSION SPRING 20 |
| 6 | 266340-8 | Makita 266340-8 TAPPING SCREW 4*65, MT370 |
| 8 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 9 | 424688-6 | Makita 424688-6 TOP DAMPER |
| 10 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 11 | 451343-7 | Makita 451343-7 SWITCH HOLEER, M442 |
| 12 | 686023-8 | |
| 13 | 651098-6 | Makita 651098-6 SWITCH 1703. DVC864D |
| 14 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 15 | 620D40-2 | |
| 16 | 620D39-7 | |
| 17 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 18 | 140T97-8 | |
| 19 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 20 | 455733-6 | Makita 455733-6 SWITCH LEVER |
| 21 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 22 | 451344-5 | Makita 451344-5 SWITCH DIAL, 483 |
| 23 | 455728-9 | Makita 455728-9 BATTERY COVER HOOK |
| 24 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 25 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 26 | 455729-7 | Makita 455729-7 TERMINAL BASE |
| 27 | 620D20-8 | |
| 29 | 651910-0 | Makita 651910-0 DVC 861L SWITCH |
| 30 | 686039-3 | Makita 686039-3 RECEPTABLE SLEEVE |
| 31 | 857C16-2 | |
| 32 | 140G18-2 | Makita 140G18-2 CAP COMPLETE |
| 33 | 252268-6 | |
| 34 | 412581-6 | |
| 35 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 36 | 240178-9 | Makita 240178-9 FAN 104, DVC862L |
| 37 | 313062-2 | Makita 313062-2 FLANGE |
| 38 | 424685-2 | Makita 424685-2 RUBBER RING 60 |
| 40 | 424686-0 | Makita 424686-0 RUBBER RING 120 |
| 42 | 424690-9 | Makita 424690-9 Rear Block Filter for DVC861 DVC863 |
| 65 | 347171-5 | Makita 347171-5 FAN COVER, DVC862L |
| 66 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 67 | 457486-3 | Makita 457486-3 FAN BASE, DVC862L |
| 68 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 69 | 619431-8 | Makita 619431-8 ROTOR, DVC862L |
| 70 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 71 | 632J83-8 | Makita 632J83-8 LEAD UNIT |
| 72 | 183F90-5 | Makita 183F90-5 MOTOR HOUSING SET |
| 73 | 183F90-5 | Makita 183F90-5 MOTOR HOUSING SET |
| 74 | 629491-2 | |
| 75 | 620D38-9 | |
| 76 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 77 | 620D41-0 |

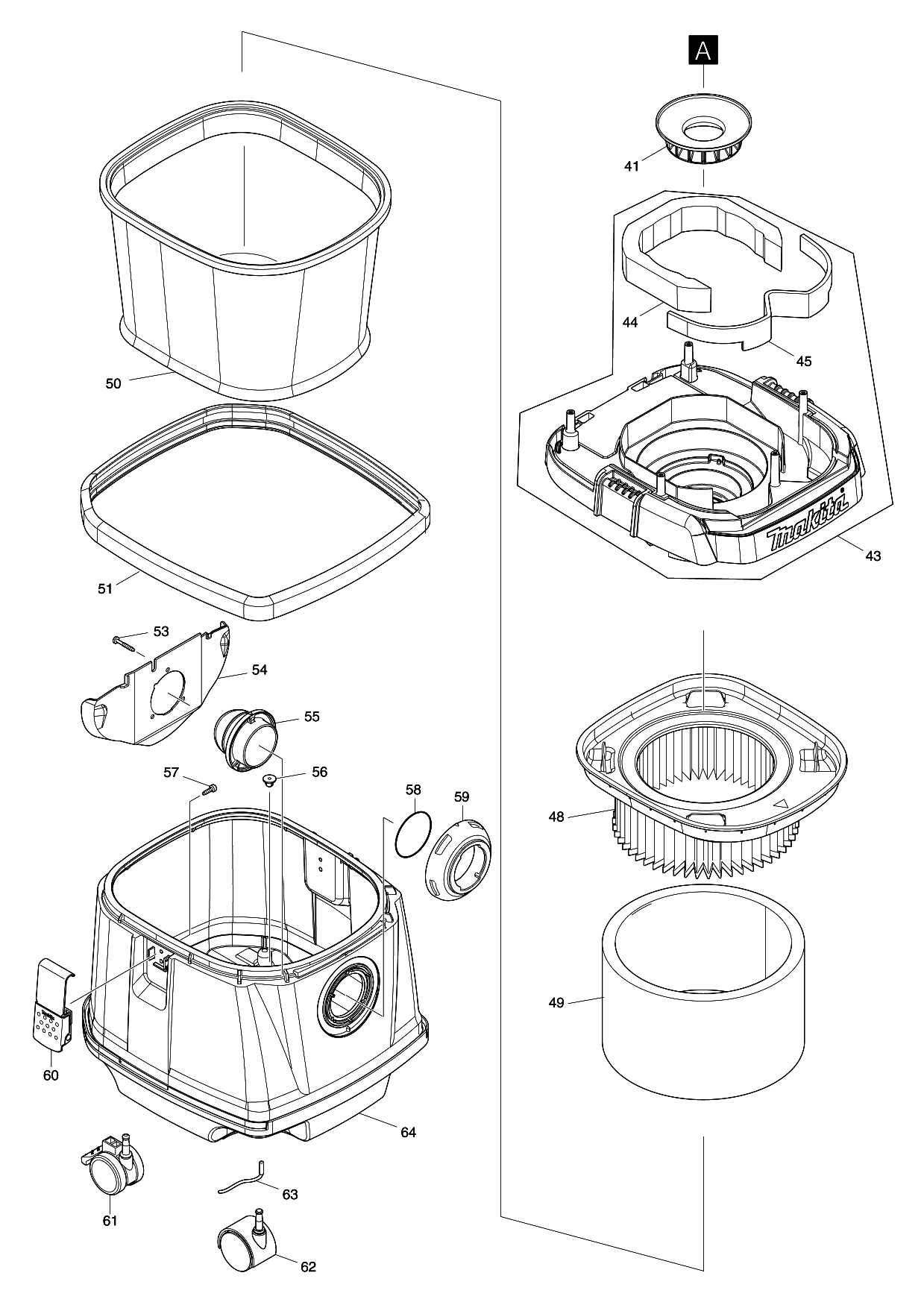

Sheet 2: Makita DVC157L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 41 | 422590-7 | |
| 44 | 424691-7 | Makita 424691-7 BAND DAMPER |
| 45 | 424689-4 | Makita 424689-4 FRONT DAMPER |
| 48 | 197166-6 | Makita 197166-6 Powder Filter Set, DVC861L |
| 49 | 423398-2 | Makita 423398-2 DAMPER |
| 50 | 140253-0 | Makita 140253-0 Pre-Filter Complete VC1310L |
| 51 | 422148-2 | Makita 422148-2 BUMPER, DVC862L |
| 53 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 54 | 419351-4 | Makita 419351-4 HOLDER PLATE |
| 55 | 419350-6 | Makita 419350-6 HOLDER |
| 56 | 421468-1 | Makita 421468-1 CORD, M442 |
| 57 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 58 | 213655-4 | Makita 213655-4 O-RING 56, 483 |
| 59 | 451348-7 | Makita 451348-7 INLET |
| 60 | 168537-4 | Makita 168537-4 HOOK, M442 |
| 61 | 168535-8 | Makita 168535-8 CASTER 50 |
| 62 | 168434-4 | Makita 168434-4 CASTER 50 |
| 63 | 649150-2 | Makita 649150-2 EARTH LINE, 430 |
| 64 | 459493-2 |
