Makita DUT130
Makita DUT130: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUT130: 19 positions on 1 sheet

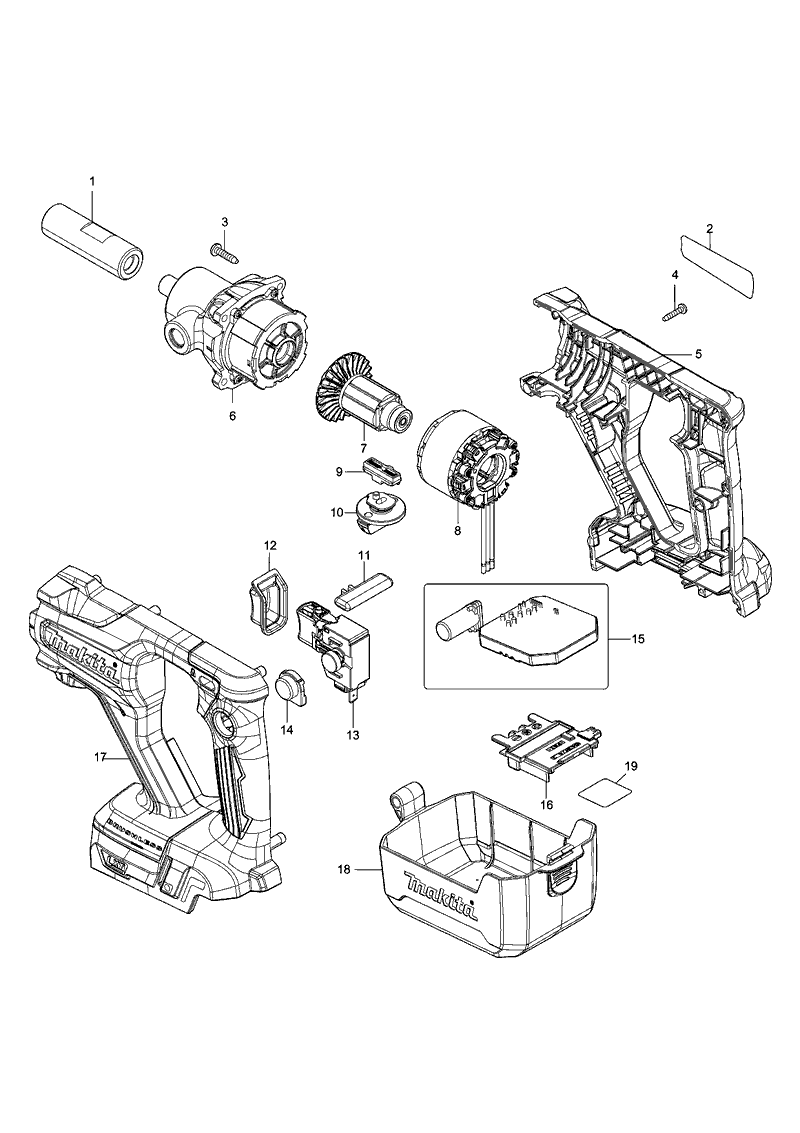

Sheet 1: Makita DUT130 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 323962-8 | |
| 2 | 855D77-2 | |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 183L06-6 | Makita 183L06-6 HOUSING SET, DHR182 |
| 6 | 127065-8 | |
| 7 | 619551-8 | |
| 8 | 629396-6 | |
| 9 | 127066-6 | |
| 10 | 127282-0 | Makita 127282-0 SPEED CHANGE LEVER ASSEMBLY, DUT130 |
| 11 | 458822-6 | Makita 458822-6 LOCK LEVER, DUT130 |
| 12 | 458816-1 | Makita 458816-1 SWITCH COVER. DUT130 |
| 13 | 651088-9 | |
| 14 | 458819-5 | Makita 458819-5 LOCK ON BUTTON COVER, DUT130 |
| 15 | 620972-9 | |
| 16 | 643874-2 | Makita 643874-2 Terminal |
| 17 | 183L06-6 | Makita 183L06-6 HOUSING SET, DHR182 |
| 18 | 458820-0 | Makita 458820-0 COVER, DUT130 |
| 19 | 855D80-3 |
