Makita DUS054: exploded parts diagram, 1 sheet, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUS054: 81 positions on 1 sheet

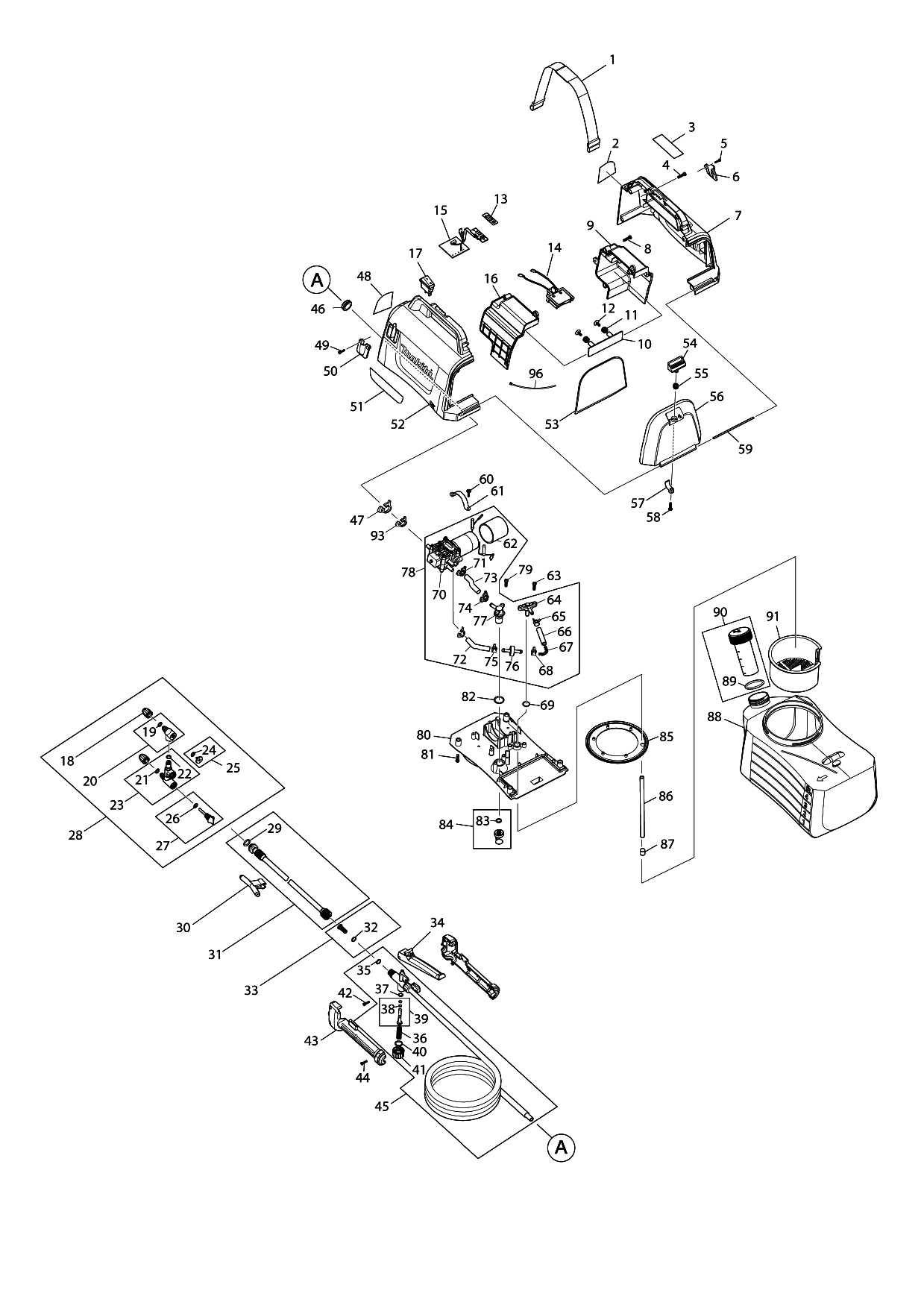

Sheet 1: Makita DUS054 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | PR00000128 | |
| 2 | PR00000206 | |
| 3 | PR00000225 | |
| 4 | PR00000183 | |
| 5 | PR00000182 | |
| 6 | PR00000191 | |
| 7 | PR00000192 | |
| 8 | PR00000183 | |
| 9 | PR00000193 | |
| 10 | PR00000130 | |
| 11 | PR00000194 | |
| 12 | PR00000132 | Makita PR00000132 SCREWSST4.0X12, US053D |
| 13 | PR00000133 | Makita PR00000133 BATTERY RESIDUAL LABEL, US053D |
| 14 | PR00000195 | |
| 15 | PR00000196 | |
| 16 | PR00000193 | |
| 17 | PR00000136 | |
| 18 | PR00000137 | Makita PR00000137 SPRAY HEAD, US053D |
| 19 | PR00000186 | |
| 21 | PR00000186 | |
| 22 | PR00000186 | |
| 24 | PR00000186 | |
| 26 | PR00000186 | |
| 29 | PR00000143 | |
| 30 | PR00000144 | |
| 32 | PR00000146 | Makita PR00000146 O SEAL RING US053D |
| 34 | PR00000148 | |
| 35 | PR00000149 | Makita PR00000149 O RING US053D |
| 36 | PR00000150 | Makita PR00000150 VALVE LEVER SPRING, US053D |
| 37 | PR00000204 | Makita PR00000204 O RING US053D |
| 38 | PR00000205 | Makita PR00000205 O RING US053D |
| 40 | PR00000190 | |
| 41 | PR00000152 | Makita PR00000152 LOCK COVER, US053D |
| 42 | PR00000182 | |
| 43 | PR00000153 | |
| 44 | PR00000182 | |
| 46 | PR00000155 | |
| 47 | PR00000184 | |
| 48 | PR00000211 | |
| 49 | PR00000182 | |
| 50 | PR00000191 | |
| 51 | PR00000197 | |
| 52 | PR00000192 | |
| 53 | PR00000198 | |
| 54 | PR00000159 | |
| 55 | PR00000160 | |
| 56 | PR00000199 | |
| 57 | PR00000162 | |
| 58 | PR00000007 | |
| 59 | PR00000163 | |
| 60 | PR00000183 | |
| 61 | PR00000164 | |
| 62 | PR00000165 | Makita PR00000165 SHOCK ABSORBER RING, US053D |
| 63 | PR00000183 | |
| 64 | PR00000166 | Makita PR00000166 INLET CONNECTION, US053D |
| 65 | PR00000188 | Makita PR00000188 HOSE CLAMP, US053D |
| 66 | PR00000187 | Makita PR00000187 DELIVERY TUBE, US053D |
| 67 | PR00000167 | |
| 68 | PR00000188 | Makita PR00000188 HOSE CLAMP, US053D |
| 69 | PR00000190 | |
| 70 | PR00000200 | |
| 71 | PR00000184 | |
| 72 | PR00000187 | Makita PR00000187 DELIVERY TUBE, US053D |
| 73 | PR00000187 | Makita PR00000187 DELIVERY TUBE, US053D |
| 74 | PR00000184 | |
| 75 | PR00000188 | Makita PR00000188 HOSE CLAMP, US053D |
| 76 | PR00000169 | |
| 77 | PR00000170 | Makita PR00000170 BASE, US053D |
| 79 | PR00000183 | |
| 80 | PR00000172 | |
| 81 | PR00000183 | |
| 82 | PR00000173 | |
| 83 | PR00000186 | |
| 85 | PR00000175 | |
| 86 | PR00000176 | |
| 87 | PR00000177 | |
| 88 | PR00000178 | |
| 89 | PR00000179 | Makita PR00000179 O RING, US053D |
| 91 | PR00000181 | |
| 93 | PR00000247 | |
| 96 | 687010-0 | Makita 687010-0 BAND, 5704R |
