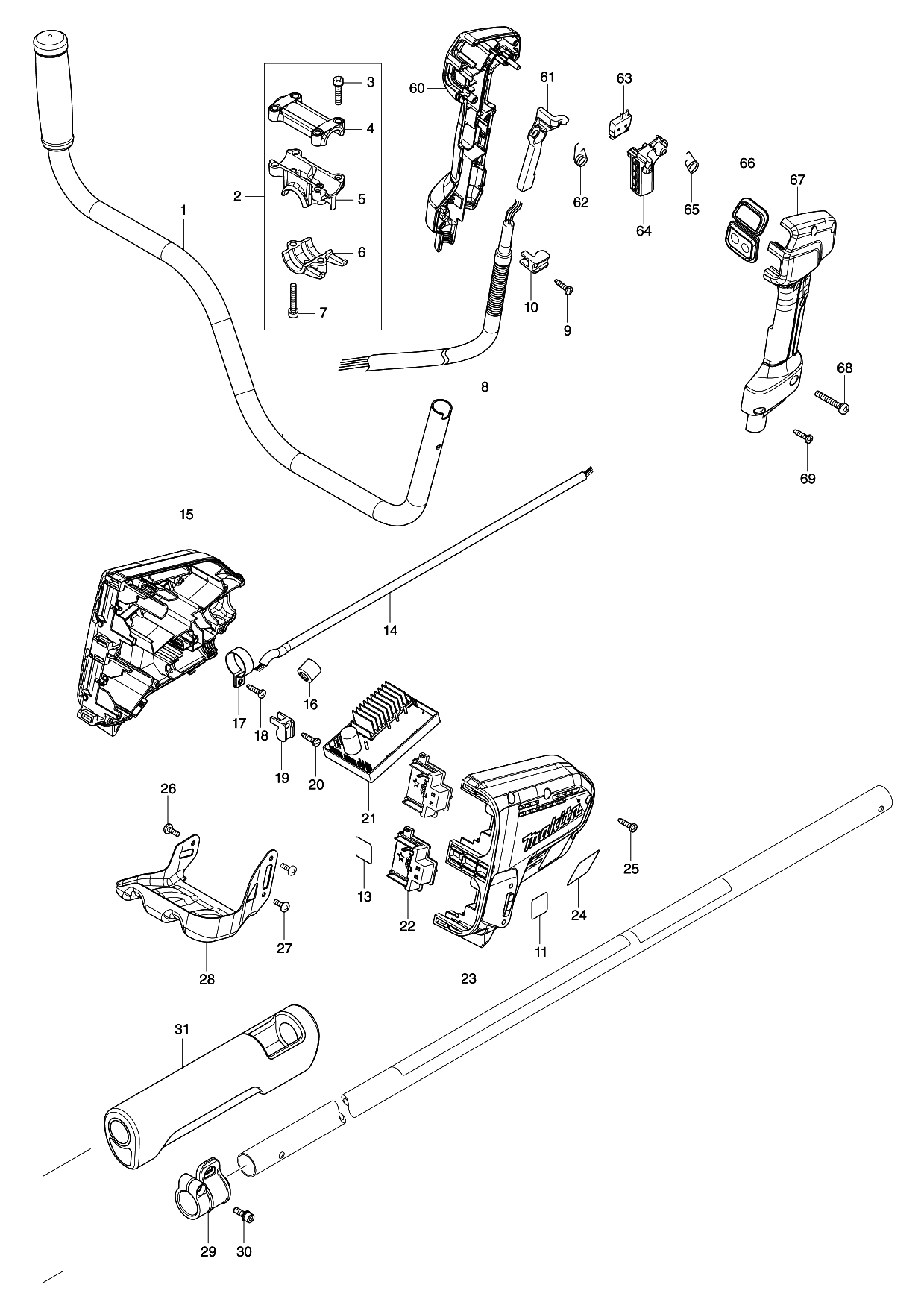

Sheet 1: Makita DUR368A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 140L83-1 | Makita 140L83-1 HANDLE 19 COMPLETE |
| 3 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 4 | 318272-6 | Makita 318272-6 HANDLE HOLDER 1 ,RBC420 |
| 5 | 318273-4 | Makita 318273-4 HANDLE HOLDER, DUR365U |
| 6 | 318274-2 | Makita 318274-2 HANDLE HOLDER 1 , DUR365U |
| 7 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 8 | 699118-8 | |
| 9 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 10 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 11 | 807E85-5 | |
| 13 | 855V64-9 | |
| 14 | 699067-9 | Makita 699067-9 POWER SUPPLY CORD UNIT |
| 15 | 183L33-3 | |
| 16 | 688163-8 | Makita 688163-8 Line Filter for BHS630 |
| 17 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 18 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 19 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 20 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 21 | 620A36-5 | Makita 620A36-5 CONTROLLER |
| 22 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 23 | 183L33-3 | |
| 24 | 855V55-0 | |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 27 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 28 | 346858-6 | Makita 346858-6 BATTERY GUARD |
| 29 | 168478-4 | Makita 168478-4 HANGERBBC231U |
| 30 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 31 | 424463-0 | Makita 424463-0 CUSION |
| 60 | 183A77-7 | Makita 183A77-7 MAIN GRIP SET |
| 61 | 455629-1 | Makita 455629-1 LOCK OFF LEVER |
| 62 | 233621-5 | Makita 233621-5 TORSION SPRING 9 |
| 63 | 632E40-6 | Makita 632E40-6 SWITCH UNIT |
| 64 | 455816-2 | Makita 455816-2 SWITCH LEVER |
| 65 | 233612-6 | Makita 233612-6 TORSION SPRING 10 |
| 66 | 140L81-5 | |
| 67 | 183A77-7 | Makita 183A77-7 MAIN GRIP SET |
| 68 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 69 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
Sheet 2: Makita DUR368A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 32 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 33 | 455626-7 | Makita 455626-7 TOP COVER |
| 34 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 36 | 619462-7 | Makita 619462-7 Rotor for DUR365, TEC 8872 |
| 37 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 38 | 455628-3 | Makita 455628-3 INNER COVER |
| 39 | 620562-8 | Makita 620562-8 Controller B |
| 40 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 41 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 42 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 43 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 44 | 143039-1 | Makita 143039-1 MOTOR HOUSING COMPL |
| 45 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 46 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 47 | 346084-7 | Makita 346084-7 CLAMP WASHER, EBH250U |
| 48 | 140L84-9 | |
| 49 | 266579-3 | Makita 266579-3 H.S.HEAD BOLT M6*30, EBH260L |
| 51 | 346073-2 | Makita 346073-2 PROTECTOR CLAMP, EBH250U |
| 52 | 261156-6 | Makita 261156-6 POLYPROPYLENE WASHER 4 |
| 53 | 455926-5 | Makita 455926-5 PROTECTOR |
| 54 | 346855-2 | Makita 346855-2 CUTTER |
| 55 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 56 | 140L89-9 | |
| 57 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 58 | 168526-9 | Makita 168526-9 CUP COMPLETE, EBH250U |
| 59 | 264025-0 | Makita 264025-0 HEX.NUT M10-17, EBH250U |
| 72 | 266896-1 | Makita 266896-1 HEX. SOCKET HEAD BOLT M5X20 |
| 73 | 346785-7 | Makita 346785-7 PROTECTOR CLAMP |
| 74 | 455815-4 | Makita 455815-4 PROTECTOR |
| 75 | 253428-3 | Makita 253428-3 SPRING WASHER 6, SL110D |
| 76 | 413143-3 | Makita 413143-3 WASHER |
