Makita DUR361U
Makita DUR361U: exploded parts diagram, 2 sheets, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUR361U: 82 positions on 2 sheets

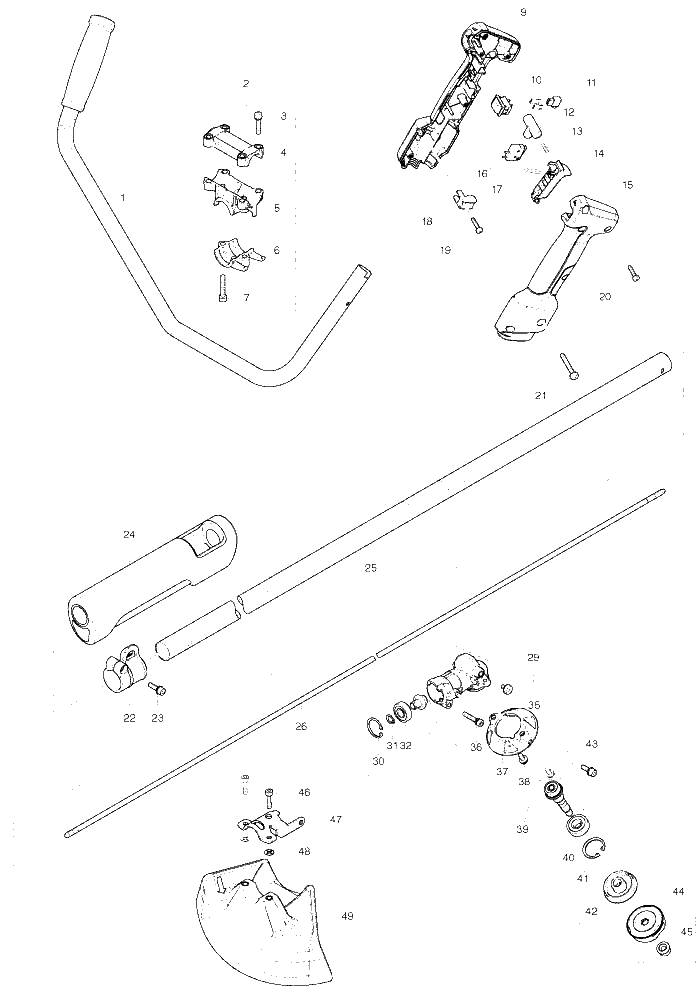

Sheet 1: Makita DUR361U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 142636-0 | Makita 142636-0 HANDLE COMPLETE |
| 3 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 4 | 318272-6 | Makita 318272-6 HANDLE HOLDER 1 ,RBC420 |
| 5 | 318273-4 | Makita 318273-4 HANDLE HOLDER, DUR365U |
| 6 | 318274-2 | Makita 318274-2 HANDLE HOLDER 1 , DUR365U |
| 7 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 9 | 187587-0 | |
| 10 | 651533-4 | Makita 651533-4 SWITCH SLEA2-33BBC231U |
| 11 | 686015-7 | Makita 686015-7 RECEPTACLE SLEEVE, 2012NB |
| 12 | 454298-5 | |
| 13 | 233114-2 | |
| 14 | 454295-1 | |
| 15 | 187587-0 | |
| 16 | 650704-0 | Makita 650704-0 SWITCH D2SW-P01L1-3M |
| 17 | 234003-4 | Makita 234003-4 COMPRESSION SPRING 5AR410HR |
| 18 | 687261-5 | Makita 687261-5 CORD CLAMP, HR2460 |
| 19 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 20 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 21 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 22 | 168478-4 | Makita 168478-4 HANGERBBC231U |
| 23 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 24 | 424463-0 | Makita 424463-0 CUSION |
| 25 | 142670-0 | |
| 26 | 324893-4 | Makita 324893-4 SHAFT, MEM427 |
| 30 | 257987-9 | |
| 31 | 257986-1 | |
| 32 | 210049-4 | Makita 210049-4 BALL BEARING 609ZZ, EBH251U |
| 35 | 265578-2 | |
| 36 | 266805-0 | |
| 37 | 455026-1 | |
| 38 | 265195-8 | Makita 265195-8 PAN HEAD SCREW M5X12 |
| 39 | 187920-6 | |
| 40 | 210082-6 | |
| 41 | 257988-7 | |
| 42 | 332042-9 | Makita 332042-9 RECEIVE WASHER |
| 43 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 44 | 168797-8 | |
| 45 | 264018-7 | Makita 264018-7 HEX NUT M8 |
| 46 | 266896-1 | Makita 266896-1 HEX. SOCKET HEAD BOLT M5X20 |
| 47 | 346785-7 | Makita 346785-7 PROTECTOR CLAMP |
| 48 | 261156-6 | Makita 261156-6 POLYPROPYLENE WASHER 4 |
| 49 | 455172-0 | Makita 455172-0 PROTECTOR |
| 2 | 135395-3 | |
| 29 | 126438-2 | Makita 126438-2 GEAR CASE ASSEMBLY A |
Sheet 2: Makita DUR361U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 52 | 454995-3 | Makita 454995-3 GEAR BOX COVER |
| 53 | 424307-4 | Makita 424307-4 PIPE RUBBERBBC231U |
| 54 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 55 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 56 | 318560-1 | Makita 318560-1 PIPE BRACKETBBC231U |
| 57 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 58 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 59 | 213045-1 | Makita 213045-1 O RING 6, BO3710 |
| 60 | 325811-5 | Makita 325811-5 SPINDLE HUBBBC231U |
| 61 | 211148-5 | Makita 211148-5 BALL BEARING 6001ZZ GD0800C |
| 62 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 63 | 227720-3 | Makita 227720-3 HELICAL GEAR 33BBC231U |
| 64 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 65 | 211150-8 | Makita 211150-8 BALL BEARING 6901ZZ, 6935FD |
| 66 | 318559-6 | Makita 318559-6 GEAR BOXBBC231U |
| 67 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 68 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 69 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 70 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 71 | 619254-4 | Makita 619254-4 ROTORBBC231U |
| 72 | 629123-1 | Makita 629123-1 STATOR |
| 73 | 620285-8 | Makita 620285-8 CONTROLLER DUR361U, DUR362L |
| 74 | 142639-4 | Makita 142639-4 SUB CONTROLLER COMPLETE A |
| 75 | 188838-4 | Makita 188838-4 MOTOR HOUSING SETBBC231U |
| 76 | 188838-4 | Makita 188838-4 MOTOR HOUSING SETBBC231U |
| 77 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 78 | 187876-3 | Makita 187876-3 HOUSING SET |
| 79 | 687261-5 | Makita 687261-5 CORD CLAMP, HR2460 |
| 80 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 81 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 82 | 142642-5 | Makita 142642-5 ADAPTER CIRCUIT COMPLETE |
| 83 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 84 | 187876-3 | Makita 187876-3 HOUSING SET |
| 85 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 86 | 815N65-1 | |
| 87 | 699060-3 | |
| 88 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 89 | 346784-9 | Makita 346784-9 BATTERY GUARD |
