Makita DUR190L
Makita DUR190L: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUR190L: 62 positions on 1 sheet

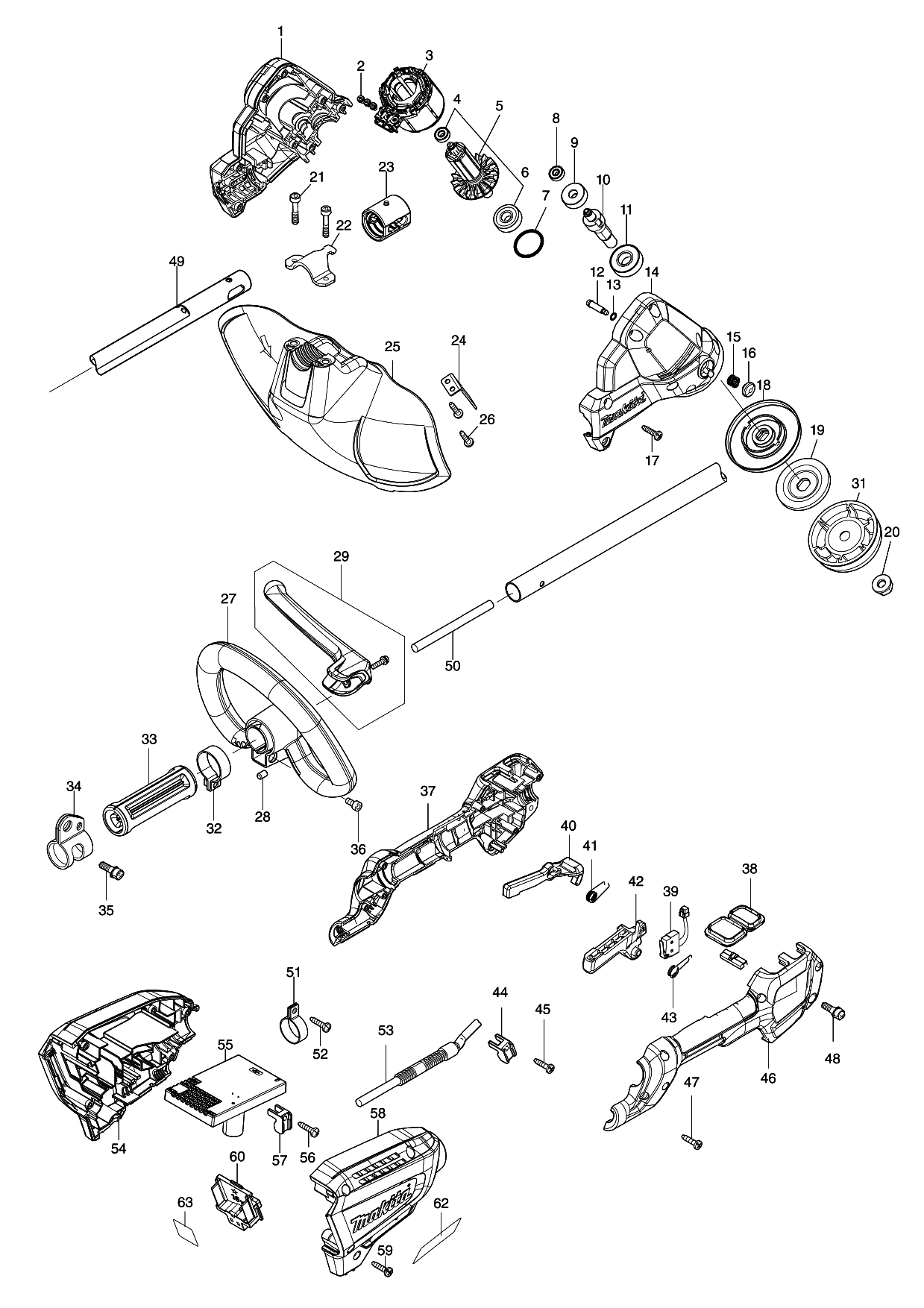

Sheet 1: Makita DUR190L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183P06-0 | |
| 2 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 3 | 629248-1 | Makita 629248-1 STATOR DC18V |
| 4 | 210215-3 | |
| 5 | 510449-1 | |
| 6 | 210049-4 | Makita 210049-4 BALL BEARING 609ZZ, EBH251U |
| 7 | 213380-7 | Makita 213380-7 O-RING 24 HR2450 |
| 8 | 210215-3 | |
| 9 | 221492-2 | Makita 221492-2 HELICAL GEAR 26, DUR187L |
| 10 | 327542-2 | |
| 11 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 12 | 256546-6 | Makita 256546-6 SHOULDER PIN 4 |
| 13 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 14 | 183P06-0 | |
| 15 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 16 | 412408-0 | |
| 17 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 18 | 140T23-7 | |
| 19 | ||
| 20 | ||
| 21 | 251513-6 | Makita 251513-6 HEX. SOCKET HEAD BOLT M5*25, EM404MP, EM406MP |
| 22 | 347667-6 | |
| 23 | 424567-8 | Makita 424567-8 RUBBER SLEEVE 24 |
| 24 | 346855-2 | Makita 346855-2 CUTTER |
| 25 | 412392-9 | |
| 26 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 27 | 457937-6 | |
| 28 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 29 | 143695-7 | |
| 30 | ||
| 31 | ||
| 32 | 347011-7 | Makita 347011-7 PIPE CLAMP 29, DUR187 |
| 33 | 451601-1 | Makita 451601-1 SPACER 24 |
| 34 | 347116-3 | Makita 347116-3 HANGER |
| 35 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 36 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 37 | 183P04-4 | |
| 38 | 140T18-0 | |
| 39 | 632E26-0 | Makita 632E26-0 SWITCH UNIT |
| 40 | 455629-1 | Makita 455629-1 LOCK OFF LEVER |
| 41 | 233621-5 | Makita 233621-5 TORSION SPRING 9 |
| 42 | 455625-9 | Makita 455625-9 SWITCH LEVER |
| 43 | 233612-6 | Makita 233612-6 TORSION SPRING 10 |
| 44 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 45 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 46 | 183P04-4 | |
| 47 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 48 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 49 | 140T21-1 | |
| 50 | 699090-4 | Makita 699090-4 POWER SUPPLY CORD UNIT, DUR187L |
| 51 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 52 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 53 | 699149-7 | |
| 54 | 183P07-8 | |
| 55 | 620C56-1 | |
| 56 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 57 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 58 | 183P07-8 | |
| 59 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 60 | 644809-6 | Makita 644809-6 TERMINAL |
| 62 | 857D04-5 | |
| 63 | 857D09-5 |
