Sheet 1: Makita DUR189 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 456671-5 | Makita 456671-5 LOCK OFF LEVER |
| 2 | 233621-5 | Makita 233621-5 TORSION SPRING 9 |
| 3 | 140B61-1 | Makita 140B61-1 SUB CONTROLLER COMPLETE, DUR189 |
| 4 | 456647-2 | Makita 456647-2 RUBBER SLEEVE 24 A |
| 5 | 453344-1 | Makita 453344-1 LOCK SLEEVE |
| 7 | 632E26-0 | Makita 632E26-0 SWITCH UNIT |
| 8 | 456670-7 | Makita 456670-7 SWITCH LEVER |
| 9 | 233612-6 | Makita 233612-6 TORSION SPRING 10 |
| 10 | 456423-4 | Makita 456423-4 LOOP HANDLE 24 |
| 11 | 921382-6 | Makita 921382-6 HEX. BOLT M6X60 |
| 12 | 264072-1 | Makita 264072-1 THUMB NUT M6 |
| 26 | 183E59-3 | |
| 27 | 854K68-2 | |
| 28 | 620910-1 | |
| 30 | 183E59-3 | |
| 31 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 32 | 854K62-4 | |
| 33 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 34 | 456648-0 | Makita 456648-0 PIPE CAP |
| 71 | 424567-8 | Makita 424567-8 RUBBER SLEEVE 24 |

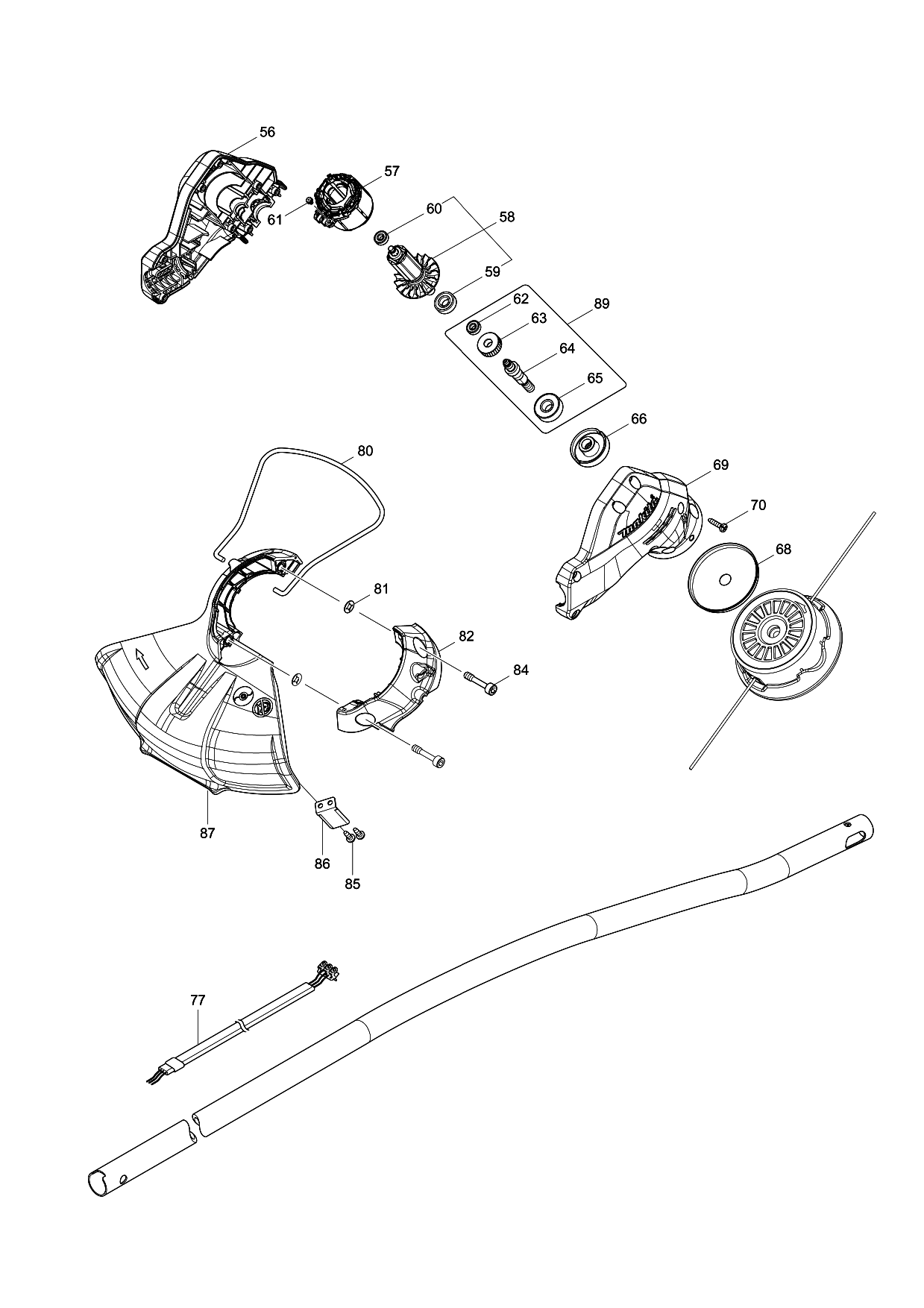

Sheet 2: Makita DUR189 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 56 | 183F18-3 | Makita 183F18-3 MOTOR HOUSING SET, UR144UD |
| 57 | 629248-1 | Makita 629248-1 STATOR DC18V |
| 58 | 519429-4 | Makita 519429-4 ROTOR ASSY |
| 59 | 210049-4 | Makita 210049-4 BALL BEARING 609ZZ, EBH251U |
| 60 | 211157-4 | Makita 211157-4 BALL BEARING 695ZZ, DUR187_8 |
| 61 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 62 | 211157-4 | Makita 211157-4 BALL BEARING 695ZZ, DUR187_8 |
| 63 | 221492-2 | Makita 221492-2 HELICAL GEAR 26, DUR187L |
| 64 | 327132-1 | |
| 65 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 66 | 144512-4 | Makita 144512-4 RECEIVE WASHER COMPLETE |
| 68 | 346857-8 | Makita 346857-8 GUARD |
| 69 | 183F18-3 | Makita 183F18-3 MOTOR HOUSING SET, UR144UD |
| 70 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 77 | 699114-6 | Makita 699114-6 POWER SUPPLY CORD UNIT |
| 80 | 326348-5 | Makita 326348-5 WIRE GUARD |
| 81 | 413143-3 | Makita 413143-3 WASHER |
| 82 | 454641-8 | Makita 454641-8 PROTECTOR HOLDER |
| 84 | 265647-9 | Makita 265647-9 HEX.BOLT M6X30 |
| 85 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 86 | 346855-2 | Makita 346855-2 CUTTER |
| 87 | 456651-1 | Makita 456651-1 PROTECTOR |
