All parts of Makita DUR184L: 44 positions on 2 sheets

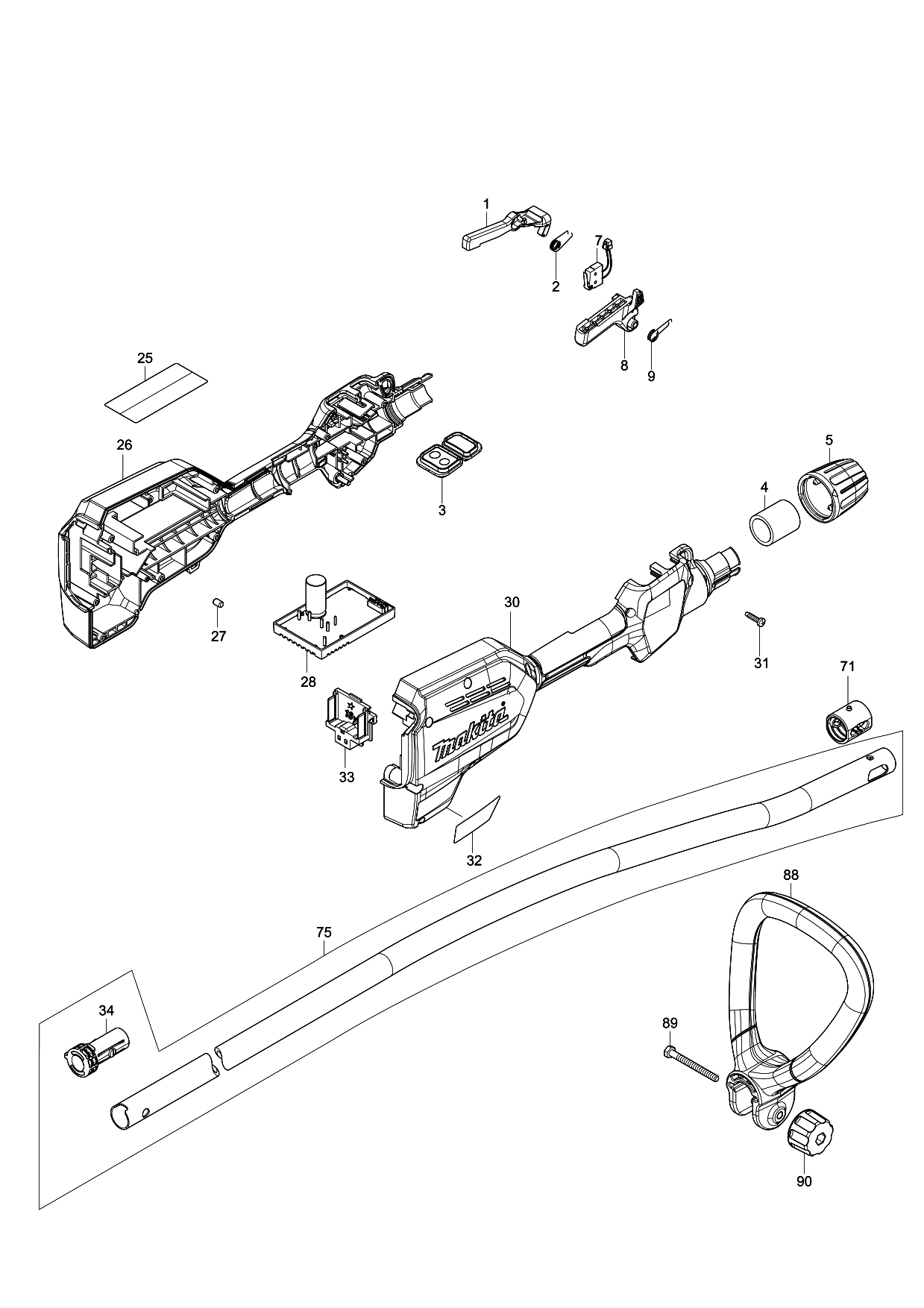

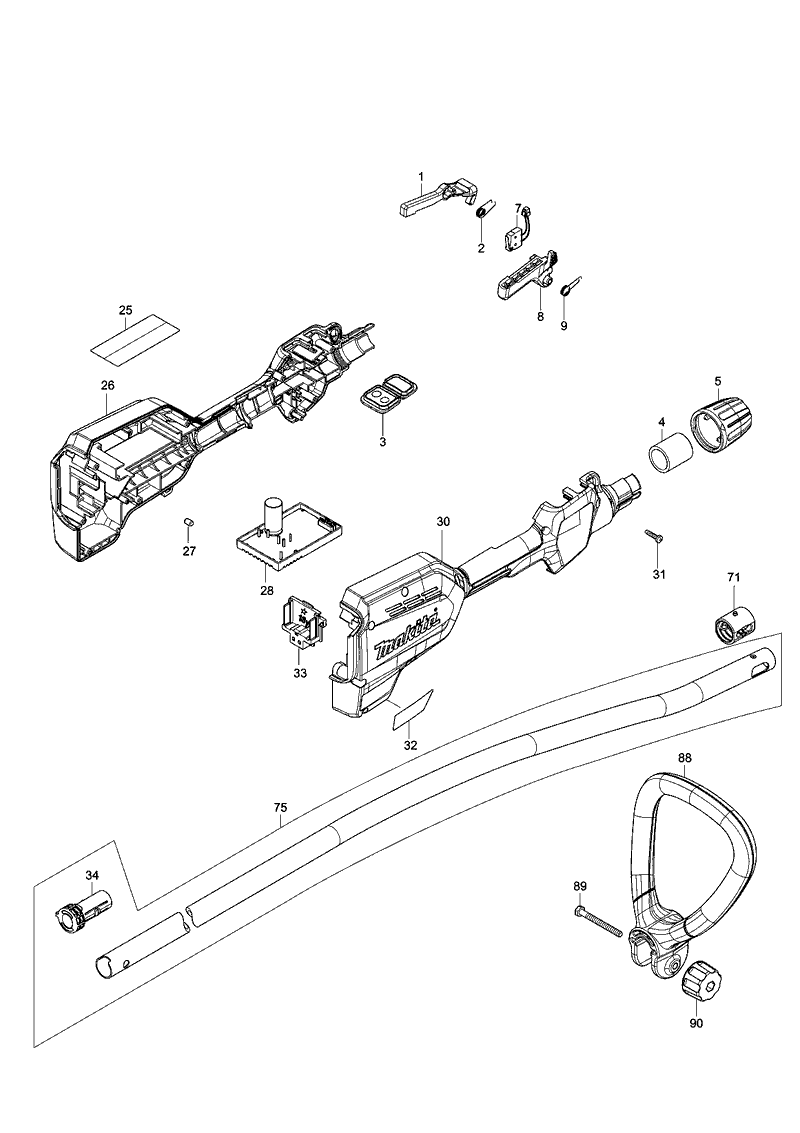

Sheet 1: Makita DUR184L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 456671-5 | Makita 456671-5 LOCK OFF LEVER |
| 2 | 233621-5 | Makita 233621-5 TORSION SPRING 9 |
| 3 | 143755-5 | Makita 143755-5 SUB CONTROLLER COMPLETE |
| 4 | 456647-2 | Makita 456647-2 RUBBER SLEEVE 24 A |
| 5 | 453344-1 | Makita 453344-1 LOCK SLEEVE |
| 7 | 632E26-0 | Makita 632E26-0 SWITCH UNIT |
| 8 | 456670-7 | Makita 456670-7 SWITCH LEVER |
| 9 | 233612-6 | Makita 233612-6 TORSION SPRING 10 |
| 25 | 809J53-4 | |
| 26 | 183C91-5 | Makita 183C91-5 GRIP HOUSING SET |
| 27 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 28 | 620514-9 | Makita 620514-9 CONTROLLER |
| 30 | 183C91-5 | Makita 183C91-5 GRIP HOUSING SET |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 852A51-3 | Makita 852A51-3 NAME PLATE |
| 33 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 34 | 456648-0 | Makita 456648-0 PIPE CAP |
| 71 | 424567-8 | Makita 424567-8 RUBBER SLEEVE 24 |
| 88 | 456423-4 | Makita 456423-4 LOOP HANDLE 24 |
| 89 | 921382-6 | Makita 921382-6 HEX. BOLT M6X60 |
| 90 | 264072-1 | Makita 264072-1 THUMB NUT M6 |

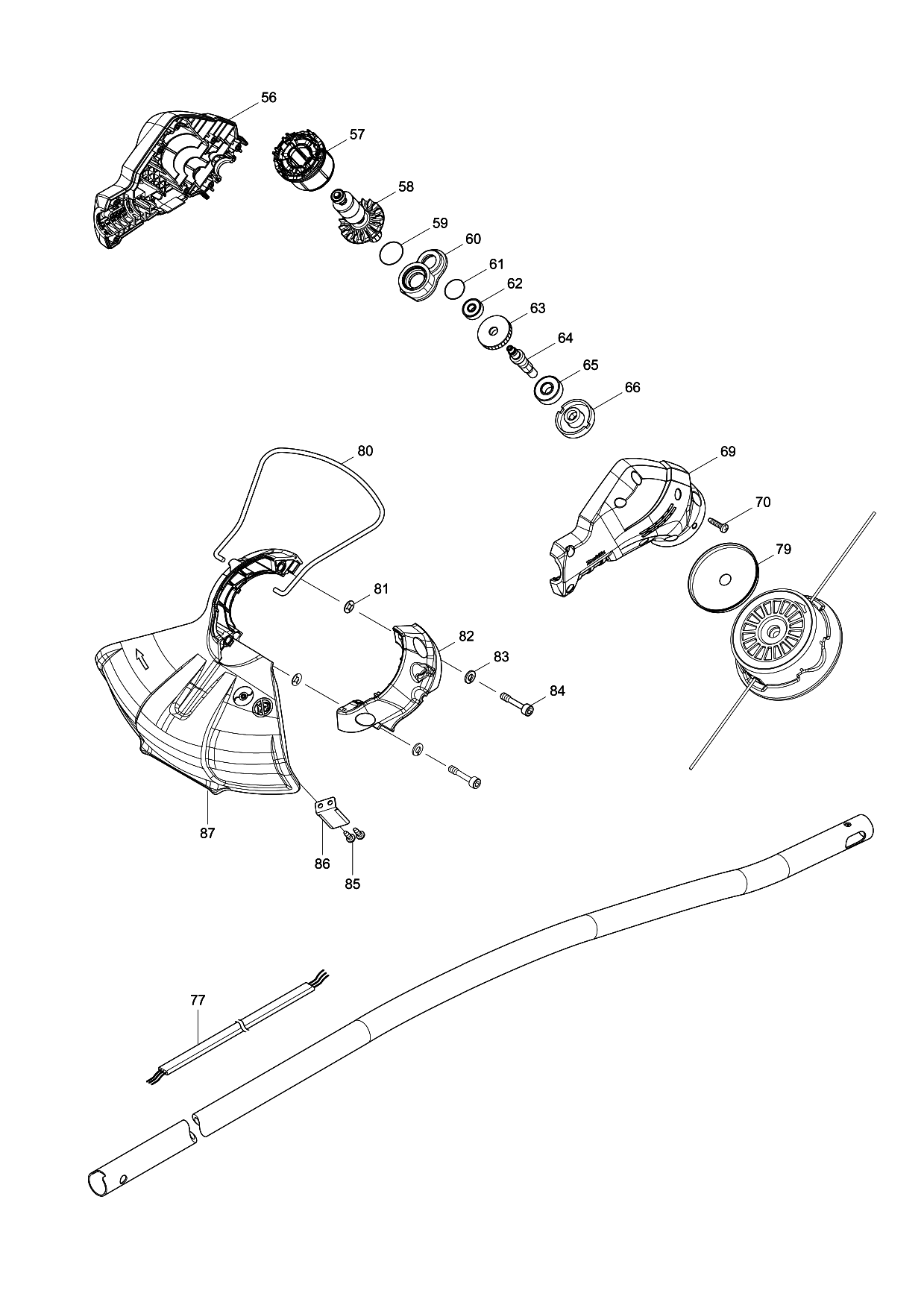

Sheet 2: Makita DUR184L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 56 | 183C95-7 | Makita 183C95-7 MOTOR HOUSING SET DUR184L |
| 57 | 629200-9 | Makita 629200-9 STATOR |
| 58 | 619324-9 | Makita 619324-9 ROTOR |
| 59 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 60 | 318978-6 | Makita 318978-6 HOLDER JOINT B |
| 61 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 62 | 210143-2 | Makita 210143-2 BALL BEARING 626ZZ |
| 63 | 227773-2 | Makita 227773-2 HELIGAL GEAR 31 |
| 64 | 326684-9 | Makita 326684-9 CUTTER SHAFT |
| 65 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 66 | 326683-1 | Makita 326683-1 RECEIVE WASHER |
| 69 | 183C95-7 | Makita 183C95-7 MOTOR HOUSING SET DUR184L |
| 70 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 77 | 699075-0 | Makita 699075-0 POWER SUPPLY CORD UNIT |
| 79 | 346857-8 | Makita 346857-8 GUARD |
| 80 | 326348-5 | Makita 326348-5 WIRE GUARD |
| 81 | 413143-3 | Makita 413143-3 WASHER |
| 82 | 454641-8 | Makita 454641-8 PROTECTOR HOLDER |
| 83 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 84 | 266579-3 | Makita 266579-3 H.S.HEAD BOLT M6*30, EBH260L |
| 85 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 86 | 346855-2 | Makita 346855-2 CUTTER |
| 87 | 456651-1 | Makita 456651-1 PROTECTOR |
