Sheet 1: Makita DUR182U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 158659-8 | |
| 3 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 4 | 318272-6 | Makita 318272-6 HANDLE HOLDER 1 ,RBC420 |
| 5 | 318273-4 | Makita 318273-4 HANDLE HOLDER, DUR365U |
| 6 | 318274-2 | Makita 318274-2 HANDLE HOLDER 1 , DUR365U |
| 7 | 922251-4 | Makita 922251-4 HEX. SOCKET HEAD BOLT M5X |
| 8 | 332068-1 | |
| 9 | 187587-0 | |
| 10 | 651533-4 | Makita 651533-4 SWITCH SLEA2-33BBC231U |
| 11 | 686015-7 | Makita 686015-7 RECEPTACLE SLEEVE, 2012NB |
| 12 | 454298-5 | |
| 13 | 233114-2 | |
| 14 | 454295-1 | |
| 15 | 187587-0 | |
| 16 | 650704-0 | Makita 650704-0 SWITCH D2SW-P01L1-3M |
| 17 | 234003-4 | Makita 234003-4 COMPRESSION SPRING 5AR410HR |
| 18 | 687261-5 | Makita 687261-5 CORD CLAMP, HR2460 |
| 19 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 20 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 21 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 22 | 699060-3 | |
| 23 | 187665-6 | Makita 187665-6 HOUSING SET |
| 24 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 25 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 26 | 687261-5 | Makita 687261-5 CORD CLAMP, HR2460 |
| 27 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 28 | 620196-7 | Makita 620196-7 CONTROLLER A |
| 29 | 142134-4 | Makita 142134-4 SUB CONTROLLER COMPLETE |
| 30 | 187665-6 | Makita 187665-6 HOUSING SET |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 815M97-2 | |
| 33 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 34 | 424463-0 | Makita 424463-0 CUSION |
| 35 | 168478-4 | Makita 168478-4 HANGERBBC231U |
| 36 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 2 | 135395-3 |

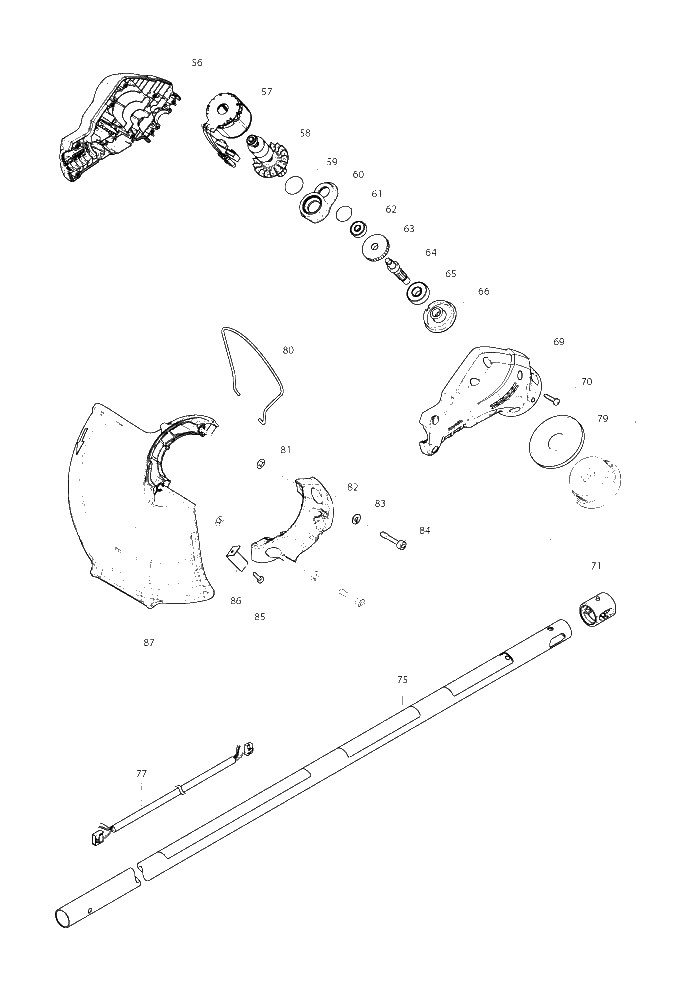

Sheet 2: Makita DUR182U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 56 | 187585-4 | Makita 187585-4 MOTOR HOUSING SET |
| 57 | 629985-7 | Makita 629985-7 Stator DUR182 DUR183 DUR182L DUR183L |
| 58 | 619324-9 | Makita 619324-9 ROTOR |
| 59 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 60 | 318978-6 | Makita 318978-6 HOLDER JOINT B |
| 61 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 62 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 63 | 227773-2 | Makita 227773-2 HELIGAL GEAR 31 |
| 64 | 326275-6 | Makita 326275-6 CUTTER SHAFT |
| 65 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 66 | 324917-6 | Makita 324917-6 RECEIVE WASHER |
| 69 | 187585-4 | Makita 187585-4 MOTOR HOUSING SET |
| 70 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 71 | 424567-8 | Makita 424567-8 RUBBER SLEEVE 24 |
| 75 | 142253-6 | |
| 77 | 699059-8 | Makita 699059-8 POWER SUPPLY CORD UNIT |
| 79 | 346622-5 | Makita 346622-5 GUARD |
| 80 | 326348-5 | Makita 326348-5 WIRE GUARD |
| 81 | 413143-3 | Makita 413143-3 WASHER |
| 82 | 454641-8 | Makita 454641-8 PROTECTOR HOLDER |
| 83 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 84 | 266579-3 | Makita 266579-3 H.S.HEAD BOLT M6*30, EBH260L |
| 85 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 86 | 346725-5 | Makita 346725-5 CUTTER |
| 87 | 454640-0 | Makita 454640-0 PROTECTOR |
