Makita DUP362
Makita DUP362: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUP362: 54 positions on 2 sheets

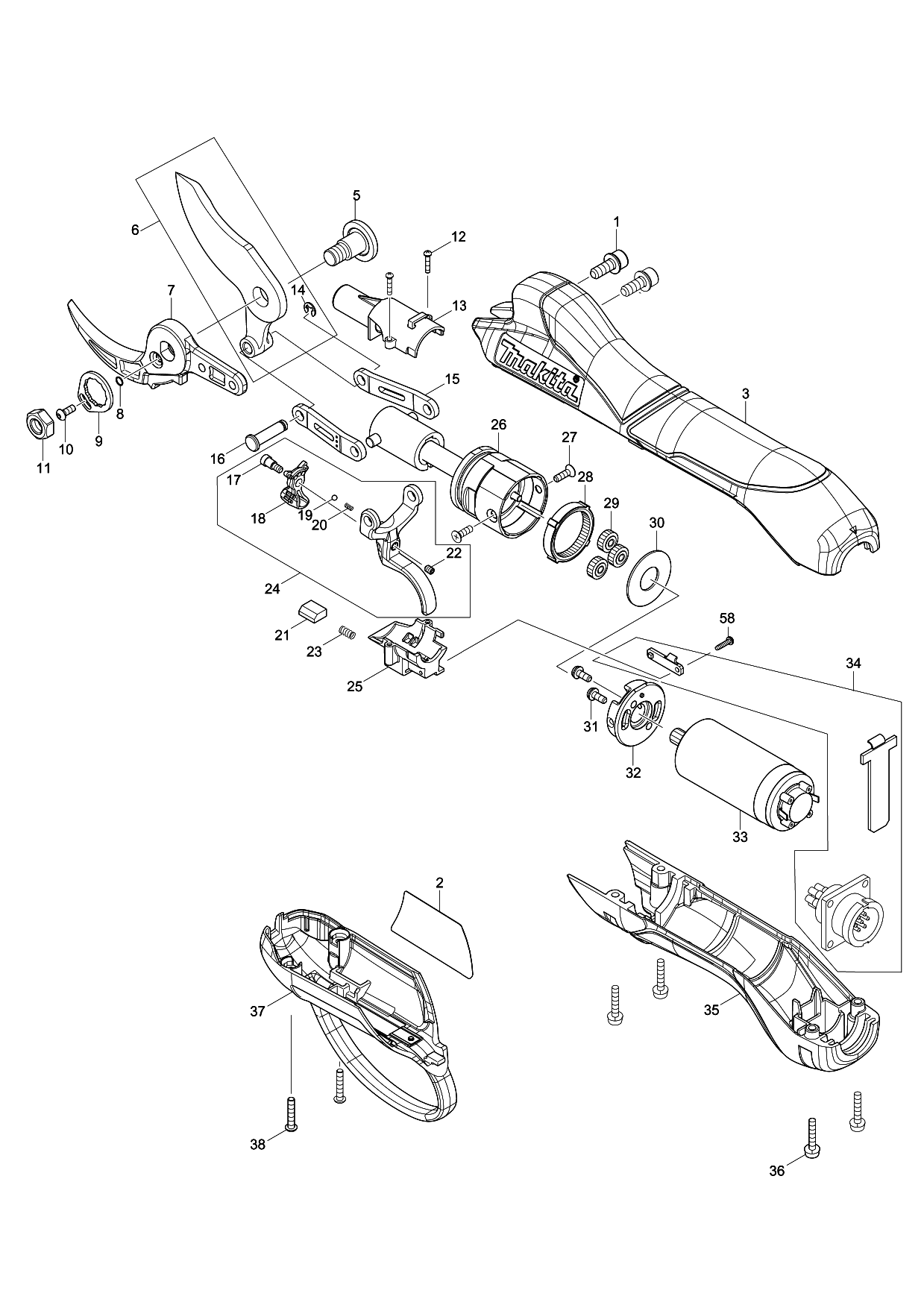

Sheet 1: Makita DUP362 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251490-2 | Makita 251490-2 H.S.H.BOLT M5*14 WITH WR |
| 2 | 855F93-6 | |
| 3 | 456209-6 | Makita 456209-6 UPPER HOUSING |
| 5 | 251474-0 | Makita 251474-0 SHOULDER SCREW M8 |
| 7 | 199169-6 | |
| 8 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 9 | 346940-1 | Makita 346940-1 LOCK PLATE |
| 10 | 266557-3 | Makita 266557-3 H.S.BUTTON HEAD BOLT M3X8 |
| 11 | 264118-3 | Makita 264118-3 264118-3 |
| 12 | 266786-8 | Makita 266786-8 TAPPING SCREW PT2X10 |
| 13 | 456218-5 | Makita 456218-5 BALL NUT COVER B |
| 14 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 15 | 347165-0 | Makita 347165-0 LINK ARM, DUP361 |
| 16 | 256568-6 | Makita 256568-6 FLAT FILLISTER HD.PIN 5 |
| 17 | 251484-7 | |
| 18 | 456215-1 | |
| 19 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 20 | 233491-2 | Makita 233491-2 COMPRESSION SPRING 2AN911H |
| 21 | 688189-0 | Makita 688189-0 MAGNET |
| 22 | 266999-1 | |
| 23 | 231397-8 | Makita 231397-8 COMPRESSION SPRING 4, 2414NB |
| 25 | 456217-7 | Makita 456217-7 BALL NUT COVER A |
| 26 | 127142-6 | Makita 127142-6 BALL SCREW ASSEMBLY, DUP362 |
| 27 | 912012-0 | Makita 912012-0 C.H.SCREW M3X10 |
| 28 | 226866-2 | |
| 29 | 226865-4 | |
| 30 | 253810-6 | Makita 253810-6 FLAT WASHER 12 HR4000C |
| 31 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 32 | 319349-0 | |
| 33 | 629397-4 | |
| 34 | 620459-1 | Makita 620459-1 Sub Controller for DUP361 |
| 35 | 456211-9 | Makita 456211-9 LOWER HOUSING |
| 36 | 911028-2 | Makita 911028-2 PAN HEAD SCREW M3X16 |
| 37 | 143935-3 | Makita 143935-3 FRONT HOUSING COMPLETE |
| 38 | 266980-2 | |
| 58 | 266786-8 | Makita 266786-8 TAPPING SCREW PT2X10 |
Sheet 2: Makita DUP362 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 41 | 183B69-2 | Makita 183B69-2 CONTROLLER HOUSING SET |
| 42 | 232267-4 | |
| 43 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 46 | 620461-4 | Makita 620461-4 RF UNIT |
| 47 | 620458-3 | Makita 620458-3 Controller for DUP361 DUP361Z |
| 48 | 183B69-2 | Makita 183B69-2 CONTROLLER HOUSING SET |
| 49 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 50 | 183B76-5 | Makita 183B76-5 SWITCH HOUSING SET |
| 51 | 699086-5 | Makita 699086-5 POWER SUPPLY CORD UNIT |
| 52 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 53 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 54 | 651536-8 | Makita 651536-8 SWITCH 1941. 1451 |
| 55 | 620460-6 | Makita 620460-6 LED CIRCUIT |
| 56 | 183B76-5 | Makita 183B76-5 SWITCH HOUSING SET |
| 57 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 59 | 855F95-2 |
