Makita DUN500W
Makita DUN500W: exploded parts diagram, 1 sheet, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUN500W: 75 positions on 1 sheet

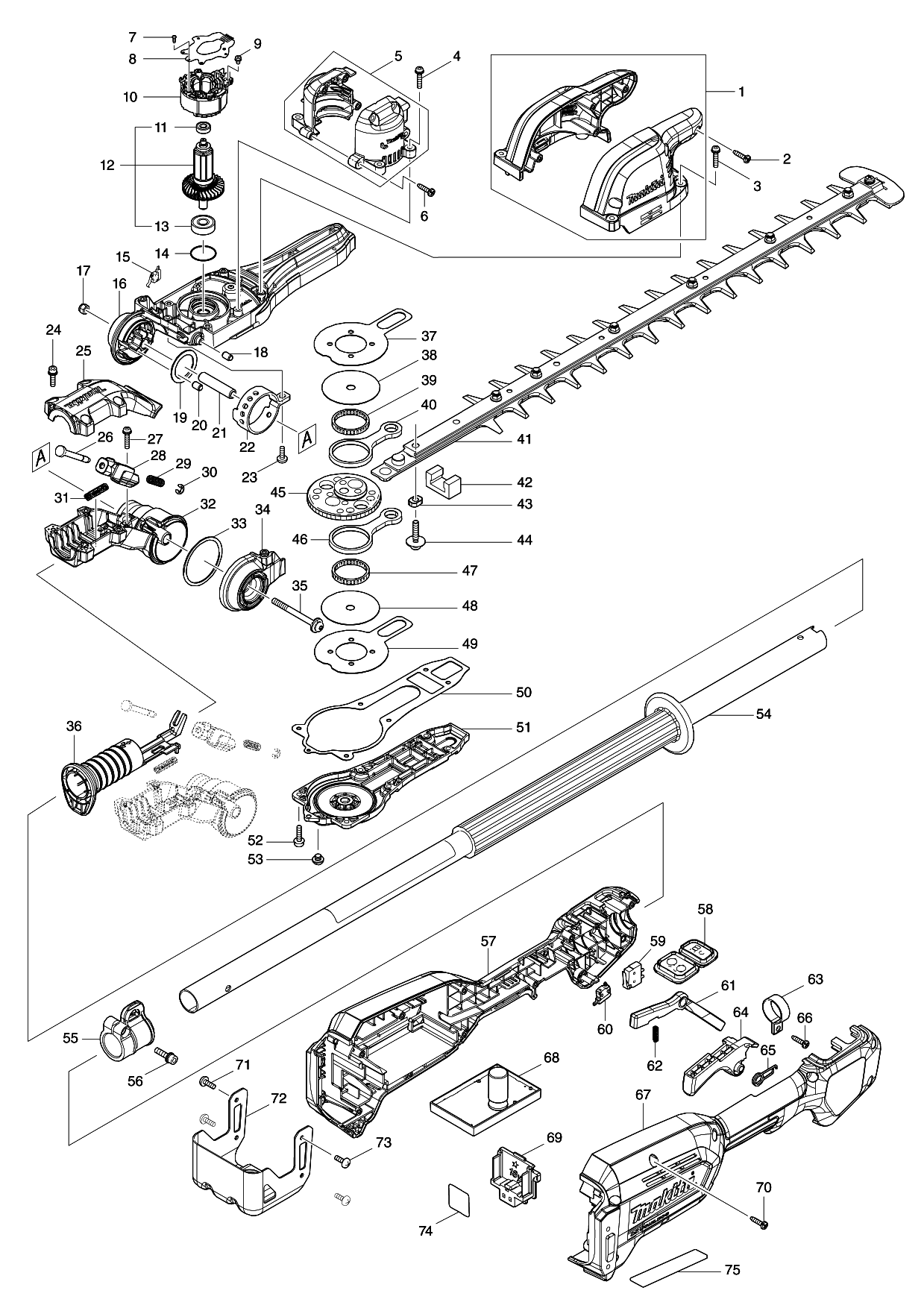

Sheet 1: Makita DUN500W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183N85-6 | |
| 2 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 3 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 4 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 5 | 183N83-0 | |
| 6 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 7 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 8 | 620B02-8 | Makita 620B02-8 CONTROLLER B |
| 9 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 10 | 629352-6 | Makita 629352-6 STATOR, DUH501 |
| 11 | 211157-4 | Makita 211157-4 BALL BEARING 695ZZ, DUR187_8 |
| 12 | 519598-1 | |
| 13 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 14 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 15 | 632P71-1 | |
| 16 | 140R17-0 | |
| 17 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 18 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 19 | 267304-5 | Makita 267304-5 FLAT WASHER 25, HR1830FT |
| 20 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 21 | 257761-5 | |
| 22 | 347656-1 | |
| 23 | 265487-5 | Makita 265487-5 H.S.HEAD BOLT M5*16, AN611 |
| 24 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 25 | 319952-7 | |
| 26 | 327514-7 | |
| 27 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 28 | 412295-7 | |
| 29 | 233096-8 | Makita 233096-8 COMPRESSION SPRING 5 FOR |
| 30 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 31 | 232299-1 | Makita 232299-1 COMPRESSION SPRING 5 |
| 32 | 319950-1 | |
| 33 | 267190-4 | |
| 34 | 319951-9 | |
| 35 | 265A90-8 | |
| 36 | 412296-5 | |
| 37 | 347361-0 | Makita 347361-0 FRICTION PLATE |
| 38 | 347661-8 | |
| 39 | 212229-8 | |
| 40 | 347662-6 | |
| 41 | 191C14-9 | Makita 191C14-9 SHEAR BLADE 500 SET, DUN500 |
| 42 | 443159-4 | Makita 443159-4 SEAL |
| 43 | 257439-0 | |
| 44 | 265A89-3 | |
| 45 | 226958-7 | |
| 46 | 347662-6 | |
| 47 | 212229-8 | |
| 48 | 347661-8 | |
| 49 | 347361-0 | Makita 347361-0 FRICTION PLATE |
| 50 | 422568-0 | |
| 51 | 319949-6 | |
| 52 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 53 | 266559-9 | |
| 54 | 140R22-7 | |
| 55 | 168478-4 | Makita 168478-4 HANGERBBC231U |
| 56 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 57 | 183N92-9 | |
| 58 | 140R24-3 | |
| 59 | 632E26-0 | Makita 632E26-0 SWITCH UNIT |
| 60 | 632L49-0 | Makita 632L49-0 SWITCH UNIT, DUC254 |
| 61 | 457773-0 | Makita 457773-0 LOCK OFF LEVER |
| 62 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 63 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 64 | 412285-0 | |
| 65 | 233612-6 | Makita 233612-6 TORSION SPRING 10 |
| 66 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 67 | 183N92-9 | |
| 68 | 620C77-3 | |
| 69 | 644809-6 | Makita 644809-6 TERMINAL |
| 70 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 71 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 72 | 347655-3 | |
| 73 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 74 | 856T84-4 | |
| 75 | 856T79-7 |
