Makita DUN461W: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUN461W: 45 positions on 1 sheet

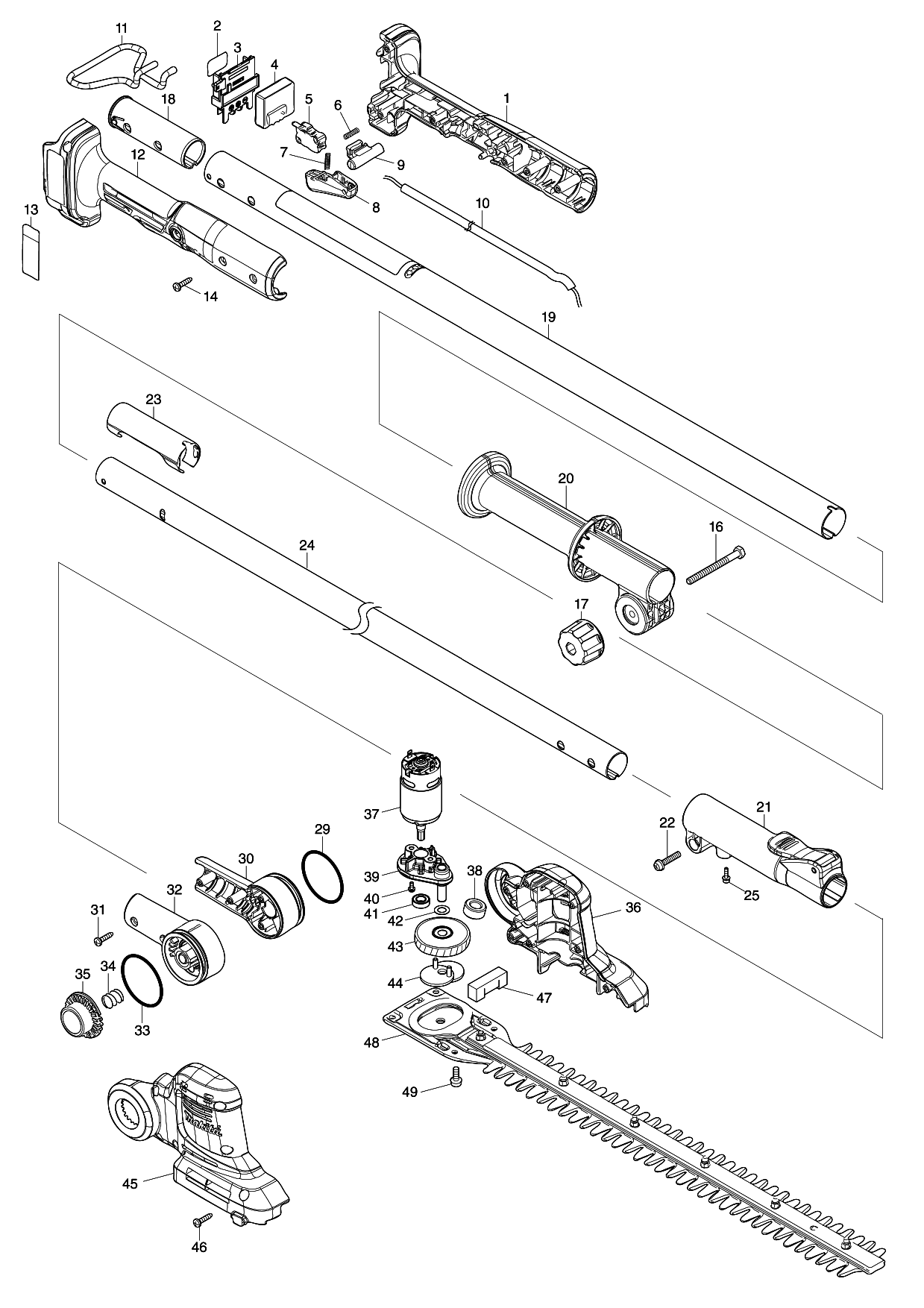

Sheet 1: Makita DUN461W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183S96-1 | |
| 2 | 811M68-7 | |
| 3 | 643874-2 | Makita 643874-2 Terminal |
| 4 | 620F42-0 | Makita 620F42-0 CONTROLLER, DUN461W |
| 5 | 651398-4 | Makita 651398-4 SWITCH BMC-1112-001, DUN461W |
| 6 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 7 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 8 | 413714-6 | Makita 413714-6 SWITCH LEVER, DUN461W |
| 9 | 413713-8 | Makita 413713-8 LOCK OFF BUTTON A, DUN461W |
| 10 | 699168-3 | Makita 699168-3 POWER SUPPLY CORD UNIT, DUN461W |
| 11 | 327810-3 | Makita 327810-3 BATTERY GUARD, DUN461W |
| 12 | 183S96-1 | |
| 13 | 811M62-9 | |
| 14 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 16 | 921362-2 | Makita 921362-2 HEX. BOLT M6X40 |
| 17 | 264072-1 | Makita 264072-1 THUMB NUT M6 |
| 18 | 413712-0 | Makita 413712-0 PIPE CAP 32, DUN461W |
| 19 | 141B61-4 | |
| 20 | 413719-6 | Makita 413719-6 FRONT GRIP A, DUN461W |
| 21 | 141C39-3 | Makita 141C39-3 PIPE HOLDER 32 COMPLETE, DUN461W |
| 22 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 23 | 413711-2 | Makita 413711-2 PIPE CAP 28, DUN461W |
| 24 | 327815-3 | |
| 25 | 251568-1 | Makita 251568-1 H.S.H. BOLT M3*12 WITH WR, HR2651 |
| 29 | 213616-4 | Makita 213616-4 O RING 48AN621 |
| 30 | 183T14-5 | Makita 183T14-5 PIPE HOLDER SET, DUN461W |
| 31 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 32 | 183T14-5 | Makita 183T14-5 PIPE HOLDER SET, DUN461W |
| 33 | 213616-4 | Makita 213616-4 O RING 48AN621 |
| 34 | 231113-8 | Makita 231113-8 COMPRESSION SPRING 12 |
| 35 | 413715-4 | Makita 413715-4 LOCK OFF BUTTON B, DUN461W |
| 36 | 183T13-7 | Makita 183T13-7 MOTOR HOUSING SET, DUN461W |
| 37 | 629A62-1 | |
| 38 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 39 | 141B58-3 | Makita 141B58-3 MOTOR HOLDER COMPLETE, DUN461W |
| 40 | 265199-0 | Makita 265199-0 PAN HEAD SCREW, 4075D |
| 41 | 210124-6 | |
| 42 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 43 | 141B59-1 | |
| 44 | 165734-3 | |
| 45 | 183T13-7 | Makita 183T13-7 MOTOR HOUSING SET, DUN461W |
| 46 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 47 | 424958-3 | |
| 48 | 191P00-8 | |
| 49 | 265074-0 | Makita 265074-0 PAN HEAD SCREW M5X16 |
