All parts of Makita DUH551: 49 positions on 1 sheet

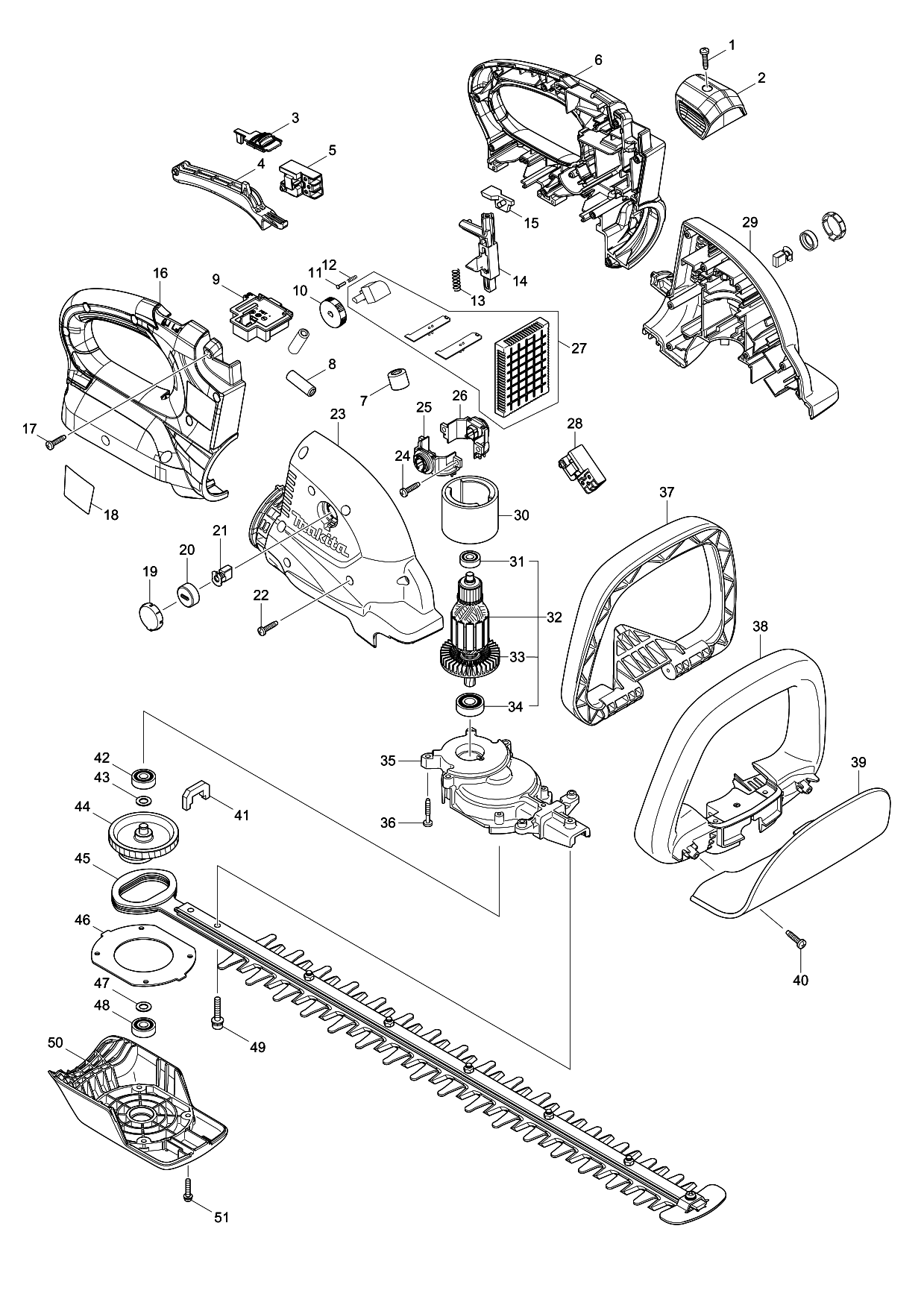

Sheet 1: Makita DUH551 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 452164-0 | Makita 452164-0 KNOBBUH650 |
| 3 | 455093-6 | Makita 455093-6 LOCK OFF LEVER |
| 4 | 455091-0 | Makita 455091-0 SWITCH LEVER A |
| 5 | 650730-9 | Makita 650730-9 SWITCH TG72BD-6 |
| 6 | 187879-7 | Makita 187879-7 HANDLE SET |
| 7 | 688163-8 | Makita 688163-8 Line Filter for BHS630 |
| 8 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 9 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 10 | 271427-3 | Makita 271427-3 DIAL 28, UH550D |
| 11 | 255058-6 | Makita 255058-6 RIVET 2 FOR |
| 12 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 13 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 14 | 452162-4 | Makita 452162-4 LOCK LEVERBUH650 |
| 15 | 455092-8 | Makita 455092-8 SLIDER |
| 16 | 187879-7 | Makita 187879-7 HANDLE SET |
| 17 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 18 | 815P92-0 | |
| 19 | 452145-4 | Makita 452145-4 HOLDER CAP COVER |
| 20 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 21 | 194928-3 | Makita 194928-3 CB-442 Carbon Brushes BHR261T BUC250 BUH550 UC250D UH550D |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 187878-9 | Makita 187878-9 HOUSING SET |
| 24 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 25 | 644511-1 | Makita 644511-1 BRUSH HOLDER |
| 26 | 644512-9 | Makita 644512-9 BRUSH HOLDER |
| 27 | 620274-3 | Makita 620274-3 CONTROLLER |
| 28 | 650730-9 | Makita 650730-9 SWITCH TG72BD-6 |
| 29 | 187878-9 | Makita 187878-9 HOUSING SET |
| 30 | 638020-0 | Makita 638020-0 Yoke Unit for HR202D |
| 31 | 211022-7 | Makita 211022-7 BALL BEARING 607ZZ |
| 34 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 35 | 140604-7 | Makita 140604-7 GEAR HOUSING COMPLBUH650 |
| 36 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 37 | 452160-8 | Makita 452160-8 SWITCH LEVER BBUH650 |
| 38 | 452158-5 | Makita 452158-5 FRONT GRIPBUH650 |
| 39 | 452147-0 | Makita 452147-0 PROTECTORBUH650 |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 443142-1 | Makita 443142-1 DUST GDARD, UH5580 |
| 42 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 43 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 44 | 140536-8 | Makita 140536-8 GEAR COMPLETEBUH650 |
| 45 | 194671-4 | |
| 46 | 346325-1 | Makita 346325-1 PLATE, UH550D |
| 47 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 48 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 49 | 265182-7 | Makita 265182-7 PAN HEAD SCREW M5*25, UH5580 |
| 50 | 452156-9 | Makita 452156-9 UNDER COVERBUH650 |
| 51 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
