Makita DUC150: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUC150: 48 positions on 1 sheet

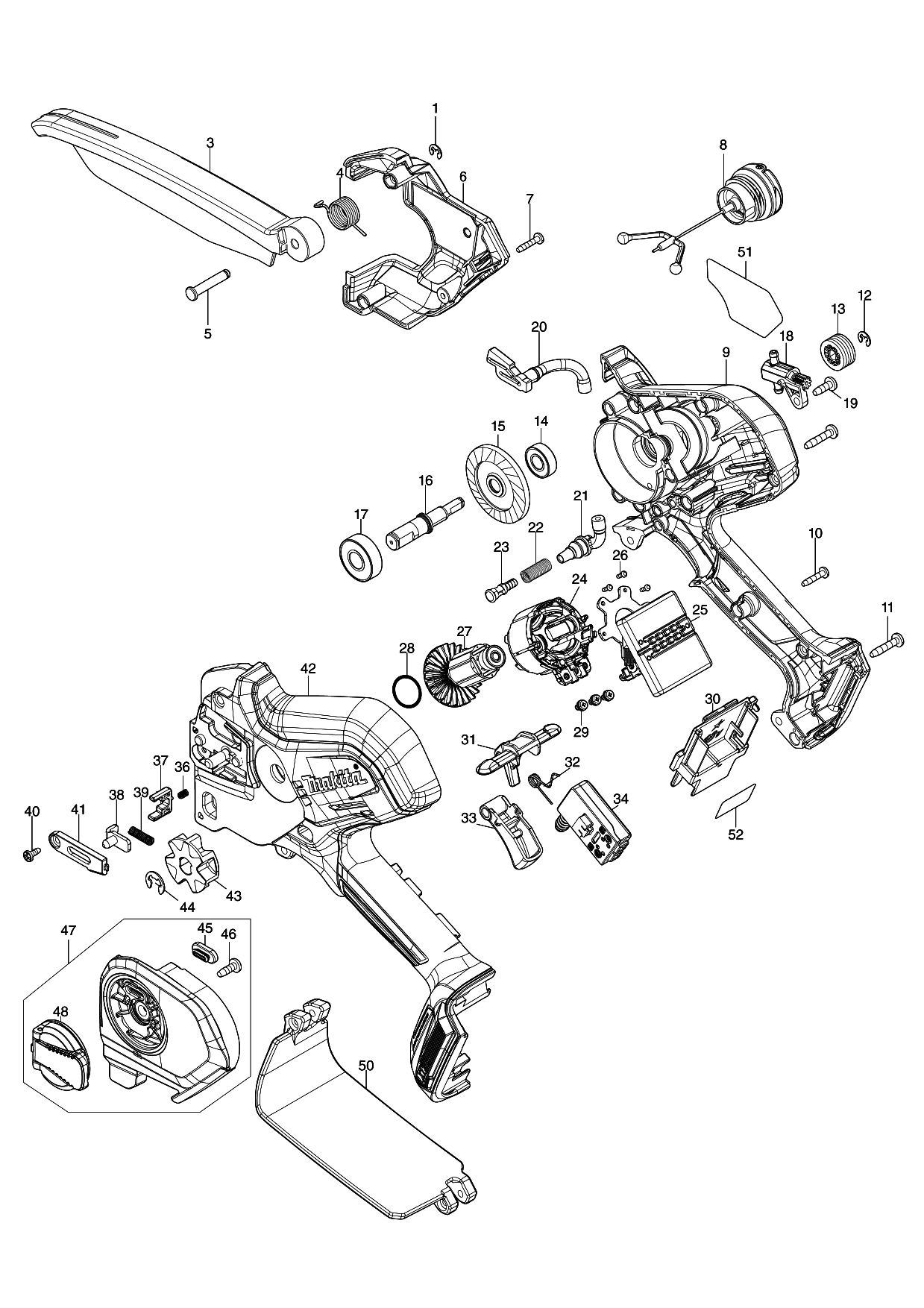

Sheet 1: Makita DUC150 parts diagram

Makita DUC150 parts diagram, sheet 1
No.Part numberPart name
1961011-9Makita 961011-9 STOP RING, HR2450
3413T68-1Makita 413T68-1 SAFETY COVER, DUC150
4232785-2
5256A31-5
6413L96-8
7266429-2Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD
8126832-8
9183Y31-5Makita 183Y31-5 HOUSING SET
10266429-2Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD
11911138-5Makita 911138-5 P.H.SCREW M4*20, M442
12961011-9Makita 961011-9 STOP RING, HR2450
13226884-0Makita 226884-0 WORM GEAR, UC356D
14211166-3Makita 211166-3 BALL BEARING 698DDW
15227A17-6Makita 227A17-6 SPIRAL BEVEL GEAR 53
16327A89-2Makita 327A89-2 SPINDLE
17210059-1Makita 210059-1 Ball Bearing for 6000DDW 9069
18141N25-0
19266427-6Makita 266427-6 TAPPING SCREW 4X12
20422968-4Makita 422968-4 OIL TUBE 3-60
21422969-2Makita 422969-2 OIL TUBE
22232774-7
23413L02-3
24629B92-8Makita 629B92-8 STATOR
25620M06-6Makita 620M06-6 CONTROLLER
26266490-9Makita 266490-9 TAPPING SCREW 2X6
27619791-8Makita 619791-8 ROTOR
28213A05-9
29652069-6Makita 652069-6 FLAT HEAD SCREW M3x6
30643874-2Makita 643874-2 Terminal
31413L98-4
32232784-4
33413L97-6
34650033-1Makita 650033-1 SWITCH
36233211-4Makita 233211-4 COMPRESSION SPRING 2
37413M02-9
38347A69-2Makita 347A69-2 TENSION SLIDE
39232787-8
40266492-5Makita 266492-5 TAPPING SCREW M3X8
41413M03-7
42183Y31-5Makita 183Y31-5 HOUSING SET
43227947-5
44961013-5Makita 961013-5 STOP RING E-7, LS1016
45422970-7
46266427-6Makita 266427-6 TAPPING SCREW 4X12
48141M77-5
50141T89-0Makita 141T89-0 REAR HAND GUARD COMPLETE, DUC150
518141U5-5
528141U7-1
