Makita DUB363

Makita DUB363: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUB363: 46 positions on 1 sheet

Sheet 1: Makita DUB363 parts diagram

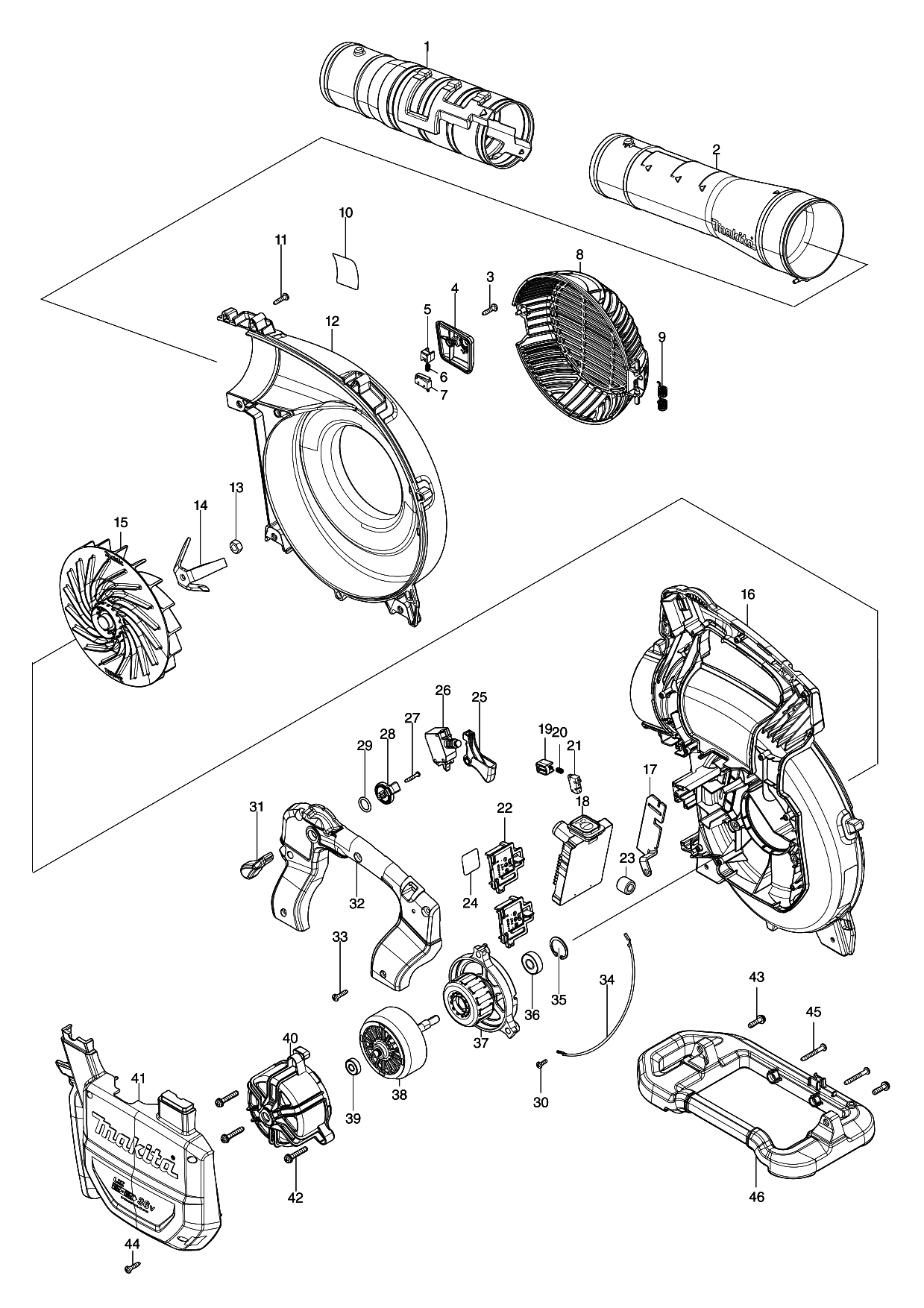

Makita DUB363 parts diagram, sheet 1
No.Part numberPart name
1459798-0
2127501-4
3266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
4459790-6
5459793-0
6233118-4Makita 233118-4 COMPRESSION SPRING 4BJV180
7632L94-5Makita 632L94-5 SWITCH UNIT, DTR180
8127424-6
9232600-0
10856S45-8
11266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
12459784-1
13252154-1Makita 252154-1 HEX. NUT M8-13
14347570-1
15240204-4
16140S59-0
17347718-5
18140S58-2
19459794-8
20233118-4Makita 233118-4 COMPRESSION SPRING 4BJV180
21632L94-5Makita 632L94-5 SWITCH UNIT, DTR180
22644809-6Makita 644809-6 TERMINAL
23688163-8Makita 688163-8 Line Filter for BHS630
24856S53-9
25459791-4
26651438-8
27266127-8Makita 266127-8 + TAPPING SCREW PT 3X20
28459698-4
29213154-6Makita 213154-6 O RING 14
30652008-6Makita 652008-6 SCREW M3.5X7, 4100NH
31459792-2
32459788-3
33266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
34632P80-0
35962105-3Makita 962105-3 RETAINING RING R-32, GA4030
36210059-1Makita 210059-1 Ball Bearing for 6000DDW 9069
37629473-4
38619609-3
39210017-7Makita 210017-7 BALL BEARING 607DDW, 9528B
40459789-1
41140N74-4
42911253-5Makita 911253-5 PANHEAD SCREW M5*30, EBH252L
43911233-1Makita 911233-1 PAN HEAD SCREW M5X20, EBH251
44266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
45266351-3Makita 266351-3 TAPPING SCREW 4*35, 9556PB
46459787-5
