Makita DUB183: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DUB183: 23 positions on 1 sheet

Sheet 1: Makita DUB183 parts diagram

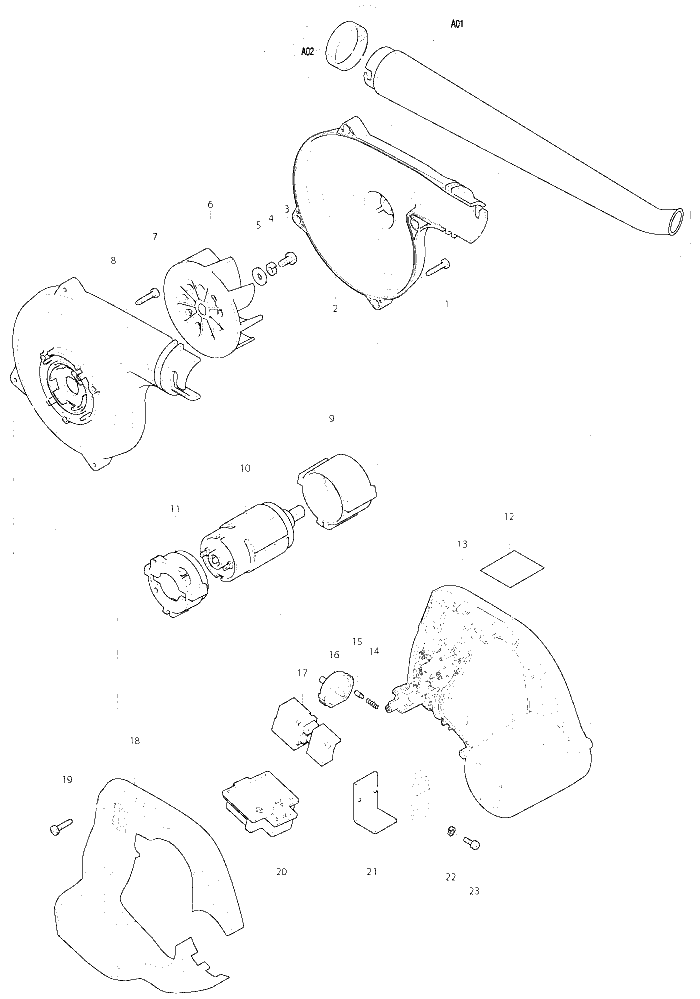

Makita DUB183 parts diagram, sheet 1
No.Part numberPart name
1KW00000210Makita KW00000210 TAPPING SCREW 4x18
2TP00000112Makita TP00000112 FAN HOUSING SET
3KW00000220Makita KW00000220 PAN HEAD SCREW M5x8
4KW00000160Makita KW00000160 SPRING WASHER M5
5KW00000170Makita KW00000170 FLAT WASHER 5
6KW00000100Makita KW00000100 FAN AP-10302
7KW00000210Makita KW00000210 TAPPING SCREW 4x18
8TP00000112Makita TP00000112 FAN HOUSING SET
9KW00000150Makita KW00000150 MOTOR RUBBER RING A
10TP00000113Makita TP00000113 MOTOR SETBUB182
11TP00000083Makita TP00000083 MOTOR RUBBER RING B
12
13TP00000211Makita TP00000211 MOTOR HOUSING SET BUB182
14TP00000084Makita TP00000084 SPRINGBUB182
15TP00000085Makita TP00000085 PINBUB182
16TP00000212Makita TP00000212 DIAL
17TP00000209Makita TP00000209 SWITCH
18TP00000211Makita TP00000211 MOTOR HOUSING SET BUB182
19KW00000210Makita KW00000210 TAPPING SCREW 4x18
20GM00001116Makita GM00001116 BATTERY HOLDERML185
21KW00000200
22KW00000270Makita KW00000270 SPRING WASHER M3
23TP00000081Makita TP00000081 SCREW M3x6
