Makita DUA301

Makita DUA301: exploded parts diagram, 3 sheets, 118 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Makita DUA301: 118 positions on 3 sheets

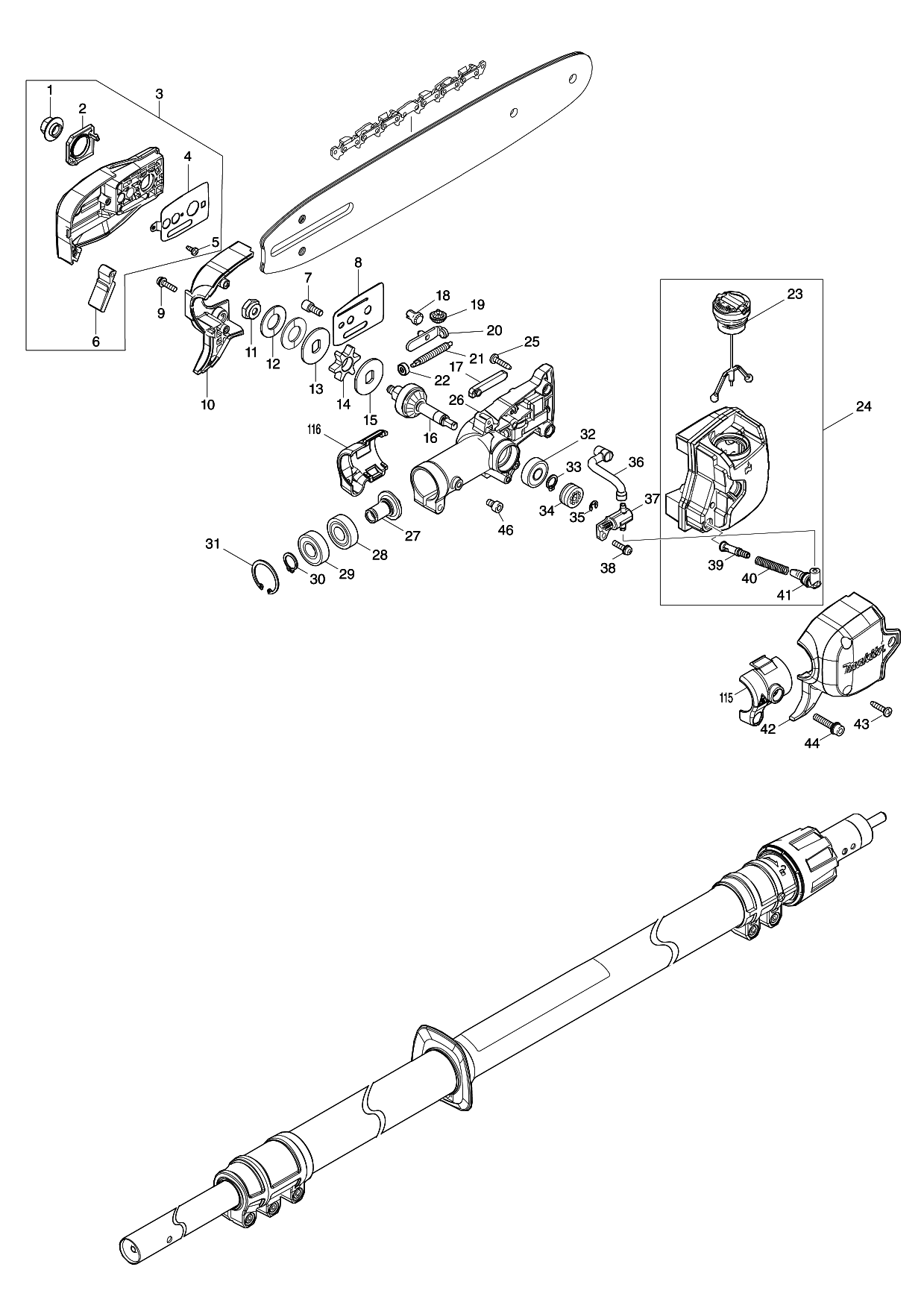

Sheet 1: Makita DUA301 parts diagram

No.	Part number	Part name
1	162494-8
2	412638-3
4	347707-0
5	265954-0	Makita 265954-0 TAPPING SCREW BIND PT3X8
6	422599-9
7	266905-6	Makita 266905-6 H.L. SOCKET HEAD BOLT M5X12
8	347708-8
9	911128-8	Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
10	183P83-2
11	252291-1
12	232626-2
13	347705-4
14	226992-7
15	347705-4
16	141D34-9
17	422602-6
18	227620-7	Makita 227620-7 DRIVE GEAR
19	227634-6	Makita 227634-6 STRAIGHT BEVEL GEAR 14
20	347706-2
21	327606-2
22	227496-2	Makita 227496-2 Straight Bevel Gear 14 for UC3520A UC3020A
23	126832-8
25	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951
26	136301-1
27	141D35-7
28	211131-2	Makita 211131-2 BALL BEARING 6001DDW, 5903R
29	211148-5	Makita 211148-5 BALL BEARING 6001ZZ GD0800C
30	961052-5	Makita 961052-5 RETAINING RING S-12, 4100NH
31	962106-1	Makita 962106-1 RETAINING RING R-28, GD0800C
32	211491-2
33	961005-4	Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S
34	226884-0	Makita 226884-0 WORM GEAR, UC356D
35	961011-9	Makita 961011-9 STOP RING, HR2450
36	422600-0
37	140U04-7
38	911128-8	Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
39	452666-6	Makita 452666-6 NIPPLE, EA3200S
40	231975-4	Makita 231975-4 SPRING, DCS230T
41	422601-8
42	183P83-2
43	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951
44	922243-3	Makita 922243-3 HEX. SOCKET HEAD BOLT M5X
46	922202-7	Makita 922202-7 HEX. SOCKET HEAD BOLT M5X
115	183R91-5
116	183R91-5

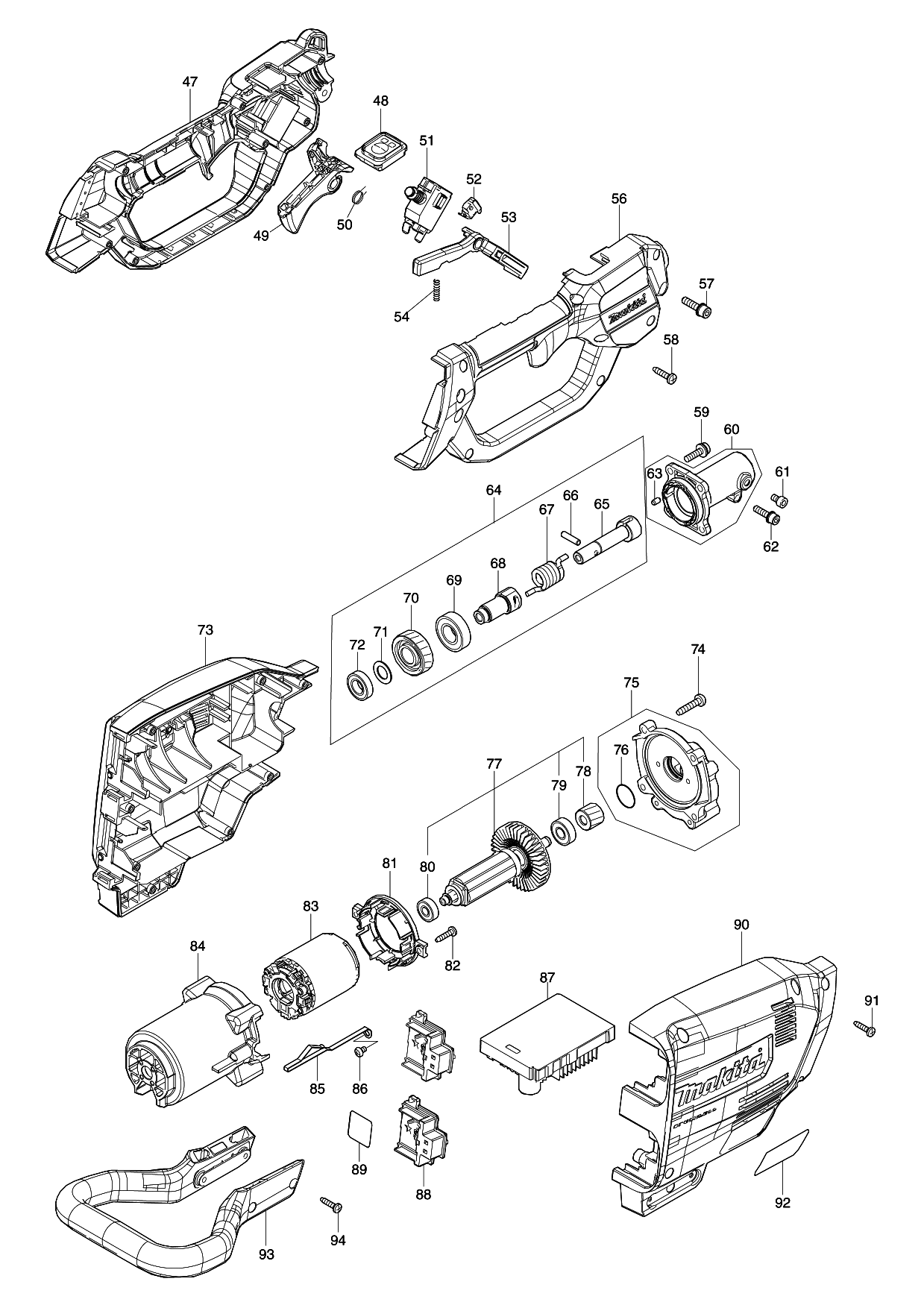

No.	Part number	Part name
47	183P85-8
48	140V21-3
49	459758-2
50	233622-3
51	651438-8
52	632G61-0	Makita 632G61-0 SWITCH UNIT
53	459759-0
54	233101-1	Makita 233101-1 COMPRESSION SPRING 4, AN611
56	183P85-8
57	922233-6	Makita 922233-6 HEX SOCKET HEAD BOLT M5X2
58	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951
59	911233-1	Makita 911233-1 PAN HEAD SCREW M5X20, EBH251
61	922202-7	Makita 922202-7 HEX. SOCKET HEAD BOLT M5X
62	922233-6	Makita 922233-6 HEX SOCKET HEAD BOLT M5X2
63	263002-9	Makita 263002-9 RUBBER PIN 4, 5704R
65	327600-4
66	256964-8
67	232625-4
68	327601-2
69	211232-6	Makita 211232-6 BALL BEARING 6002LLU, HR2810
70	226997-7
71	253744-3	Makita 253744-3 FLAT WASHER 12, HR2410
72	211150-8	Makita 211150-8 BALL BEARING 6901ZZ, 6935FD
73	183P84-0
74	266459-3	Makita 266459-3 TAPPING SCREW 5*25, 5477NB
76	213961-7	Makita 213961-7 O RING 22, MT813
77	510470-0
78	226996-9
79	210005-4	Makita 210005-4 BALL BEARING 608DDW, UB1100
80	210062-2	Makita 210062-2 BALL BEARING 607ZZ, MT952
81	459764-7
82	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951
83	629A12-6
84	459763-9
85	347620-2
86	911102-6	Makita 911102-6 PAN HEAD SCREW M4X6
87	620C83-8
88	644809-6	Makita 644809-6 TERMINAL
89	857J46-5
90	183P84-0
91	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951
92	857J43-1
93	412645-6
94	266326-2	Makita 266326-2 TAPPING SCREW PT 4X18, MT951

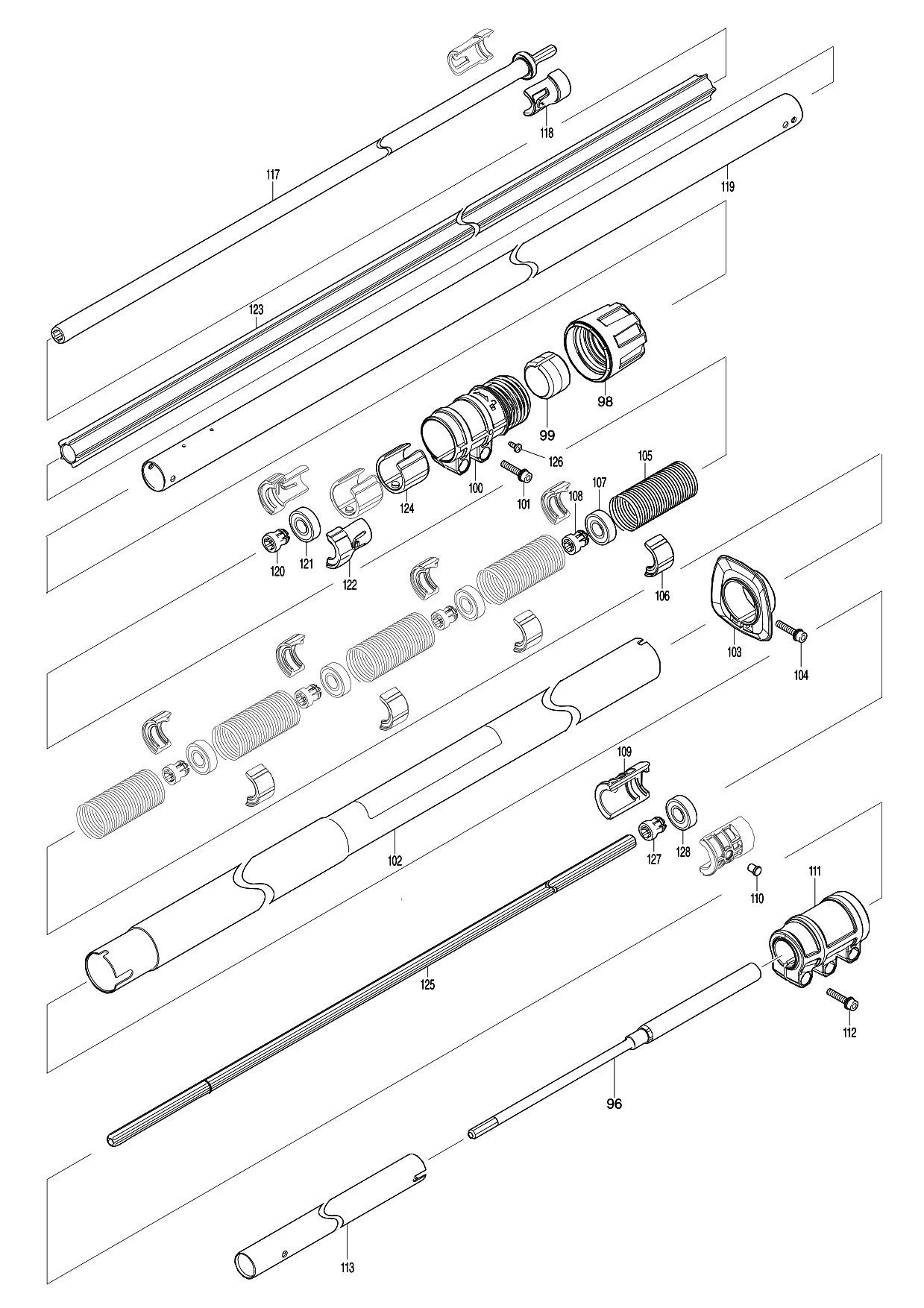

No.	Part number	Part name
96	140V20-5
98	412631-7
99	412632-5
100	412630-9
101	922243-3	Makita 922243-3 HEX. SOCKET HEAD BOLT M5X
102	140V15-8
103	412634-1
104	922243-3	Makita 922243-3 HEX. SOCKET HEAD BOLT M5X
105	232624-6
106	413312-6
107	211148-5	Makita 211148-5 BALL BEARING 6001ZZ GD0800C
108	412625-2
109	313340-0
110	327599-3
111	412629-4
112	922243-3	Makita 922243-3 HEX. SOCKET HEAD BOLT M5X
113	140V18-2
117	136393-0
118	412627-8
119	327609-6
120	412625-2
121	211148-5	Makita 211148-5 BALL BEARING 6001ZZ GD0800C
122	412624-4
123	412623-6
124	412626-0
125	136393-0
126	265954-0	Makita 265954-0 TAPPING SCREW BIND PT3X8
127	412625-2
128	211148-5	Makita 211148-5 BALL BEARING 6001ZZ GD0800C
