Makita DTWA190
Makita DTWA190: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTWA190: 44 positions on 1 sheet

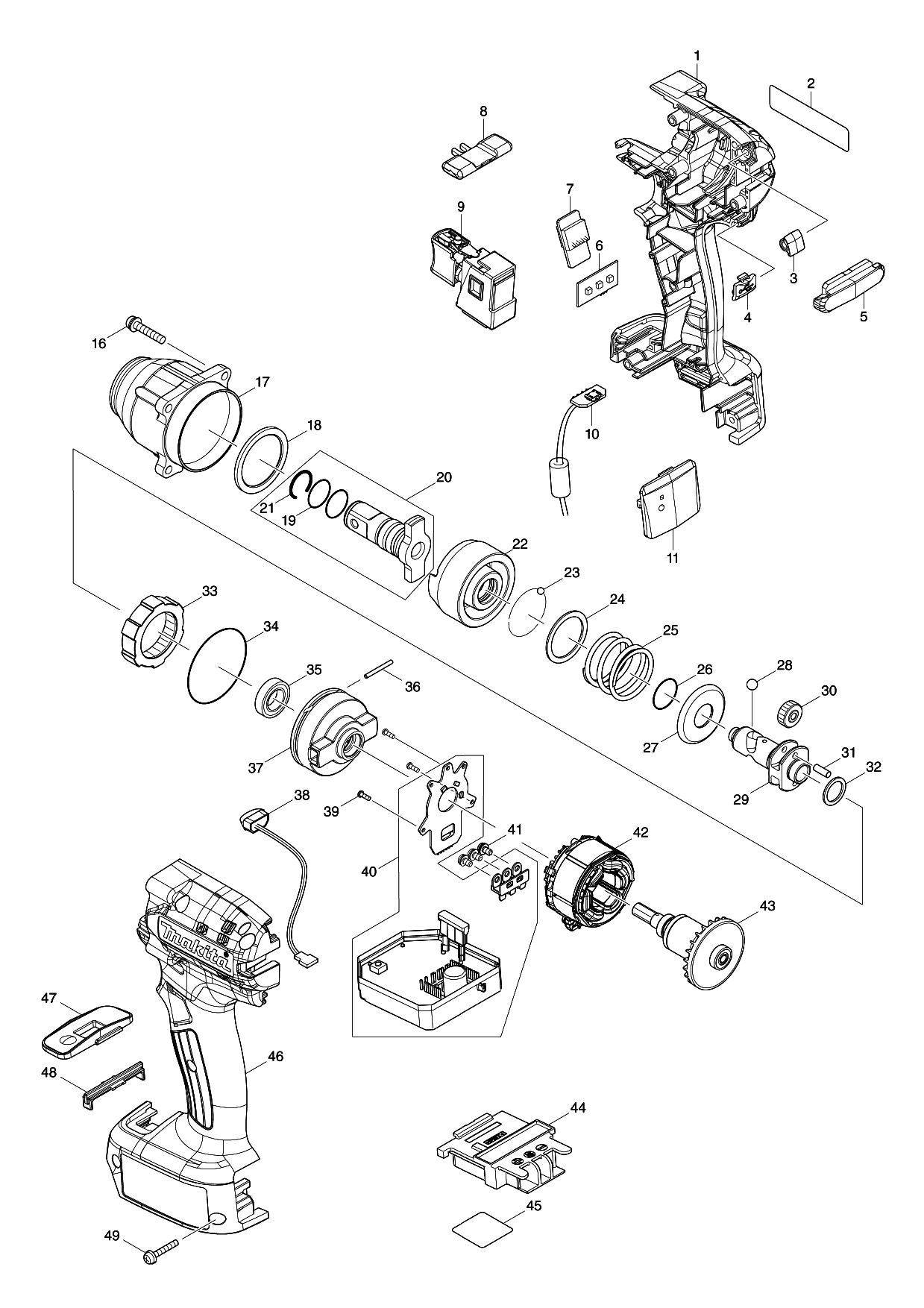

Sheet 1: Makita DTWA190 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183M42-8 | |
| 2 | 855V22-5 | |
| 3 | 459418-6 | |
| 4 | 144709-5 | |
| 5 | 457484-7 | Makita 457484-7 LENS, DFT085F |
| 6 | 620A98-3 | |
| 7 | 620A97-5 | |
| 8 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 9 | 140L08-5 | |
| 10 | 620A99-1 | |
| 11 | 459402-1 | |
| 16 | 265145-3 | Makita 265145-3 PAN HEAD SCREW M4X22, BFL |
| 17 | 140L05-1 | |
| 18 | 261160-5 | |
| 19 | 213233-0 | Makita 213233-0 O-RING 15AN911H |
| 21 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 22 | 327347-0 | |
| 23 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 24 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 25 | 232529-0 | |
| 26 | 213541-9 | |
| 27 | 267851-6 | |
| 28 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 29 | 327355-1 | |
| 30 | 226896-3 | |
| 31 | 256173-9 | Makita 256173-9 PIN 3.5 |
| 32 | 267104-3 | Makita 267104-3 FLAT WASHER 12, HR2020 |
| 33 | 226895-5 | |
| 34 | 213561-3 | Makita 213561-3 O RING 42, GA4030 |
| 35 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 36 | 256555-5 | |
| 37 | 459400-5 | |
| 38 | 620521-2 | Makita 620521-2 LED CIRCUIT |
| 39 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 40 | 620A35-7 | |
| 41 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 42 | 629418-2 | |
| 43 | 619574-6 | |
| 44 | 643850-6 | Makita 643850-6 TERMINAL, CL141D |
| 45 | 855V27-5 | |
| 46 | 183M42-8 | |
| 47 | 140L13-2 | |
| 48 | 459424-1 | |
| 49 | 251581-9 |
