Makita DTW300
Makita DTW300: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTW300: 39 positions on 1 sheet

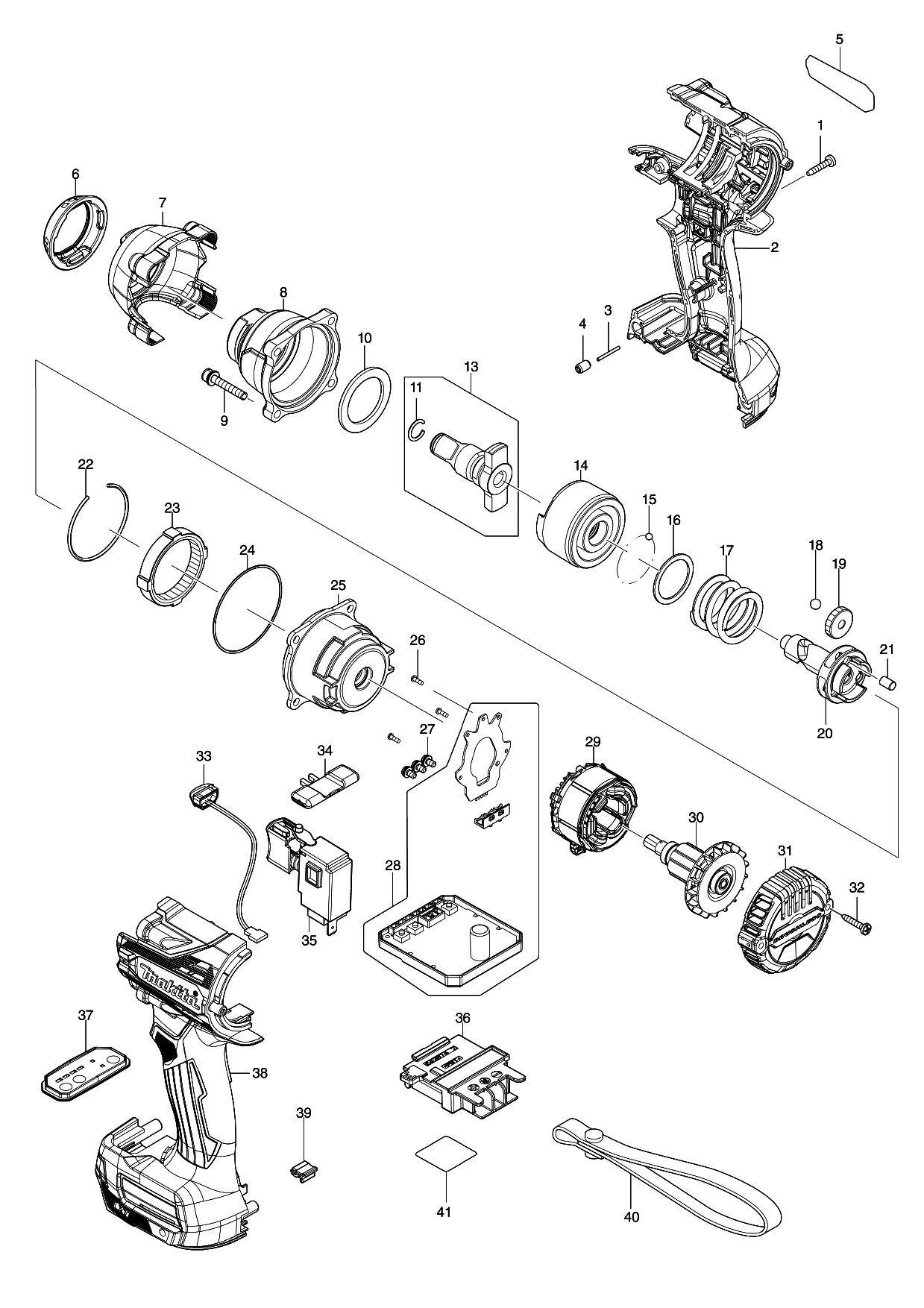

Sheet 1: Makita DTW300 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 183P27-2 | Makita 183P27-2 HOUSING SET |
| 3 | 268284-8 | Makita 268284-8 PIN 1.5 TW100D |
| 4 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 5 | 857A18-6 | |
| 6 | 422584-2 | Makita 422584-2 BUMPER |
| 7 | 412556-5 | Makita 412556-5 HAMMER CASE COVER |
| 8 | 140T36-8 | Makita 140T36-8 HAMMER CASE COMPLETE |
| 9 | 265472-8 | Makita 265472-8 HEX. SOCKET HEAD BOLT M4X25 |
| 10 | 261154-0 | Makita 261154-0 NYLON WASHER 27 |
| 11 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 14 | 327572-3 | Makita 327572-3 HAMMER |
| 15 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 16 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 17 | 232615-7 | Makita 232615-7 COMPRESSION SPRING 25 |
| 18 | 216011-7 | Makita 216011-7 STEEL BALL 5.6, TD140D |
| 19 | 227338-0 | Makita 227338-0 SPUR GEAR 22 |
| 20 | 327573-1 | Makita 327573-1 SPINDLE |
| 21 | 268311-1 | Makita 268311-1 PIN 5 |
| 22 | 233910-8 | Makita 233910-8 RING SPRING 436952 |
| 23 | 227337-2 | Makita 227337-2 INTERNAL GEAR 51 |
| 24 | 213785-1 | Makita 213785-1 O-RING 49 |
| 25 | 140T37-6 | Makita 140T37-6 INTERNAL GEAR CASE COMPLETE |
| 26 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 27 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 28 | 620C64-2 | Makita 620C64-2 Controller for DTW300/301 |
| 29 | 629477-6 | Makita 629477-6 STATOR |
| 30 | 619626-3 | Makita 619626-3 ROTOR |
| 31 | 412555-7 | Makita 412555-7 REAR COVER |
| 32 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 33 | 620521-2 | Makita 620521-2 LED CIRCUIT |
| 34 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 35 | 651443-5 | Makita 651443-5 Switch |
| 36 | 643874-2 | Makita 643874-2 Terminal |
| 37 | 140T43-1 | Makita 140T43-1 SWITCH PLATE COMPLETE |
| 38 | 183P27-2 | Makita 183P27-2 HOUSING SET |
| 39 | 424517-3 | Makita 424517-3 CUSHION |
| 40 | ||
| 41 | 857A26-7 |
