Makita DTW181: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTW181: 34 positions on 1 sheet

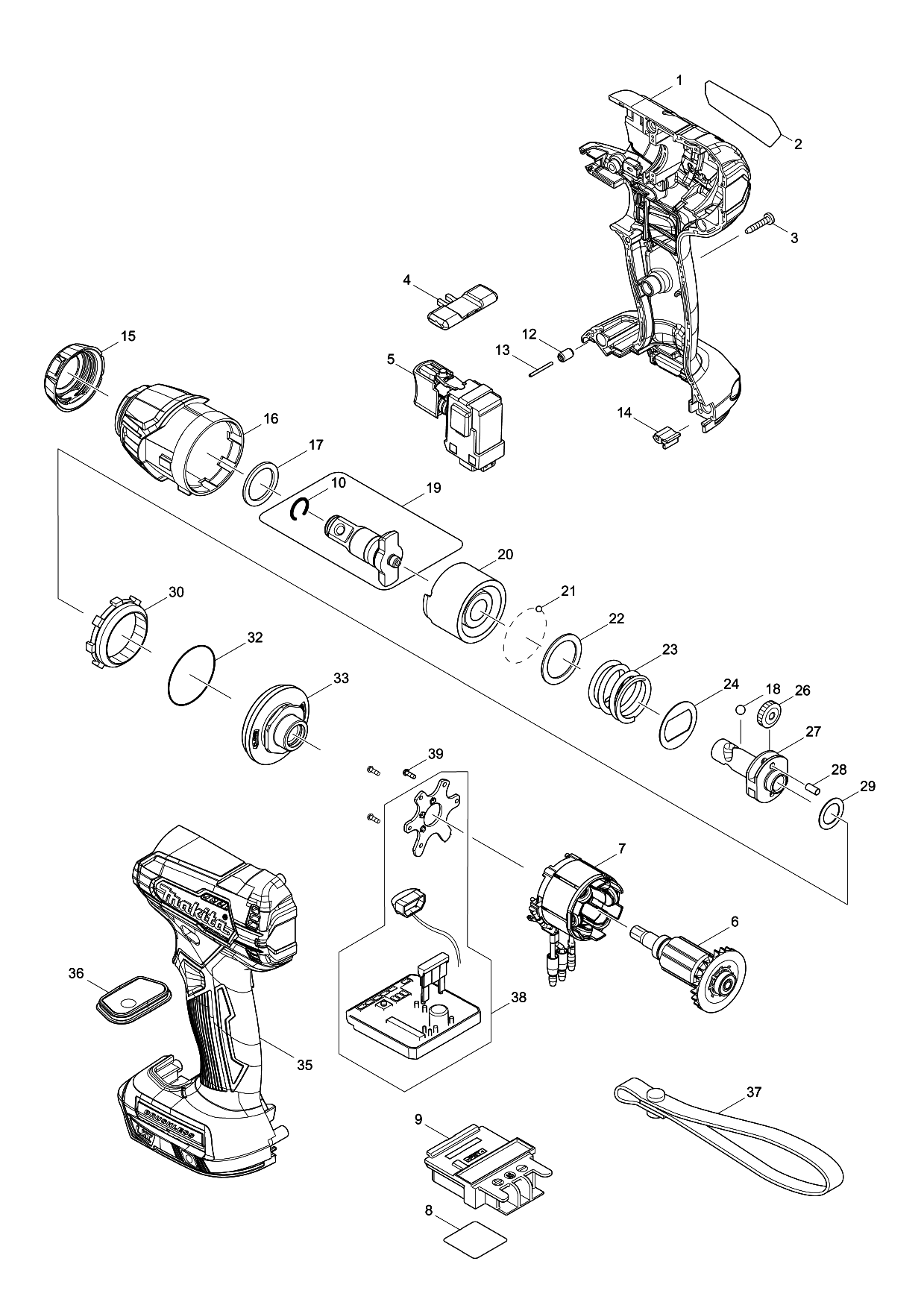

Sheet 1: Makita DTW181 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183J24-2 | Makita 183J24-2 HOUSING SET COMPLETE, DTW180 |
| 2 | 855C45-9 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 143975-1 | Makita 143975-1 Switch for DTD154 DTD155 |
| 6 | 619491-0 | Makita 619491-0 ROTOR, DTW180 |
| 7 | 629334-8 | Makita 629334-8 STATOR DC18V, DTW180 |
| 8 | 855C51-4 | |
| 9 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 10 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 12 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 13 | 268284-8 | Makita 268284-8 PIN 1.5 TW100D |
| 14 | 424517-3 | Makita 424517-3 CUSHION |
| 15 | 422407-4 | |
| 16 | 140E43-1 | |
| 17 | 261159-0 | Makita 261159-0 NYLON WASHER 19 |
| 18 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 20 | 327200-0 | Makita 327200-0 HAMMER, DTW181 |
| 21 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 22 | 267352-4 | Makita 267352-4 FLAT WASHER 22, GA5010 |
| 23 | 232489-6 | |
| 24 | 267813-4 | Makita 267813-4 WASHER 21, TD090D |
| 26 | 221437-0 | Makita 221437-0 SPUR GEAR 17 |
| 27 | 327046-4 | Makita 327046-4 SPINDLE, DTW180 |
| 28 | 268217-3 | Makita 268217-3 PIN 3.5, TD090D |
| 29 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 30 | 227316-0 | Makita 227316-0 INTERNAL GEAR 43 |
| 32 | 213479-8 | Makita 213479-8 O RING 33 |
| 33 | 140G75-0 | Makita 140G75-0 BESRING BOX COMPLETE |
| 35 | 183J24-2 | Makita 183J24-2 HOUSING SET COMPLETE, DTW180 |
| 36 | 144828-7 | Makita 144828-7 SWITCH PLATE COMPLETE, DTW180 |
| 37 | ||
| 38 | 620743-4 | Makita 620743-4 CONTROLLER, DTW180 |
| 39 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
