Makita DTW1002
Makita DTW1002: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTW1002: 42 positions on 1 sheet

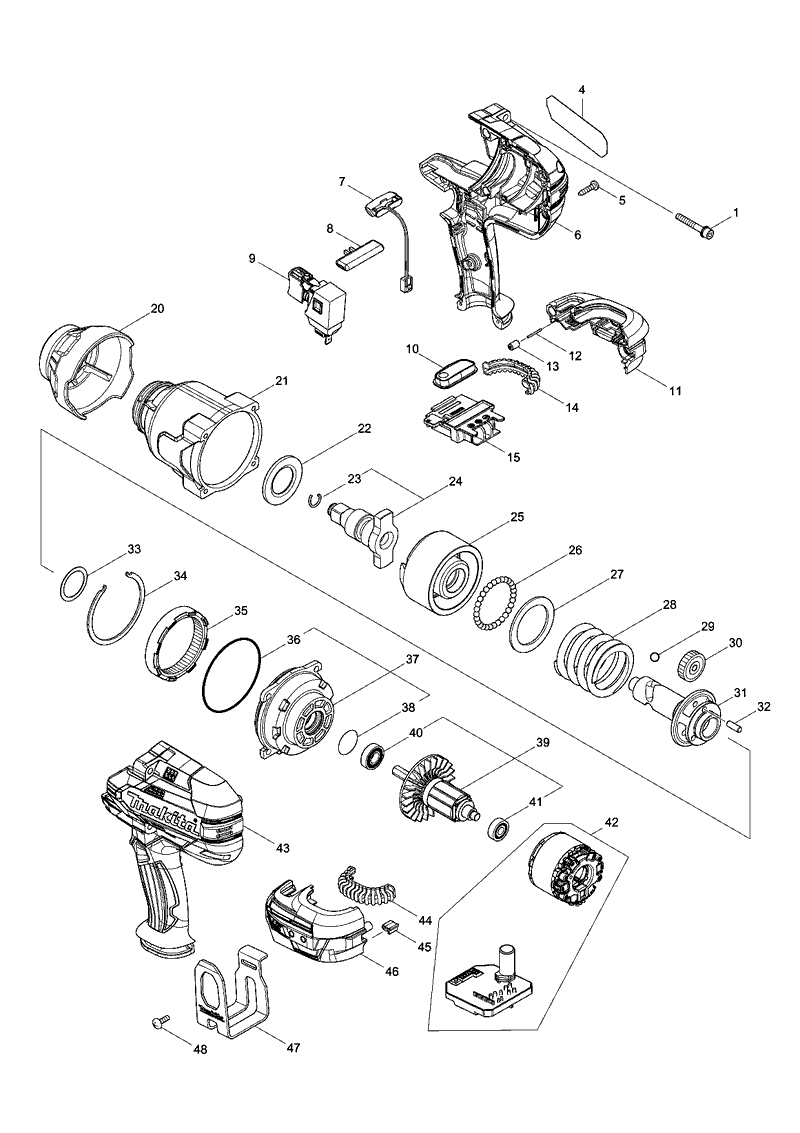

Sheet 1: Makita DTW1002 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251476-6 | Makita 251476-6 H.S.H.BOLT M5X35 WITH WR |
| 4 | 851K57-8 | |
| 5 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 6 | 183C08-8 | Makita 183C08-8 HOUSING SET |
| 7 | 620351-1 | Makita 620351-1 LED CIRCUIT |
| 8 | 456268-0 | Makita 456268-0 F/R CHANGE LEVER |
| 9 | 143416-7 | Makita 143416-7 Switch for DTW1002 DTW1001 |
| 10 | 143417-5 | Makita 143417-5 SWITCH PLATE COMPLETE |
| 11 | 183C12-7 | Makita 183C12-7 BATTERY HOUSING SET |
| 12 | 268284-8 | Makita 268284-8 PIN 1.5 TW100D |
| 13 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 14 | 424773-5 | Makita 424773-5 CUSHION RUBBER |
| 15 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 20 | 424775-1 | Makita 424775-1 BUMPER |
| 21 | 143411-7 | Makita 143411-7 HAMMER CASE COMPLETE |
| 22 | 346948-5 | Makita 346948-5 WASHER 25 |
| 23 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 24 | 135717-7 | Makita 135717-7 ANVIL W ASS'Y DTW1002 |
| 25 | 326613-2 | Makita 326613-2 HAMMER |
| 26 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 27 | 267493-6 | Makita 267493-6 FLAT WASHER 38 |
| 28 | 234383-8 | Makita 234383-8 COMPRESSION SPRING 38 |
| 29 | 216009-4 | Makita 216009-4 STEEL BALL 7.1 |
| 30 | 227391-6 | OLDN Makita 227391-6 SPUR GEAR 24 |
| 31 | 326611-6 | Makita 326611-6 SPINDLE |
| 32 | 268079-9 | Makita 268079-9 PIN 5 |
| 33 | 267494-4 | Makita 267494-4 FLAT WASHER 25 |
| 34 | 346947-7 | Makita 346947-7 RETAINER |
| 35 | 227392-4 | Makita 227392-4 INTERNAL SPUR GEAR 54 |
| 36 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 37 | 135718-5 | Makita 135718-5 Internal Gear Case Ass'y DTW1001 DTW1002 TW1001D |
| 38 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 39 | 519384-0 | Makita 519384-0 Rotor Assembly for TW1001D DTW1001 DTW1002 |
| 40 | 210069-8 | Makita 210069-8 BALL BEARING 6900DDW, CS550D |
| 41 | 211022-7 | Makita 211022-7 BALL BEARING 607ZZ |
| 42 | ||
| 43 | 183C08-8 | Makita 183C08-8 HOUSING SET |
| 44 | 424773-5 | Makita 424773-5 CUSHION RUBBER |
| 45 | 424517-3 | Makita 424517-3 CUSHION |
| 46 | 183C12-7 | Makita 183C12-7 BATTERY HOUSING SET |
| 47 | 346949-3 | Makita 346949-3 HOOK |
| 48 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
