Makita DTS141
Makita DTS141: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTS141: 28 positions on 1 sheet

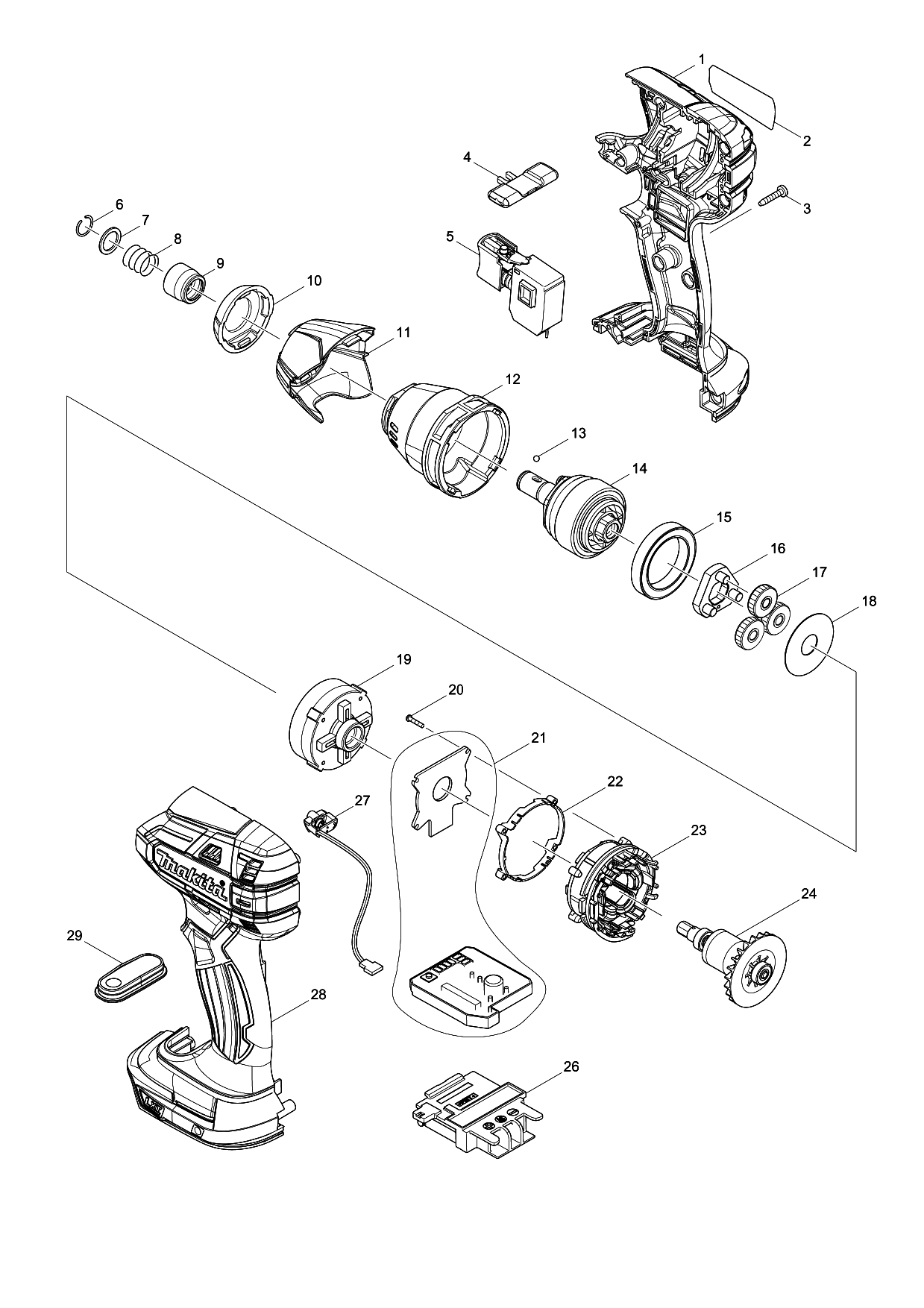

Sheet 1: Makita DTS141 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187989-0 | Makita 187989-0 HOUSING SET |
| 2 | 850H88-6 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 650673-5 | Makita 650673-5 Switch C3JW-1A TW283D DTW285 BTP131 |
| 6 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 7 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 8 | 234347-2 | Makita 234347-2 COMPRESSION SPRING |
| 9 | 326465-1 | Makita 326465-1 BIT SLEEVE |
| 10 | 424662-4 | Makita 424662-4 BUMPER TS131D |
| 11 | 455468-9 | Makita 455468-9 UNIT CASE COVER |
| 12 | 142928-7 | Makita 142928-7 UNIT CASE COMPLETE |
| 13 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 14 | 142936-8 | Makita 142936-8 OIL UNIT COMPLETE |
| 15 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 16 | 142929-5 | Makita 142929-5 CARRIER COMPLETE |
| 17 | 227368-1 | Makita 227368-1 SPUR GEAR 22 |
| 18 | 267067-3 | Makita 267067-3 FLAT WASHER 12 |
| 19 | 227361-5 | Makita 227361-5 INTERNAL GEAR 51 |
| 20 | 266786-8 | Makita 266786-8 TAPPING SCREW PT2X10 |
| 21 | 620354-5 | Makita 620354-5 Controller for DTS141 |
| 22 | 687464-1 | Makita 687464-1 SUPPORT |
| 23 | 629137-0 | Makita 629137-0 STATOR |
| 24 | 619358-2 | Makita 619358-2 ROTOR |
| 26 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 27 | 620355-3 | Makita 620355-3 LED CIRCUIT |
| 28 | 187989-0 | Makita 187989-0 HOUSING SET |
| 29 | 141583-2 | Makita 141583-2 SWITCH PLATE COMPLETE, BTD136 |
