Makita DTR180
Makita DTR180: exploded parts diagram, 3 sheets, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTR180: 100 positions on 3 sheets

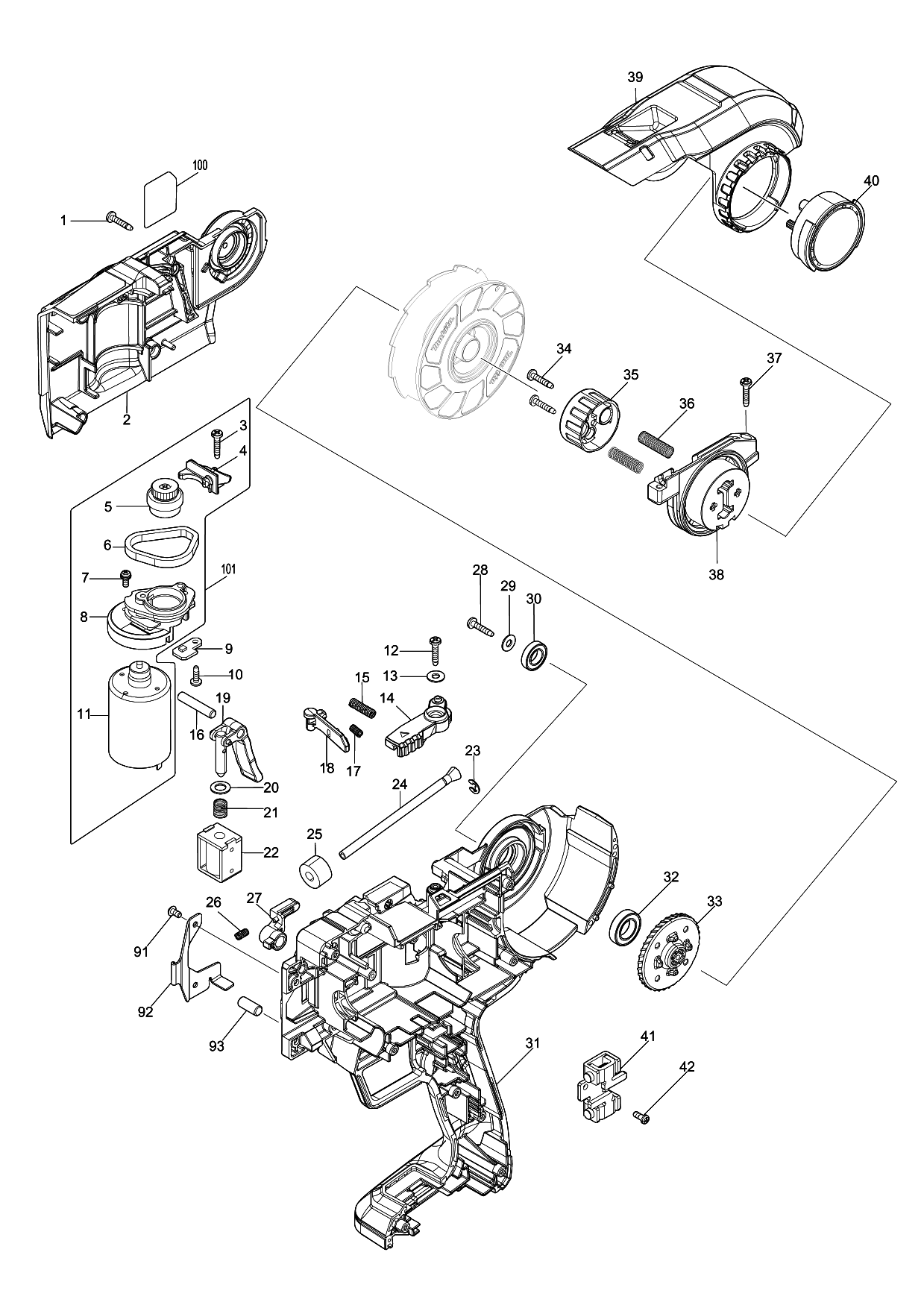

Sheet 1: Makita DTR180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 140B66-1 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 310864-7 | |
| 5 | 135968-2 | Makita 135968-2 SPUR GEAR 30A ASSEMBLY, DTR180 |
| 6 | 422247-0 | Makita 422247-0 SPONGE SHEET A, DTR180 |
| 7 | 911008-8 | Makita 911008-8 PAN HEAD SCREW M3X8 |
| 8 | 458222-0 | Makita 458222-0 MOTOR BASE, DTR180 |
| 9 | 620913-5 | Makita 620913-5 SENSOR CIRCUIT, DTR180 |
| 10 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 11 | 629346-1 | Makita 629346-1 DC MOTOR |
| 12 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 13 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 14 | 135969-0 | Makita 135969-0 RELEASE LEVER ASSY DTR180 |
| 15 | 232443-0 | |
| 16 | 256098-7 | Makita 256098-7 PIN 5 |
| 17 | 232442-2 | |
| 18 | 458223-8 | Makita 458223-8 LOCK LEVER DTR180 |
| 19 | 140A85-1 | Makita 140A85-1 BREAK ARM COMPLETE DTR180 |
| 20 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 21 | 232446-4 | |
| 22 | 679032-4 | Makita 679032-4 SOLENOID, DTR180 |
| 23 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 24 | 327112-7 | Makita 327112-7 WIRE GUIDE PIPE, DTE180 |
| 25 | 422249-6 | Makita 422249-6 SPONGE SHEET B |
| 26 | 232442-2 | |
| 27 | 144901-3 | Makita 144901-3 MAGNET ARM COMPLETE, DTR180 |
| 28 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 29 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 30 | 211478-4 | |
| 31 | 183J56-9 | Makita 183J56-9 HOUSING SET, DTR180 |
| 32 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 33 | 144904-7 | Makita 144904-7 MAGNET WHEEL COMPLETE, DTR180 |
| 34 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 35 | 319665-0 | Makita 319665-0 REEL BEARING DTR180 |
| 36 | 231294-8 | Makita 231294-8 COMPRESSION SPRING 6 |
| 37 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 38 | 458225-4 | Makita 458225-4 REEL BASE, DTR180 |
| 39 | 458216-5 | |
| 40 | 458221-2 | Makita 458221-2 REEL BEARING CAM, DTR180 |
| 41 | 126743-7 | Makita 126743-7 STOPPER ASS'Y DTR180 |
| 42 | 265199-0 | Makita 265199-0 PAN HEAD SCREW, 4075D |
| 91 | 265635-6 | |
| 92 | 347333-5 | Makita 347333-5 SIDE PLATE R, DTR180 |
| 93 | 263040-1 | |
| 100 | 854L20-6 |

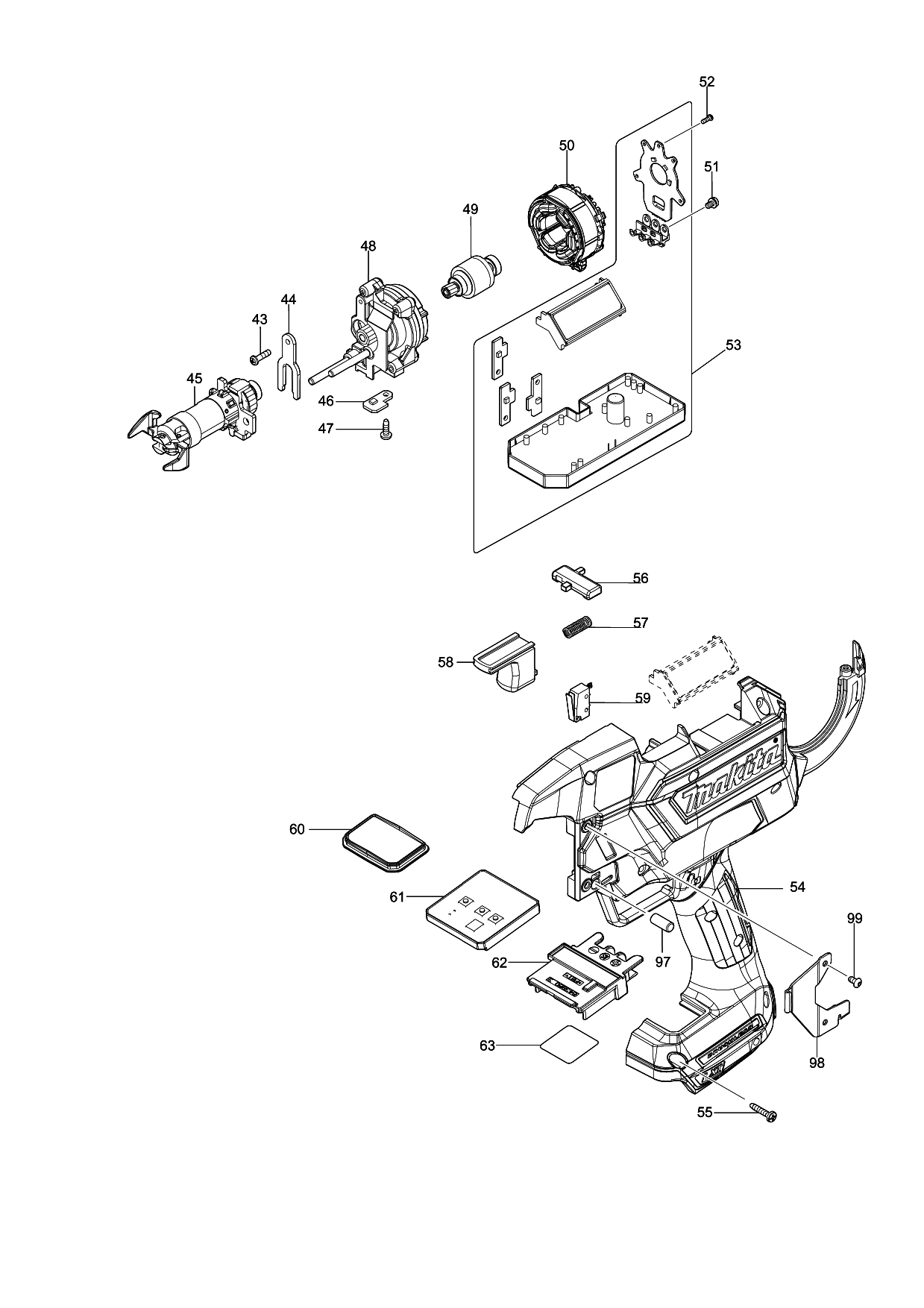

Sheet 2: Makita DTR180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 43 | 911017-7 | Makita 911017-7 PAN HEAD SCREW M3X12 |
| 44 | 310866-3 | |
| 45 | 140B72-6 | |
| 46 | 620913-5 | Makita 620913-5 SENSOR CIRCUIT, DTR180 |
| 47 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 48 | 126838-6 | Makita 126838-6 GEAR ASSEMLY, DTR180 |
| 49 | 619520-9 | Makita 619520-9 ROTOR,DTR180 |
| 50 | 629343-7 | Makita 629343-7 STATOR,DTR180 |
| 51 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 52 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 53 | 140B68-7 | Makita 140B68-7 MAIN CONTROLLER COMPLETE, DTR180 |
| 54 | 183J56-9 | Makita 183J56-9 HOUSING SET, DTR180 |
| 55 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 56 | 458219-9 | |
| 57 | 234037-7 | Makita 234037-7 COMPRESSION SPRING 5BST110 |
| 58 | 458220-4 | Makita 458220-4 TRIGGER |
| 59 | 632L94-5 | Makita 632L94-5 SWITCH UNIT, DTR180 |
| 60 | 140B67-9 | Makita 140B67-9 SWITCH PLATE COPLETE, DTR180 |
| 61 | 620924-0 | Makita 620924-0 SWITCH CIRCUIT, DTR180 |
| 62 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 63 | 854L26-4 | |
| 97 | 263040-1 | |
| 98 | 347332-7 | |
| 99 | 265635-6 |

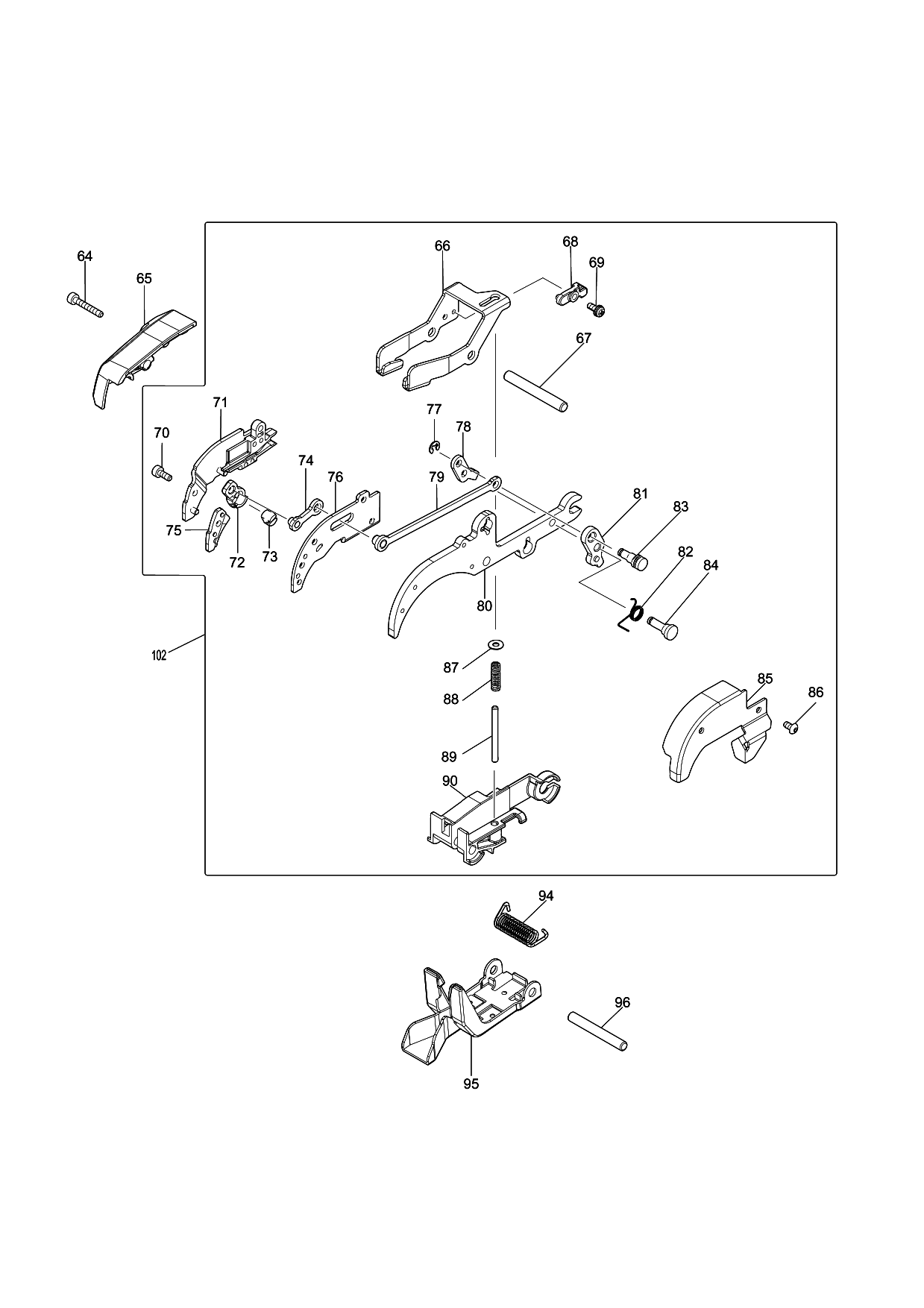

Sheet 3: Makita DTR180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 64 | 265633-0 | |
| 65 | 458217-3 | |
| 66 | 347331-9 | |
| 67 | 256573-3 | |
| 68 | 144903-9 | Makita 144903-9 MAGNET BASE B COMPLETE , DTR180 |
| 69 | 911008-8 | Makita 911008-8 PAN HEAD SCREW M3X8 |
| 70 | 265634-8 | |
| 71 | 140C95-0 | Makita 140C95-0 WIDE GUIDE B COMPLETE, DTR180 |
| 72 | 310815-0 | Makita 310815-0 CUTTER B |
| 73 | 310814-2 | |
| 74 | 161872-9 | Makita 161872-9 LINK ARM COMPLETE , DTR180 |
| 75 | 347328-8 | Makita 347328-8 TOP PLATE , DTR180 |
| 76 | 347326-2 | Makita 347326-2 GUIDE PLATE A, DTR180 |
| 77 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 78 | 347330-1 | Makita 347330-1 PULL PLATE, DTR180 |
| 79 | 161873-7 | Makita 161873-7 LINK ARM B COMPLETE , DTR180 |
| 80 | 347370-9 | Makita 347370-9 GUIDE ARM A, DTR180 |
| 81 | 347329-6 | Makita 347329-6 PUSH PLATE , DTR180 |
| 82 | 232445-6 | Makita 232445-6 TORSION SPRING 7, DTR180 |
| 83 | 256400-4 | Makita 256400-4 SHOULDER PIN 4, DTR180 |
| 84 | 256399-3 | Makita 256399-3 SHOULDER PIN 4, DTR180 |
| 85 | 347327-0 | Makita 347327-0 GUIDE PLATE B , DTR180 |
| 86 | 265635-6 | |
| 87 | 941001-8 | Makita 941001-8 FLAT WASHER 3 DTR180 |
| 88 | 232444-8 | Makita 232444-8 COMPRESSION SPRING 4 , DTR180 |
| 89 | 256390-1 | |
| 90 | 458226-2 | Makita 458226-2 LED HOLDER , DTR180 |
| 94 | 232448-0 | |
| 95 | 161867-2 | |
| 96 | 256573-3 |
