Makita DTM52
Makita DTM52: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTM52: 50 positions on 1 sheet

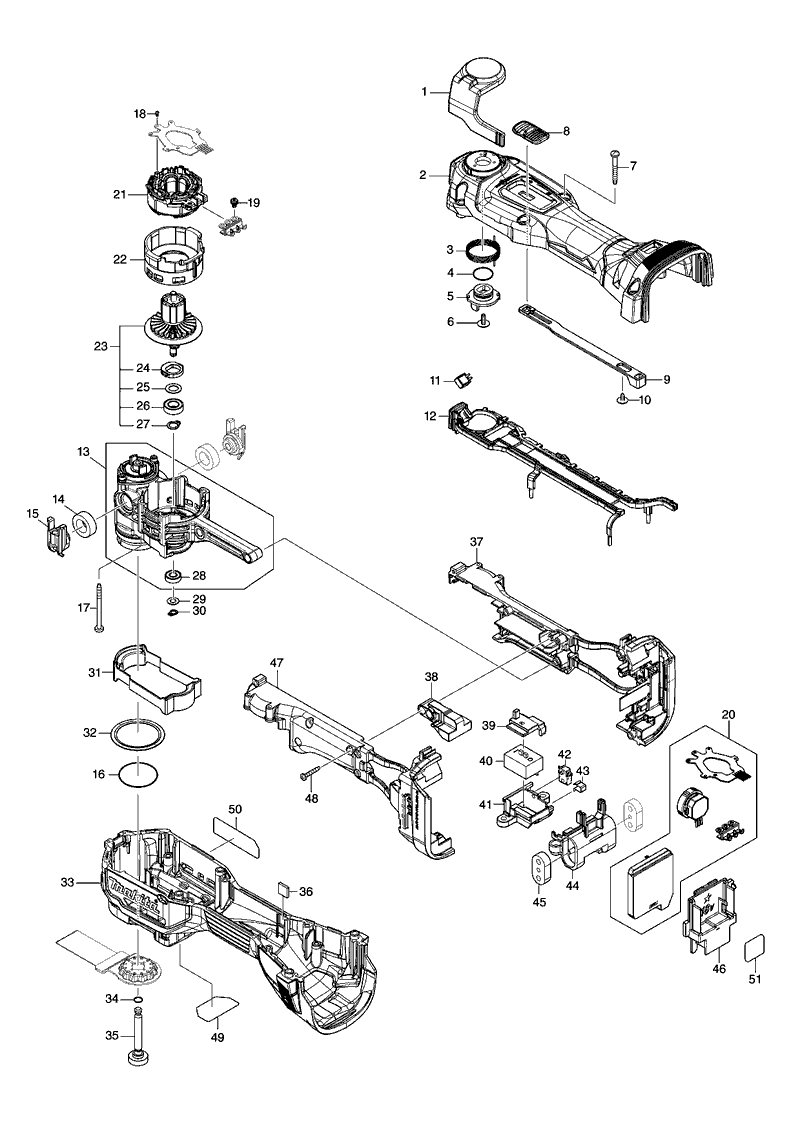

Sheet 1: Makita DTM52 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 140Y95-2 | Makita 140Y95-2 LEVER COMPLETE |
| 2 | 183S78-3 | Makita 183S78-3 HOUSING SET |
| 3 | 232680-6 | |
| 4 | 213070-2 | Makita 213070-2 O-RING 10 HR3000C |
| 5 | 313364-6 | Makita 313364-6 DRIVER B, DTM52 |
| 6 | 265B82-3 | Makita 265B82-3 P.H.SCREW M3X10 WITH WR, DTM52 |
| 7 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 8 | 413395-6 | |
| 9 | 413396-4 | Makita 413396-4 SWITCH LEVER |
| 10 | 265B81-5 | Makita 265B81-5 TAPPING SCREW FLANGE 3X6, DTM52 |
| 11 | 620E79-1 | Makita 620E79-1 LED CIRCUIT, DTM52 |
| 12 | 413400-9 | Makita 413400-9 LED GUIDE, DTM52 |
| 14 | 422677-5 | Makita 422677-5 CUSHION F,DTM52 |
| 15 | 413401-7 | |
| 16 | 213497-6 | Makita 213497-6 O-RING 31.5AR410HR |
| 17 | 266327-0 | |
| 18 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 19 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 20 | 620E78-3 | Makita 620E78-3 CONTROLLER |
| 21 | 629A56-6 | Makita 629A56-6 STATOR |
| 22 | 413394-8 | Makita 413394-8 MOTOR HOUSING |
| 23 | 519683-0 | Makita 519683-0 ROTOR , DTM52 |
| 24 | 313361-2 | |
| 25 | 253777-8 | Makita 253777-8 FLAT WASHER 8, MUH304 |
| 26 | 210249-6 | |
| 27 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 28 | 210039-7 | |
| 29 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 30 | 961008-8 | Makita 961008-8 RETAINING RING S-5 |
| 31 | 422721-8 | |
| 32 | 422682-2 | Makita 422682-2 RUBBER PLATE, DTM52 |
| 33 | 183S78-3 | Makita 183S78-3 HOUSING SET |
| 34 | 213032-0 | Makita 213032-0 O Ring 4 for AN611 |
| 35 | 327769-4 | Makita 327769-4 HOLDER BOLT, DTM52 |
| 36 | 422679-1 | Makita 422679-1 CUSHION M, DTM52 |
| 37 | 183S69-4 | Makita 183S69-4 INNER HOUSING SET |
| 38 | 313365-4 | Makita 313365-4 WEIGHT |
| 39 | 413397-2 | Makita 413397-2 SWITCH LEVER B, DTM52 |
| 40 | 650000-6 | Makita 650000-6 SWITCH BSW- 1125A |
| 41 | 413398-0 | |
| 42 | 632S34-5 | Makita 632S34-5 SWITCH UNIT, DTM52 |
| 43 | 232706-4 | Makita 232706-4 LEAF SPRING, DTM52 |
| 44 | 413399-8 | Makita 413399-8 SWITCH LEVER |
| 45 | 422678-3 | Makita 422678-3 CUSHION R, DTM52 |
| 46 | 643874-2 | Makita 643874-2 Terminal |
| 47 | 183S69-4 | Makita 183S69-4 INNER HOUSING SET |
| 48 | 265935-4 | Makita 265935-4 TAPPING SCREW 3X20 |
| 49 | 8032F3-5 | |
| 50 | 811E24-9 | |
| 51 | 811E32-0 |
