Makita DTM51
Makita DTM51: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTM51: 49 positions on 1 sheet

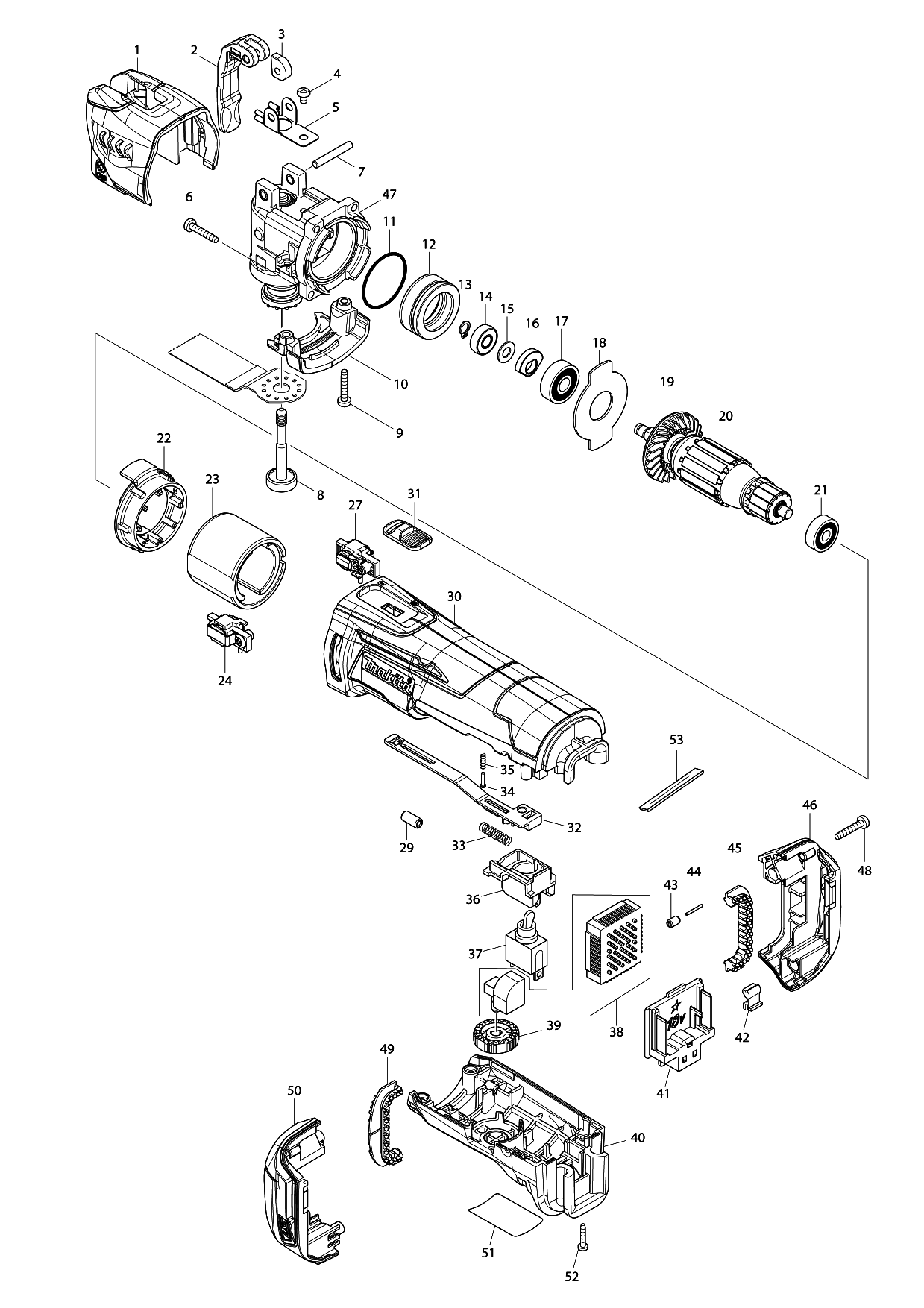

Sheet 1: Makita DTM51 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 455272-6 | Makita 455272-6 UPPER HEAD COVER |
| 2 | 319059-9 | Makita 319059-9 LEVER |
| 3 | 313268-2 | Makita 313268-2 TURN BLOCK |
| 4 | 911102-6 | Makita 911102-6 PAN HEAD SCREW M4X6 |
| 5 | 232282-8 | Makita 232282-8 LEAF SPRING |
| 6 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 7 | 268306-4 | Makita 268306-4 PIN 5 |
| 8 | 326409-1 | Makita 326409-1 HOLDER BOLT |
| 9 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 10 | 454635-3 | Makita 454635-3 LOWER HEAD COVER |
| 11 | 213343-3 | Makita 213343-3 O-RING 35, FS2200 |
| 12 | 326347-7 | Makita 326347-7 BEARING BOX |
| 13 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 14 | 211392-4 | Makita 211392-4 SPHERE BEARING 706 |
| 15 | 253133-2 | Makita 253133-2 FLAT WASHER 7 |
| 16 | 313245-4 | Makita 313245-4 BALANCER |
| 17 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 18 | 285857-2 | Makita 285857-2 BEARING RETAINER |
| 20 | 519338-7 | Makita 519338-7 ARMATURE ASS'Y 18V |
| 21 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 22 | 455017-2 | Makita 455017-2 BUFFLE PLATE |
| 23 | 632B69-4 | Makita 632B69-4 YOKE UNIT |
| 24 | 632B88-0 | Makita 632B88-0 BRUSH HOLDER COMPLETE |
| 27 | 632B89-8 | Makita 632B89-8 BRUSH HOLDER COMPLETE |
| 29 | 688161-2 | Makita 688161-2 Line Filter for DF456D |
| 30 | 455013-0 | Makita 455013-0 MOTOR HOUSING |
| 31 | 455016-4 | Makita 455016-4 SWITCH KNOB |
| 32 | 455015-6 | Makita 455015-6 SWITCH LEVER |
| 33 | 234263-8 | Makita 234263-8 COMPRESSION SPRING 5 |
| 34 | 255058-6 | Makita 255058-6 RIVET 2 FOR |
| 35 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 36 | 455018-0 | Makita 455018-0 SWITCH CASE |
| 37 | 651423-1 | Makita 651423-1 Switch for 9523B RD1101 HM1203C 3706 BTM40 LXMT025 |
| 38 | 620270-1 | Makita 620270-1 Controller for DTM51 XMT03 |
| 39 | 271617-8 | Makita 271617-8 DIAL 28 |
| 40 | 142553-4 | Makita 142553-4 HANDLE COVER COMPLETE |
| 41 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 42 | 424476-1 | Makita 424476-1 CUSHION |
| 43 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 44 | 268184-2 | Makita 268184-2 PIN 1.5BTW251 |
| 45 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 46 | 187848-8 | Makita 187848-8 BATTERY HOUSING SET |
| 47 | 142502-1 | DISC New Genuine Makita 142502-1 CRANK HOUSING COMPLETE |
| 48 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 49 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 50 | 187848-8 | Makita 187848-8 BATTERY HOUSING SET |
| 51 | 815M50-8 | |
| 52 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 53 | 423404-3 | Makita 423404-3 SPONGE SHEET |
