Makita DTM50
Makita DTM50: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTM50: 46 positions on 1 sheet

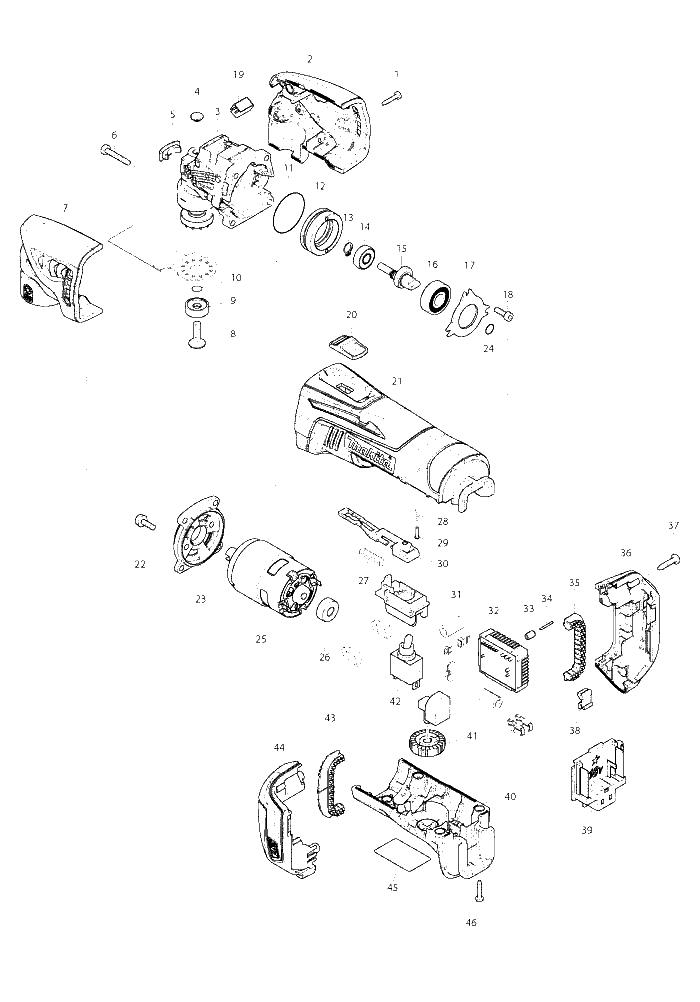

Sheet 1: Makita DTM50 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 2 | 187346-2 | Makita 187346-2 HEAD COVER SET |
| 3 | 142400-9 | Makita 142400-9 Crank Housing Complete DTM50 BTM50 BTM40 LXMT02 |
| 4 | 424511-5 | Makita 424511-5 CRANK HOUSING CAP B |
| 5 | 424510-7 | Makita 424510-7 CRANK HOUSING CAP A |
| 6 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 7 | 187346-2 | Makita 187346-2 HEAD COVER SET |
| 8 | 266783-4 | Makita 266783-4 H.S.H. Screw M6x20 for BTM40 BTM50 TM3000C |
| 9 | 224455-7 | Makita 224455-7 Outer Flange 22 |
| 10 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 11 | 213479-8 | Makita 213479-8 O RING 33 |
| 12 | 326187-3 | Makita 326187-3 BEARING BOX |
| 13 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 14 | 211392-4 | Makita 211392-4 SPHERE BEARING 706 |
| 15 | 326186-5 | Makita 326186-5 CRANK SHAFT |
| 16 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 17 | 285856-4 | Makita 285856-4 BEARING RETAINER |
| 18 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 19 | 620146-2 | Makita 620146-2 LED CIRCUIT |
| 20 | 453761-5 | Makita 453761-5 SWITCH KNOB |
| 21 | 453755-0 | Makita 453755-0 MOTOR HOUSING |
| 22 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 23 | 453762-3 | Makita 453762-3 HOUSING COVER |
| 24 | 213030-4 | Makita 213030-4 O RING 8 |
| 25 | 629956-4 | Makita 629956-4 18V Multi Tool Motor for LXMT02Z BTM50ZX5 |
| 26 | 424520-4 | Makita 424520-4 CAP |
| 27 | 234263-8 | Makita 234263-8 COMPRESSION SPRING 5 |
| 28 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 29 | 255058-6 | Makita 255058-6 RIVET 2 FOR |
| 30 | 453757-6 | Makita 453757-6 SWITCH LEVER |
| 31 | 453760-7 | Makita 453760-7 SWITCH CASE |
| 32 | 632A01-2 | Makita 632A01-2 CONTROLLER UNIT |
| 33 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 34 | 268184-2 | Makita 268184-2 PIN 1.5BTW251 |
| 35 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 36 | 187610-1 | Makita 187610-1 BATTERY HOUSING SET6D |
| 37 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 38 | 424476-1 | Makita 424476-1 CUSHION |
| 39 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 40 | 453756-8 | Makita 453756-8 HANDLE COVER |
| 41 | 271617-8 | Makita 271617-8 DIAL 28 |
| 42 | 651423-1 | Makita 651423-1 Switch for 9523B RD1101 HM1203C 3706 BTM40 LXMT025 |
| 43 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 44 | 187610-1 | Makita 187610-1 BATTERY HOUSING SET6D |
| 45 | 815M77-8 | |
| 46 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
