Makita DTD156: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTD156: 32 positions on 1 sheet

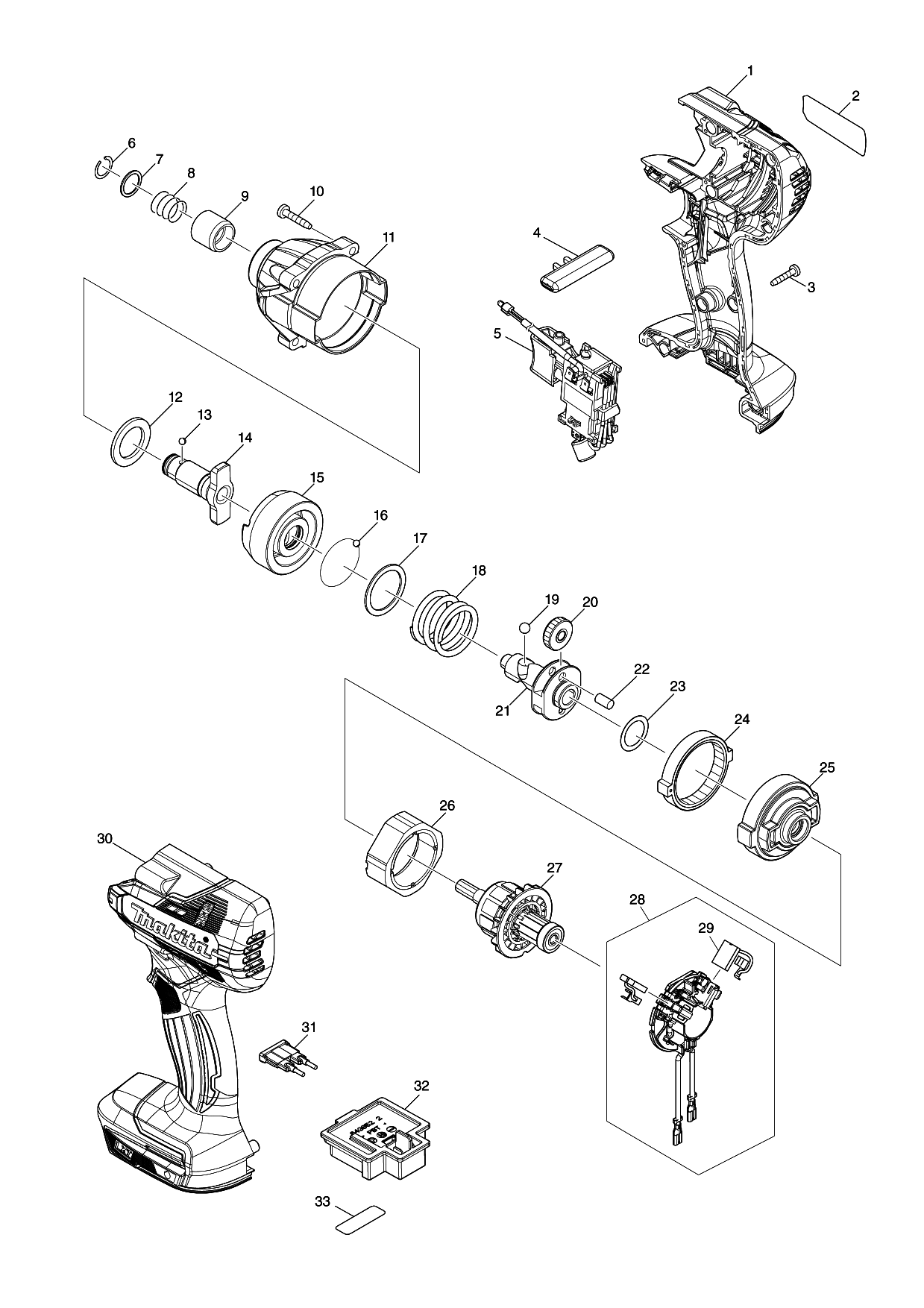

Sheet 1: Makita DTD156 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183N31-9 | |
| 2 | 856K77-7 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 452399-3 | Makita 452399-3 F/R CHANGE LEVER |
| 5 | 632P54-1 | Makita 632P54-1 SWITCH UNIT, DTD156 |
| 6 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 7 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 8 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 9 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 10 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 11 | 140N57-4 | Makita 140N57-4 HAMMER CASE COMPLETE, DTD156 |
| 12 | 261151-6 | Makita 261151-6 Nylon Washer 19 for TD134D |
| 13 | 216040-0 | Makita 216040-0 STEEL BALL 3.5 |
| 14 | 326188-1 | Makita 326188-1 Anvil M for LXDT08 |
| 15 | 326644-1 | |
| 16 | 216040-0 | Makita 216040-0 STEEL BALL 3.5 |
| 17 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 18 | 233430-2 | Makita 233430-2 Compression Spring 24 for BTD130 DTD129RFE |
| 19 | 216041-8 | Makita 216041-8 STEEL BALL 5.6 |
| 20 | 227362-3 | Makita 227362-3 SPUR GEAR 22 |
| 21 | 326562-3 | Makita 326562-3 SPINDLE |
| 22 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 23 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 24 | 227279-0 | Makita 227279-0 Internal Gear 51 for M694D DTD129 BTD129 |
| 25 | 144952-6 | Makita 144952-6 INTERNAL GEAR CASECOMPLETE, DTD156 |
| 26 | 638396-5 | Old code 638396-5 |
| 27 | 619553-4 | |
| 29 | 198887-3 | |
| 30 | 183N31-9 | |
| 31 | 632P58-3 | |
| 32 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 33 | 856K82-4 |
