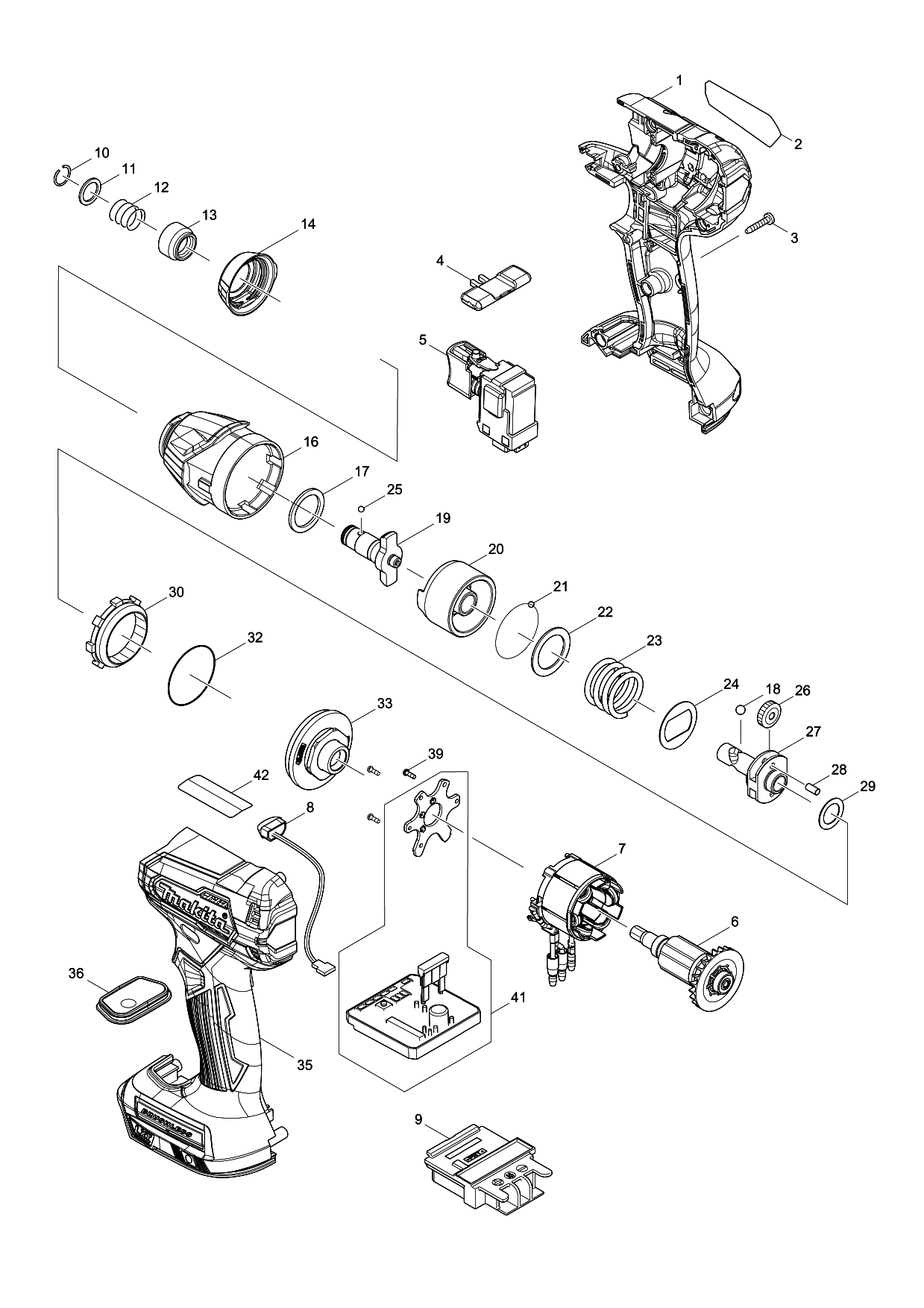

Sheet 1: Makita DTD155 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183G71-5 | Makita 183G71-5 HOUSING SET |
| 2 | 853G07-5 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 143975-1 | Makita 143975-1 Switch for DTD154 DTD155 |
| 6 | 619415-6 | Makita 619415-6 Rotor for DTD155Z DTD155 |
| 7 | 629233-4 | Makita 629233-4 STATOR DC18V |
| 8 | 620521-2 | Makita 620521-2 LED CIRCUIT |
| 9 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 10 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 11 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 326803-7 | Makita 326803-7 BIT SLEEVE |
| 14 | 424914-3 | Makita 424914-3 BUMPER, TD155D |
| 16 | 144132-4 | Makita 144132-4 HAMMER CASE COMPLETE |
| 17 | 261159-0 | Makita 261159-0 NYLON WASHER 19 |
| 18 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 19 | 326630-2 | Makita 326630-2 ANVIL M |
| 20 | 324894-2 | Makita 324894-2 HAMMER, TD090D |
| 21 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 22 | 267380-9 | Makita 267380-9 FLAT WASHER 20, TD090D |
| 23 | 232326-4 | Makita 232326-4 COMPRESSION SPRING 21 |
| 24 | 267813-4 | Makita 267813-4 WASHER 21, TD090D |
| 25 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 26 | 221437-0 | Makita 221437-0 SPUR GEAR 17 |
| 27 | 324897-6 | Makita 324897-6 SPINDLE, TD090D |
| 28 | 268217-3 | Makita 268217-3 PIN 3.5, TD090D |
| 29 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 30 | 227316-0 | Makita 227316-0 INTERNAL GEAR 43 |
| 32 | 213479-8 | Makita 213479-8 O RING 33 |
| 33 | 141893-7 | Makita 141893-7 BEARING BOX COMPLETE |
| 35 | 183G71-5 | Makita 183G71-5 HOUSING SET |
| 36 | 144137-4 | Makita 144137-4 SWITCH PLATE COMPLETE |
| 39 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 41 | 620586-4 | Makita 620586-4 CONTROLLER, DTD155 |
| 42 |
