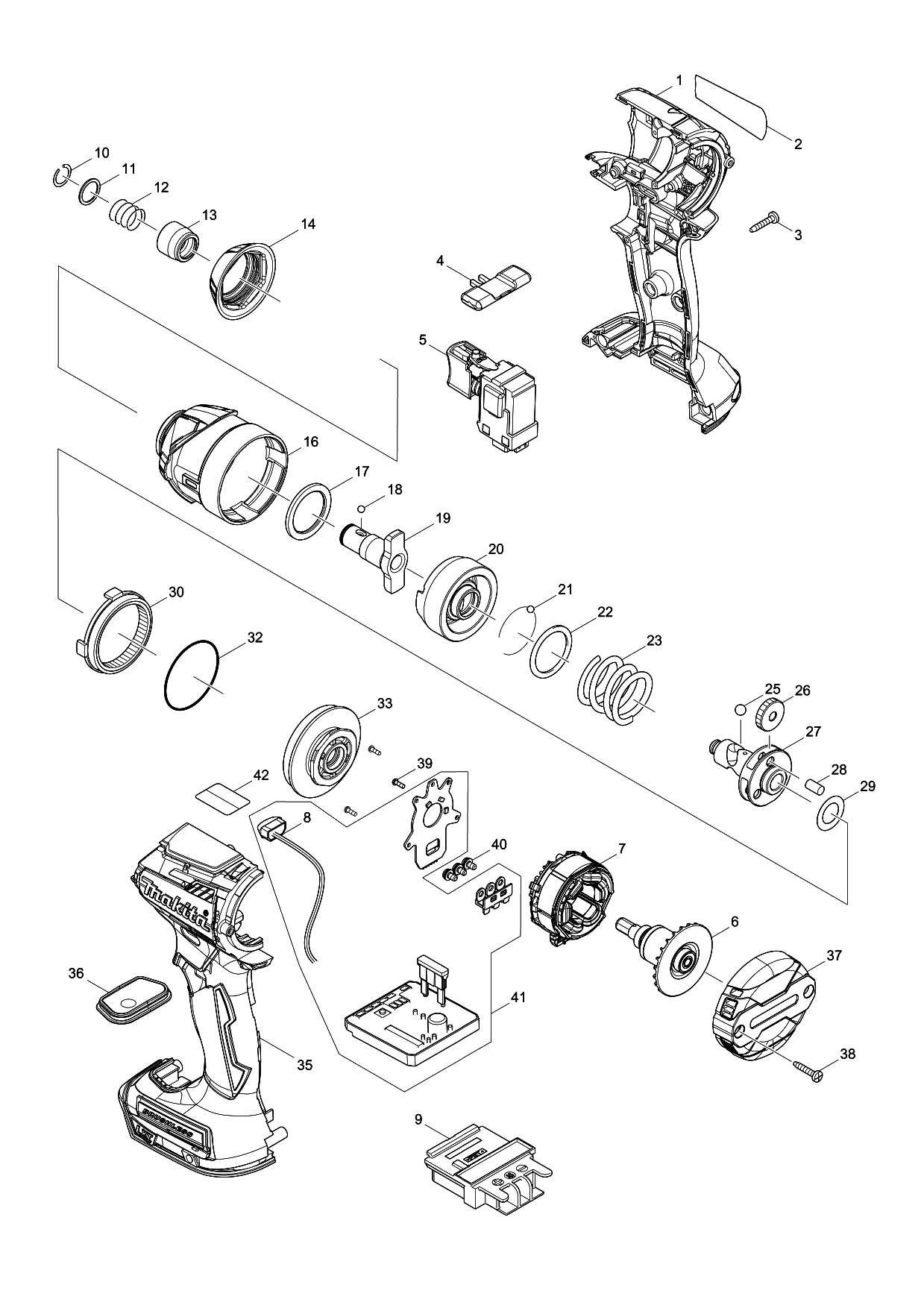

Sheet 1: Makita DTD154 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183E36-5 | Makita 183E36-5 Housing Set for DTD154 |
| 2 | 852L16-1 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 143975-1 | Makita 143975-1 Switch for DTD154 DTD155 |
| 6 | 619408-3 | Makita 619408-3 Rotor TD154D DTD171 DTD154 |
| 7 | 629217-2 | Makita 629217-2 STATOR |
| 8 | 620557-1 | Makita 620557-1 LED CIRCUIT |
| 9 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 10 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 11 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 326072-0 | Makita 326072-0 Bit Sleeve for TD134D |
| 14 | 424873-1 | Makita 424873-1 BUMPER |
| 16 | 143951-5 | Makita 143951-5 Hammer Case Complete for TD154D |
| 17 | 261155-8 | Makita 261155-8 NYLON WASHER 24 |
| 18 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 19 | 326508-9 | Makita 326508-9 Anvil M for DTD137 DTD148 DTD154 DTD170 |
| 20 | 326711-2 | Makita 326711-2 HAMMER |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 23 | 234331-7 | Makita 234331-7 COMPRESSION SPRING 24 |
| 25 | 216041-8 | Makita 216041-8 STEEL BALL 5.6 |
| 26 | 227338-0 | Makita 227338-0 SPUR GEAR 22 |
| 27 | 326783-7 | Makita 326783-7 SPINDLE |
| 28 | 268311-1 | Makita 268311-1 PIN 5 |
| 29 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 30 | 221457-4 | Makita 221457-4 INTERNAL GEAR 51 |
| 32 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 33 | 143976-9 | Makita 143976-9 BEARING BOX COMPLETE |
| 35 | 183E36-5 | Makita 183E36-5 Housing Set for DTD154 |
| 36 | 143954-9 | Makita 143954-9 SWITCH PLATE COMPLETE |
| 37 | 457069-9 | Makita 457069-9 REAR COVER |
| 38 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 39 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 40 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 42 |
