Makita DTD152: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DTD152: 35 positions on 1 sheet

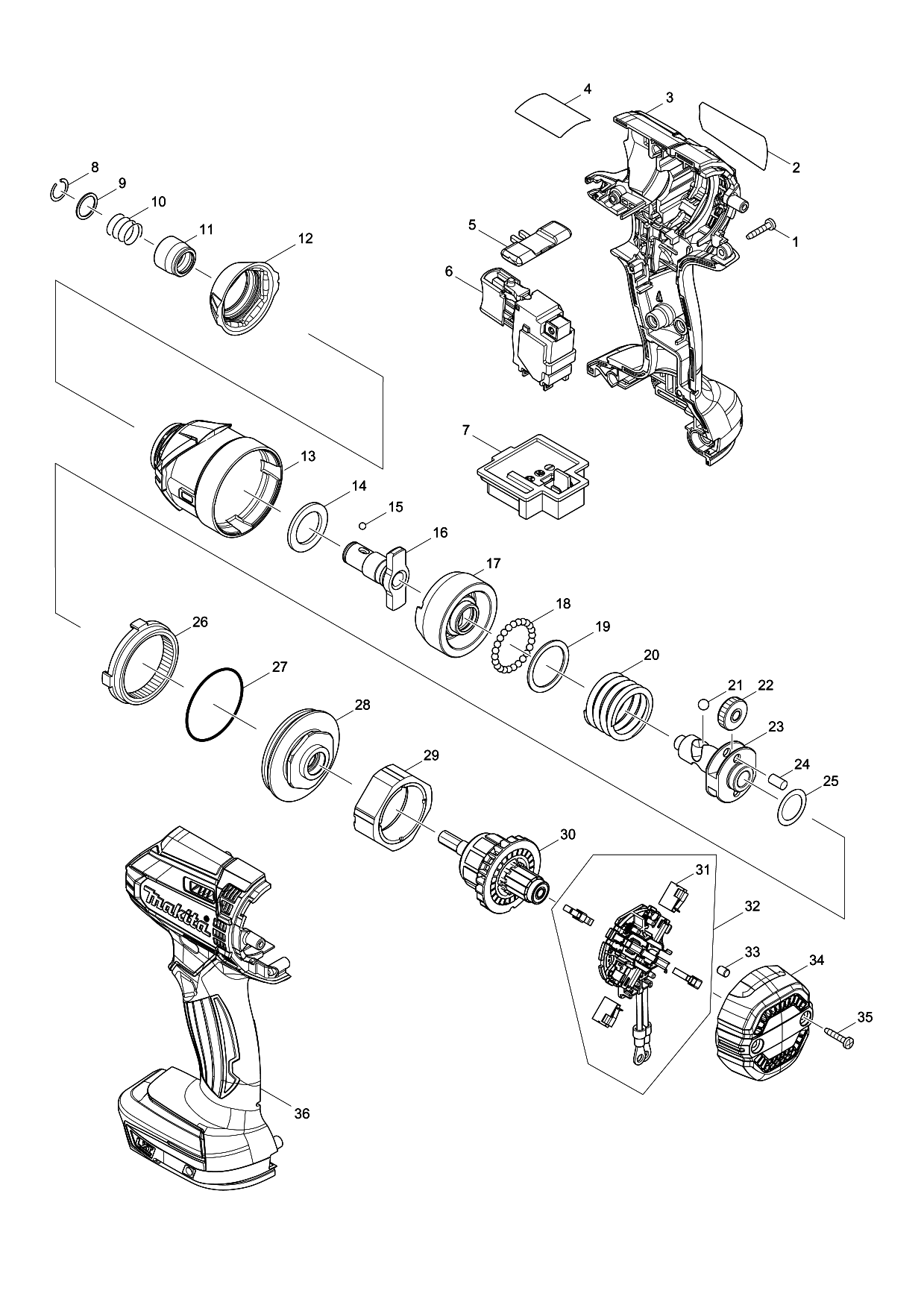

Sheet 1: Makita DTD152 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 2 | 851E29-7 | |
| 3 | 183B63-4 | Makita 183B63-4 Housing Set for TD152D |
| 4 | ||
| 5 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 6 | 632F26-6 | Makita 632F26-6 Switch for DTD152 |
| 7 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 8 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 9 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 10 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 11 | 326072-0 | Makita 326072-0 Bit Sleeve for TD134D |
| 12 | 424738-7 | Makita 424738-7 BUMPER |
| 13 | 143299-5 | Makita 143299-5 HAMMER CASE COMPLETE |
| 14 | 261151-6 | Makita 261151-6 Nylon Washer 19 for TD134D |
| 15 | 216040-0 | Makita 216040-0 STEEL BALL 3.5 |
| 16 | 326565-7 | Makita 326565-7 Anvil N for DTD152 DTD153 |
| 17 | 326564-9 | Makita 326564-9 HAMMER |
| 18 | 216040-0 | Makita 216040-0 STEEL BALL 3.5 |
| 19 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 20 | 234251-5 | Makita 234251-5 COMPRESSION SPRING 25, BTD136D |
| 21 | 216041-8 | Makita 216041-8 STEEL BALL 5.6 |
| 22 | 227362-3 | Makita 227362-3 SPUR GEAR 22 |
| 23 | 326562-3 | Makita 326562-3 SPINDLE |
| 24 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 25 | 253314-8 | Makita 253314-8 THIN WASHER 15 |
| 26 | 227378-8 | Makita 227378-8 INTERNAL GEAR 51 |
| 27 | 213507-9 | Makita 213507-9 O-RING 40, TD140D |
| 28 | 143298-7 | Makita 143298-7 Bearing Box Complete for TD152D |
| 29 | 638396-5 | Old code 638396-5 |
| 30 | 619377-8 | Makita 619377-8 Armature Assembly for TD152D DTD152 |
| 31 | 196854-2 | Makita 196854-2 CARBON BRUSH CB-448 |
| 33 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 34 | 456044-2 | Makita 456044-2 REAR COVER |
| 35 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 36 | 183B63-4 | Makita 183B63-4 Housing Set for TD152D |
