Makita DSS610: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DSS610: 82 positions on 1 sheet

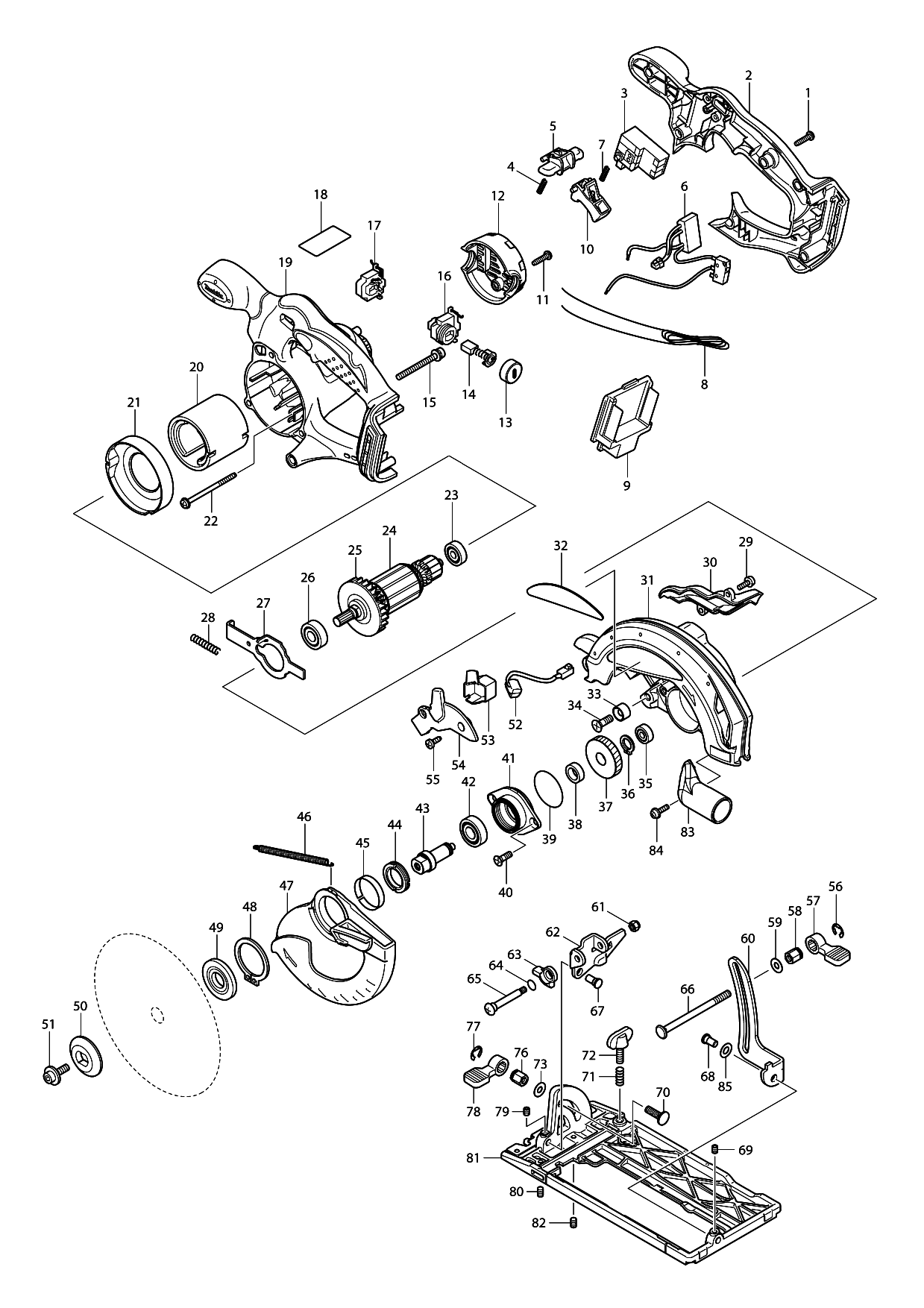

Sheet 1: Makita DSS610 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 141470-5 | Makita 141470-5 HANDLE COVER COMPLETE, BSS610, TEC. 93377 |
| 3 | 650631-1 | Makita 650631-1 Switch BHS630 BUC250 BUC250RD BSS610 |
| 4 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 5 | 419322-1 | |
| 6 | 620088-0 | MAKITA 620088-0 BSS610 POWER SUPPLY PART NO. 6200880 ~ITEM ÄGH8 3H-J3/G8322735 |
| 7 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 8 | ||
| 9 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 10 | 419176-6 | Makita 419176-6 SWITCH LEVER, BSS610 |
| 11 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 12 | 419281-9 | Makita 419281-9 REAR COVER, SS610D |
| 13 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 14 | 194435-6 | Makita 194435-6 CB-441 Carbon Brushes BHS630 BHR202 BSR730 BJR181 BSS610 |
| 15 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 16 | 643882-3 | Makita 643882-3 BRUSH HOLDER, BSS610 |
| 17 | 643883-1 | Makita 643883-1 BRUSH HOLDER, BSS610, TEC. 93377 |
| 18 | 815E89-3 | |
| 19 | 141471-3 | Makita 141471-3 MOTOR HOUSING COMPLETE, BSS610, TEC. 93377 |
| 20 | 638107-8 | Makita 638107-8 YOKE UNITE, MT560 |
| 21 | 419285-1 | Makita 419285-1 BAFFLE PLATE, SS610D |
| 22 | 266292-3 | Makita 266292-3 TAPPING SCREW 4*65, SS610D |
| 23 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 24 | 519173-3 | Makita 519173-3 Armature Ass'y for SS610D |
| 26 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 27 | 346059-6 | Makita 346059-6 SHAFT LOCK, SS610D |
| 28 | 233092-6 | Makita 233092-6 COMPRESSION SPRING 5, 5806B |
| 29 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 30 | 419284-3 | Makita 419284-3 BLOWER NOZZLE, SS610D |
| 31 | 188045-9 | Makita 188045-9 BLADE CASE SET, SS610D |
| 32 | 819217-2 | Makita 819217-2 MAKITA LOGO PLATE, SS610D |
| 33 | 262049-0 | Makita 262049-0 RUBBER RING 6, SS610D |
| 34 | 251368-9 | Makita 251368-9 COUNTERSUNK HEAD SCREW M6, SS610D |
| 35 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 36 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 37 | 227156-6 | Makita 227156-6 SPUR GEAR 52, SS610D |
| 38 | 257173-2 | Makita 257173-2 RING 12, 5806B |
| 39 | 213512-6 | Makita 213512-6 O-Ring 39 for SS610D |
| 40 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 41 | 318009-1 | Makita 318009-1 BEARING BOX, SS610D |
| 42 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 43 | 324626-7 | Makita 324626-7 Spindle for SS610D |
| 44 | 285845-9 | Makita 285845-9 BEARING RETAINER 19-29, SS610D |
| 45 | 345469-4 | Makita 345469-4 THICKNESS RING, SS610D |
| 46 | 231821-1 | Makita 231821-1 Tension Spring 3 for SS610D 5404R BSS610 BSS611 |
| 47 | 419286-9 | Makita 419286-9 Safety Cover for BSS610 BSS611 SS610D |
| 48 | 961152-1 | Makita 961152-1 RETAINING RING (EXT)S-34, SS610D |
| 49 | 224397-5 | Makita 224397-5 INNER FLANGE 40, 5007NB |
| 50 | 224282-2 | Makita 224282-2 OUTER FLANGE 40, LS0714 |
| 51 | 266133-3 | Makita 266133-3 Hex.Socket Head Bolt M6*20N for SS610D |
| 52 | 631694-6 | Makita 631694-6 LED CIRCUIT, BSS610 |
| 53 | 419341-7 | Makita 419341-7 CONNECTOR BOX, SS610D |
| 54 | 419282-7 | Makita 419282-7 LIGHT COVER, SS610D |
| 55 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 56 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 57 | 272229-0 | Makita 272229-0 LEVER 40, 3901 |
| 58 | 252158-3 | Makita 252158-3 HEX.NUT M6, 5620D |
| 59 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 60 | 345658-1 | Makita 345658-1 DEPTH GUIDE, SS610D |
| 61 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 62 | 345657-3 | Makita 345657-3 ANGULAR GUIDE, SS610D |
| 63 | 317986-4 | Makita 317986-4 STOPPER, SS610D |
| 64 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 65 | 265084-7 | Makita 265084-7 TRUSS HEAD SCREW J6 |
| 66 | 266194-3 | Makita 266194-3 FLAT HEAD SQUARE NECK BOLT M6, SS610D |
| 67 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 68 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 69 | 266264-8 | Makita 266264-8 HEX.SOCKET SET SCREW M5*6, SS610D |
| 70 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 71 | 231007-7 | Makita 231007-7 COMPRESSION SPRING 6, SS610D |
| 72 | 251896-4 | Makita 251896-4 THUMB SCREW, SS610D |
| 73 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 76 | 252133-9 | Makita 252133-9 HEX NUT M6, SS610D |
| 77 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 78 | 272251-7 | Makita 272251-7 LEVER, SS610D |
| 79 | 266264-8 | Makita 266264-8 HEX.SOCKET SET SCREW M5*6, SS610D |
| 80 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 81 | 154832-8 | Makita 154832-8 Base Complete BSS610 |
| 82 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 83 | 419283-5 | Makita 419283-5 Dust Nozzle for BSS610 BSS611 DSS610 DSS611 |
| 84 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 85 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
