Makita DSL800
Makita DSL800: exploded parts diagram, 2 sheets, 91 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DSL800: 91 positions on 2 sheets

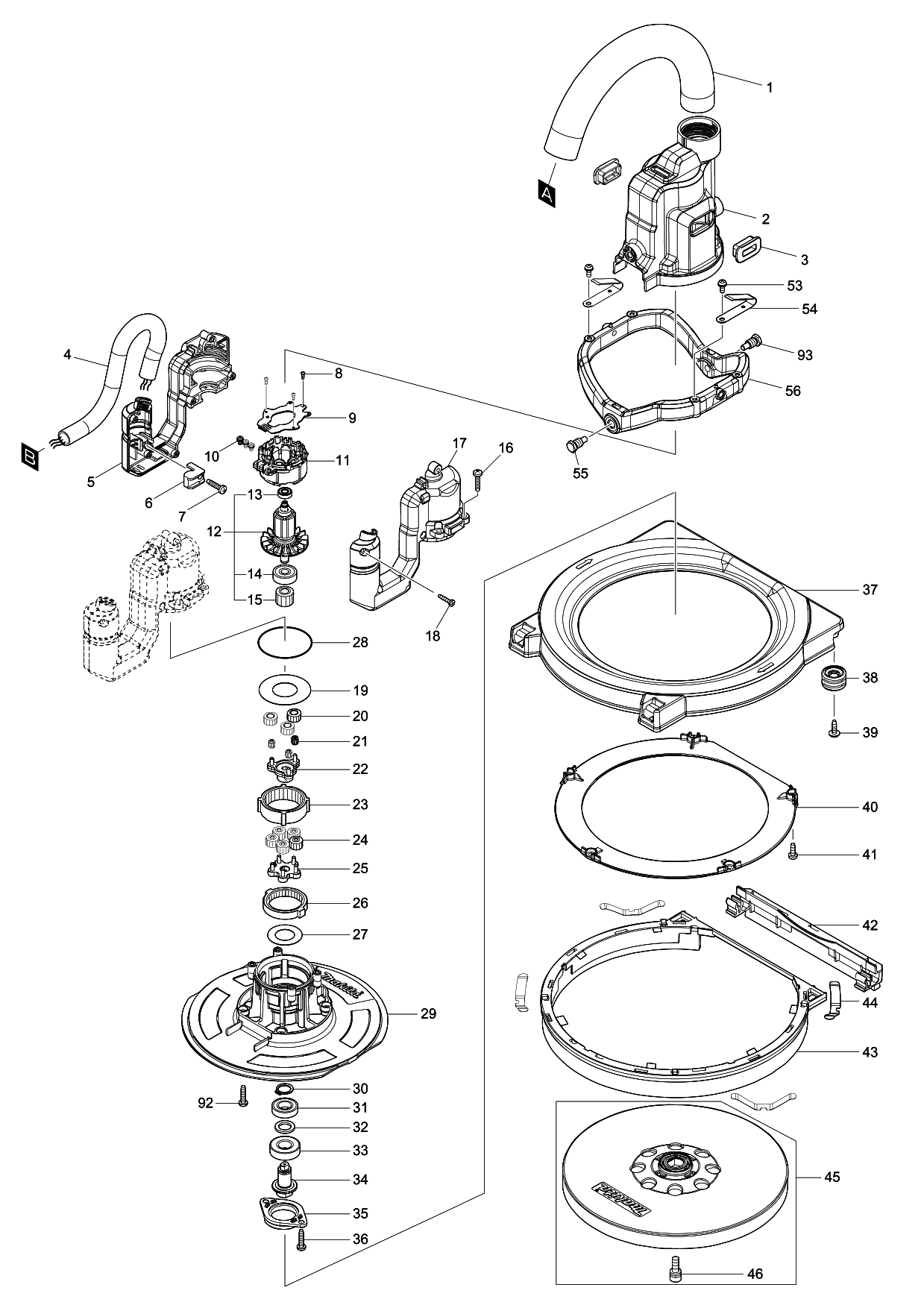

Sheet 1: Makita DSL800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 245058-4 | |
| 2 | 459217-6 | |
| 3 | 422446-4 | |
| 4 | 699129-3 | Makita 699129-3 POWER SUPPLY CORD UNIT |
| 5 | 183L77-3 | |
| 6 | 687261-5 | Makita 687261-5 CORD CLAMP, HR2460 |
| 7 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 8 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 9 | 620B02-8 | Makita 620B02-8 CONTROLLER B |
| 10 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 11 | 629409-3 | |
| 12 | 519567-2 | Makita 519567-2 ROTOR ASS'Y |
| 13 | 210039-7 | |
| 14 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 15 | 226888-2 | |
| 16 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 17 | 183L77-3 | |
| 18 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 19 | 253437-2 | |
| 20 | 226886-6 | Makita 226886-6 SPUR GEAR 14 |
| 21 | 212131-5 | Makita 212131-5 NEEDLE CAGE 307 |
| 22 | 140J82-1 | Makita 140J82-1 SPUR GEAR 17 COMPLETE |
| 23 | 226890-5 | Makita 226890-5 SPUR GEAR 47 |
| 24 | 226885-8 | Makita 226885-8 SPUR GEAR 13 |
| 25 | 140J81-3 | Makita 140J81-3 CARRIER COMPLETE |
| 26 | 226889-0 | Makita 226889-0 INTERNAL GEAR 43 |
| 27 | 267789-5 | Makita 267789-5 FLAT WASHER 18, DSC162 |
| 28 | 213606-7 | Makita 213606-7 O RING 48 |
| 29 | 459216-8 | Makita 459216-8 GEAR HOUSING |
| 30 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 31 | 211150-8 | Makita 211150-8 BALL BEARING 6901ZZ, 6935FD |
| 32 | 253746-9 | Makita 253746-9 FLAT WASHER 12 |
| 33 | 210105-0 | Makita 210105-0 BALL BEARING 6001LLU, HR281FT |
| 34 | 327318-7 | Makita 327318-7 SPINDEL |
| 35 | 319823-8 | Makita 319823-8 BEARING RETAINER 47 |
| 36 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 37 | 459218-4 | |
| 38 | 140L62-9 | |
| 39 | 266901-4 | Makita 266901-4 TAPPING SCREW 4*14 |
| 40 | 459219-2 | |
| 41 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 42 | 140J86-3 | |
| 43 | 140J85-5 | |
| 44 | 232510-1 | |
| 46 | 922323-5 | Makita 922323-5 HEX. SOCKET HEAD BOLT M6X |
| 53 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 54 | 232534-7 | |
| 55 | 265A35-6 | |
| 56 | 319808-4 | |
| 92 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 93 | 265A68-1 | Makita 265A68-1 HEX.BOLT M8*22, DSL800 |
Sheet 2: Makita DSL800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 47 | 459223-1 | Makita 459223-1 HOSE CONNECTOR |
| 48 | 213304-3 | Makita 213304-3 O RING 20 HR4000C |
| 49 | 459222-3 | Makita 459222-3 JOINT |
| 50 | 213393-8 | Makita 213393-8 O RING 23AN621 |
| 52 | 183L76-5 | |
| 57 | 183L76-5 | |
| 58 | 262561-0 | Makita 262561-0 SLEEVE 6, JR181D |
| 59 | 911334-5 | Makita 911334-5 PAN HEAD SCREW M6X20 |
| 60 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 61 | 183L78-1 | Makita 183L78-1 PIPE HOUSING SET |
| 62 | 459226-5 | |
| 63 | 140J84-7 | |
| 64 | 140L61-1 | Makita 140L61-1 PIPE B COMPLETE, |
| 65 | 183L78-1 | Makita 183L78-1 PIPE HOUSING SET |
| 66 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 67 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 68 | 459224-9 | |
| 69 | 459228-1 | |
| 70 | 913106-4 | Makita 913106-4 SET SCREW M4*8, LS0713 |
| 71 | 140J83-9 | |
| 72 | 183L75-7 | Makita 183L75-7 HANDEL SET |
| 73 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 74 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 75 | 459234-6 | Makita 459234-6 DUST NOZZLE |
| 76 | 459229-9 | |
| 77 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 78 | 620796-3 | Makita 620796-3 DIAL CIRUIT |
| 79 | 459230-4 | |
| 80 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 81 | 419705-5 | |
| 82 | 651083-9 | Makita 651083-9 SWITCH |
| 83 | 459231-2 | |
| 84 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 85 | 620B01-0 | Makita 620B01-0 Controller, DLS800 |
| 86 | 644809-6 | Makita 644809-6 TERMINAL |
| 87 | 855W07-7 | |
| 88 | 183L75-7 | Makita 183L75-7 HANDEL SET |
| 89 | 140F99-0 | |
| 90 | 855W00-1 | |
| 91 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
