All parts of Makita DSD180: 33 positions on 1 sheet

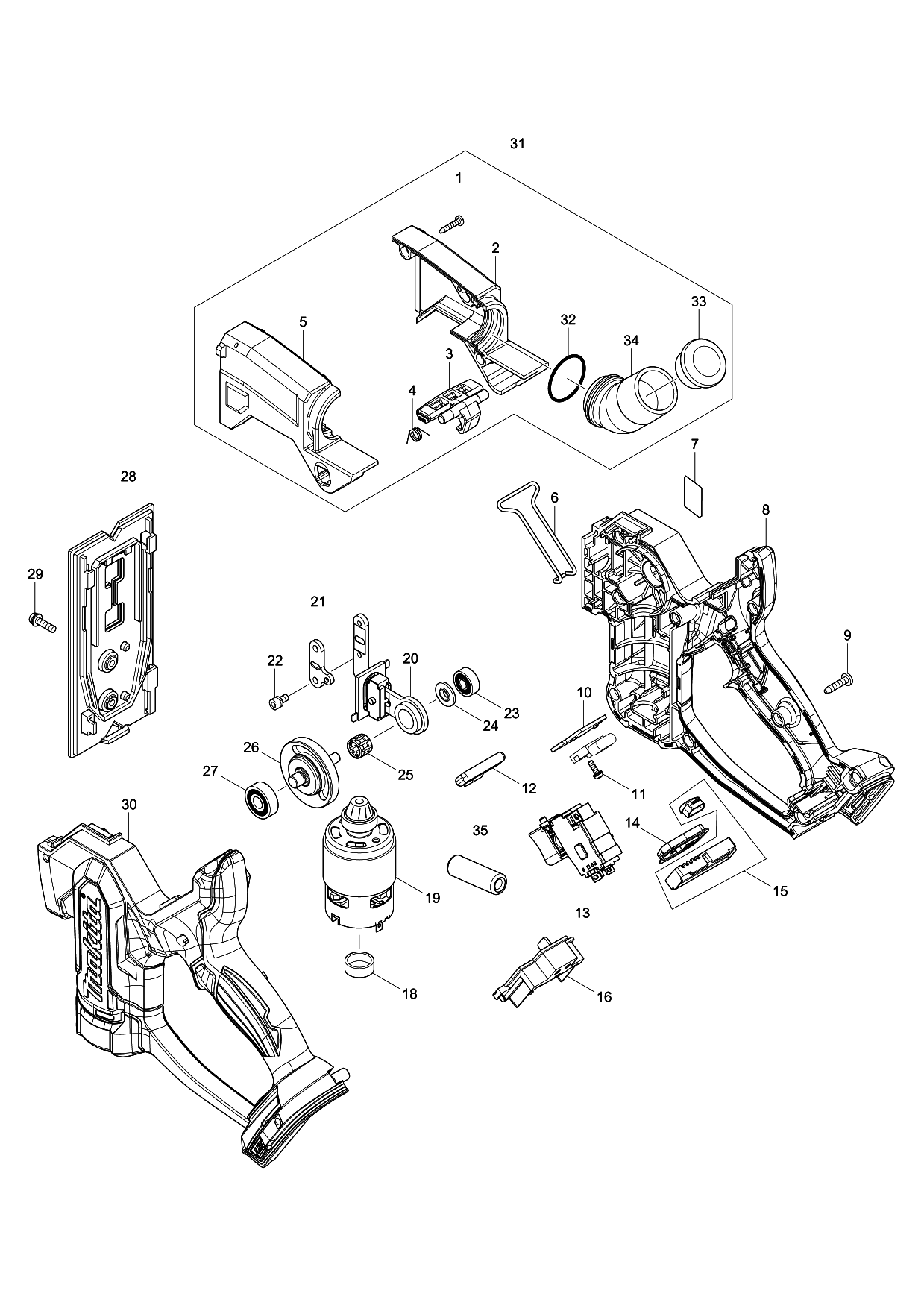

Sheet 1: Makita DSD180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 183C66-4 | Makita 183C66-4 DUST COLLECTOR SET |
| 3 | 456628-6 | Makita 456628-6 HOOK |
| 4 | 231661-7 | Makita 231661-7 TORSION SPRING 9 |
| 5 | 183C66-4 | Makita 183C66-4 DUST COLLECTOR SET |
| 6 | 326680-7 | Makita 326680-7 SAFETY WIRE |
| 7 | 852N21-0 | |
| 8 | 183E41-2 | Makita 183E41-2 HOUSING SET |
| 9 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 10 | 689098-6 | Makita 689098-6 HEAT SINK |
| 11 | 911013-5 | Makita 911013-5 PAN HEAD SCREW M3X10, DF456D |
| 12 | 456625-2 | Makita 456625-2 LOCK OFF BUTTON |
| 13 | 650762-6 | Makita 650762-6 SWITCH |
| 14 | 140963-9 | Makita 140963-9 SWITCH PLATE COMPLETE, TD134D |
| 15 | 620509-2 | Makita 620509-2 LIGHT CIRCUIT |
| 16 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 18 | 421940-3 | Makita 421940-3 CAP, 8390D |
| 19 | 629193-0 | Makita 629193-0 DC Motor 18V for DSD180 Drywall Cutter |
| 20 | 143694-9 | Makita 143694-9 SLIDER COMPLETE |
| 21 | 347010-9 | Makita 347010-9 BLADE HOLDER |
| 22 | 922106-3 | Makita 922106-3 HEX. SOCKET HEAD BOLT M4X |
| 23 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 24 | 326679-2 | Makita 326679-2 SHOULDER WASHER |
| 25 | 212077-5 | Makita 212077-5 NEEDLE CAGE, DCS230T |
| 26 | 143690-7 | Makita 143690-7 CRANK SHAFT COMPLETE |
| 27 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 28 | 456623-6 | Makita 456623-6 BASE |
| 29 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 30 | 183E41-2 | Makita 183E41-2 HOUSING SET |
| 32 | 213412-0 | Makita 213412-0 O RING 29 |
| 33 | 286268-4 | Makita 286268-4 CAP 31 |
| 34 | 451177-8 | Makita 451177-8 DUST NOZZLE |
| 35 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
