Makita DSC102: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DSC102: 55 positions on 1 sheet

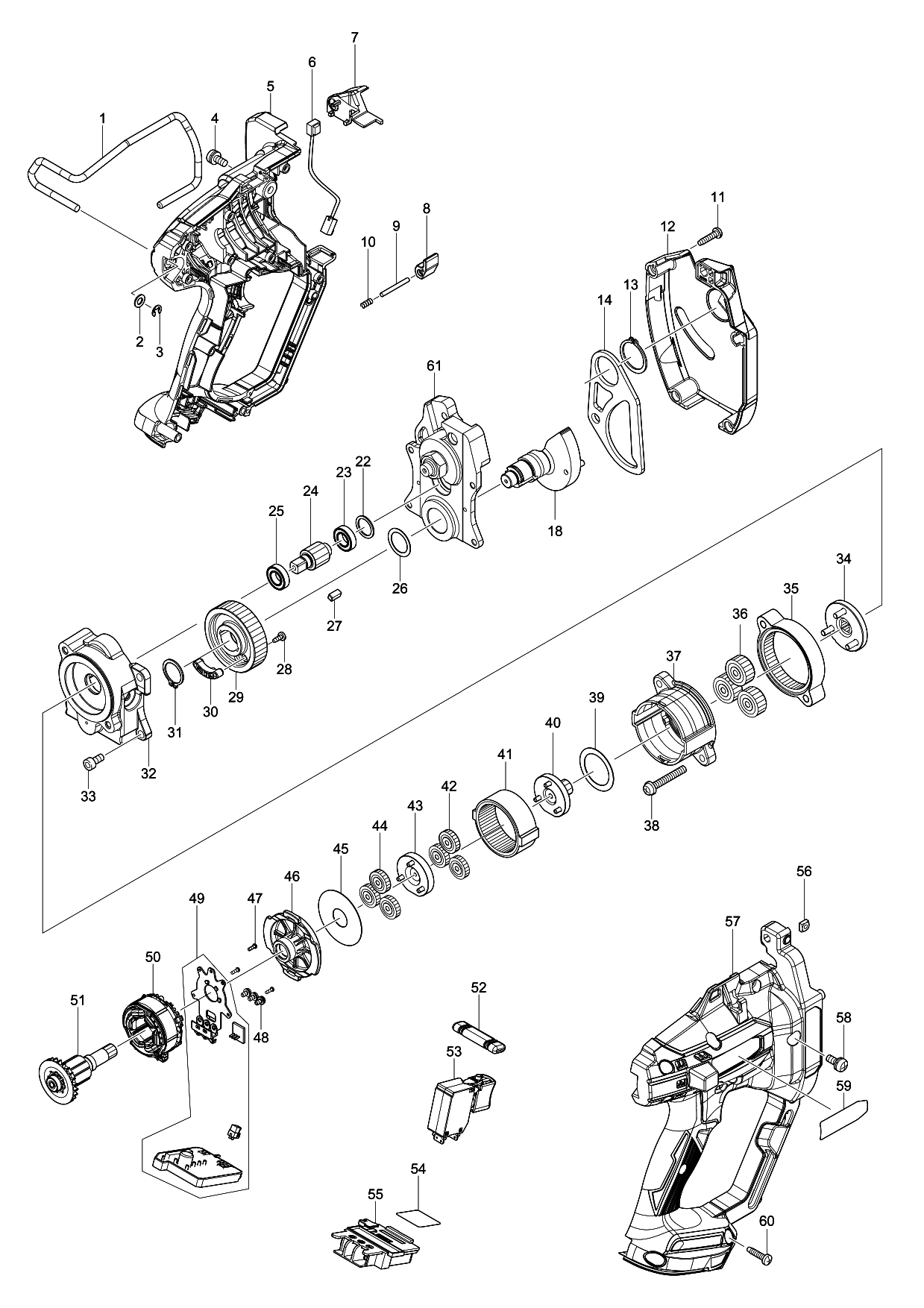

Sheet 1: Makita DSC102 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 281019-0 | Makita 281019-0 HOOK |
| 2 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 3 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 4 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 5 | 183J34-9 | Makita 183J34-9 HOUSING SET |
| 6 | 620821-0 | Makita 620821-0 LED CIRCUIT |
| 7 | 458373-9 | Makita 458373-9 LED HOLDER |
| 8 | 458379-7 | Makita 458379-7 SCREW GUIDE |
| 9 | 256267-0 | Makita 256267-0 PIN 3 |
| 10 | 231403-9 | Makita 231403-9 COMPRESSION SPRING 3 |
| 11 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 12 | 140B24-7 | Makita 140B24-7 FRONT COVER COMPLETE |
| 13 | 961104-2 | |
| 14 | 347350-5 | Makita 347350-5 RETURN PLATE |
| 18 | 144986-9 | Makita 144986-9 CAM COMPLETE |
| 22 | 267447-3 | Makita 267447-3 FLAT WASHER 14, HR2610 |
| 23 | 211485-7 | Makita 211485-7 BALL BEARING 6800LLU |
| 24 | 226168-6 | Makita 226168-6 SPUR GEAR 10C |
| 25 | 211485-7 | Makita 211485-7 BALL BEARING 6800LLU |
| 26 | 253409-7 | Makita 253409-7 FLAT WASHER 15 |
| 27 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 28 | 265954-0 | Makita 265954-0 TAPPING SCREW BIND PT3X8 |
| 29 | 226169-4 | Makita 226169-4 SPUR GEAR 39 |
| 30 | 144990-8 | Makita 144990-8 MAGNET HOLDER COMPLETE |
| 31 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 32 | 144992-4 | Makita 144992-4 GEAR COVER COMPLETE |
| 33 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 34 | 144989-3 | Makita 144989-3 CARRIER COMPLETE |
| 35 | 226166-0 | Makita 226166-0 INTERNAL GEAR 48 |
| 36 | 226165-2 | Makita 226165-2 SPUR GEAR 19 |
| 37 | 458374-7 | Makita 458374-7 GEAR HOUSING |
| 38 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 39 | 253792-2 | Makita 253792-2 FLAT WASHER 26 |
| 40 | 144988-5 | Makita 144988-5 SPUR GEAR 9 COMPLETE |
| 41 | 226164-4 | Makita 226164-4 INTERNAL GEAR 53 |
| 42 | 226163-6 | Makita 226163-6 SPUR GEAR 21 |
| 43 | 144987-7 | Makita 144987-7 SPUR GEAR 10B COMPLETE |
| 44 | 226163-6 | Makita 226163-6 SPUR GEAR 21 |
| 45 | 253410-2 | Makita 253410-2 FLAT WASHER 11 |
| 46 | 458375-5 | Makita 458375-5 GEAR HOUSING COVER |
| 47 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 48 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 49 | 620820-2 | Makita 620820-2 CONTROLLER SC102D |
| 50 | 629339-8 | Makita 629339-8 STATOR |
| 51 | 619512-8 | Makita 619512-8 ROTOR |
| 52 | 458378-9 | Makita 458378-9 F/R CHANGE LEVER |
| 53 | 651367-5 | Makita 651367-5 SWITCH |
| 54 | 854H32-5 | |
| 55 | 643874-2 | Makita 643874-2 Terminal |
| 56 | 252173-7 | Makita 252173-7 SQUARE NUT, BTD123F |
| 57 | 183J34-9 | Makita 183J34-9 HOUSING SET |
| 58 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 59 | 854H30-9 | |
| 60 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 61 | 126984-5 | Makita 126984-5 CUTTING ARM ASSEMBLY, DSC102 |
