Makita DS4012
Makita DS4012: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DS4012: 43 positions on 1 sheet

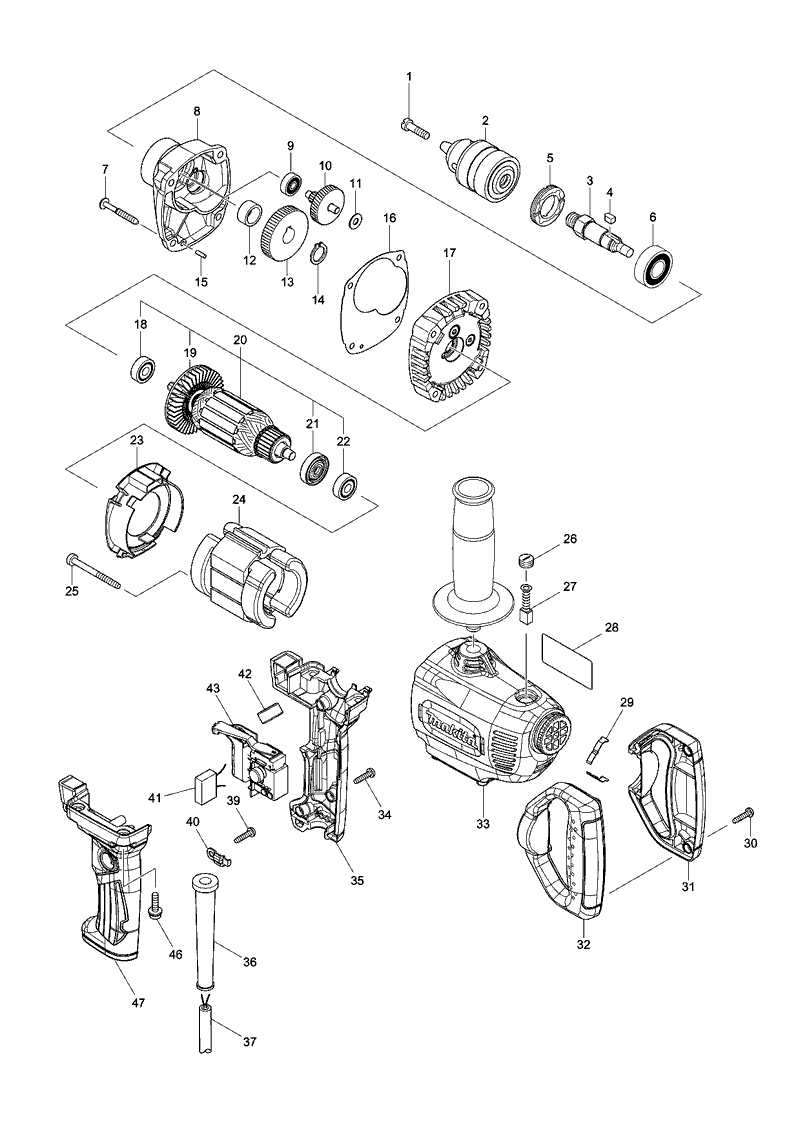

Sheet 1: Makita DS4012 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251441-5 | Makita 251441-5 SCREW M6X20 |
| 2 | 763078-1 | |
| 3 | 325494-1 | Makita 325494-1 SPINDLE |
| 4 | 254211-1 | Makita 254211-1 KEY 5 |
| 5 | 285807-7 | Makita 285807-7 BEARING RETAINER 22-36 |
| 6 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 7 | 266211-9 | Makita 266211-9 TAPPING SCREW 5X40 |
| 8 | 140620-9 | Makita 140620-9 GEAR HOUSING COMPLETE |
| 9 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 10 | 226028-2 | Makita 226028-2 GEAR COMPLETE 7-41 |
| 11 | 261008-1 | Makita 261008-1 FIBER WASHER 6 |
| 12 | 257018-4 | Makita 257018-4 RING 15 |
| 13 | 221261-1 | Makita 221261-1 SPUR GEAR 47 |
| 14 | 961054-1 | Makita 961054-1 RETAINING RING S-14 |
| 15 | 256180-2 | Makita 256180-2 PIN 3 JS1660 |
| 16 | 452066-0 | Makita 452066-0 GASKET DS4011 |
| 17 | 140619-4 | Makita 140619-4 GEAR HOUSING COVERCPL. |
| 18 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 20 | 513809-6 | Makita 513809-6 ARMATURE ASSY |
| 21 | 681659-8 | |
| 22 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 23 | 452063-6 | Makita 452063-6 BAFFLE PLATE, DS4010 |
| 24 | 520083-9 | Makita 520083-9 FIELD ASS'Y |
| 25 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 26 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 27 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 28 | 850P63-0 | |
| 29 | 232260-8 | Makita 232260-8 LEAF SPRING, DS4010 |
| 30 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 31 | 188921-7 | Makita 188921-7 HANDLE, DS4010 |
| 32 | 188921-7 | Makita 188921-7 HANDLE, DS4010 |
| 33 | 140618-6 | Makita 140618-6 MOTOR HOUSING COMPLETE |
| 34 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 35 | 183A33-7 | Makita 183A33-7 SWITCH HANDLE SET |
| 36 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 37 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 39 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 40 | 687682-1 | Makita 687682-1 CORD CLAMP, MT960 |
| 41 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 42 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 43 | 650742-2 | Makita 650742-2 Switch for DS4012 |
| 46 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 47 | 183A33-7 | Makita 183A33-7 SWITCH HANDLE SET |
