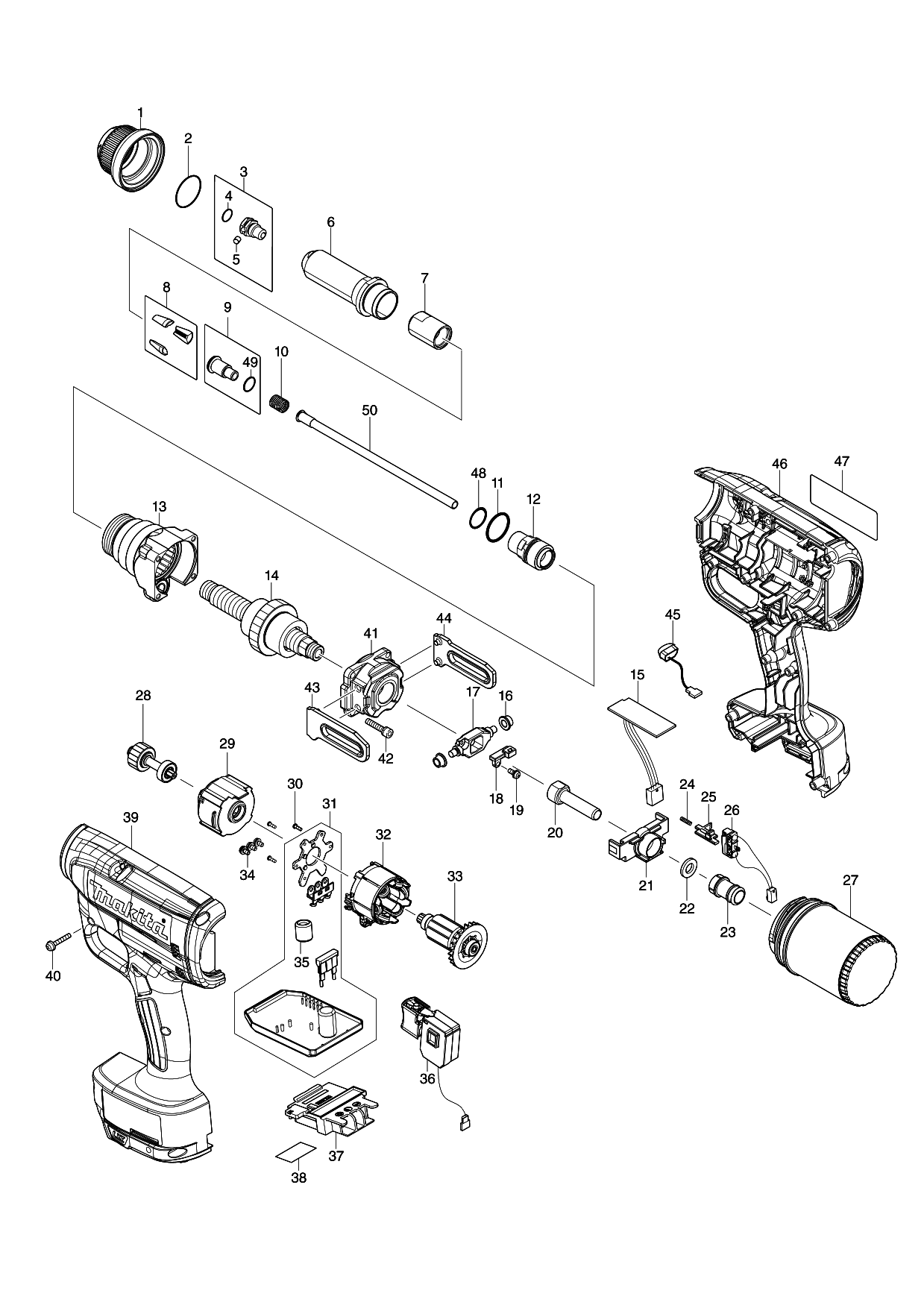

Sheet 1: Makita DRV250 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 319774-5 | |
| 2 | 213380-7 | Makita 213380-7 O-RING 24 HR2450 |
| 4 | 213011-8 | Makita 213011-8 O RING 7, LS1216 |
| 5 | 256217-5 | Makita 256217-5 PIN 4 |
| 6 | 327281-4 | Makita 327281-4 JAW. DRV150, 250 |
| 7 | 327279-1 | Makita 327279-1 HEAD 6.4 DRV150/250 |
| 8 | 199730-9 | Makita 199730-9 Jaw 4,8-6,4mm DRV250 |
| 10 | 232586-8 | |
| 11 | 213265-7 | Makita 213265-7 O RING 17 |
| 12 | 327280-6 | |
| 13 | 140E32-6 | |
| 14 | 127050-1 | |
| 15 | 620958-3 | |
| 16 | 257457-8 | |
| 17 | 310907-5 | |
| 18 | 140E40-7 | |
| 19 | 911008-8 | Makita 911008-8 PAN HEAD SCREW M3X8 |
| 20 | 327202-6 | |
| 21 | 458772-5 | |
| 22 | 261161-3 | |
| 23 | 458773-3 | |
| 24 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 25 | 458774-1 | |
| 26 | 632M90-9 | |
| 27 | 162500-9 | |
| 28 | 140E31-8 | |
| 29 | 127051-9 | |
| 30 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 32 | 629373-8 | |
| 33 | 619535-6 | |
| 34 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 35 | 688164-6 | Makita 688164-6 Line Filter 11*5*10 for CL142D |
| 36 | 651379-8 | |
| 37 | 643874-2 | Makita 643874-2 Terminal |
| 38 | 855M30-2 | |
| 39 | 183L30-9 | |
| 40 | 265095-2 | Makita 265095-2 PAN HEAD SCREW M3X20 |
| 41 | 140E33-4 | |
| 42 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 43 | 310908-3 | |
| 44 | 310909-1 | |
| 45 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 46 | 183L30-9 | |
| 47 | 855M22-1 | |
| 48 | 213891-2 | Makita 213891-2 O RING 14,5, DVR150/250 |
| 49 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 50 | 162743-3 | Makita 162743-3 PIPE 4.6 COMPLETE, DRV250 |
