Makita DRT50
Makita DRT50: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DRT50: 36 positions on 1 sheet

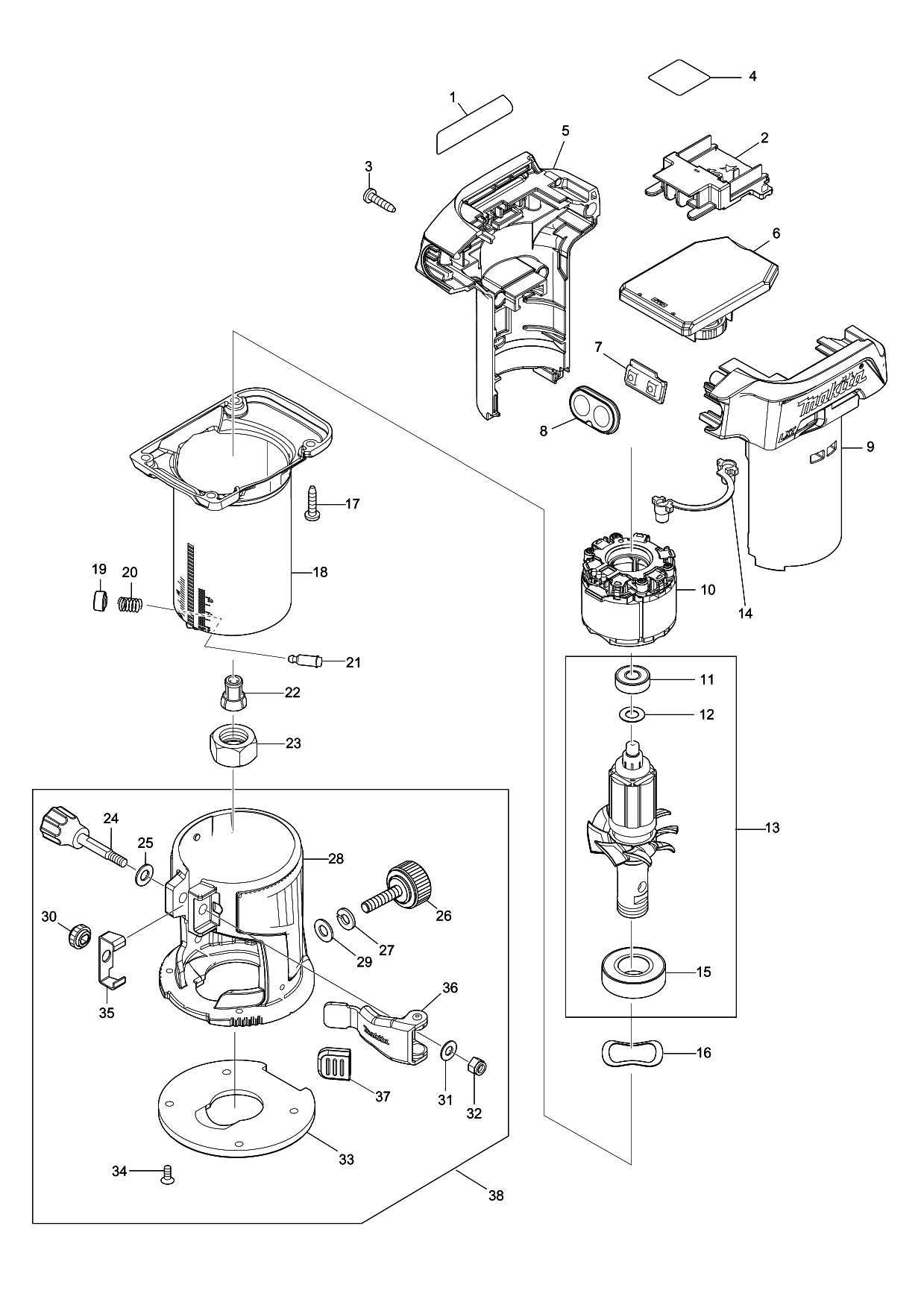

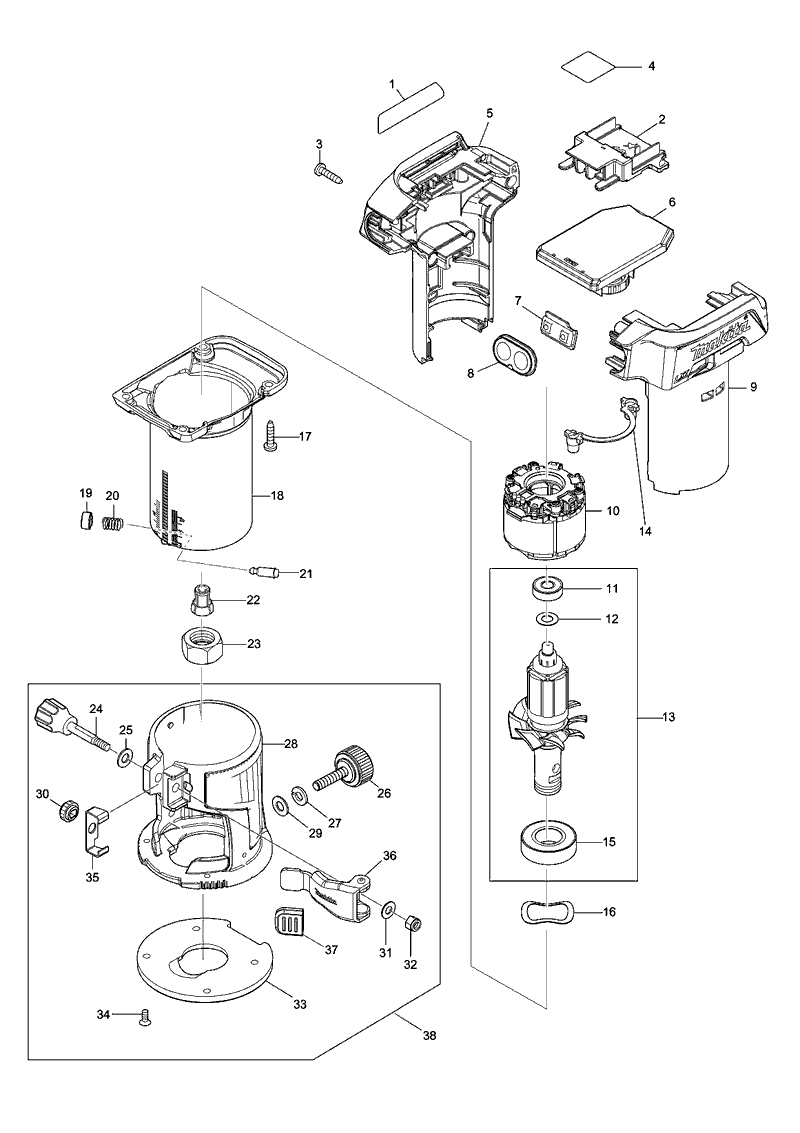

Sheet 1: Makita DRT50 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 853N00-1 | |
| 2 | 643874-2 | Makita 643874-2 Terminal |
| 3 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 4 | 853N19-0 | |
| 5 | 183G76-5 | Makita 183G76-5 HOUSING SET |
| 6 | 620720-6 | Makita 620720-6 CONTROLLER A |
| 7 | 632K92-3 | Makita 632K92-3 SWITCH UNIT |
| 8 | 144662-5 | Makita 144662-5 SWITCH PLATE COMPLETE |
| 9 | 183G76-5 | Makita 183G76-5 HOUSING SET |
| 10 | 629280-5 | Makita 629280-5 STATOR DC18V |
| 11 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 12 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 14 | 620721-4 | Makita 620721-4 LED CIRCUIT, DRT50D |
| 15 | 210301-0 | Makita 210301-0 BALL BEARING 6003DDW |
| 16 | 253906-3 | Makita 253906-3 WAVE WASHER 26 |
| 17 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 18 | 144661-7 | Makita 144661-7 OUTER HOUSING COMPLETE |
| 19 | 452468-0 | Makita 452468-0 PUSH BUTTON RT0700C |
| 20 | 233127-3 | Makita 233127-3 COMPRESSION SPRING 7, AN611 |
| 21 | 256437-1 | Makita 256437-1 SHOULDER PIN 4, 9524 |
| 22 | 763636-3 | Makita 763636-3 Collet Cone 6mm 3620 RP0900 RT0700 DRT50 |
| 23 | 763615-1 | Makita 763615-1 Collet Nut M362, 3620, 3608B, RT0700C, RP0900 |
| 24 | 265792-0 | Makita 265792-0 THUMB SCREW M5X44 RT0700C |
| 25 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 26 | 265763-7 | Makita 265763-7 THUMB SCREW M6X25 |
| 27 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 28 | 142403-3 | Makita 142403-3 TRIMMER BASE COMPLETE |
| 29 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 30 | 227262-7 | Makita 227262-7 SPUR GEAR 16 |
| 31 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 32 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 33 | 454842-8 | Makita 454842-8 Base Protector |
| 34 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 35 | 346392-6 | Makita 346392-6 CAM PLATE RT0700C |
| 36 | 163524-8 | Makita 163524-8 LOCK LEVER COMPLETE RT0700C |
| 37 | 424396-9 | Makita 424396-9 RUBBER CAP RT0700C |
