Makita DRC200
Makita DRC200: exploded parts diagram, 11 sheets, 252 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DRC200: 252 positions on 11 sheets

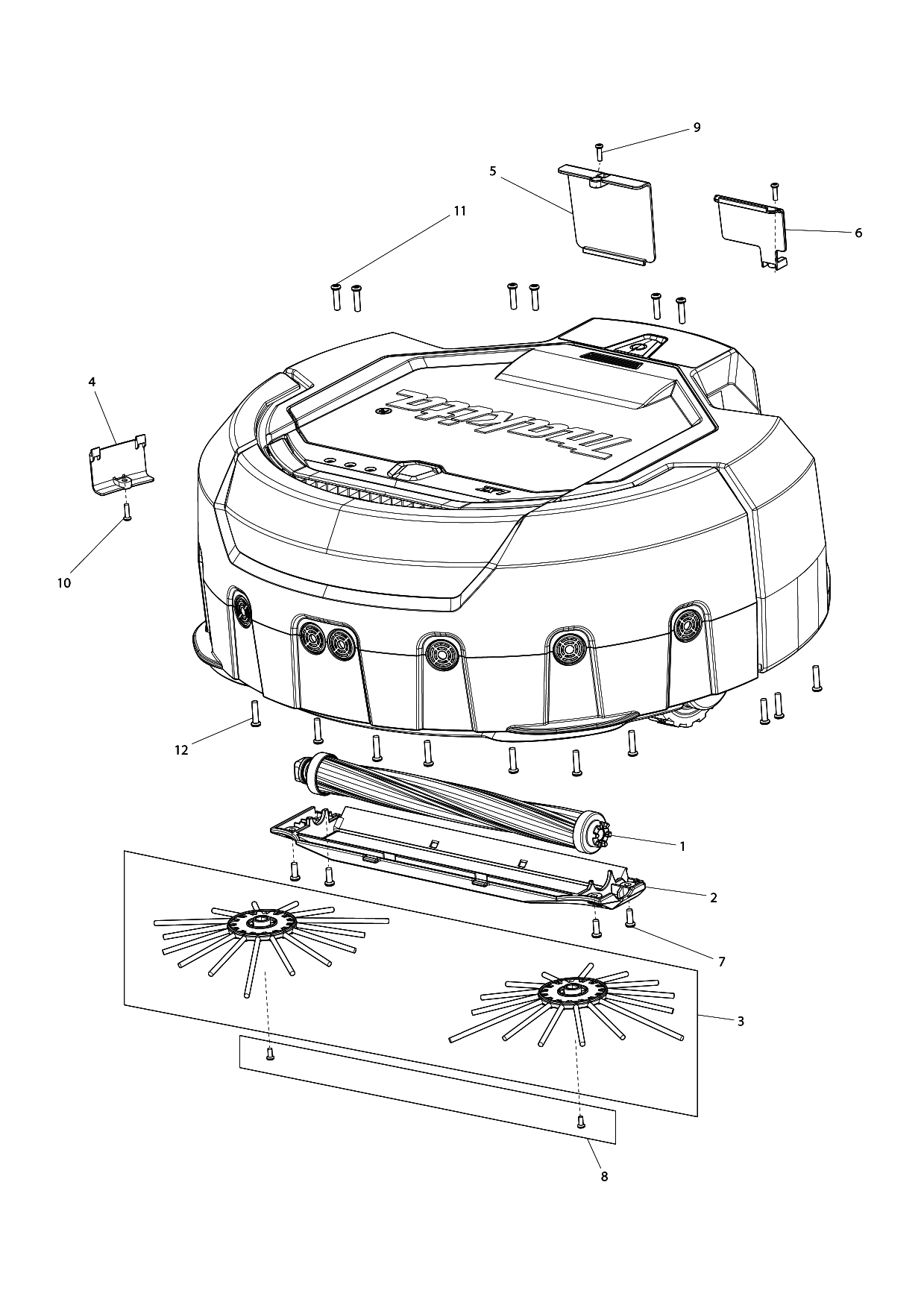

Sheet 1: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | SH00000063 | Makita SH00000063 Main Brush Assembly for DRC200 |
| 2 | SH00000064 | Makita SH00000064 Bottom Plate Assembly |
| 3 | SH00000065 | Makita SH00000065 Side Brush Ass'y 2 pcs for DRC200Z |
| 4 | SH00000066 | Makita SH00000066 FW COVER |
| 5 | SH00000067 | Makita SH00000067 CABLE COVER R |
| 6 | SH00000068 | Makita SH00000068 CABLE COVER L |
| 7 | SH00000069 | Makita SH00000069 SCREW(M4X8 MACHIN) |
| 8 | SH00000070 | Makita SH00000070 SB SCREW ASSY 2PCS |
| 9 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 10 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 11 | SH00000221 | Makita SH00000221 SCREW(M4X16) |
| 12 | SH00000221 | Makita SH00000221 SCREW(M4X16) |

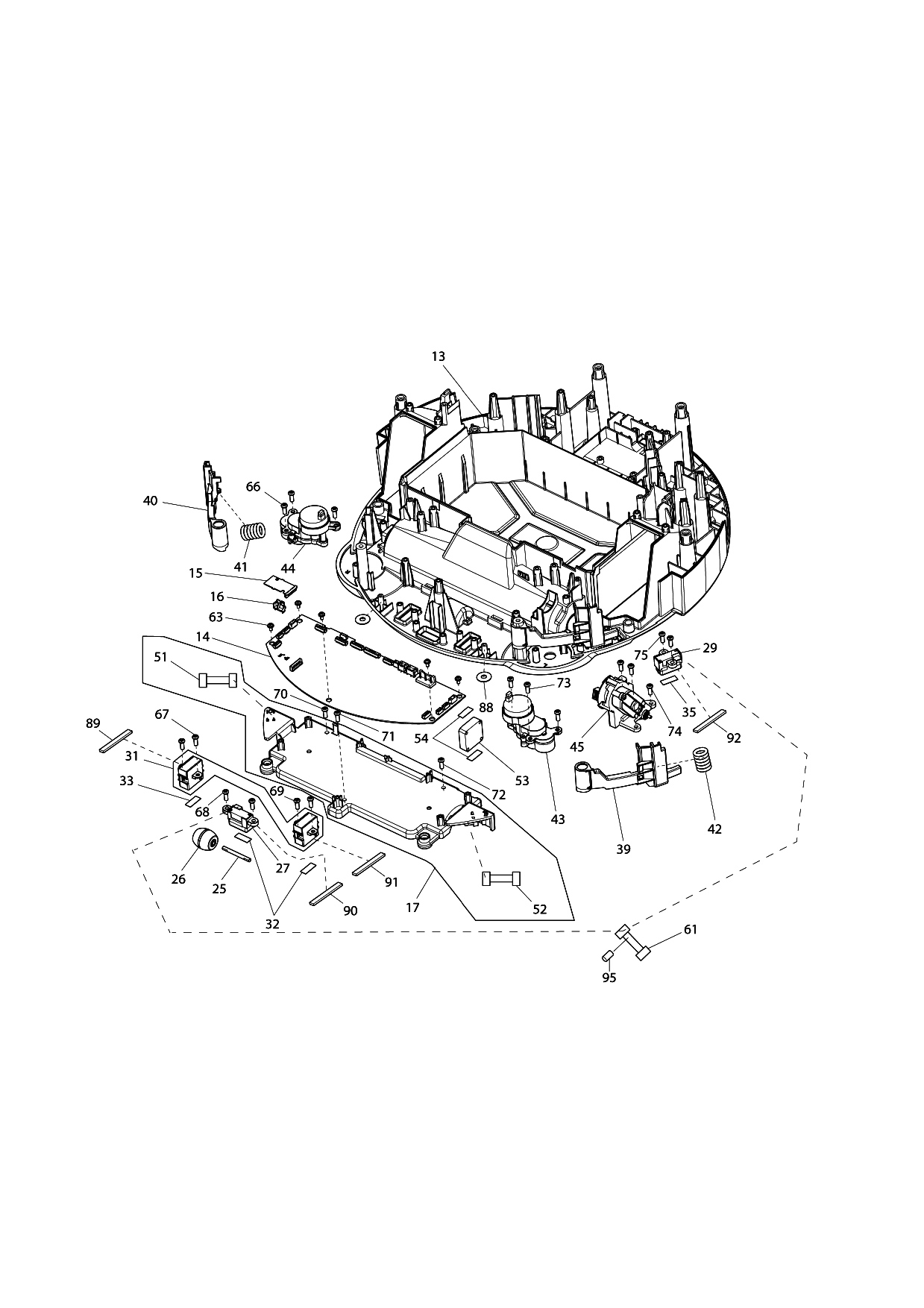

Sheet 2: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 13 | SH00000072 | Makita SH00000072 LOWER BODY ASSY |
| 14 | SH00000073 | Makita SH00000073 CONTROL PWB ASSY |
| 15 | SH00000241 | Makita SH00000241 RF MODULE |
| 16 | SH00000075 | Makita SH00000075 RF HOLDER |
| 25 | SH00000084 | Makita SH00000084 FRONT ROLLER SHAFT |
| 26 | SH00000085 | Makita SH00000085 FRONT ROLLER ASSY |
| 27 | SH00000086 | Makita SH00000086 IR SENSOR C ASSY |
| 29 | SH00000087 | Makita SH00000087 IR SENSOR S ASSY |
| 31 | SH00000088 | Makita SH00000088 BL SENSOR ASSY |
| 32 | SH00000222 | Makita SH00000222 SENSOR LENS SHEET |
| 33 | SH00000222 | Makita SH00000222 SENSOR LENS SHEET |
| 35 | SH00000222 | Makita SH00000222 SENSOR LENS SHEET |
| 39 | SH00000090 | Makita SH00000090 BUMPER ANGLE L |
| 40 | SH00000091 | Makita SH00000091 BUMPER ANGLE R |
| 41 | SH00000092 | Makita SH00000092 BUMPER SPRING |
| 42 | SH00000092 | Makita SH00000092 BUMPER SPRING |
| 43 | SH00000093 | Makita SH00000093 SB Unit L Assembly for DRC200 |
| 44 | SH00000094 | Makita SH00000094 SB Unit R Assembly for DRC200 |
| 45 | SH00000095 | Makita SH00000095 PB SUPPORT S ASSY |
| 51 | SH00000101 | Makita SH00000101 BUMPER SW CABLE |
| 52 | SH00000101 | Makita SH00000101 BUMPER SW CABLE |
| 53 | SH00000223 | Makita SH00000223 COOLING FAN S ASSY |
| 54 | SH00000224 | Makita SH00000224 COOLING FAN SEAL |
| 61 | SH00000242 | Makita SH00000242 CLIFF SENSOR CABLE L |
| 63 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 66 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 67 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 68 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 69 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 70 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 71 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 72 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 73 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 74 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 75 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 88 | SH00000226 | Makita SH00000226 PC WASHER |
| 89 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |
| 90 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |
| 91 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |
| 92 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |
| 95 | SH00000244 | Makita SH00000244 FERRITE CORE |

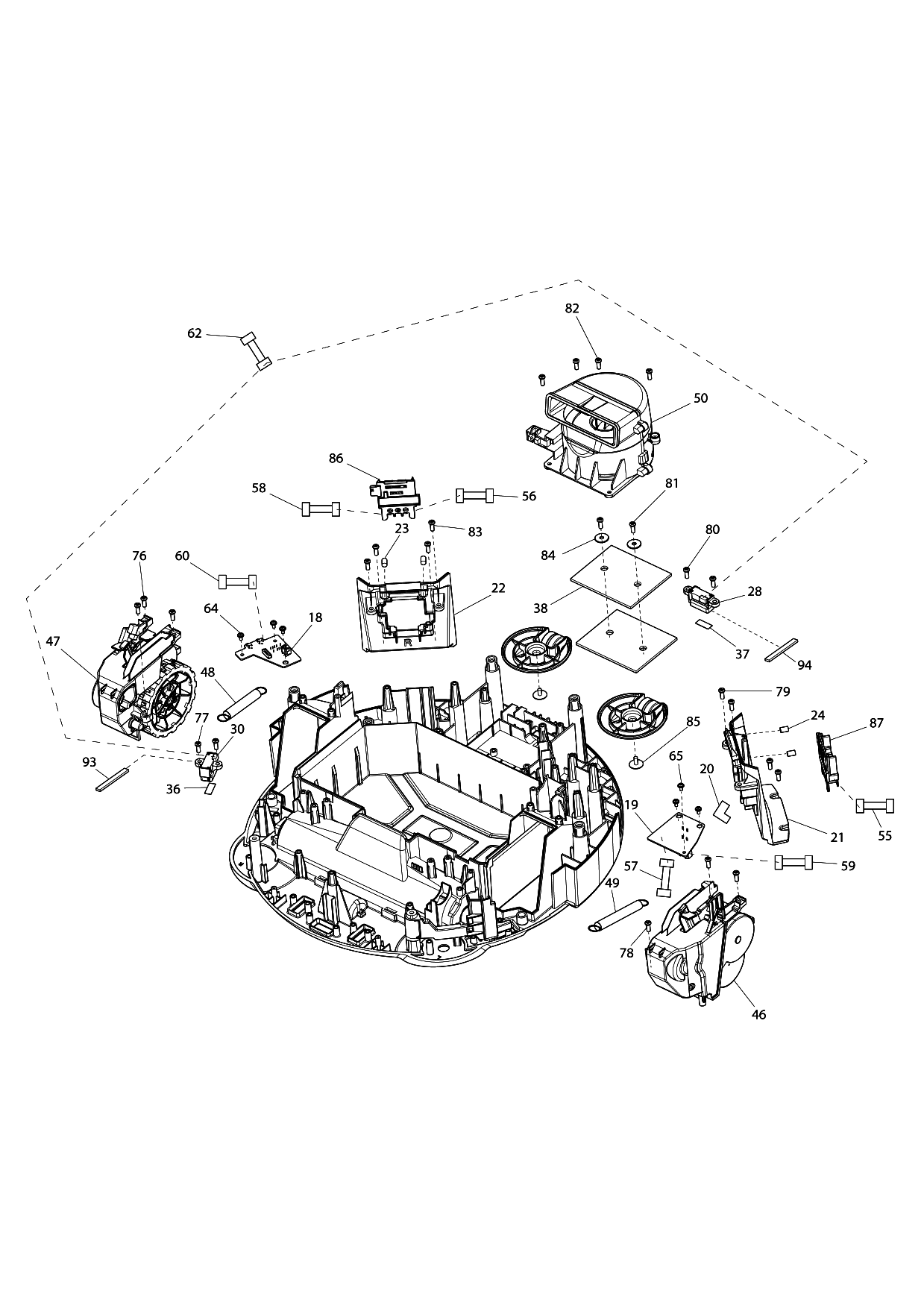

Sheet 3: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 18 | SH00000078 | Makita SH00000078 AS PWB ASSY |
| 19 | SH00000079 | Makita SH00000079 BATTERY PWB ASSY |
| 20 | SH00000080 | Makita SH00000080 INSULATING SHEET |
| 21 | SH00000081 | Makita SH00000081 TERMINAL HOLDER L |
| 22 | SH00000082 | Makita SH00000082 TERMINAL HOLDER R |
| 23 | SH00000083 | Makita SH00000083 RUBBER PIN |
| 24 | SH00000083 | Makita SH00000083 RUBBER PIN |
| 28 | SH00000086 | Makita SH00000086 IR SENSOR C ASSY |
| 30 | SH00000087 | Makita SH00000087 IR SENSOR S ASSY |
| 36 | SH00000222 | Makita SH00000222 SENSOR LENS SHEET |
| 37 | SH00000222 | Makita SH00000222 SENSOR LENS SHEET |
| 38 | SH00000089 | Makita SH00000089 WEIGHT PLATE |
| 46 | SH00000096 | Makita SH00000096 MAIN WHEEL L ASSY |
| 47 | SH00000097 | Makita SH00000097 MAIN WHEEL R ASSY |
| 48 | SH00000098 | Makita SH00000098 WHEEL SPRING |
| 49 | SH00000098 | Makita SH00000098 WHEEL SPRING |
| 50 | SH00000099 | Makita SH00000099 AIR DUCT UNIT ASSY |
| 55 | SH00000104 | Makita SH00000104 BATTERY CABLE L |
| 56 | SH00000105 | Makita SH00000105 BATTERY CABLE R |
| 57 | SH00000106 | Makita SH00000106 BATTERY PS CABLE |
| 58 | SH00000107 | Makita SH00000107 BATTERY SIGNAL CABLE |
| 59 | SH00000108 | Makita SH00000108 BATTERY EARTH CABLE |
| 60 | SH00000109 | Makita SH00000109 AS CABLE |
| 62 | SH00000243 | Makita SH00000243 CLIFF SENSOR CABLE R |
| 64 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 65 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 76 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 77 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 78 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 79 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 80 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 81 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 82 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 83 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 84 | SH00000112 | Makita SH00000112 WASHER(4.5X13XT1) |
| 85 | SH00000113 | Makita SH00000113 SCREW(M5X10XWASHER16) |
| 86 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 87 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 93 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |
| 94 | SH00000236 | Makita SH00000236 SENSOR LENZ SEAL |

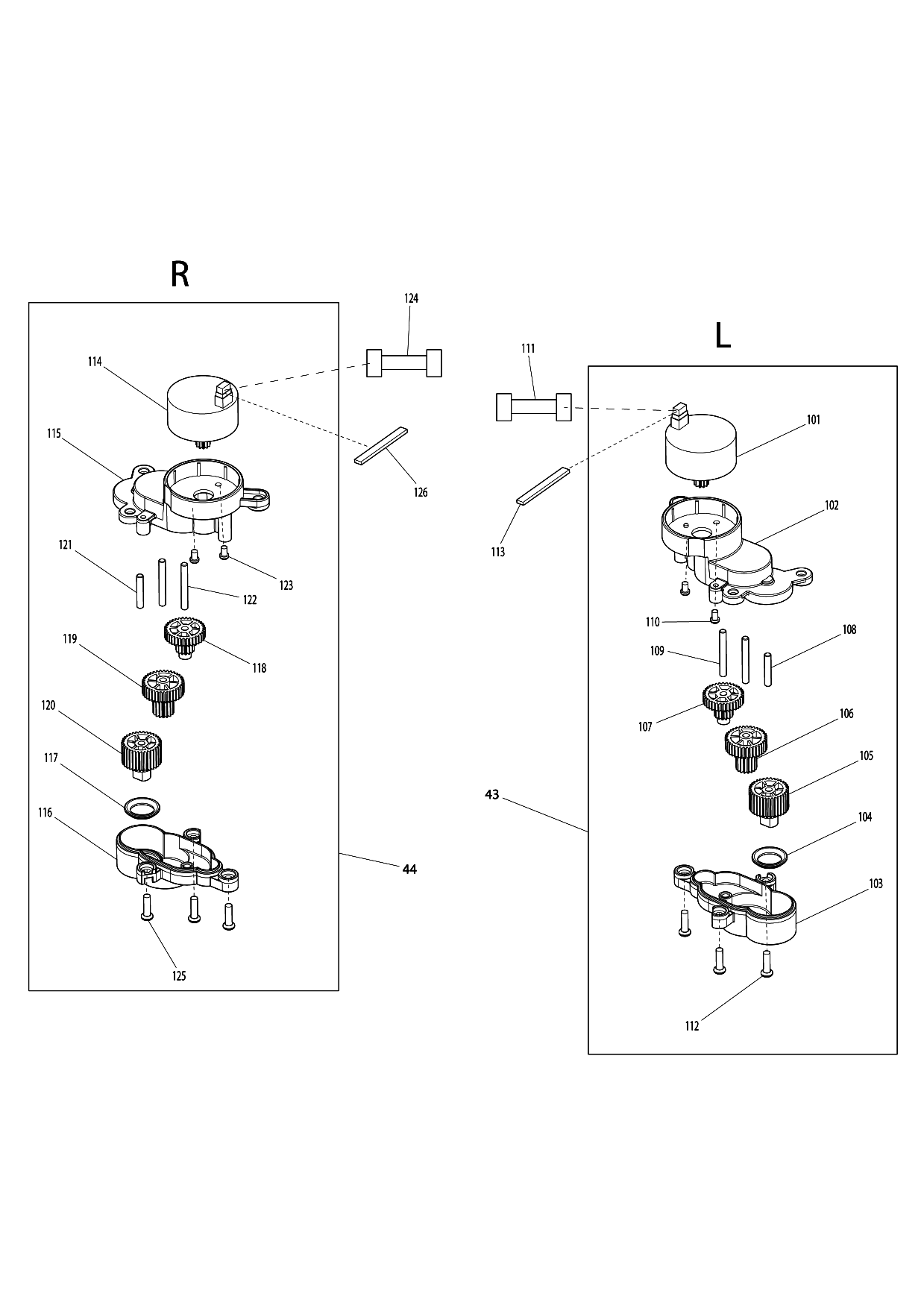

Sheet 4: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 101 | SH00000114 | Makita SH00000114 MOTOR S ASSY |
| 102 | SH00000115 | Makita SH00000115 SB MOTOR HOLDER L |
| 103 | SH00000116 | Makita SH00000116 SB MOTOR COVER |
| 104 | SH00000117 | Makita SH00000117 SB METAL |
| 105 | SH00000118 | Makita SH00000118 SB GEAR 4 ASSY |
| 106 | SH00000119 | Makita SH00000119 SB GEAR 3 |
| 107 | SH00000120 | Makita SH00000120 SB GEAR 2 |
| 108 | SH00000121 | Makita SH00000121 COMMON SHAFT 1 |
| 109 | SH00000122 | Makita SH00000122 SB GEAR SHAFT 1 |
| 110 | SH00000123 | Makita SH00000123 SCREW(M2.6X4 MACHINE) |
| 111 | SH00000124 | Makita SH00000124 SIDE BRUSH CABLE |
| 112 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 113 | SH00000227 | Makita SH00000227 MOTOR SEAL |
| 114 | SH00000114 | Makita SH00000114 MOTOR S ASSY |
| 115 | SH00000125 | Makita SH00000125 SB MOTOR HOLDER R |
| 116 | SH00000116 | Makita SH00000116 SB MOTOR COVER |
| 117 | SH00000117 | Makita SH00000117 SB METAL |
| 118 | SH00000120 | Makita SH00000120 SB GEAR 2 |
| 119 | SH00000119 | Makita SH00000119 SB GEAR 3 |
| 120 | SH00000118 | Makita SH00000118 SB GEAR 4 ASSY |
| 121 | SH00000121 | Makita SH00000121 COMMON SHAFT 1 |
| 122 | SH00000122 | Makita SH00000122 SB GEAR SHAFT 1 |
| 123 | SH00000123 | Makita SH00000123 SCREW(M2.6X4 MACHINE) |
| 124 | SH00000124 | Makita SH00000124 SIDE BRUSH CABLE |
| 125 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 126 | SH00000227 | Makita SH00000227 MOTOR SEAL |
Sheet 5: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 127 | SH00000126 | Makita SH00000126 PB MOTOR D ASSY |
| 128 | SH00000127 | Makita SH00000127 PB SUPPORT COVER K |
| 129 | SH00000129 | Makita SH00000129 PB BELT GEAR 2 |
| 130 | SH00000130 | Makita SH00000130 BELT GEAR SHAFT |
| 131 | SH00000131 | Makita SH00000131 PB BELT GEAR 3 |
| 132 | SH00000132 | Makita SH00000132 PB HOLDER ASSY |
| 133 | SH00000133 | Makita SH00000133 BEARING |
| 134 | SH00000133 | Makita SH00000133 BEARING |
| 135 | SH00000134 | Makita SH00000134 P WASHER 050 |
| 136 | SH00000134 | Makita SH00000134 P WASHER 050 |
| 137 | SH00000228 | Makita SH00000228 E-RING |
| 138 | SH00000136 | Makita SH00000136 TIMING BELT |
| 139 | SH00000137 | Makita SH00000137 PB MOTOR CABLE |
| 140 | SH00000071 | Makita SH00000071 SCREW(M3X10) |

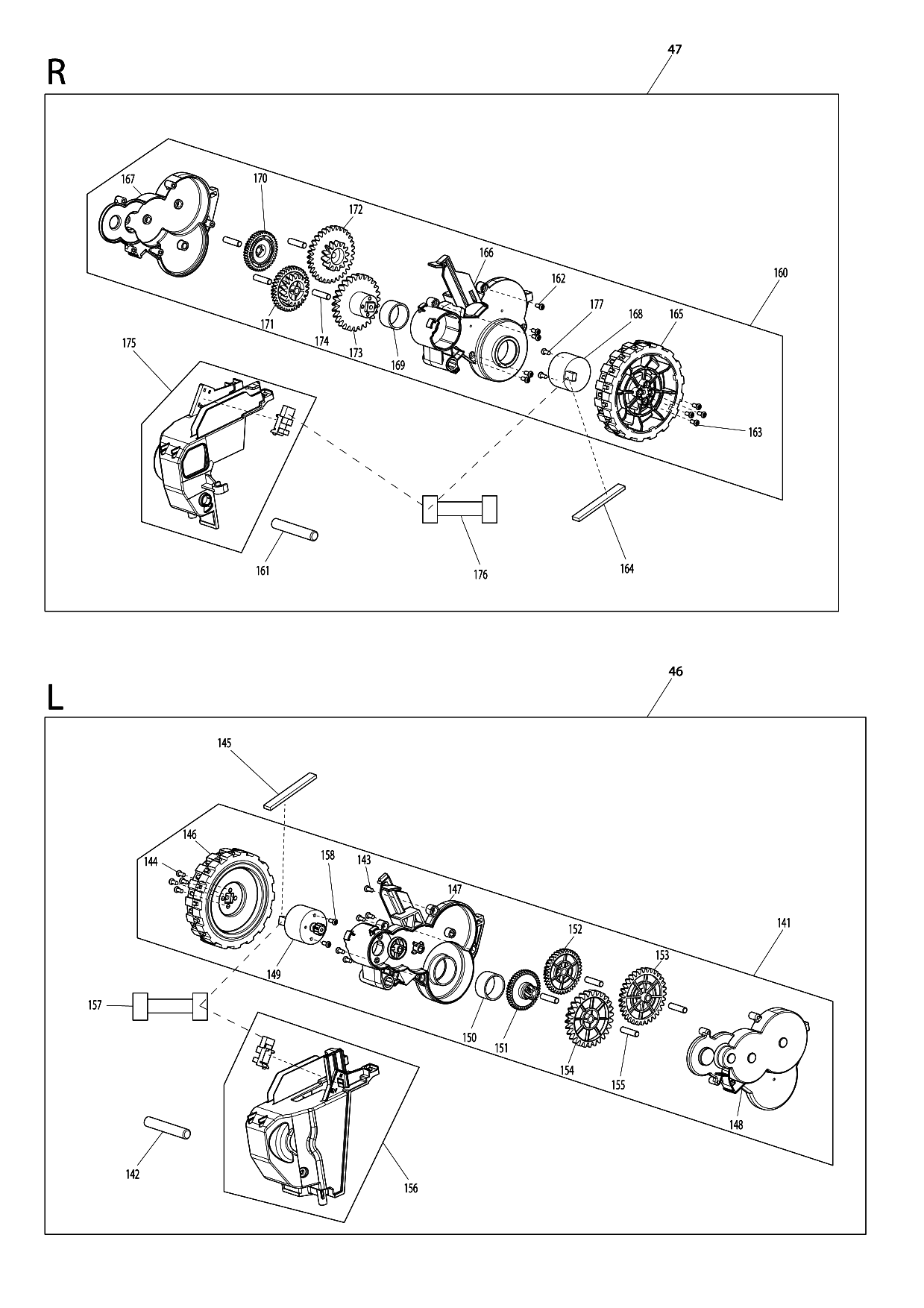

Sheet 6: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 142 | SH00000152 | Makita SH00000152 MAIN WHEEL SHAFT |
| 143 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 144 | SH00000229 | Makita SH00000229 SCREW(M3X10) |
| 145 | SH00000227 | Makita SH00000227 MOTOR SEAL |
| 146 | SH00000150 | Makita SH00000150 WHEEL L ASSY |
| 147 | SH00000140 | Makita SH00000140 WHEEL GEAR BOX L |
| 148 | SH00000141 | Makita SH00000141 WHEEL GEAR COVER L |
| 149 | SH00000142 | Makita SH00000142 MW MOTOR S ASSY |
| 150 | SH00000143 | Makita SH00000143 WHEEL METAL RING |
| 151 | SH00000144 | Makita SH00000144 WHEEL GEAR 2 |
| 152 | SH00000145 | Makita SH00000145 WHEEL GEAR 3 |
| 153 | SH00000146 | Makita SH00000146 WHEEL GEAR 4 |
| 154 | SH00000147 | Makita SH00000147 WHEEL GEAR 5 |
| 155 | SH00000148 | Makita SH00000148 WHEEL GEAR SHAFT 1 |
| 156 | SH00000151 | Makita SH00000151 WHEEL L UNIT COVER |
| 157 | SH00000153 | Makita SH00000153 WHEEL CABLE |
| 158 | SH00000123 | Makita SH00000123 SCREW(M2.6X4 MACHINE) |
| 161 | SH00000152 | Makita SH00000152 MAIN WHEEL SHAFT |
| 162 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 163 | SH00000229 | Makita SH00000229 SCREW(M3X10) |
| 164 | SH00000227 | Makita SH00000227 MOTOR SEAL |
| 165 | SH00000157 | Makita SH00000157 WHEEL R ASSY |
| 166 | SH00000155 | Makita SH00000155 WHEEL GEAR BOX R |
| 167 | SH00000156 | Makita SH00000156 WHEEL GEAR COVER R |
| 168 | SH00000142 | Makita SH00000142 MW MOTOR S ASSY |
| 169 | SH00000143 | Makita SH00000143 WHEEL METAL RING |
| 170 | SH00000144 | Makita SH00000144 WHEEL GEAR 2 |
| 171 | SH00000145 | Makita SH00000145 WHEEL GEAR 3 |
| 172 | SH00000146 | Makita SH00000146 WHEEL GEAR 4 |
| 173 | SH00000147 | Makita SH00000147 WHEEL GEAR 5 |
| 174 | SH00000148 | Makita SH00000148 WHEEL GEAR SHAFT 1 |
| 175 | SH00000158 | Makita SH00000158 WHEEL R UNIT COVER |
| 176 | SH00000153 | Makita SH00000153 WHEEL CABLE |
| 177 | SH00000123 | Makita SH00000123 SCREW(M2.6X4 MACHINE) |

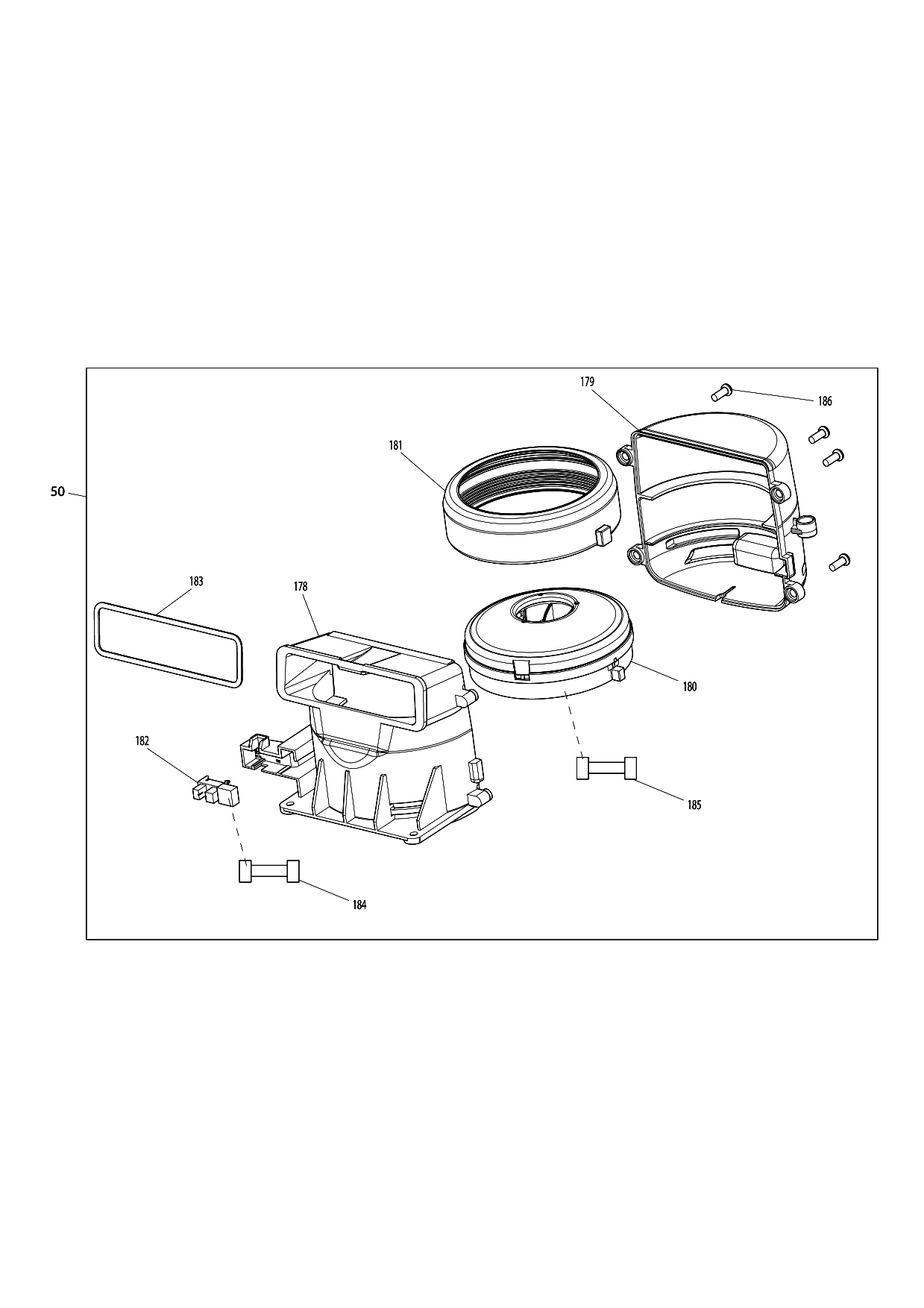

Sheet 7: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 178 | SH00000159 | Makita SH00000159 AIR DUCT FRONT |
| 179 | SH00000160 | Makita SH00000160 AIR DUCT REAR |
| 180 | SH00000161 | Makita SH00000161 FAN MOTOR UNIT ASSY |
| 181 | SH00000162 | Makita SH00000162 FAN CUSHION |
| 182 | SH00000077 | Makita SH00000077 PHOTO SENSOR |
| 183 | SH00000163 | Makita SH00000163 INTAKE SEAL |
| 184 | SH00000164 | Makita SH00000164 CUP SENSOR CABLE |
| 185 | SH00000165 | Makita SH00000165 FAN MOTOR CABLE |
| 186 | SH00000111 | Makita SH00000111 SCREW(M4X10) |

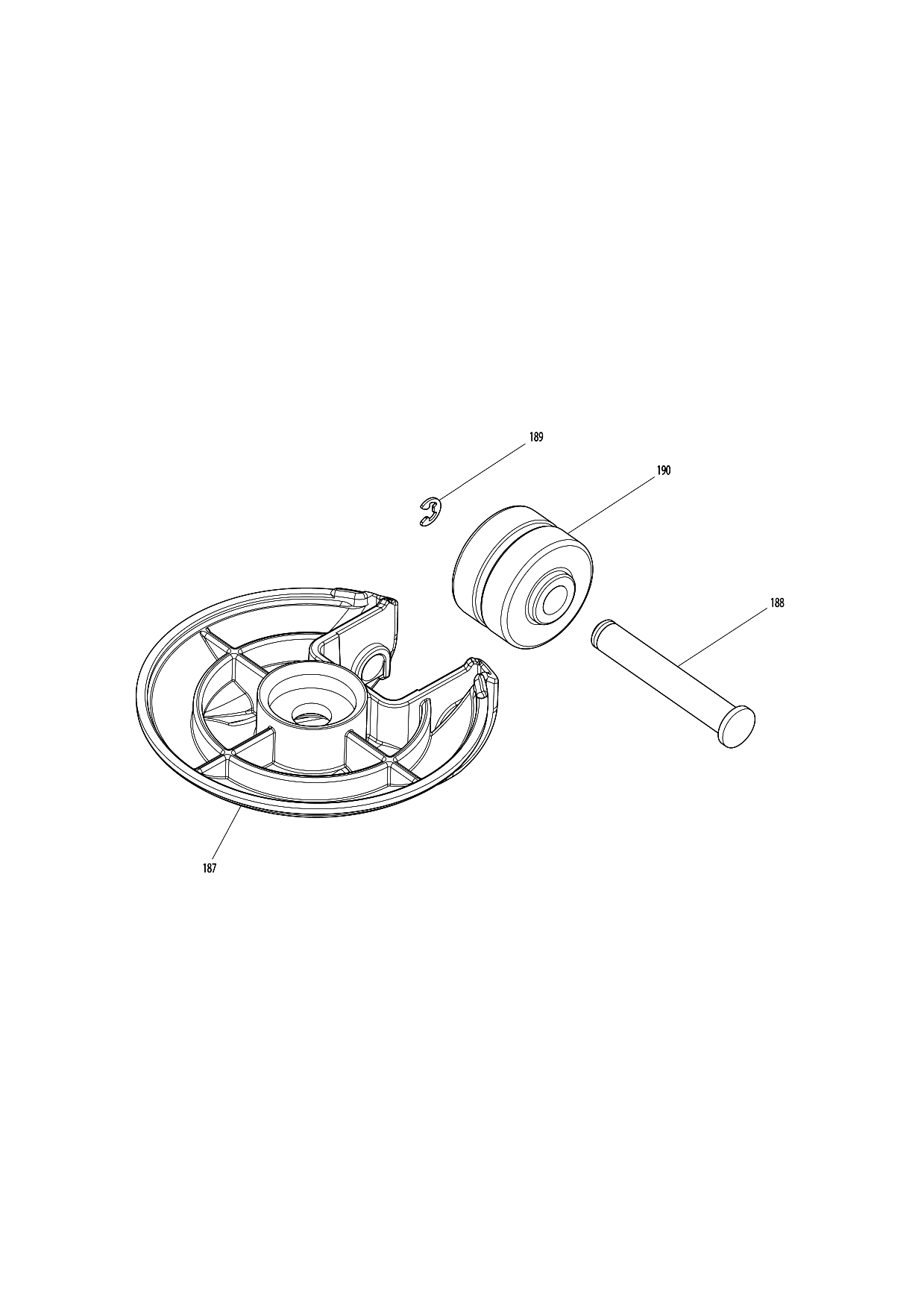

Sheet 8: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 187 | SH00000166 | Makita SH00000166 REAR CASTER FRAME |
| 188 | SH00000167 | Makita SH00000167 REAR CASTER SHAFT |
| 189 | SH00000135 | Makita SH00000135 U RING |
| 190 | SH00000168 | Makita SH00000168 CASTER ASSY |
Sheet 9: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 191 | SH00000169 | Makita SH00000169 BUMPER |
| 192 | SH00000170 | Makita SH00000170 BUMPER DECO |
| 193 | SH00000171 | Makita SH00000171 US HOLDER C ASSY |
| 194 | SH00000172 | Makita SH00000172 US HOLDER L1 ASSY |
| 195 | SH00000173 | Makita SH00000173 US HOLDER L2 ASSY |
| 196 | SH00000174 | Makita SH00000174 US HOLDER L3 ASSY |
| 197 | SH00000175 | Makita SH00000175 US HOLDER R1 ASSY |
| 198 | SH00000176 | Makita SH00000176 US HOLDER R2 ASSY |
| 199 | SH00000177 | Makita SH00000177 US HOLDER R3 ASSY |
| 200 | SH00000245 | Makita SH00000245 US CABLE C |
| 201 | SH00000179 | Makita SH00000179 US CABLE 1 |
| 202 | SH00000179 | Makita SH00000179 US CABLE 1 |
| 203 | SH00000180 | Makita SH00000180 US CABLE 2 |
| 204 | SH00000180 | Makita SH00000180 US CABLE 2 |
| 205 | SH00000181 | Makita SH00000181 US CABLE 3 |
| 206 | SH00000181 | Makita SH00000181 US CABLE 3 |
| 207 | SH00000182 | Makita SH00000182 US EARTH CABLE |
| 208 | SH00000183 | Makita SH00000183 WASHER(4.5/25/T1) |
| 209 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 210 | ||
| 211 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 212 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 213 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 214 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 215 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 216 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 217 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 261 | SH00000244 | Makita SH00000244 FERRITE CORE |

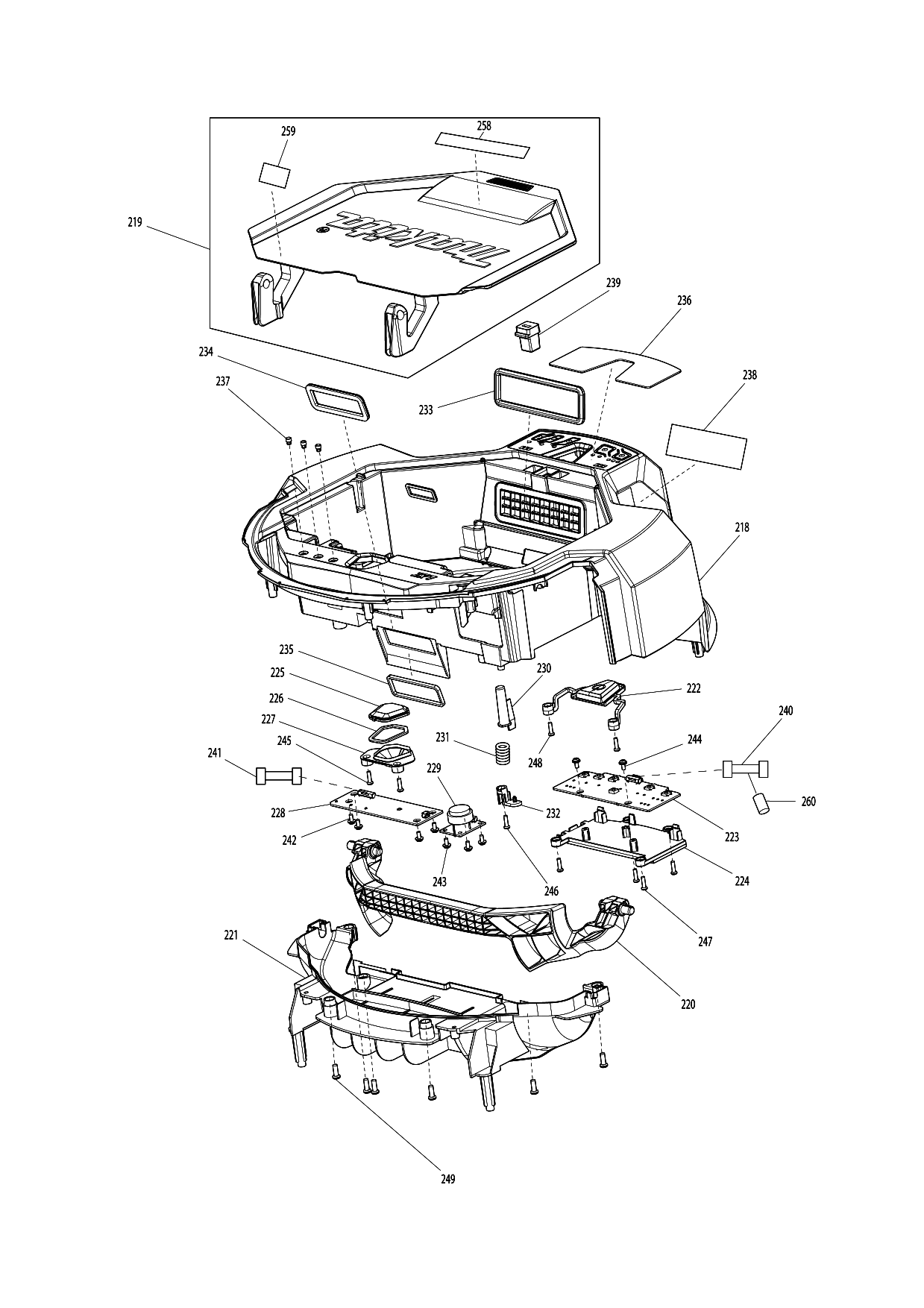

Sheet 10: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 218 | SH00000185 | Makita SH00000185 UPPER BODY |
| 220 | SH00000187 | Makita SH00000187 HANDLE |
| 221 | SH00000188 | Makita SH00000188 HANDLE COVER |
| 222 | SH00000189 | Makita SH00000189 UI BUTTON |
| 223 | SH00000190 | Makita SH00000190 UI PWB ASSY |
| 224 | SH00000191 | Makita SH00000191 UI PWB HOLDER |
| 225 | SH00000192 | Makita SH00000192 LED LENS L |
| 226 | SH00000193 | Makita SH00000193 LED LENS SEAL |
| 227 | SH00000194 | Makita SH00000194 LED REFLECTOR |
| 228 | SH00000195 | Makita SH00000195 LED PWB ASSY |
| 229 | SH00000196 | Makita SH00000196 BUZZER PWB ASSY |
| 230 | SH00000197 | Makita SH00000197 FILTER BUTTON |
| 231 | SH00000198 | Makita SH00000198 FILTER BUTTON SP |
| 232 | SH00000199 | Makita SH00000199 FILTER BUTTON HOLDER |
| 233 | SH00000200 | Makita SH00000200 INTAKE PACKING |
| 234 | SH00000201 | Makita SH00000201 NOZZLE PACKING |
| 235 | SH00000202 | Makita SH00000202 NOZZLE SEAL |
| 236 | SH00000248 | Makita SH00000248 UI KEY SHEET |
| 237 | SH00000204 | Makita SH00000204 LED LENS S |
| 238 | SH00000205 | Makita SH00000205 EXHAUST FILTER ASSY |
| 239 | SH00000206 | Makita SH00000206 CATCH LATCH |
| 240 | SH00000249 | Makita SH00000249 UI CABLE |
| 241 | SH00000208 | Makita SH00000208 LED CABLE |
| 242 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 243 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 244 | SH00000110 | Makita SH00000110 SCREW(M3X8XWASHER8) |
| 245 | SH00000184 | Makita SH00000184 SCREW(M3X6) |
| 246 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 247 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 248 | SH00000071 | Makita SH00000071 SCREW(M3X10) |
| 249 | SH00000111 | Makita SH00000111 SCREW(M4X10) |
| 258 | SH00000252 | Makita SH00000252 CAUTION LABEL |
| 259 | SH00000253 | Makita SH00000253 ROBOPRO LABEL |
| 260 | SH00000244 | Makita SH00000244 FERRITE CORE |

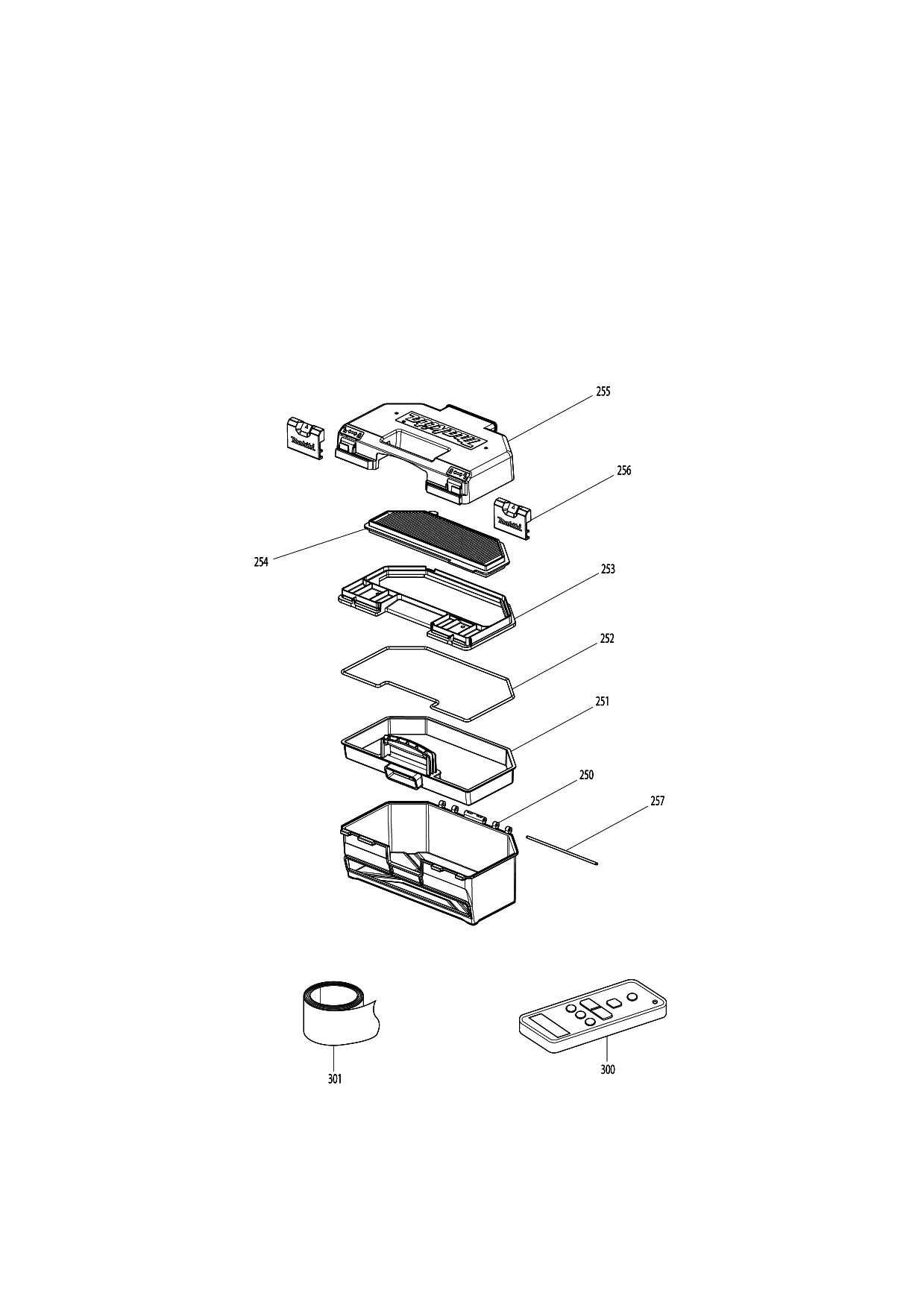

Sheet 11: Makita DRC200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 250 | SH00000209 | Makita SH00000209 DUST BOX LOWER |
| 251 | SH00000210 | Makita SH00000210 DUST CASE |
| 252 | SH00000211 | Makita SH00000211 DUST SEAL RING |
| 253 | SH00000212 | Makita SH00000212 DUST BOX UPPER |
| 254 | SH00000213 | Makita SH00000213 Filter Unit Assembly |
| 255 | SH00000214 | Makita SH00000214 DUST BOX COVER |
| 256 | SH00000215 | Makita SH00000215 DUST SLIDE LEVER |
| 257 | SH00000216 | Makita SH00000216 DUST BOX PIN |
| 300 | SH00000219 | Makita SH00000219 RF Controller Assembly for DRC200 |
| 301 | SH00000231 | Makita SH00000231 Sensor Wall Tape EU |
Selected parts0
