Makita DPT353
Makita DPT353: exploded parts diagram, 2 sheets, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DPT353: 101 positions on 2 sheets

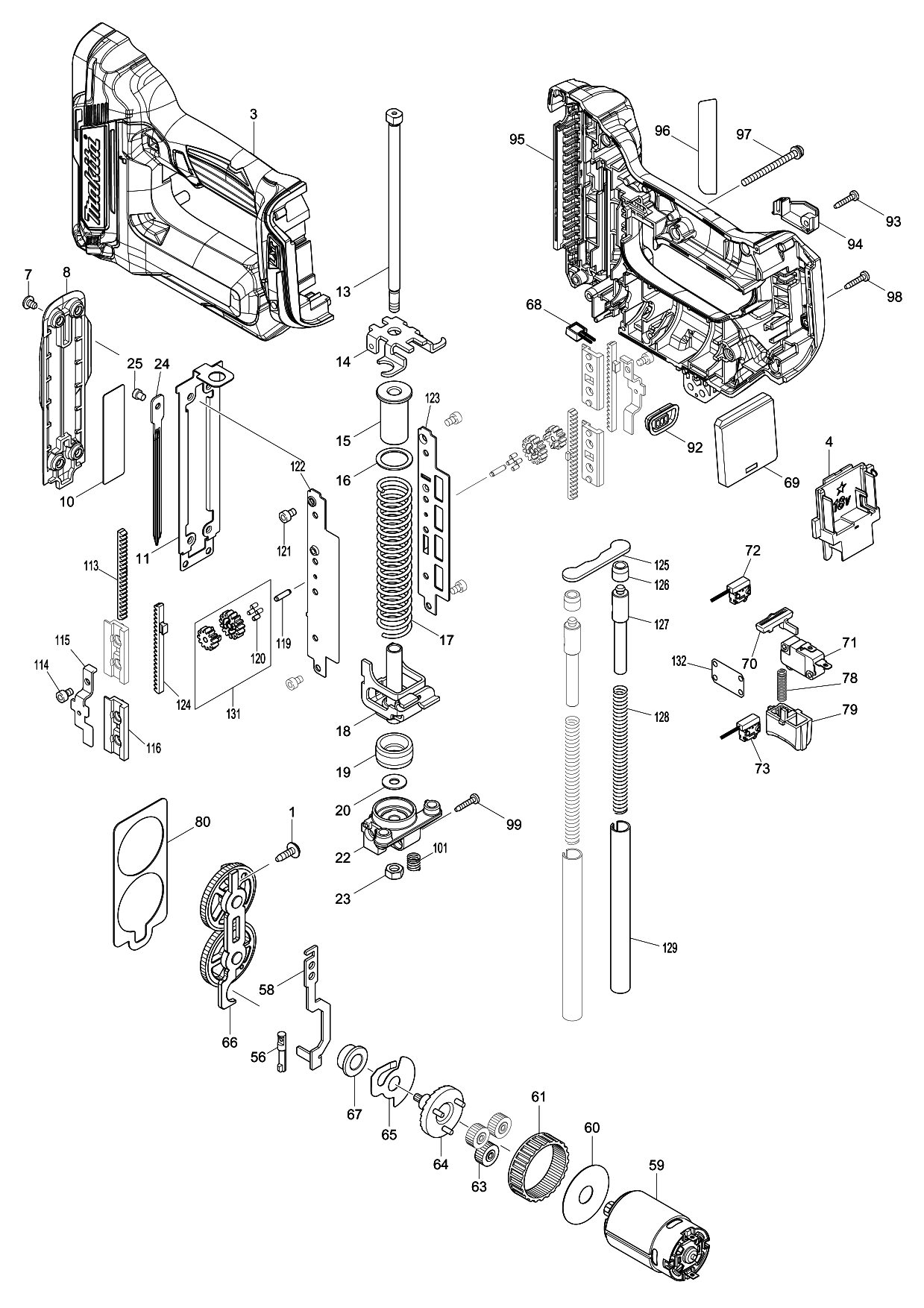

Sheet 1: Makita DPT353 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266901-4 | Makita 266901-4 TAPPING SCREW 4*14 |
| 3 | 183F93-9 | Makita 183F93-9 HOUSING SET |
| 4 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 7 | 915101-0 | Makita 915101-0 BINDING HEAD SCREW M4X6 |
| 8 | 457384-1 | Makita 457384-1 FRONT COVER |
| 10 | 345704-0 | Makita 345704-0 UPPER PLATE, BPT350 |
| 11 | 347140-6 | Makita 347140-6 RAIL |
| 13 | 326903-3 | Makita 326903-3 GUIDE BOLT |
| 14 | 347143-0 | Makita 347143-0 BOTTOM PLATE |
| 15 | 457389-1 | Makita 457389-1 SPRING HOLDER |
| 16 | 347148-0 | Makita 347148-0 SPRING BASE |
| 17 | 232364-6 | Makita 232364-6 COMPRESSION SPRING 17 |
| 18 | 347141-4 | Makita 347141-4 HAMMER |
| 19 | 424952-5 | Makita 424952-5 CUSHION |
| 20 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 22 | 319537-9 | Makita 319537-9 HOLDER |
| 23 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 24 | 345702-4 | Makita 345702-4 Driver XTP02 XTP01 BPT350 BPT351 DPT350 DPT351 |
| 25 | 268157-5 | Makita 268157-5 PIN 4BPT350 |
| 56 | 268158-3 | Makita 268158-3 PIN 5BPT350 |
| 58 | 347139-1 | Makita 347139-1 LOCK ARM |
| 59 | 629253-8 | Makita 629253-8 DC Motor 18V for XTP02 |
| 60 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 61 | 227166-3 | Makita 227166-3 INTERNAL GEAR 69BPT350 |
| 63 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 64 | 154973-0 | Makita 154973-0 SPUR GEAR 7 COMPLETEBPT350 |
| 65 | 345773-1 | Makita 345773-1 ANTI BACK PLATEBPT350 |
| 66 | 144290-6 | Makita 144290-6 SPUR GEAR 55 COMPLETE |
| 67 | 214060-8 | Makita 214060-8 PLANE BEARING 10 |
| 68 | 620507-6 | Makita 620507-6 LED CIRCUIT |
| 69 | 632J89-6 | Makita 632J89-6 CONTROLLER UNIT |
| 70 | 456799-9 | Makita 456799-9 TRIGGER LOCK |
| 71 | 632J09-0 | Makita 632J09-0 SWITCH UNIT |
| 72 | 632G60-2 | Makita 632G60-2 SWITCH UNIT |
| 73 | 632K06-2 | Makita 632K06-2 SWITCH UNIT |
| 78 | 232370-1 | Makita 232370-1 COMPRESSION SPRING 5 |
| 79 | 457386-7 | Makita 457386-7 TRIGGER |
| 80 | 347142-2 | Makita 347142-2 GEAR PLATE |
| 92 | 143778-3 | Makita 143778-3 INDICATOR PANEL COMPLETE |
| 93 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 94 | 457385-9 | Makita 457385-9 HOUSING R COVER |
| 95 | 183F93-9 | Makita 183F93-9 HOUSING SET |
| 96 | 852X49-8 | |
| 97 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 98 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 99 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 101 | 232365-4 | Makita 232365-4 COMPRESSION SPRING 7 |
| 113 | 310780-3 | Makita 310780-3 COUNTER WEIGHT A |
| 114 | 251566-5 | Makita 251566-5 H.S.H BOLT M4X6 WITH W, DPT353 |
| 115 | 347146-4 | Makita 347146-4 PINION GUIDE |
| 116 | 457390-6 | Makita 457390-6 COUNTER WEIGHT HOLDER |
| 119 | 326902-5 | Makita 326902-5 PINION SHAFT |
| 120 | 424953-3 | Makita 424953-3 DUMPER RUBBER |
| 121 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 122 | 347145-6 | Makita 347145-6 GUIDE RAIL R |
| 123 | 347144-8 | Makita 347144-8 GUIDE RAIL L |
| 124 | 310781-1 | Makita 310781-1 COUNTER WEIGHT B |
| 125 | 347147-2 | Makita 347147-2 COUNTER STOPPER |
| 126 | 424954-1 | Makita 424954-1 COUNTER CUSHION |
| 127 | 326904-1 | Makita 326904-1 WEIGHT |
| 128 | 232363-8 | Makita 232363-8 COMPRESSION SPRING 7 |
| 129 | 326901-7 | Makita 326901-7 GUIDE PIPE |
| 132 | 457809-5 | Makita 457809-5 SWITCH GUARD, DPT353 |

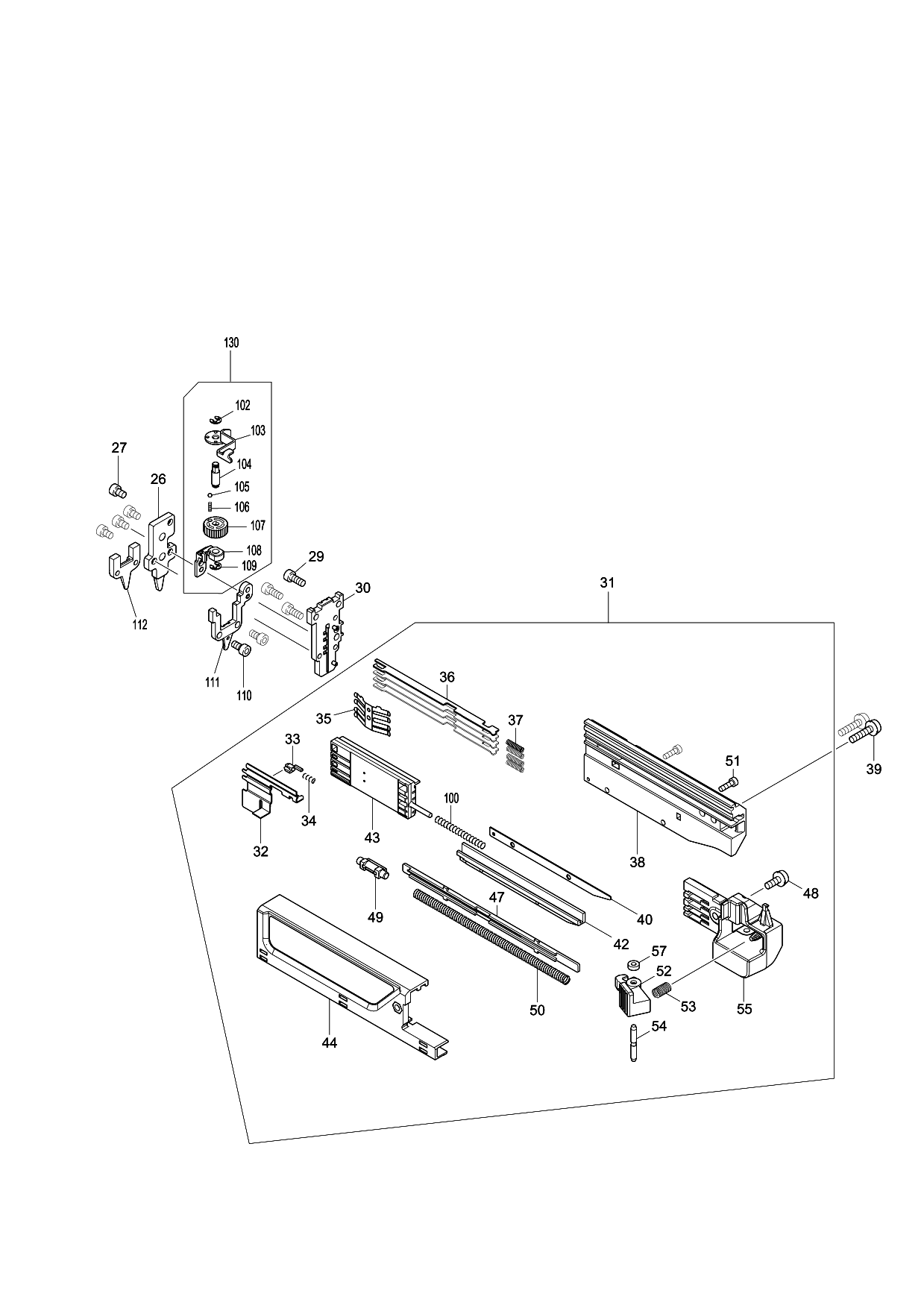

Sheet 2: Makita DPT353 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 26 | 144291-4 | Makita 144291-4 DRIVER GUIDE COVER COMPLETE |
| 27 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 29 | 922112-8 | Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U |
| 30 | 144330-0 | Makita 144330-0 DRIVER GUIDE COMPLETE |
| 32 | 347138-3 | Makita 347138-3 PUSHER |
| 33 | 310176-8 | Makita 310176-8 STOPPERBPT350 |
| 34 | 233018-8 | Makita 233018-8 COMPRESSION SPRING 3 FOR JR3030T |
| 35 | 232362-0 | Makita 232362-0 LEAF SPRING |
| 36 | 346239-4 | Makita 346239-4 NAIL STOPPER BPT350TEC.86620 |
| 37 | 232367-0 | Makita 232367-0 COMPRESSION SPRING 3 |
| 38 | 457379-4 | Makita 457379-4 MAGAZINE |
| 39 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 40 | 347137-5 | Makita 347137-5 SPACER |
| 42 | 144335-0 | Makita 144335-0 LOWER RAIL COMPLETE |
| 43 | 457382-5 | Makita 457382-5 NAIL GUIDE HOLDER |
| 44 | 457380-9 | Makita 457380-9 UPPER RAIL |
| 47 | 457387-5 | Makita 457387-5 SPRING COVER |
| 48 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 49 | 457383-3 | Makita 457383-3 SHOULDER PIN 5-6 |
| 50 | 232366-2 | Makita 232366-2 COMPRESSION SPRING 5 |
| 51 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 52 | 457388-3 | Makita 457388-3 LEVER |
| 53 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 54 | 256793-9 | Makita 256793-9 PIN 3 |
| 55 | 457381-7 | Makita 457381-7 SLIDE DOOR CAP |
| 57 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 100 | 233459-8 | Makita 233459-8 COMPRESSION SPRING 3, HR1830FT |
| 102 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 103 | 347136-7 | Makita 347136-7 CONTACT ARM |
| 104 | 326905-9 | Makita 326905-9 ADJUSTER SHAFT |
| 105 | 216031-1 | Makita 216031-1 STEEL BALL 2.3AN911H |
| 106 | 234254-9 | Makita 234254-9 COMPRESSION SPRING 2 |
| 107 | 457378-6 | Makita 457378-6 ADJUSTER |
| 108 | 310778-0 | Makita 310778-0 ARM |
| 109 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 110 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 111 | 144329-5 | Makita 144329-5 Center Plate Complete |
| 112 | 310777-2 | Makita 310777-2 CONTACT TOP COVER |
