All parts of Makita DPT351: 97 positions on 1 sheet

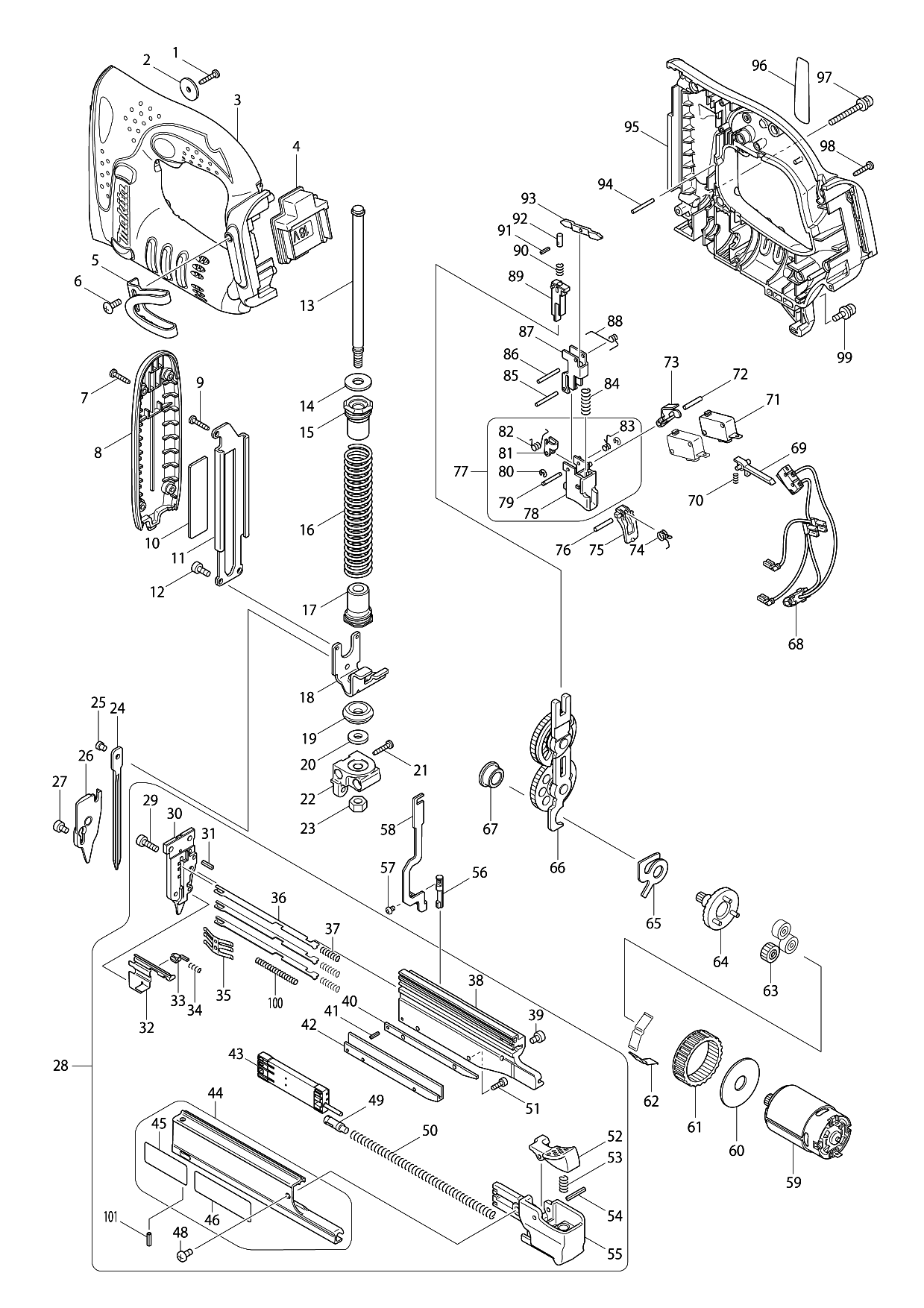

Sheet 1: Makita DPT351 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | 267071-2 | Makita 267071-2 FLAT WASHER 4, MUB062 |
| 3 | 187098-5 | Makita 187098-5 HOUSING SETBPT351 |
| 4 | 643843-3 | Makita 643843-3 TERMINAL |
| 5 | 346317-0 | Makita 346317-0 HOOK NARROW FOR 14,4V/18V 3,0AH BATTERY TOOLS |
| 6 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
| 7 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 8 | 419450-2 | Makita 419450-2 FRONT COVER, BPT350 |
| 9 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 10 | 345704-0 | Makita 345704-0 UPPER PLATE, BPT350 |
| 11 | 345703-2 | Makita 345703-2 RAIL, BPT350 |
| 12 | 922112-8 | Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U |
| 13 | 324683-5 | Makita 324683-5 GUIDE BOLT, BPT350 |
| 14 | 253762-1 | Makita 253762-1 FLAT WASHER 8, LS1045 |
| 15 | 421962-3 | Makita 421962-3 SPRING HOLDER, BPT350 |
| 16 | 233472-6 | Makita 233472-6 COMPRESSION SPRING 17 |
| 17 | 421962-3 | Makita 421962-3 SPRING HOLDER, BPT350 |
| 18 | 345701-6 | Makita 345701-6 HAMMER, BPT350 |
| 19 | 421956-8 | Makita 421956-8 CUSHION, BPT350 |
| 20 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 21 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 22 | 318025-3 | Makita 318025-3 HOLDER, BPT350 |
| 23 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 24 | 345702-4 | Makita 345702-4 Driver XTP02 XTP01 BPT350 BPT351 DPT350 DPT351 |
| 25 | 268157-5 | Makita 268157-5 PIN 4BPT350 |
| 26 | 168430-2 | Makita 168430-2 DRIVER GUIDE COVERBPT350 |
| 27 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 29 | 922122-5 | Makita 922122-5 H.S.H.BOLT M4*14, MT430 |
| 30 | 310173-4 | Makita 310173-4 DRIVER GUIDEBPT350 |
| 31 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
| 32 | 345699-7 | Makita 345699-7 PUSHERBPT350 |
| 33 | 310176-8 | Makita 310176-8 STOPPERBPT350 |
| 34 | 233018-8 | Makita 233018-8 COMPRESSION SPRING 3 FOR JR3030T |
| 35 | 232229-2 | Makita 232229-2 LEAF SPRINGBPT350 |
| 36 | 346239-4 | Makita 346239-4 NAIL STOPPER BPT350TEC.86620 |
| 37 | 233476-8 | Makita 233476-8 COMPRESSION SPRING 4BPT350 |
| 38 | 318024-5 | Makita 318024-5 MAGAZINEBPT350 |
| 39 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 40 | 345696-3 | Makita 345696-3 SPACERBPT350 |
| 41 | 951001-0 | Makita 951001-0 SPRING PIN 2-8 |
| 42 | 318023-7 | Makita 318023-7 LOWER RAILBPT350 |
| 43 | 452877-3 | Makita 452877-3 NAIL GUIDE HOLDERTEC.90492 |
| 45 | 813728-9 | Makita 813728-9 SAFETY INSTRUCTION LBPT350 |
| 46 | ||
| 48 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 49 | 419443-9 | Makita 419443-9 SHOULDER PIN 5-7BPT350 |
| 50 | 233470-0 | Makita 233470-0 COMPRESSION SPRING 5BPT350 |
| 51 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 52 | 419446-3 | Makita 419446-3 LEVERBPT350 |
| 53 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 54 | 951066-2 | Makita 951066-2 SPRING PIN 3-18 |
| 55 | 419444-7 | Makita 419444-7 SLIDE DOOR CAPBPT350 |
| 56 | 268158-3 | Makita 268158-3 PIN 5BPT350 |
| 57 | 265040-7 | Makita 265040-7 PAN HEAD SCREW M3X4 9032 |
| 58 | 345705-8 | Makita 345705-8 LOCK ARMBPT350 |
| 59 | 629910-8 | Makita 629910-8 Motor 18V for BPT351 DPT351 |
| 60 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 61 | 227166-3 | Makita 227166-3 INTERNAL GEAR 69BPT350 |
| 62 | 232230-7 | Makita 232230-7 LEAF SPRINGBPT350 |
| 63 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 64 | 154973-0 | Makita 154973-0 SPUR GEAR 7 COMPLETEBPT350 |
| 65 | 345773-1 | Makita 345773-1 ANTI BACK PLATEBPT350 |
| 66 | 154972-2 | Makita 154972-2 SPUR GEAR 55 COMPLETBPT350 |
| 67 | 214060-8 | Makita 214060-8 PLANE BEARING 10 |
| 68 | 620073-3 | Makita 620073-3 LED CIRCUITBPT351 |
| 69 | 419452-8 | Makita 419452-8 LIGHT SWITCH ARMBPT350 |
| 70 | 233032-4 | Makita 233032-4 COMPRESSION SPRING 2 |
| 71 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 72 | 256299-7 | Makita 256299-7 PIN 3BPT350 |
| 73 | 419453-6 | Makita 419453-6 LINK PLATEBPT350 |
| 74 | 231693-4 | Makita 231693-4 TORSION SPRING 4BPT350 |
| 75 | 419454-4 | Makita 419454-4 SAFETY TRIGGERBPT350 |
| 76 | 256299-7 | Makita 256299-7 PIN 3BPT350 |
| 78 | 419451-0 | Makita 419451-0 TRIGGERBPT350 |
| 79 | 256771-9 | Makita 256771-9 PIN 2.5BPT350 |
| 80 | 257926-9 | Makita 257926-9 STOP RING E-2.0BPT350,BFR440 |
| 81 | 345707-4 | Makita 345707-4 SWING ARMBPT350 |
| 82 | 231694-2 | Makita 231694-2 TORSION SPRING 3BPT350 |
| 83 | 231695-0 | Makita 231695-0 TORSION SPRING 3BPT350 |
| 84 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 85 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 86 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 87 | 345706-6 | Makita 345706-6 GUIDE PLATEBPT350 |
| 88 | 231692-6 | Makita 231692-6 TORSION SPRING 4BPT350 |
| 89 | 168489-9 | Makita 168489-9 CAM BLOCKBPT351 |
| 90 | 233188-3 | Makita 233188-3 COMPRESSION SPRING 2.4 |
| 91 | 951001-0 | Makita 951001-0 SPRING PIN 2-8 |
| 92 | 324923-1 | Makita 324923-1 PUSH PINBPT351 |
| 93 | 345708-2 | Makita 345708-2 SWITCH ARMBPT350 |
| 94 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 95 | 187098-5 | Makita 187098-5 HOUSING SETBPT351 |
| 96 | 815W07-9 | |
| 97 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 98 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 99 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 100 | 233459-8 | Makita 233459-8 COMPRESSION SPRING 3, HR1830FT |
| 101 | 951054-9 | Makita 951054-9 SPRING PIN 3-10 |
