Makita DPO500
Makita DPO500: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DPO500: 56 positions on 1 sheet

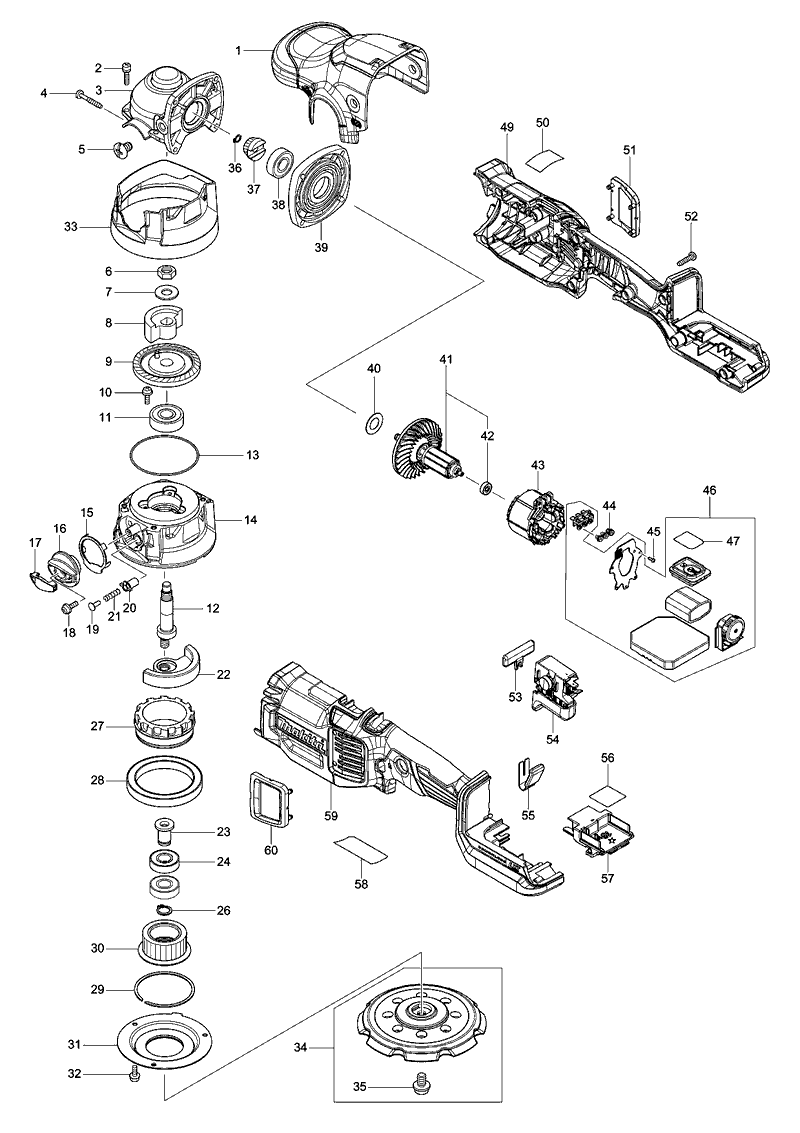

Sheet 1: Makita DPO500 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 456805-0 | Makita 456805-0 HEAD COVER |
| 2 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 3 | 143783-0 | Makita 143783-0 GEAR HOUSING COMPLETE |
| 4 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 5 | 265083-9 | Makita 265083-9 FLAT HEAD SCREW M8X11 |
| 6 | 931503-2 | Makita 931503-2 HEX. NUT M10 |
| 7 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 8 | 326735-8 | Makita 326735-8 UPPER BALANCE WEIGHT |
| 9 | 143782-2 | Makita 143782-2 SPIRAL BEVEL GEAR 37 COMPLETE |
| 10 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 11 | 211145-1 | Makita 211145-1 BALL BEARING 6201ZZ, MT410 |
| 12 | 324069-3 | Makita 324069-3 SPINDLE |
| 13 | 213724-1 | Makita 213724-1 O RING 62 |
| 14 | 143784-8 | Makita 143784-8 SKIRT COMPLETE |
| 15 | 153427-4 | Makita 153427-4 DUST SEAL WASHER COM T |
| 16 | 143785-6 | Makita 143785-6 KNOB COMPLETE |
| 17 | 456809-2 | Makita 456809-2 CAP |
| 18 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 19 | 417382-7 | Makita 417382-7 SPRING HOLDER |
| 20 | 345209-0 | Makita 345209-0 PIDIN BO6040 |
| 21 | 231230-4 | Makita 231230-4 COMPRESSION SPRING 4 |
| 22 | 326736-6 | Makita 326736-6 LOWER BALANCE WEIGHT |
| 23 | 324070-8 | Makita 324070-8 SLEEVE |
| 24 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 26 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 27 | 221453-2 | Makita 221453-2 INTERNAL SPUR GEAR 29 |
| 28 | 210146-6 | Makita 210146-6 BALL BEARING 6902ZZ |
| 29 | 257933-2 | Makita 257933-2 STOP RING (EXT) WR-55 |
| 30 | 143790-3 | Makita 143790-3 SPUR GEAR 26 COMPLETE |
| 31 | 143938-7 | Makita 143938-7 BEARING RETAINER 80 COMPLETE |
| 32 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 33 | 456806-8 | Makita 456806-8 BUMPER |
| 35 | 266270-3 | Makita 266270-3 HEX.SOCKET HEAD BOLT M8X1 |
| 36 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 37 | 221450-8 | Makita 221450-8 SPIRAL BEVEL GEAR 10 |
| 38 | 211142-7 | Makita 211142-7 BALL BEARING 6001LLB |
| 39 | 317359-1 | Makita 317359-1 GEAR HOUSING COVER |
| 40 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 41 | 519546-0 | |
| 42 | 210036-3 | Makita 210036-3 Ball Bearing 604ZZ TD140D |
| 43 | 629391-6 | |
| 44 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 45 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 47 | 818M11-7 | |
| 49 | 183K93-9 | |
| 50 | 818M10-9 | |
| 51 | 422380-8 | |
| 52 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 53 | 458972-7 | |
| 54 | 651381-1 | |
| 55 | 232494-3 | |
| 56 | 855B96-6 | |
| 57 | 643874-2 | Makita 643874-2 Terminal |
| 58 | 855B93-2 | |
| 59 | 183K93-9 | |
| 60 | 422380-8 |
