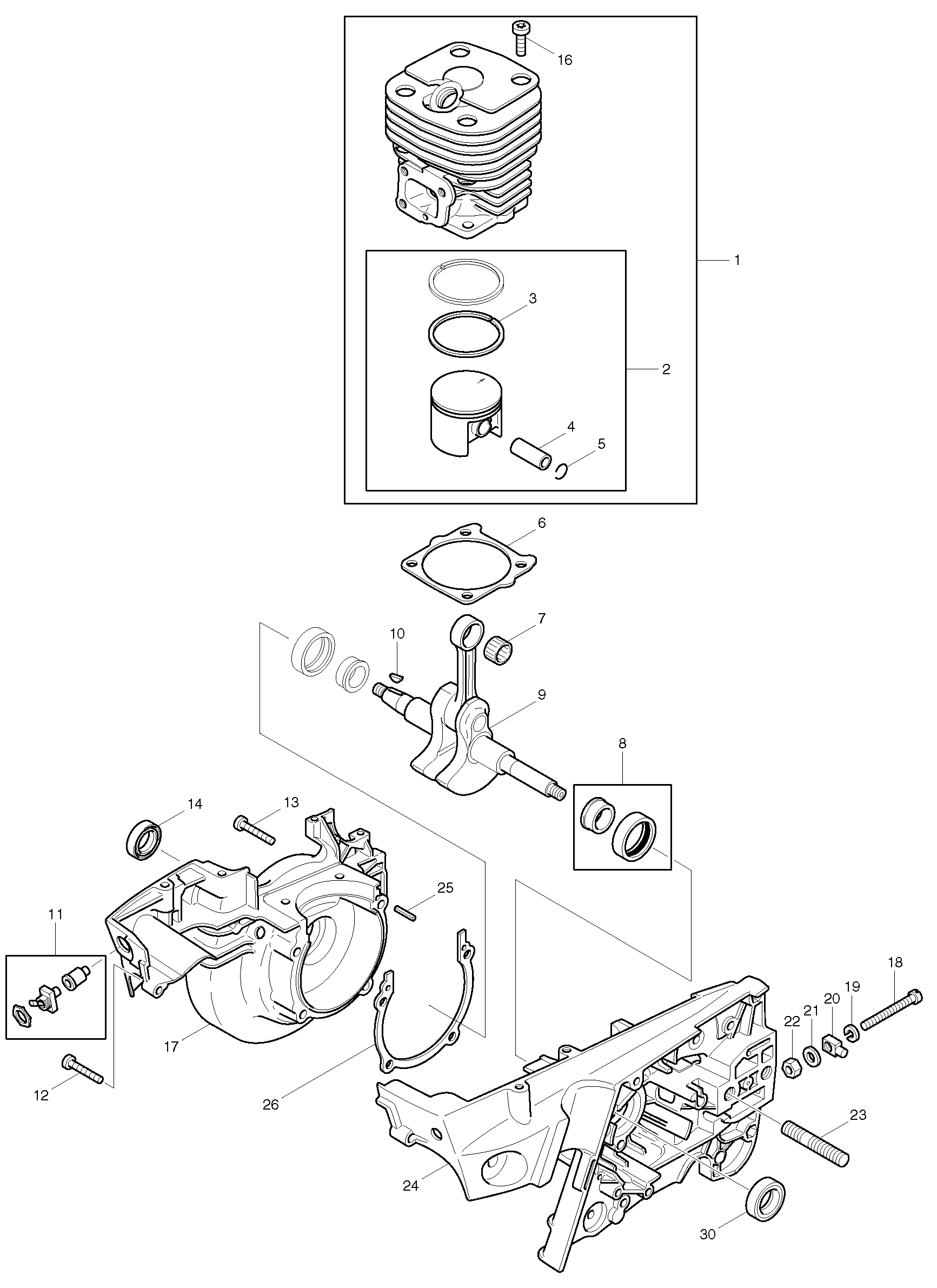

Sheet 1: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 1
No.Part numberPart name
3031132050Makita 031132050 MÄNTÄ RENGAS 55X1,2
4031132020Makita 031132020 MÄNTÄ TAPPI
5119132060Makita 119132060 SPRING RING, C12X1
6965521023Makita 965521023 TIIVISTE
7962210015Makita 962210015 NEULA KEHIKKO TORR.116X13
8960602173Makita 960602173 RULLAER BRG SKF 17/4X12
9031120001Makita 031120001 KAMPIAKSELI
10939630370Makita 939630370 KEY 3.0X3.7REPAIR
11957605112Makita 957605112 KYTKIN 109.110I.111.115.PS-43/52/540
12908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
13908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
14962900054Makita 962900054 STEFA
16908006205Makita 908006205 SCREW
17031111630Makita 031111630 KAMPIKOTELO-MS
18965551051Makita 965551051 KUPUKANTA RUUVI 6X70
19926206000Makita 926206000 JOUSI LEVY A6
20123213010Makita 123213010 NELIÖMUTTERI
21924306400Makita 924306400 LEVY 6,4
22922606000Makita 922606000 HEXAHONAL MUTTERI M6
23905810354Makita 905810354 MÄNNÄNTAPPI 10X35
24031111650Makita 031111650 KAMPIKOTELO CL. PUOLI
25936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
26965518013Makita 965518013 TIIVISTE
30962900051Makita 962900051 STEFA

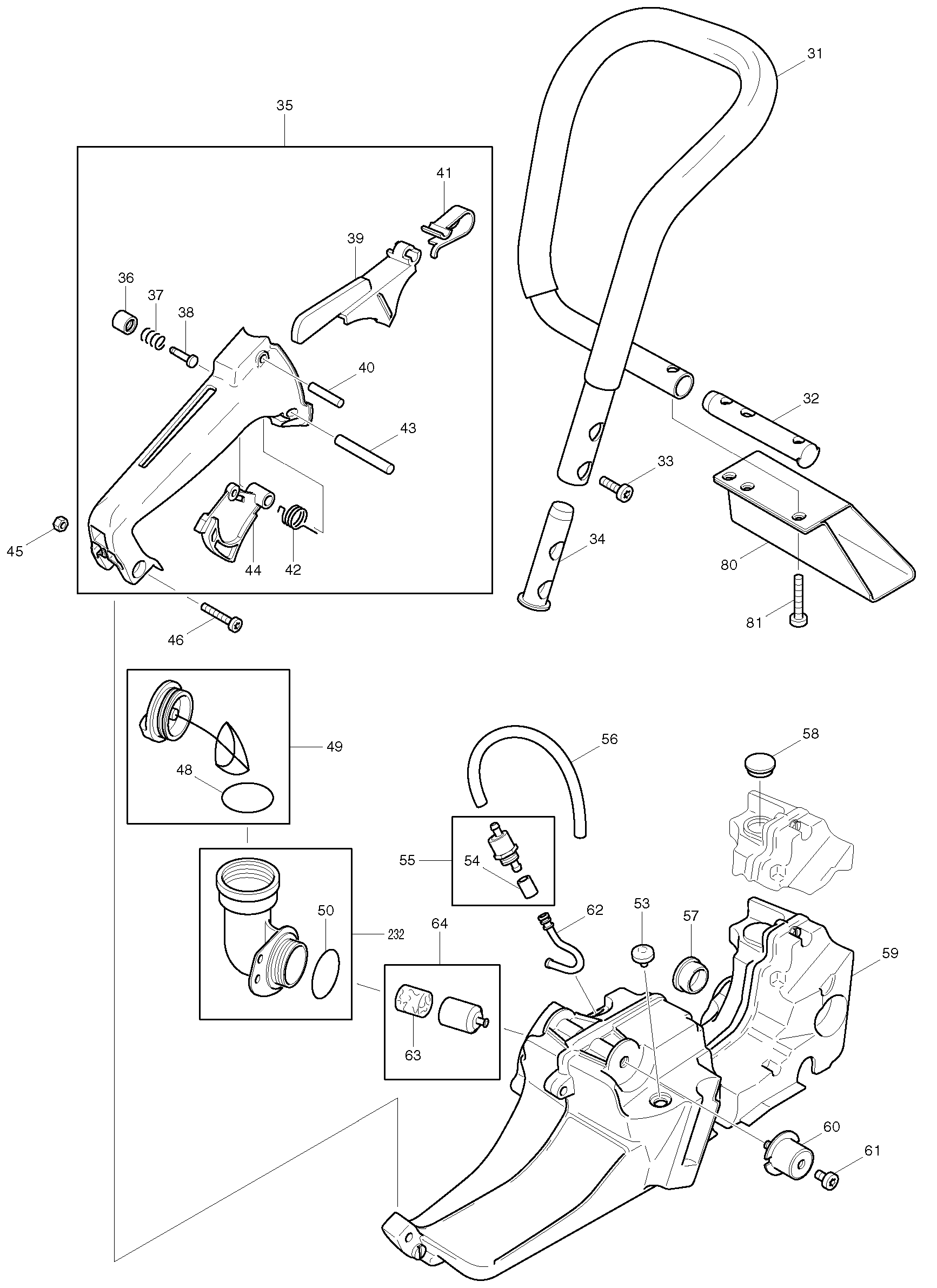

Sheet 2: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 2
No.Part numberPart name
31123310011Makita 123310011 ETUKAHVA
32144310072Makita 144310072 VAHVISTUS PALA
33908006205Makita 908006205 SCREW
34122310051Makita 122310051 VAHVISTUS PALA
36965451750Makita 965451750 NAPPI
37965551160Makita 965551160 PAINE SPRIN
38965551150Makita 965551150 STOP TAPPI
39119117030Makita 119117030 KAASUN VARM. VIPU
40935940240Makita 935940240 CYL.TAPPI 4M6X24
41119117052Makita 119117052 JOUSI
42119117041Makita 119117041 JOUSI
43935950400Makita 935950400 CYL.TAPPI 5M6X40
44119117021Makita 119117021 KAASU VIPU
45920205000Makita 920205000 MUTTERI M5 110I.115115I.
46908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
48963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
50980113841Makita 980113841 KILPI ''I-0''
53965402360Makita 965402360 BUFFER
54965452490Makita 965452490 PUTKI 8,5/14
56965452480Makita 965452480 LETKU 4X2
57965451560Makita 965451560 STOPPARI
58965451710Makita 965451710 STOPPARI
59123114600Makita 123114600 TANKKI TÄYD
60965403131Makita 965403131 KUMIVAIMENNIN
61908006105Makita 908006105 KUPUKANTA RUUVI 6X10 T27
62965450200Makita 965450200 IMU LETKU
63963601240Makita 963601240 FELT FOR SUCTION HEAD
80392320100Makita 392320100 JALKA
81908006355Makita 908006355 RUUVI

Sheet 3: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 3
No.Part numberPart name
83965604230Makita 965604230 JOUSI
84965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
85980114094Makita 980114094 KILPI
87928405000Makita 928405000 DISC
88965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
90900004363Makita 900004363 VÄLILEVY 15X74,5X0,5
91123163013Makita 123163013 KÄYNNISTYSJOUSI
92123163020Makita 123163020 JOUSI KANSI
93907204102Makita 907204102 THREAD FORMING RUUVI
94123162031Makita 123162031 NARU RUMPU
95929314100Makita 929314100 LUKKO RENGAS A14X1V
96985000165Makita 985000165 NARU 4,0 MM - 100 METER
97908005255Makita 908005255 RUUVI
98920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
99928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
101031166010Makita 031166010 STARTER RATCHET CPL. PC-7414 / 8216
103908004125Makita 908004125 KUPUKANTA RUUVI 4X12 T27
104900003050Makita 900003050 FELT LEVY 17X27X5
105965401015Makita 965401015 KUMI PUSSLA

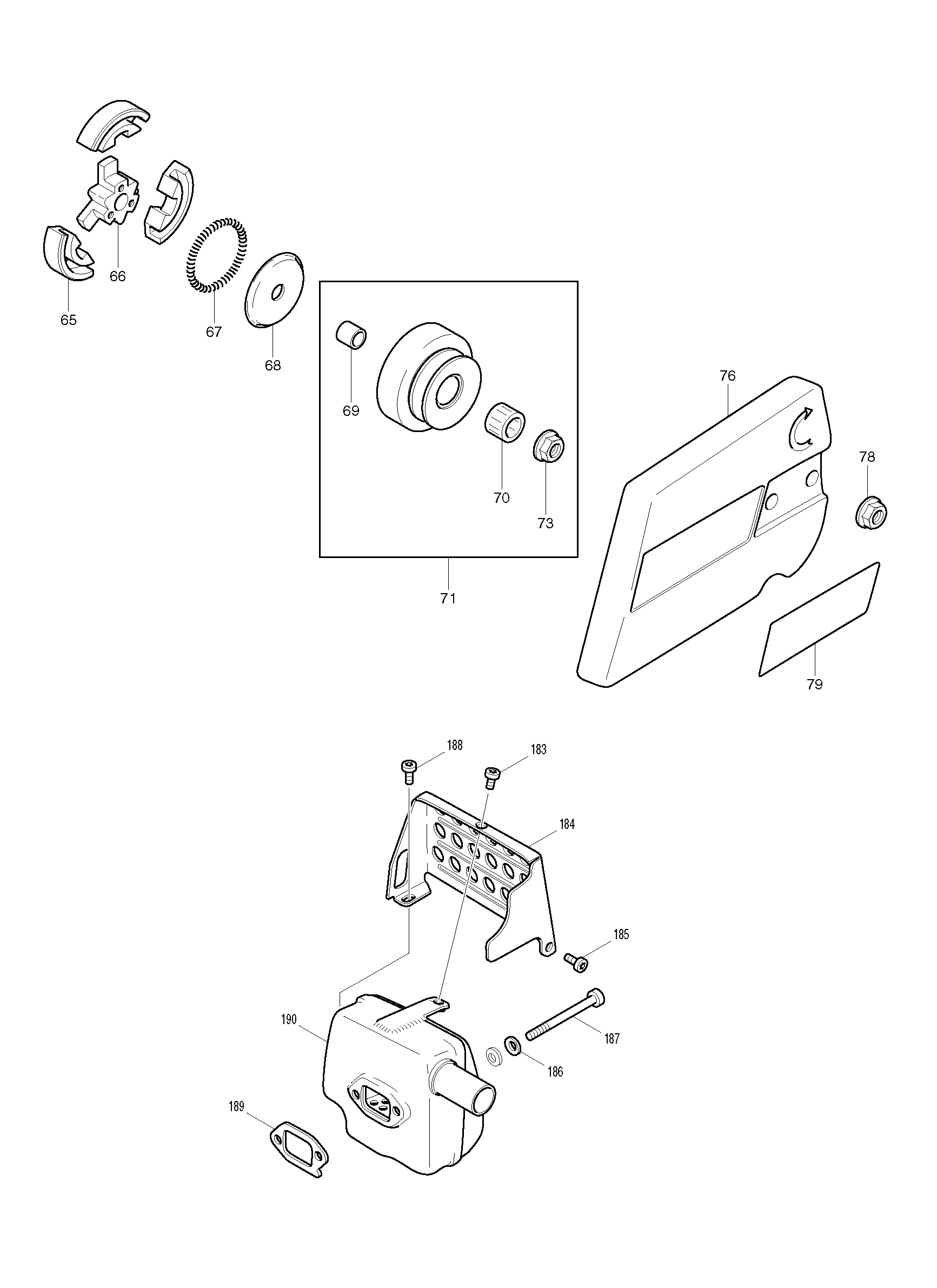

Sheet 4: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 4
No.Part numberPart name
65123181010Makita 123181010 KYTKIN KENKÄ (SARJA)
66122182011Makita 122182011 HUB
67122184011Makita 122184011 JOUSI
68122182030Makita 122182030 OHJAIN LEVY
69962200006Makita 962200006 SISEMPI RENGAS
70962300016Makita 962300016 NEULA KEHIKKO INA 151X16
73923210003Makita 923210003 HEX MUTTERI M10 VASE
76398213600Makita 398213600 KETJUPYÖRÄSUOJA
78923210002Makita 923210002 KUUSIO MUTTERI
79980114087Makita 980114087 KILPI DPC 9500
183908005095Makita 908005095 SCREW111.115.PS-43/52/540
184398174600Makita 398174600 HEAT SHIELD
185908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
186928406000Makita 928406000 JOUSI LEVY
187908006655
188908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
189965518052Makita 965518052 TIIVISTE
190123174159Makita 123174159 PAKOPUTKI

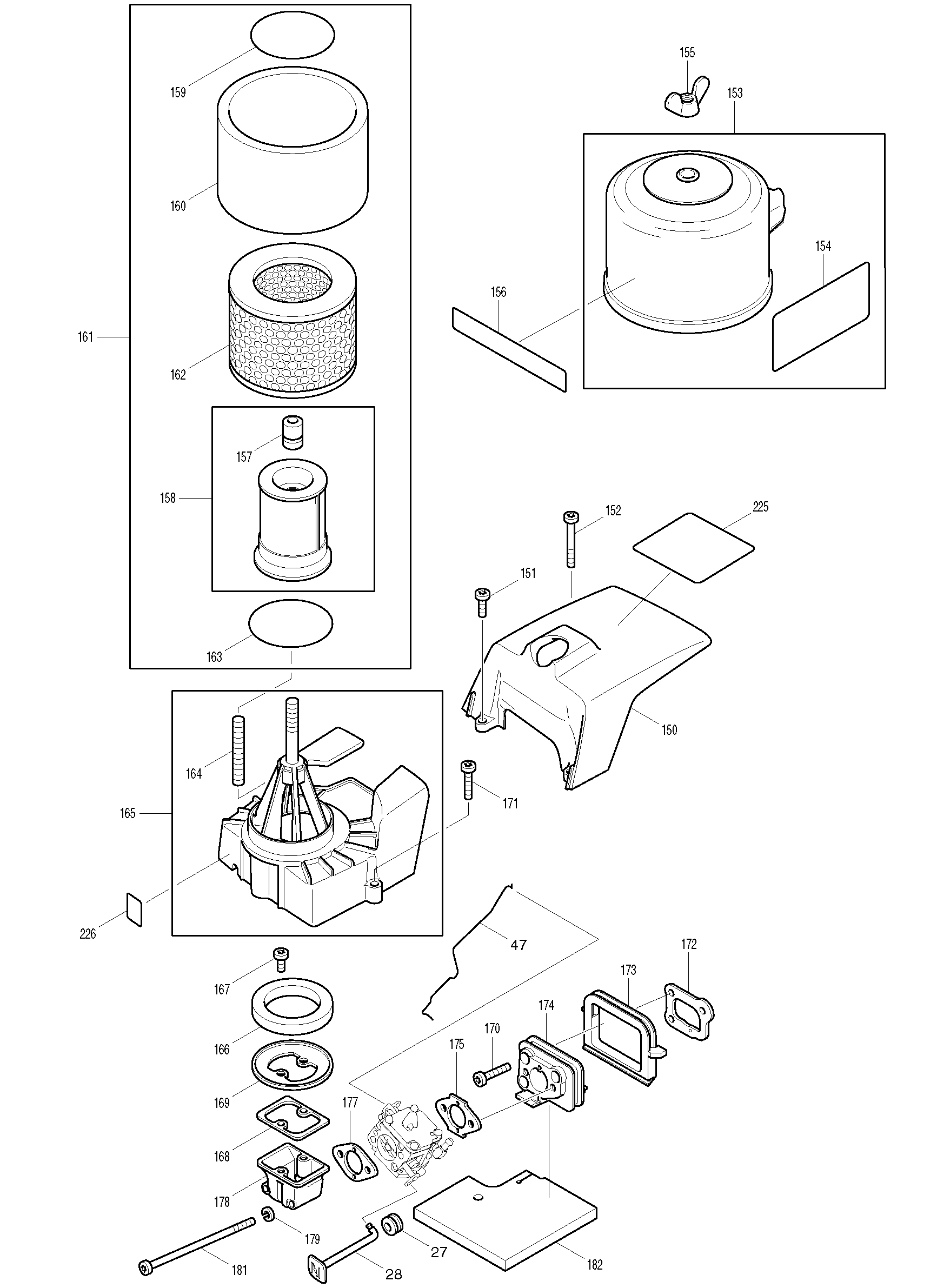

Sheet 5: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 5
No.Part numberPart name
27965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
28031150730Makita 031150730 RYYPPY VARSI
47122117054Makita 122117054 KAASU KAMPI
150392118010Makita 392118010 KOPPA
151908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
152908305405Makita 908305405 KUPUKANTA RUUVI 5X10X40
154980113480
155921708000Makita 921708000 WING MUTTERI M8
156980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
157965401025Makita 965401025 KUMI PUSSLA
159963257070Makita 963257070 TIIVISTE RENGAS
160001173000Makita 001173000 ESI-SUODIN
162122173140Makita 122173140 SUODIN
163963257070Makita 963257070 TIIVISTE RENGAS
164905808555Makita 905808555 RUUVI M 8X55
166965402960Makita 965402960 TIIVISTE
167908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
168965516090Makita 965516090 TIIVISTE
169144171040Makita 144171040 LEVY
170908405255Makita 908405255 KUPUKANTA RUUVI 5X25
171908005255Makita 908005255 RUUVI
172965518111Makita 965518111 TIIVISTE
173133131041Makita 133131041 TIIVISTE
174133131051Makita 133131051 VÄLI LAIPPA
175965518031Makita 965518031 TIIVISTE
177965518090Makita 965518090 TIIVISTE
178144171030Makita 144171030 LIITOSMUHVI
179926105001Makita 926105001 JOUSI ALUSLEVY 5
181908205805Makita 908205805 KUPUKANTA RUUVI 5X80
182965402851Makita 965402851 LEVY
225980114341Makita 980114341 KILPI
226980113841Makita 980113841 KILPI ''I-0''

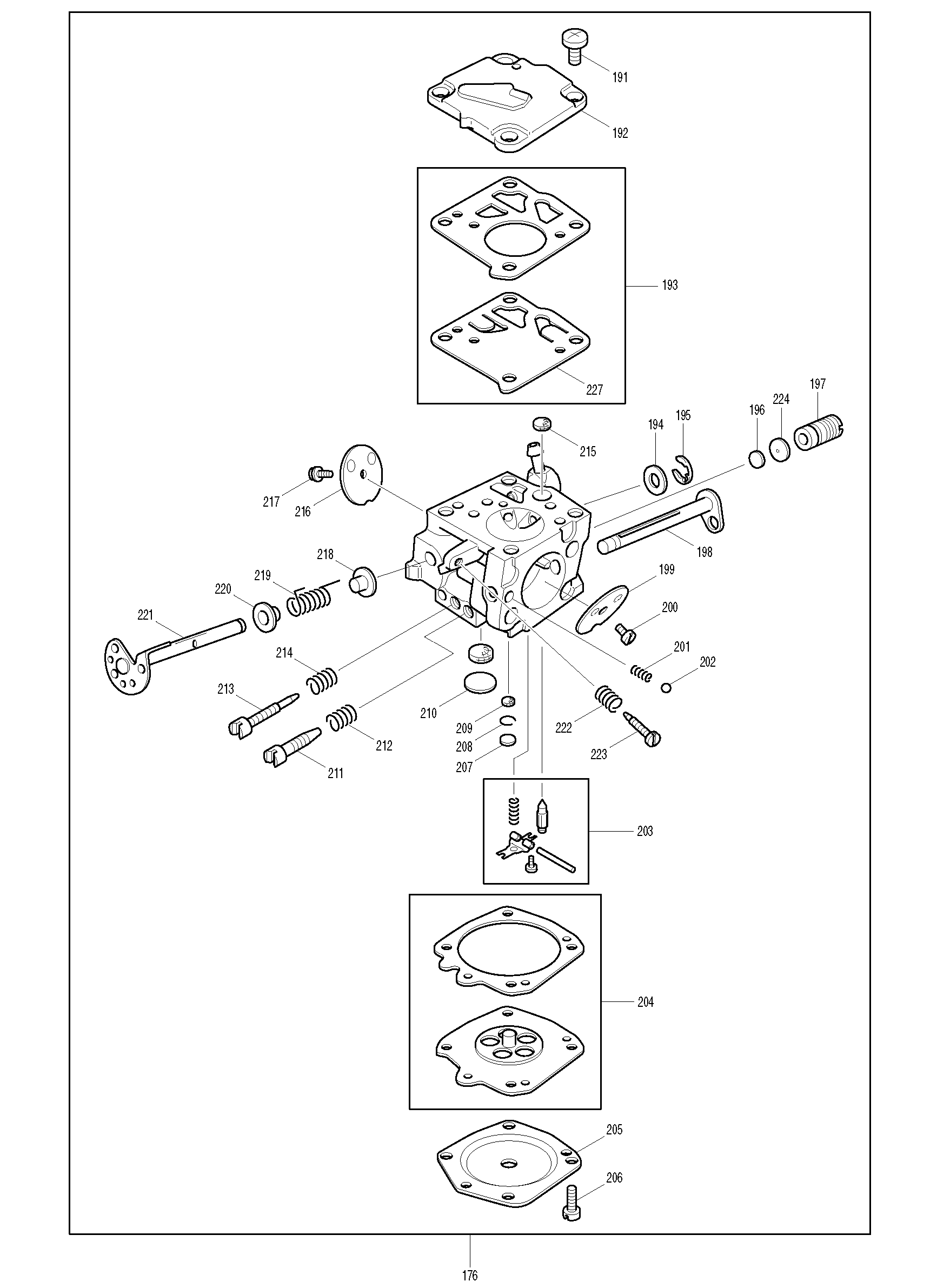

Sheet 6: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 6
No.Part numberPart name
191113150170Makita 113150170 RUUVI JA LUKITUS WASER
192113150160
194122151400Makita 122151400 LEVY
195100150350Makita 100150350 LUKKORENGAS 110I.115I.
196115150560Makita 115150560 TIIVISTE
197122151551Makita 122151551 GOVERNOR VENTTIILI
198031150020Makita 031150020 RYYPPY VARSI
199113150261Makita 113150261 RYYPPY LÄPPÄ
200113150370Makita 113150370 RUUVI JA LUKITUS WASER
201101150080Makita 101150080 JOUSI
202113150380Makita 113150380 KUULA
203957150010Makita 957150010 SARJA CARB SPARES TI HS
204957150100Makita 957150100 TIIVISTE SARJA (HS)
205122151121Makita 122151121 KALVO KANSI
206001150140Makita 001150140 RUUVI
207113150030Makita 113150030 KANSI LEVY
208107150240Makita 107150240 RENGAS
209107150230Makita 107150230 STRAINER SIHTI
210113150040Makita 113150040 NAPPI
211122151510Makita 122151510 MAIN SÄÄTÖ RUUVI
212101150480Makita 101150480 JOUSI
213122151470Makita 122151470 IDLE SÄÄTÖ RUUVI
214144151480Makita 144151480 JOUSI
215020150180Makita 020150180 LIITOSVASTE
216144151320Makita 144151320 KAASU SULKIJA
217113150370Makita 113150370 RUUVI JA LUKITUS WASER
218144151315Makita 144151315 PUSSLA
219144151310Makita 144151310 JOUSI
220144151315Makita 144151315 PUSSLA
221122151302Makita 122151302 KAASU VARSI
222113150240Makita 113150240 IDLE STOP RUUVI
223113150230Makita 113150230 JOUSI
224001150060Makita 001150060 LEVY D=0,7 MM
227113150150Makita 113150150 PUMPPU KALVO

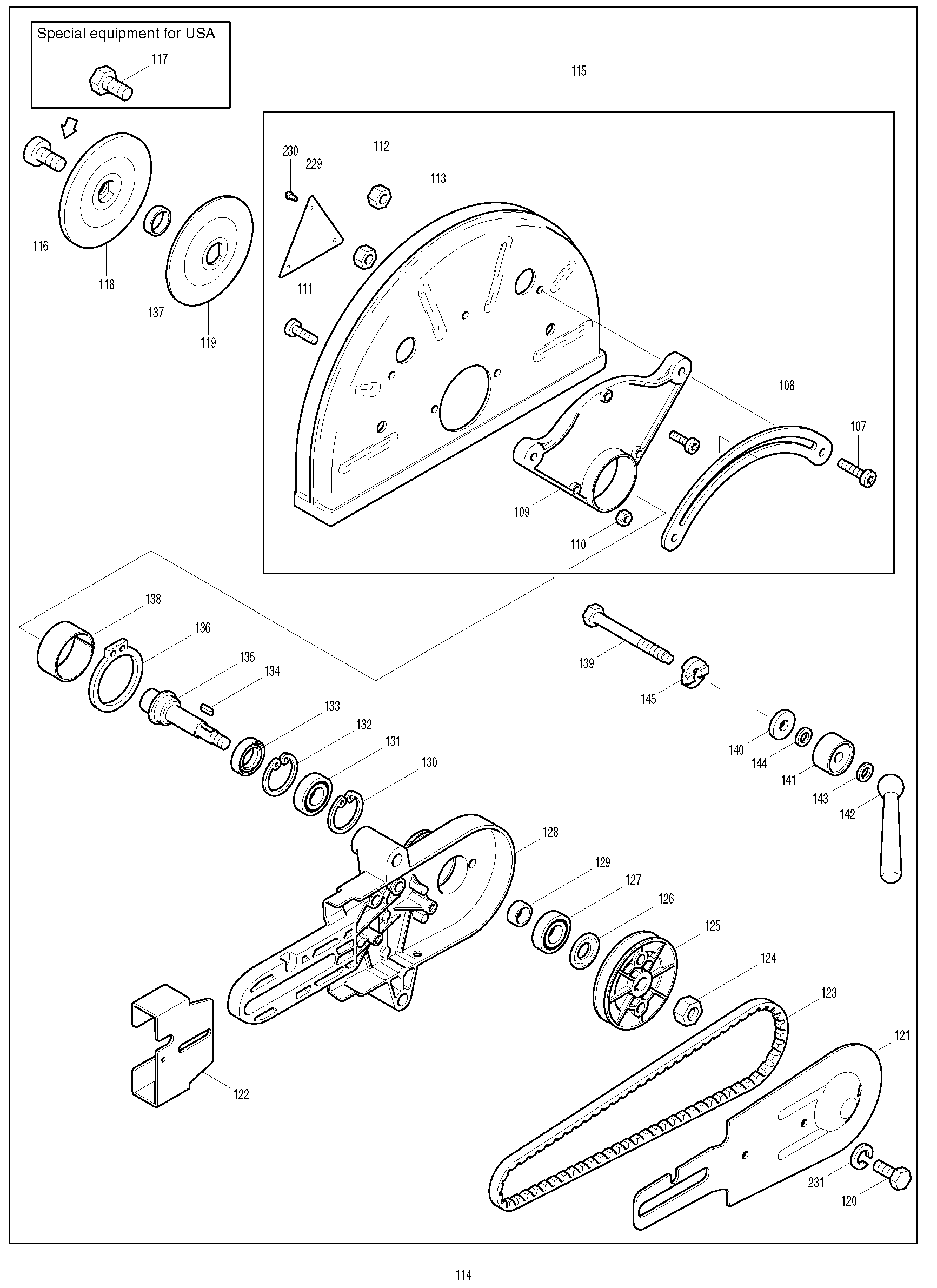

Sheet 7: Makita DPC9500 parts diagram

Makita DPC9500 parts diagram, sheet 7
No.Part numberPart name
107908006255Makita 908006255 RUUVI
108392341040Makita 392341040 KIINNITIN
109395341600Makita 395341600 KÄÄNTÖ PÖYTÄ
110920406000Makita 920406000 KUUSIO MUTTERI M6
111908006205Makita 908006205 SCREW
112920406000Makita 920406000 KUUSIO MUTTERI M6
113392341610Makita 392341610 SUOJA KOPPA
116907310204Makita 907310204 TERÄKIIN. PULTTIM10X1X20 LEFT THREAD
117
118392228340Makita 392228340 PAINE LEVY
119392228350Makita 392228350 PAINE LEVY
120900208202Makita 900208202 KUUSIO RUUVI 8X20
121392410600Makita 392410600 SUOJA LEVY
122392211610Makita 392211610 KÄSI SUOJA - SININ.
123965300440Makita 965300440 V-HIHNA L=867 MM
124920410000Makita 920410000 KUUSIO MUTTERI M10
125392221011Makita 392221011 V-HIHNA PULLEY
126963815320Makita 963815320 RENGAS
127960102155Makita 960102155 KUULA LAAKERI FAG 1535X11
128392211600Makita 392211600 VAIHTEISTO KOTELO
129900005009Makita 900005009 VÄLI RENGAS
130929235150Makita 929235150 LUKKO RENGAS 35X1.5
131960102155Makita 960102155 KUULA LAAKERI FAG 1535X11
132929235150Makita 929235150 LUKKO RENGAS 35X1.5
133962900036
134939144140Makita 939144140 KEY A4X4X14REPAIR
135398228013Makita 398228013 VARSI 20,0 MM
136929145175Makita 929145175 LUKKO RENGAS 45X1.75
137392228040Makita 392228040 ADAPTOR
138398211090Makita 398211090 PUSSLA
139392341070Makita 392341070 KUUSIO RUUVI, LEFT
140392341031Makita 392341031 LEVY
141392341090Makita 392341090 JOUSI KOTELO
142392341080Makita 392341080 KIINNITIN VIPU
143925300000Makita 925300000 LEVY 8X14X0,5
144925300000Makita 925300000 LEVY 8X14X0,5
145392341050Makita 392341050 LEVY 18X22X8
229980113942Makita 980113942 KILPI 80M/S (TYP343)
230938232483Makita 938232483 CHOBERT-TULPPA 3,2X,8
231926208001Makita 926208001 JOUSI LEVY B8
